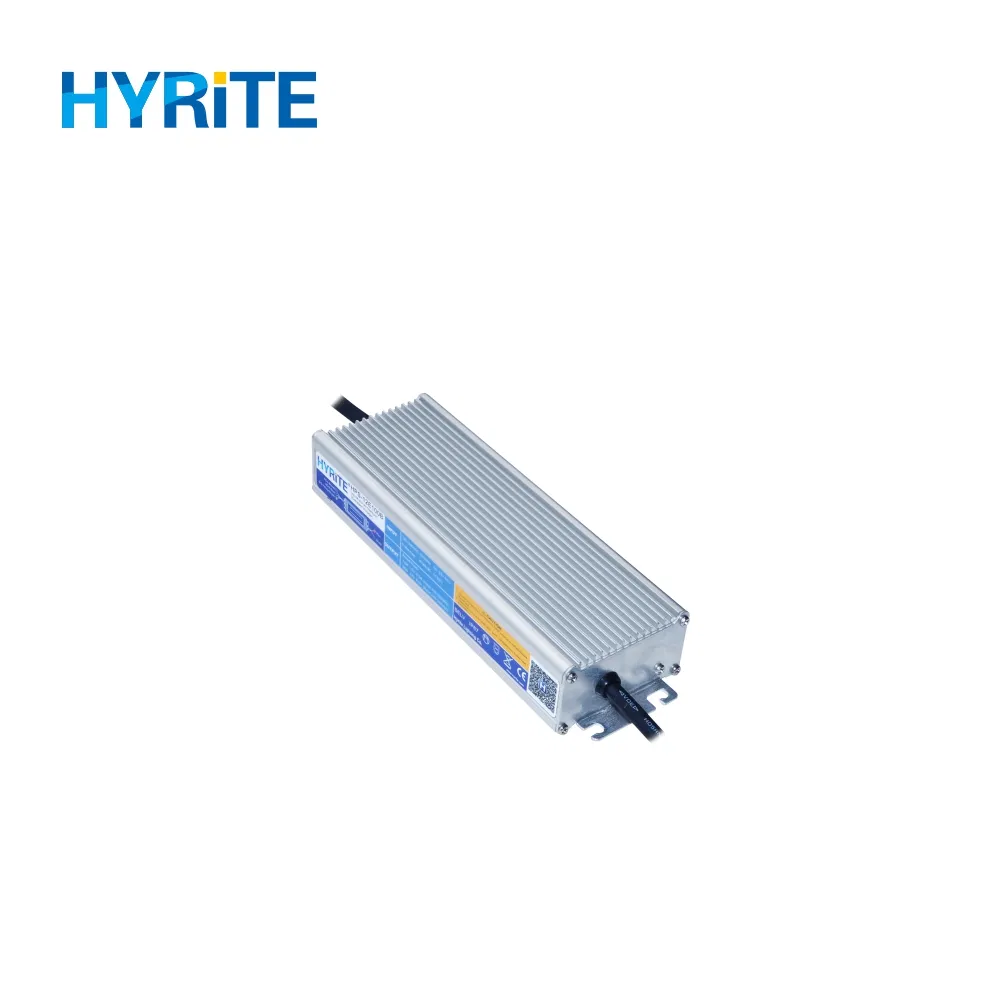

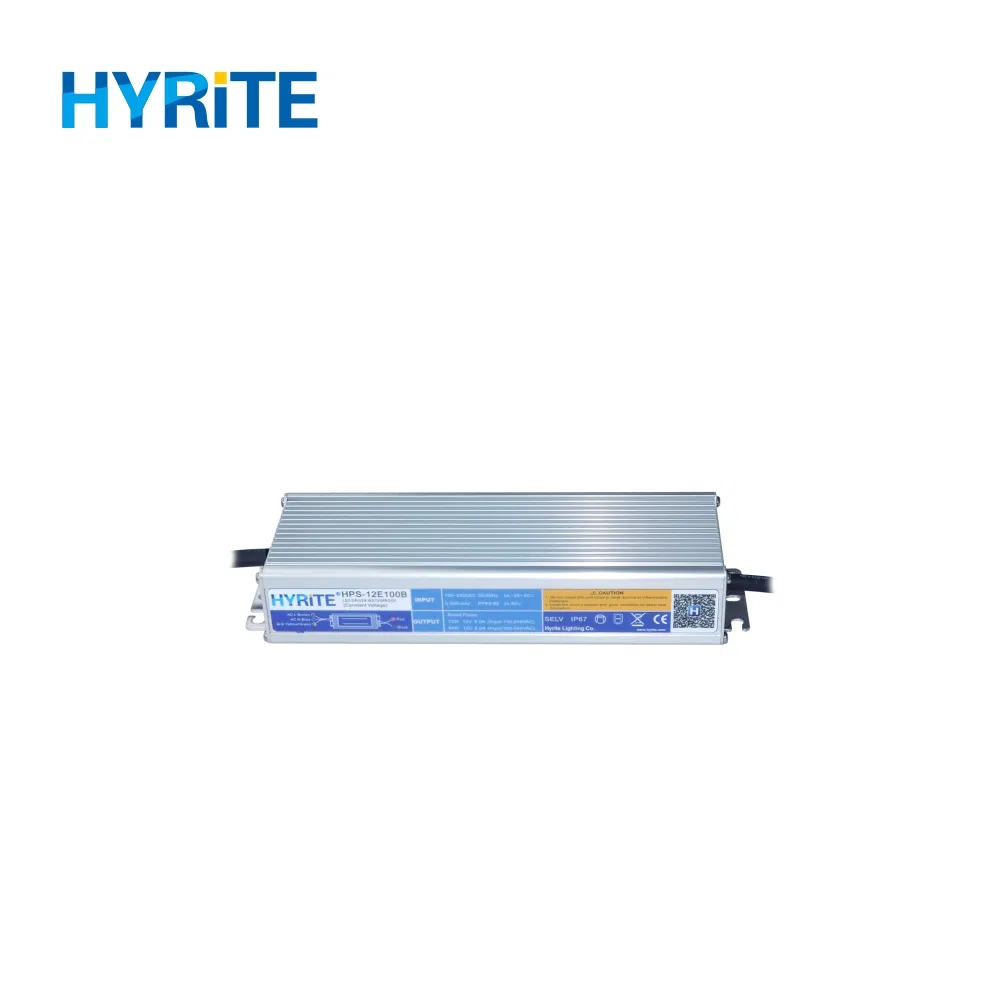

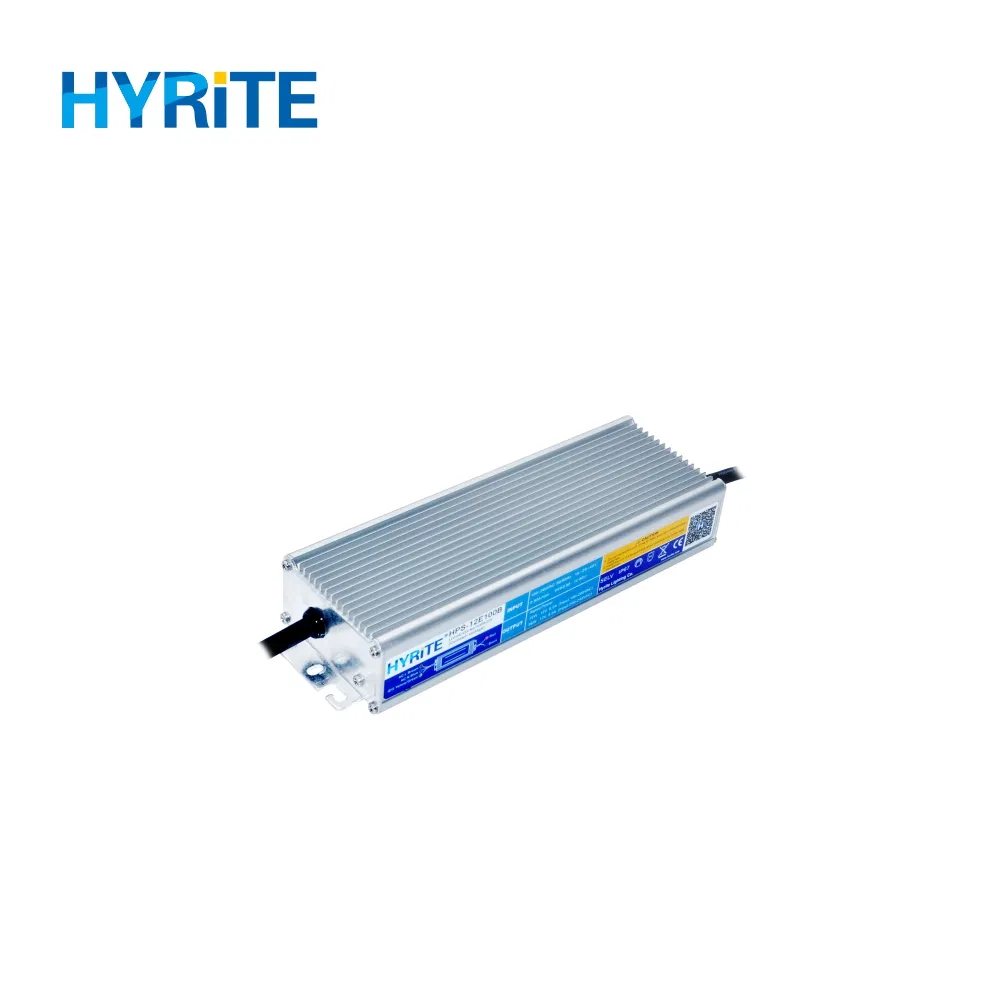

China 120V~277VAC 100W 24volt DC LED Power Supply for Light Box

Product Description

120V~277VAC 100W 24volt dc led power supply for light box

1.Brief Introduction of 100W LED Power Supply

-Slim body, special design for application with narrow space, such as cove light, LED light box, channel letter...
-Fully sealed & waterproof, IP67
-Constant voltage output
-High efficiency up to 90%
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67

2.Technical Specification of 100W LED Power Supply

Model no.	HPS-24E100
Input voltage	90-265 VAC 50/60 Hz
Max. power	100W max
Output type	Constant voltage
Built-in active PFC	Yes
Power factor	0.9
Efficiency	88%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	4.16 A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~+40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE,BIS,PFC,EMC
Product Dimension	22771.538MM
Packing	10pcs/ carton; 12.5KG; 315265225mm

3. Applications of 100W LED Power Supply

*LED module & LED strip
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting
* flex ribbon, bar light, etc...

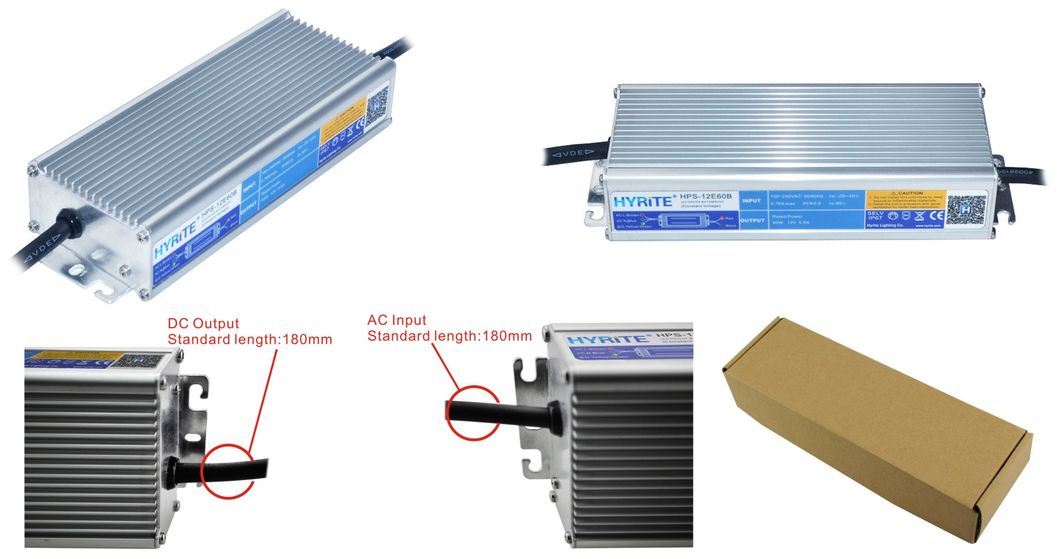

4.Product Details of 100W LED Power Supply
120V~277VAC 100W 24volt DC LED Power Supply for Light Box

5.Projects & Workshop & Exhibitions

120V~277VAC 100W 24volt DC LED Power Supply for Light Box

6. Factory profile:

Hyrite Lighting Co. was found in 1993,ISO9001:2015 certificated,with 10,000m2 clean workshop on 15,000m2 land in Guangdong, China,offices in USA and Europe.Hyrite has been dedicating itself to manufacturing switching power supply for signage and decorative lighting.
Our products passed UL,CSA,FCC,PFC,TUV,CE,C-Tick,EMC,CCC,SAA,SASO,BIS,etc.

Product Line: LED power supply,COB/SMD LED module,Neon power supply,electrode,with full range of certifications and wide range models to be used in different countries or areas.

Quality Control: DVT/DQT,IQC/IPQC/FQC,product 100% burn-in test (aging test),reliable resting labs,climatic environmental testing equipments.

Corporate Culture: Sincere,Optimistic,Creative,Mutually complementary.

Mission: To serve the needs of our clients in gaining a competitive advantage by harnessing technology.

FAQ

Q1. Can I have a sample order for LED Power Supply?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 15-20 working days.

Q3. Do you have any MOQ limit for LED Power Supply order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED Power Supply?

A:1. please let us know your product's requirements

2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.

Q6. Is it OK to print my logo on LED Power Supply product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: How to deal with the faulty?

A: 1. Our products are produced in strict quality control system and the defective rate will be less

than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
