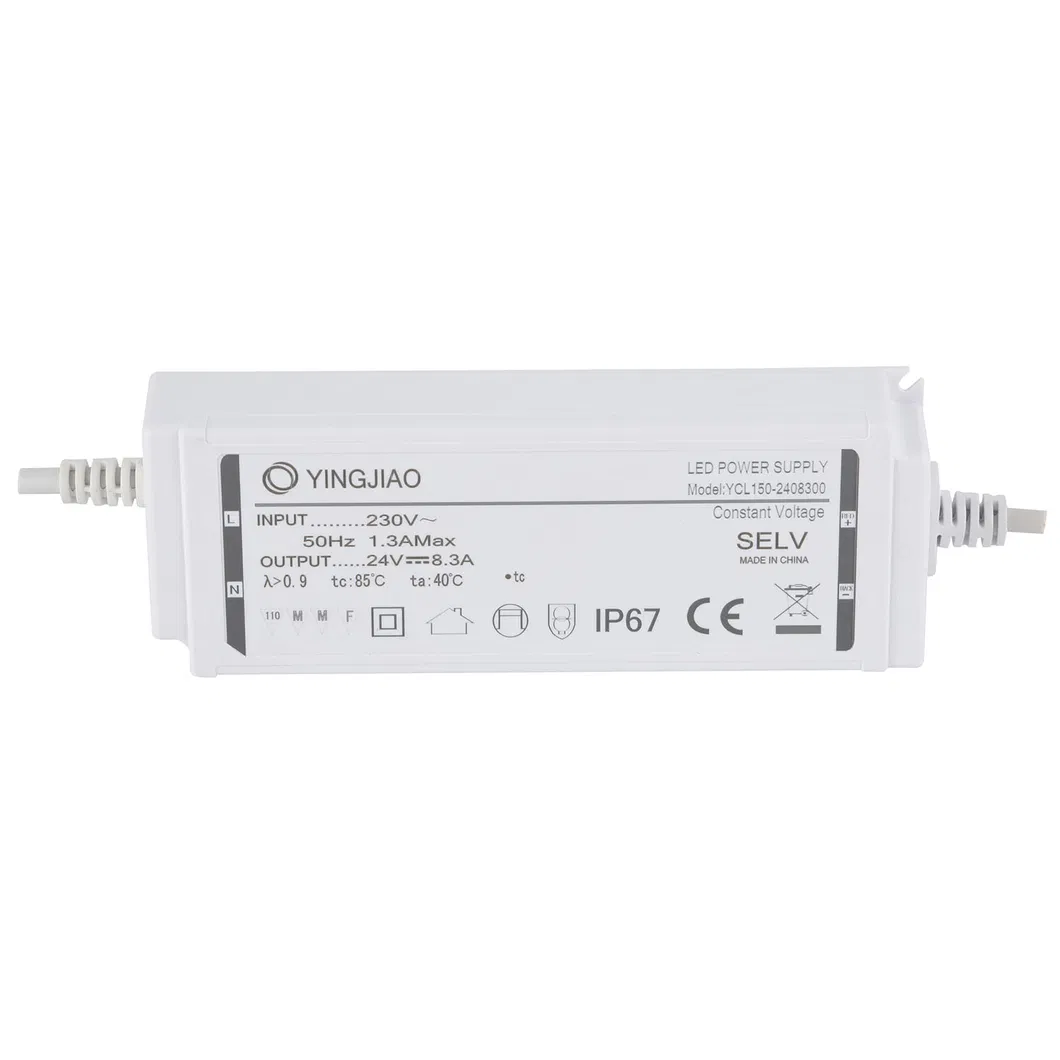

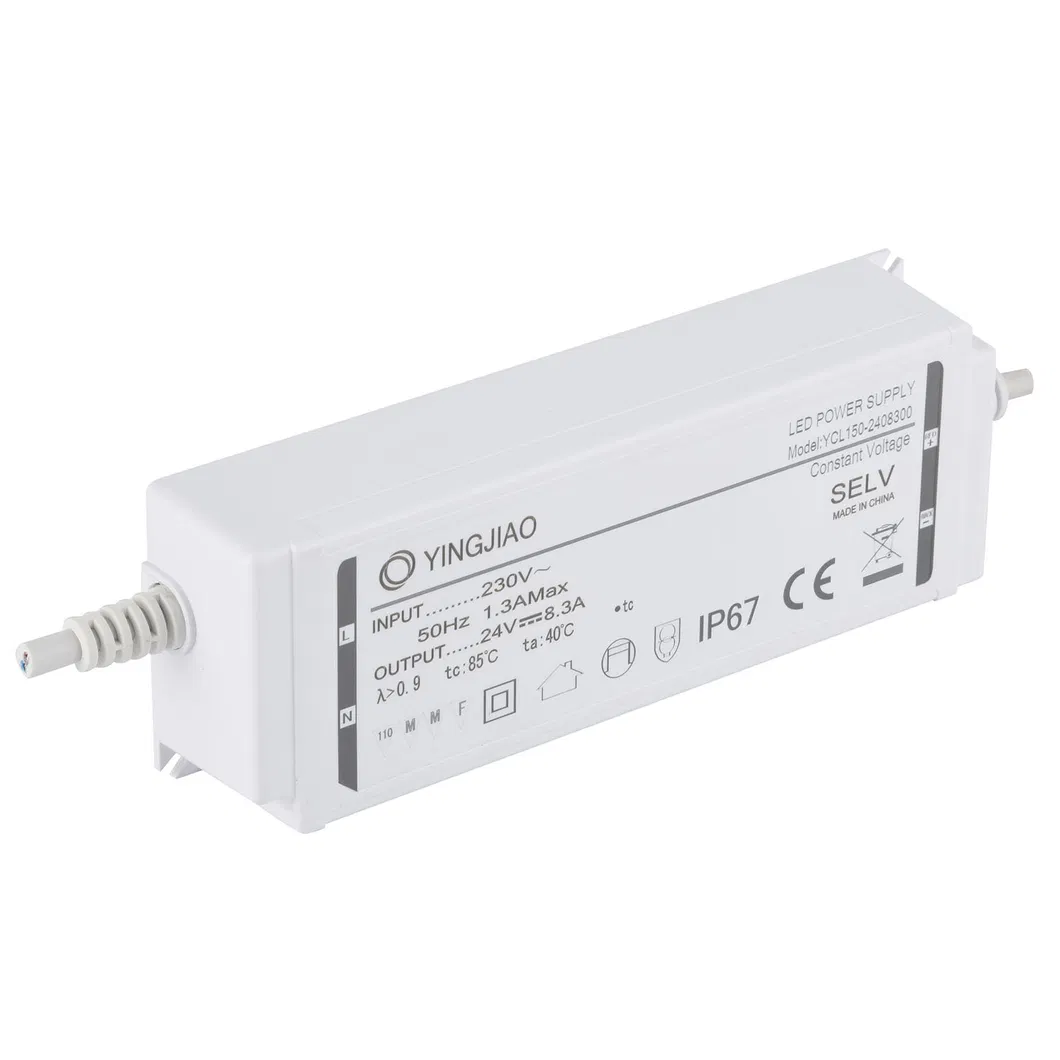

100W/120W/130W/150W AC to DC Waterproof LED Power Supply IP67 AC to DC
We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.Features:Universal Input: 100-240V AC 50/60HzSafety: UL/CUL/TUV/GS/CE/CCC complianceRoHS ComplianceHigh efficiency & low power consumptionShort Circuit ProtectionOver Current Prot......
Send Inquiry
Product Description
We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Data:
Details:
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Data:
| Model: | YCL150 constant current series |
| Power: | 150W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 12-48V |
| Output Current: | 100MA-8300MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE EMC ROHS |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 191*63*37mm |
| Weight: | 480g |
| Packing: | 50PCS/CTN,39*38.5*21.5cm |
Details:
| Model: | YCL150-0712100 | YCL150-0413600 | YCL150-0354200 |
| DC Voltage: | 2100mA | 3600mA | 4200mA |
| Rated Current: | 35-71V | 27-41V | 23-35V |
| Voltage Range: | 150W | 150W | 150W |
| Rated Power: | <1% | <1% | <1% |
| Current Ripple & Noise(max.): | <5% | <5% | <5% |
| Voltage Tolerance: | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% |
| Efficiency: | 92% | 92% | 92% |
| Setup,Rise time | 1 second max./40 MS max. | ||
