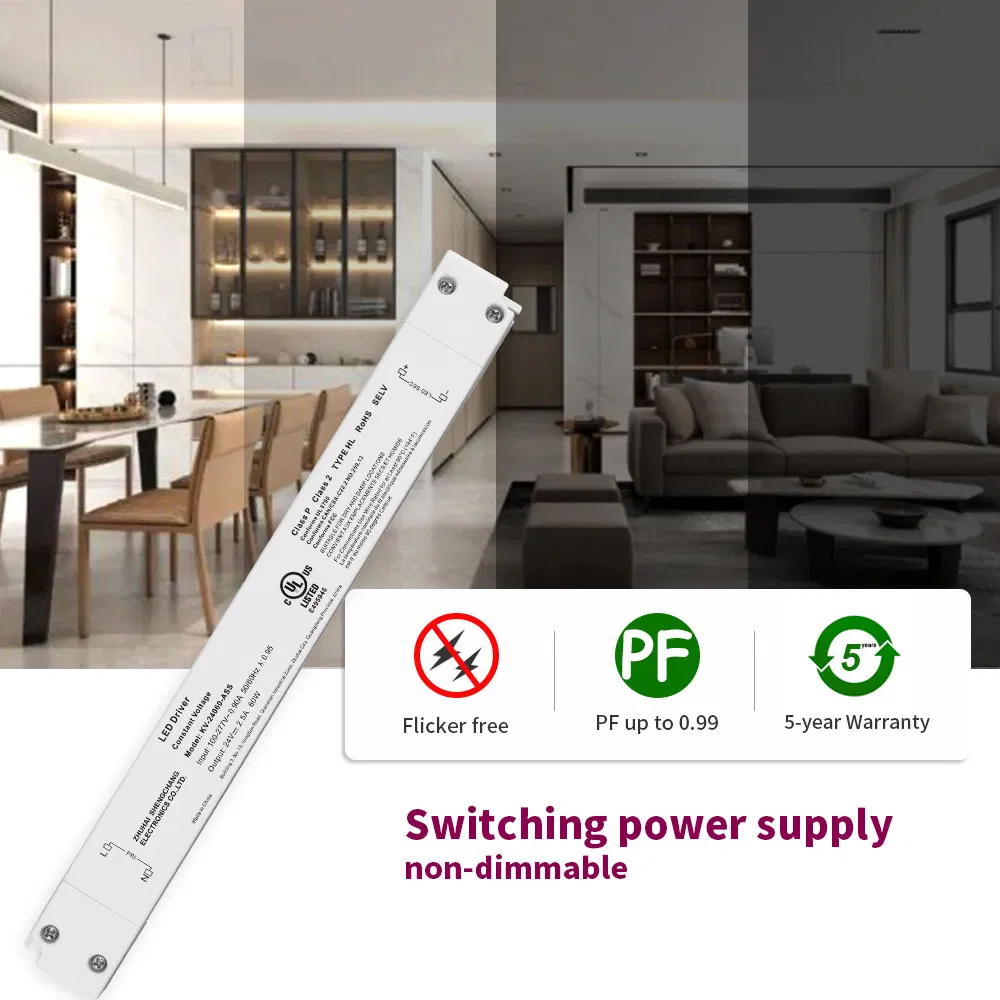

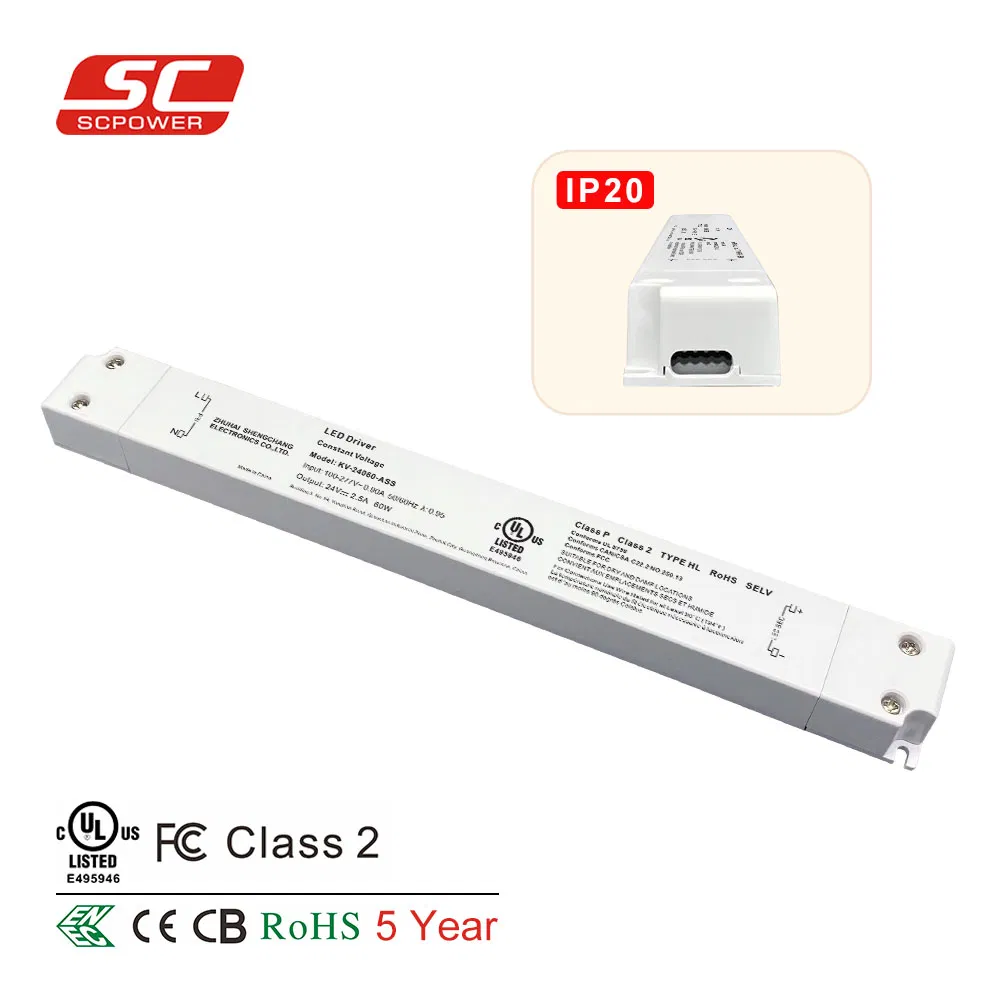

100- 277VAC Input 36V DC 1670mA 30W Ultrathin Constant Voltage Cabinet Size Power Supply LED Driver
Product Description100-277vac input 36v dc 1670ma 30w ultrathin constant voltage cabinet size power supply led driver Features·Output constant voltage·UL, cUL listed, Class 2, Class P, Type HL·Universal AC input: 100-277VAC.Power Factor: up to 0.99·High e......
Send Inquiry
Product Description
Features
·Output constant voltage
·UL, cUL listed, Class 2, Class P, Type HL
·Universal AC input: 100-277VAC
.Power Factor: up to 0.99
·High efficiency : up to 86%
·Protection:short circuit/over loading/ Over temperature
·Full protection plastic case, for dry and damp locations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications

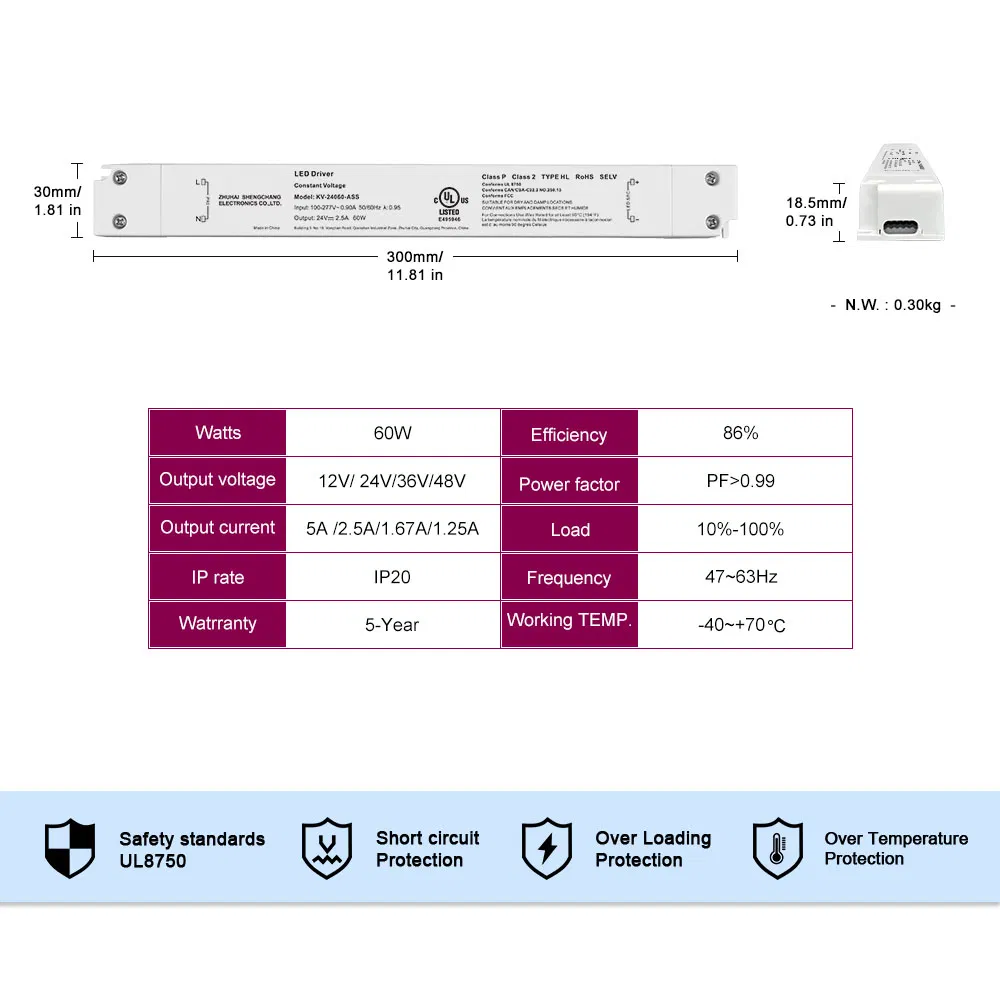

Specification
| Model | KV-12060-ASS | KV-24060-ASS | |
| Certificates | FCC UL cUL Class 2 | FCC UL cUL Class 2 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 5A | 2.5A | |
| Rated Power | 60W | ||
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.95@277VAC | 0.99@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | 120V<10%; 277V<15% | ||
| Efficiency(Typ.)@ full load | 120V 84% ; 277V 86% | 120V 83% ; 277V 85% | |
| AC Current(Max.) | 0.9A@100VAC | ||
| Inrush Current (Typ.) | 120V--11A, 50%, 1ms ; 277V--27A, 50%, 1.08ms | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed. | ||
| Over temperature | 100ºC±10ºC shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80ºC,10~95%RH | ||
| TEMP .coefficient | ±0.03%/ºC(0~50ºC) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety& EMC | Safety standards | UL8750+UL1310, CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25ºC/70%RH | ||
| EMC EMISSION | FCC 47 CRF Part 15, Subpart B | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
