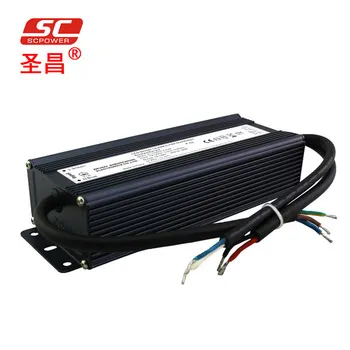

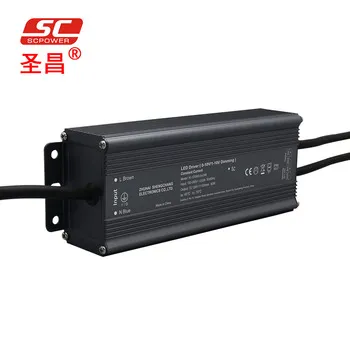

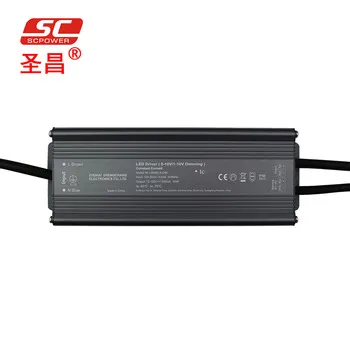

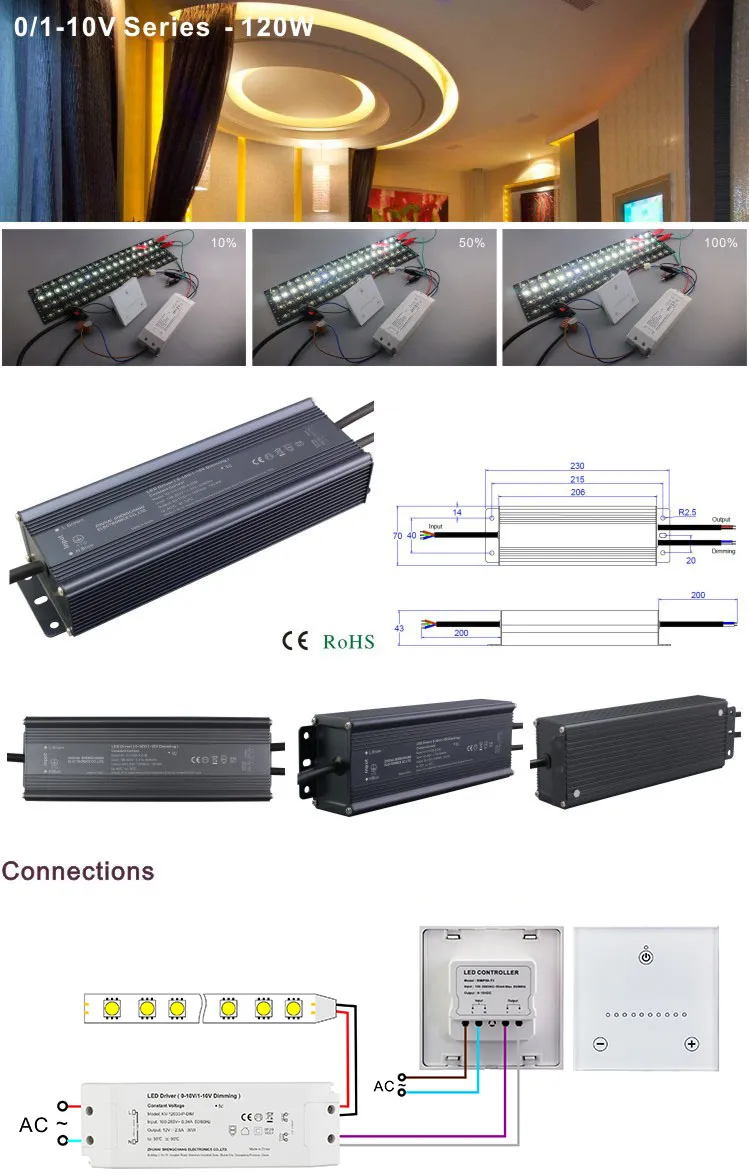

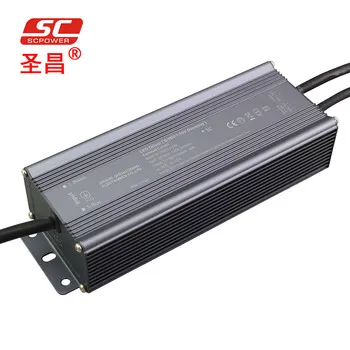

0-10V Dimming Output 120W 55V 2450mA Constant Current LED Driver for LED Down Lamp Light

Product Description

0-10v dimming output 120w 55v 2450ma constant current led driver for led down lamp light

Feature

· Output constant current

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 87%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· IP66 design for indoor or outdoor installation

· Class 1 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

Specification

Model		KI-130900-A-DIM	KI-851400-A-DIM	KI-701750-A-DIM	KI-552100-A-DIM
Output	DC Current	900mA	1400mA	1750mA	2100mA
	Current Tolerance	±3%
	Output voltage range	78-130V	51-85V	42-70V	33-55V
	Rated power	117W	119W	122.5W	115.5W
	Open circuit voltage(Max)	120V	90V	75V	60V
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC(Full loading)
	Efficiency(Typ.)	88%	87%	87%	87%
	AC Current(Max.)	0.62A	1.20A	1.23A	1.16A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over temperature	100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
Others	Net.Weight	1.1Kg
	Size	2307060mm(LWH)
	Packing	330280176mm 10PCS /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance:includes set up tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
