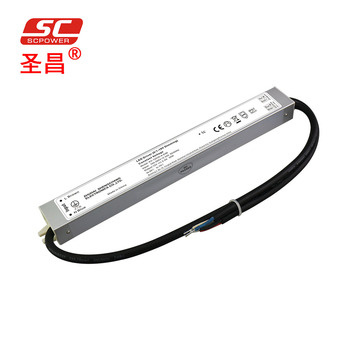

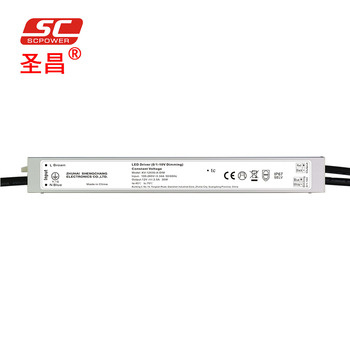

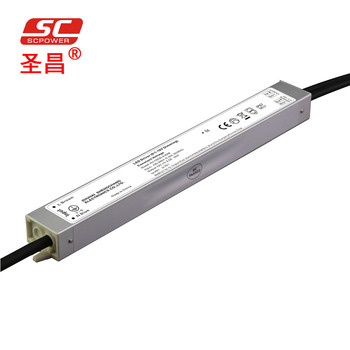

0-10V Dimmable Constant Voltage Transformer for LED Strip 12V 36W

Product Description

0-10v dimmable constant voltage transformer for led strip 12V 36w

Feature

· Output constant voltage

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 86%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· IP67 design for indoor or outdoor installation

· Class 1 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

Specification

Model		KV-12036-A-DIM	KV-24036-A-DIM	KV-36036-A-DIM	KV-48036-A-DIM
Output	DC Voltage	12V	24V	36V	48V
	Voltage Tolerance	±0.5V
	Rated current	0 - 3 A	0 -1.5A	0 - 1 A	0 - 0.75A
	Rated power	36W
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.90/230VAC PF≥0.88/265VAC(Full loading)
	Efficiency(Typ.)	81%	84%	86%	86%
	AC Current(Max.)	0.55A	0.55A	0.55A	0.55A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over Current	≤1.2*Iout
Environment	Working TEMP.	-40~+60ºC
	Working Humidity	20~95%RH non-condensing
	Storage TEMP.,Humidity	-40~+80ºC,10~95%RH
	TEMP.coefficient	±0.03%/ºC(0~50ºC)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25ºC/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥60%load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A
Others	Net.Weight	0.35Kg

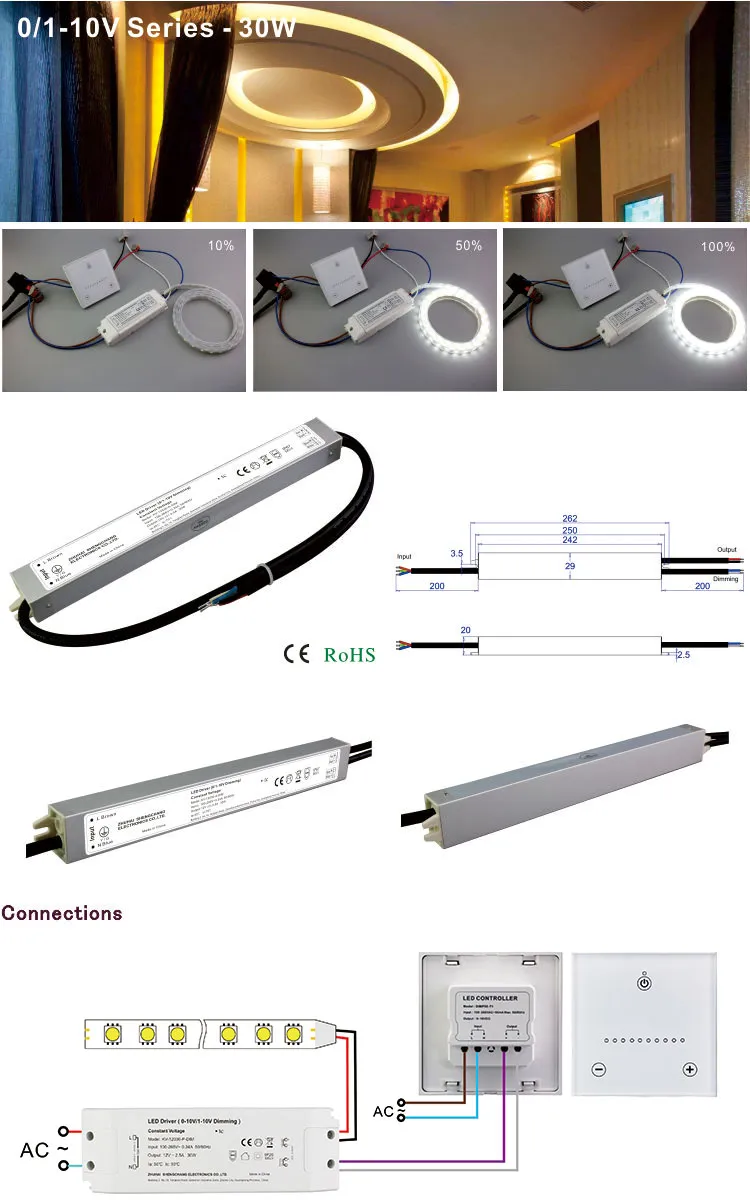

	Size	2622920mm(LWH)
	Packing	325300190mm 50PCS /CTN
Notes	All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. Tolerance:includes set up tolerance,line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
