              Used Agilent 34970A Data Datalogger and 34901A 20-Channel Modules
              • Used Agilent 34970A Data Datalogger and 34901A 20-Channel ModulesUsed Agilent 34970A Data Datalogger and 34901A 20-Channel Modules
              • Used Agilent 34970A Data Datalogger and 34901A 20-Channel ModulesUsed Agilent 34970A Data Datalogger and 34901A 20-Channel Modules
              • Used Agilent 34970A Data Datalogger and 34901A 20-Channel ModulesUsed Agilent 34970A Data Datalogger and 34901A 20-Channel Modules
              • Used Agilent 34970A Data Datalogger and 34901A 20-Channel ModulesUsed Agilent 34970A Data Datalogger and 34901A 20-Channel Modules

              Used Agilent 34970A Data Datalogger and 34901A 20-Channel Modules

              1 Used Agilent 34970A Data Acquisition / Data Logger Switch Unit and 2 Used Agilent 34901A 20-Channel Multiplexer ModulesEquipment conditions:There are some scuffs/marks on the casing from general use. The unit is in a very good condition, and tested for full functions and works fine as intended, Ca......

              Send Inquiry

              Product Description

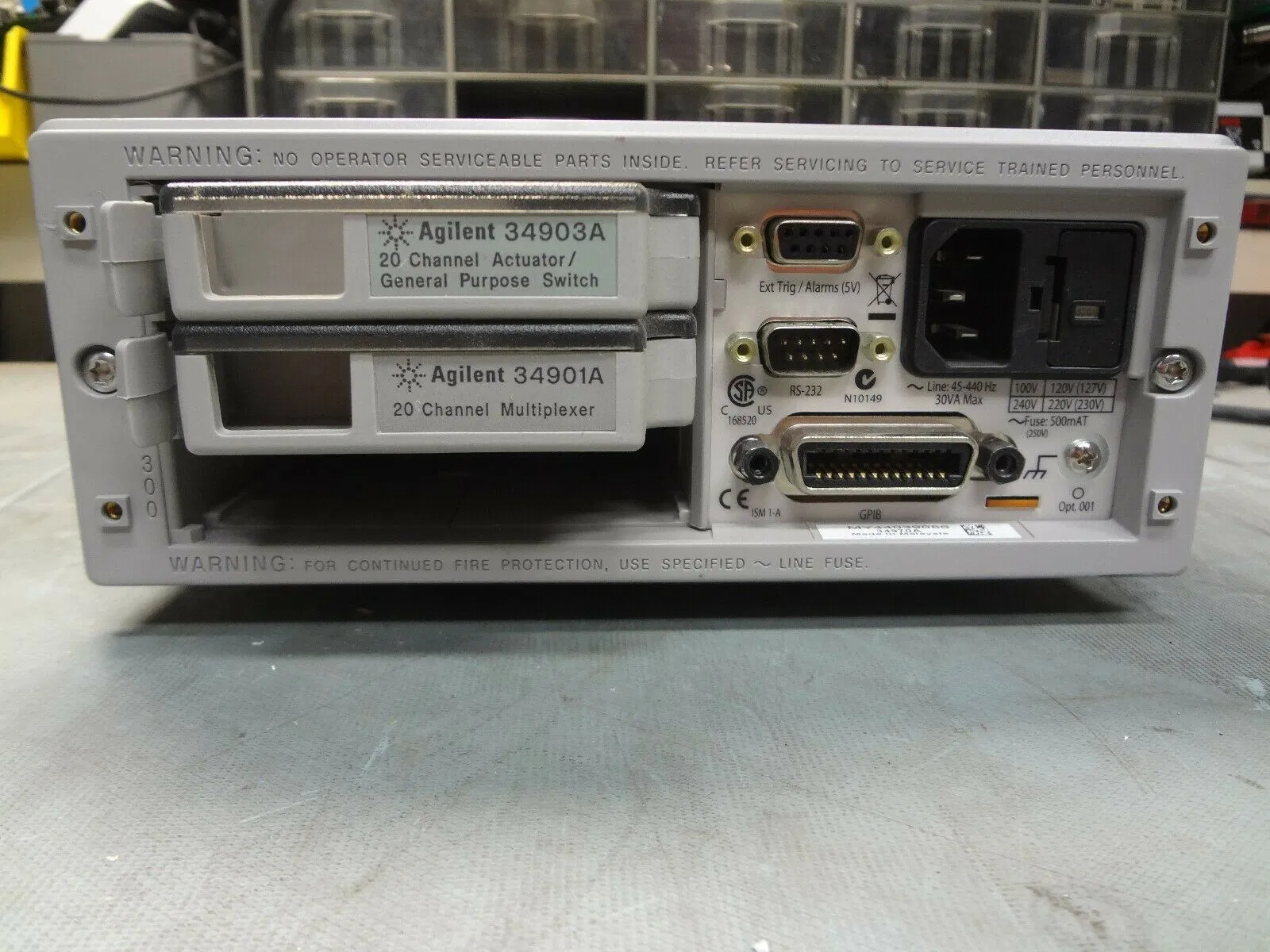

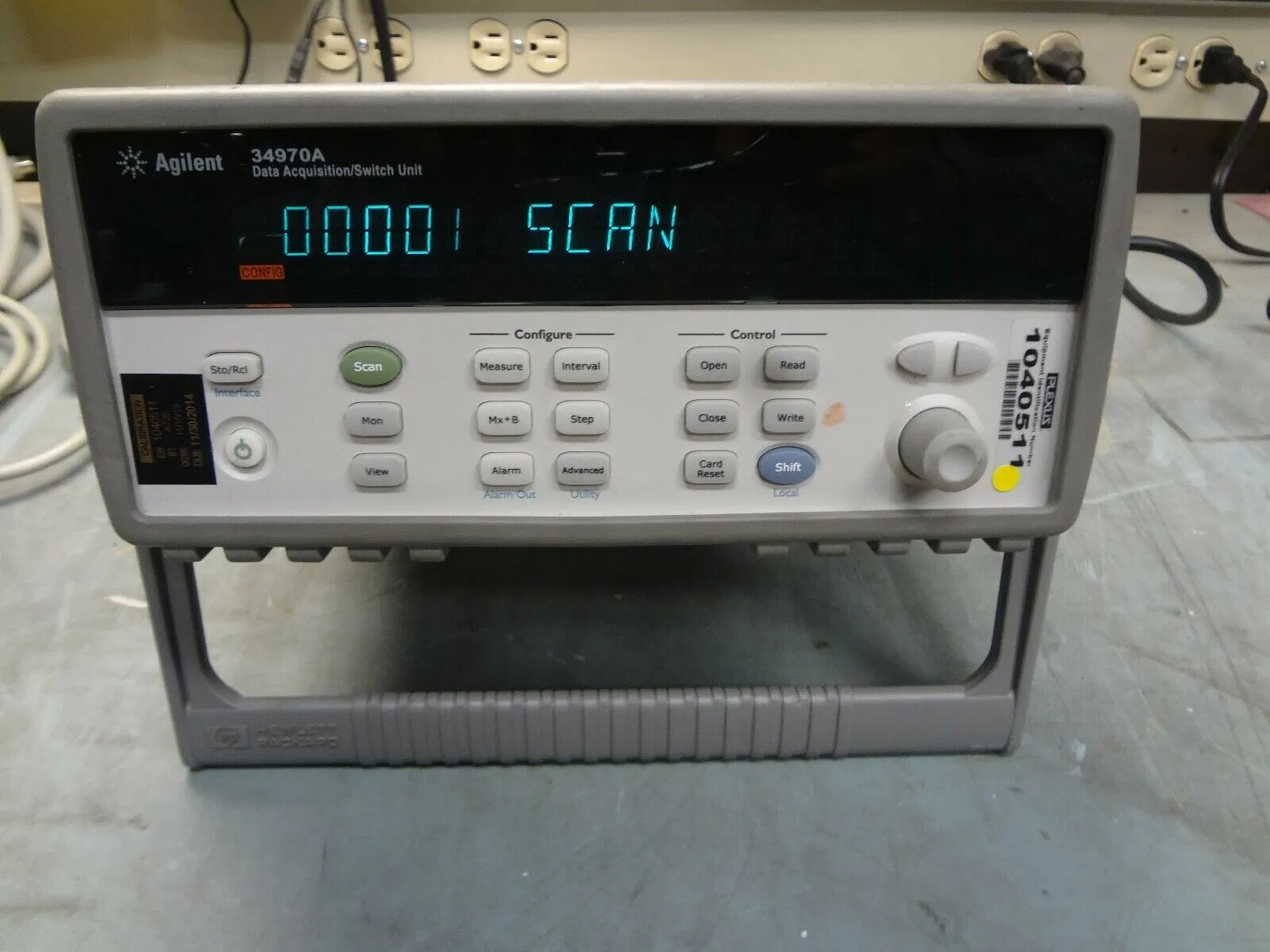

              1 Used Agilent 34970A Data Acquisition / Data Logger Switch Unit and

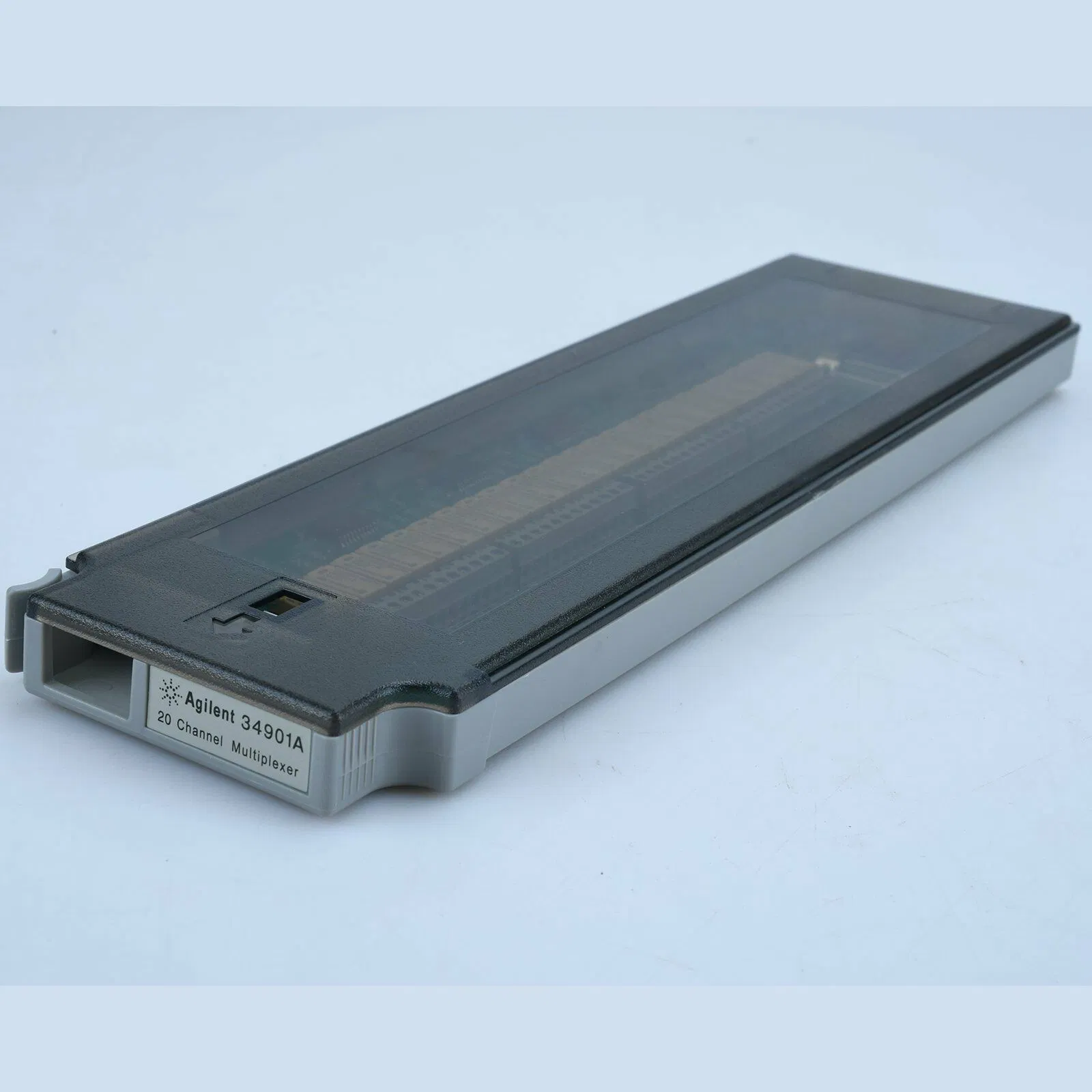

              2 Used Agilent 34901A 20-Channel Multiplexer Modules


              Used Agilent 34970A Data Datalogger and 34901A 20-Channel ModulesUsed Agilent 34970A Data Datalogger and 34901A 20-Channel Modules

              Equipment conditions:
              There are some scuffs/marks on the casing from general use. The unit is in a very good condition, and tested for full functions and works fine as intended, Calibration is now expired, further calibration may be required.
              Quantity:

              Quantity: 11 pcs of Agilent 34970A unit,
              2 pcs of Agilent 34901A Multiplexers with T-Type thermocouples

              Manufacturer Specs and user's manual will be provided upon request

              The Agilent Technologies 34970A combines precision measurement capability with flexible signal connections for your production and development test systems. Three module slots are built into the rear of the instrument to accept any combination of data acquisition or switching modules. The combination of data logging and data acquisition features makes this instrument a versatile solution for your testing requirements now and in the future.

              Convenient Data Logging Features
              • Direct measurement of thermocouples, RTDs, thermistors, dc voltage, ac voltage, resistance, dc current, ac current, frequency, and period
              • Interval scanning with storage of up to 50,000 time-stamped readings
              • Independent channel configuration with function, Mx+B scaling, and alarm limits available on a per-channel basis
              • Intuitive user interface with knob for quick channel selection, menu navigation, and data entry from the front panel
              • Portable, ruggedized case with non-skid feet

              Flexible Data Acquisition / Switching Features
              • 6 1/2 digit multimeter accuracy, stability, and noise rejection
              • Up to 60 channels per instrument (120 single-ended channels)
              • Reading rates up to 600 readings per second on a single channel and
              • scan rates up to 250 channels per second
              • Choice of multiplexing, matrix, general-purpose Form C switching,
              • RF switching, digital I/O, totalize, and 16-bit analog output functions • GPIB (IEEE-488) interface and RS-232 interface are standard
              • SCPI (Standard Commands for Programmable Instruments) compatibility
