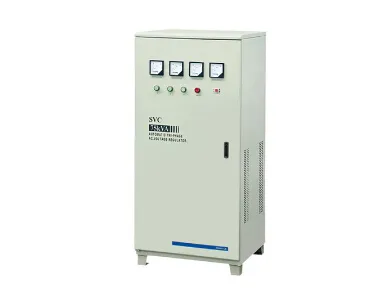

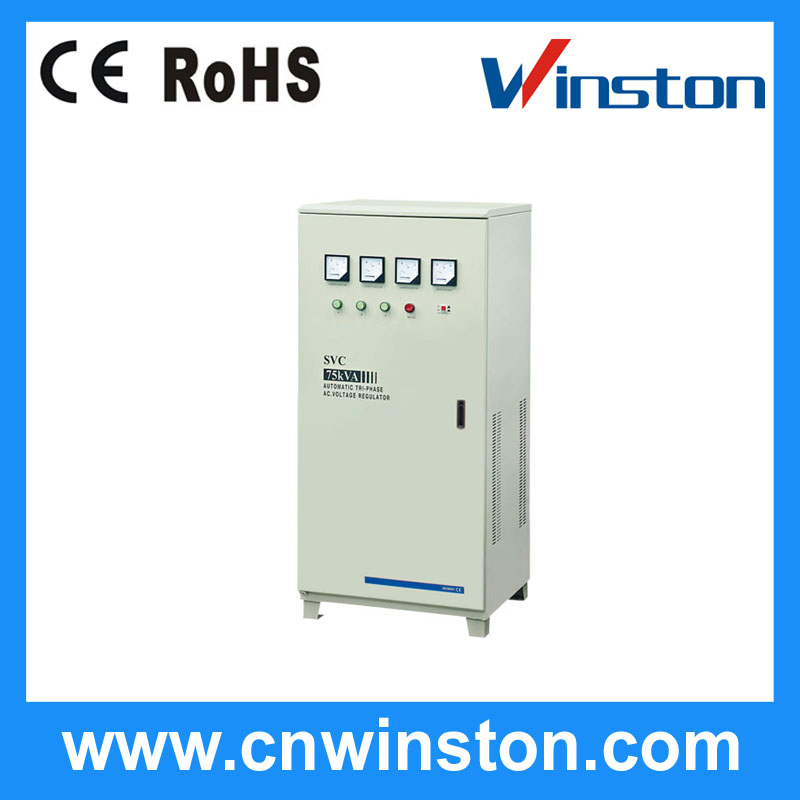

Three-Phase High Accuracy Full-Automatic AC Voltage Stabilizer SVC/ Tns
Product Description:Productions Complation:SVC/TNS Three phase high accuracy full automatic AC voltage stabilizers.it is combinedthe performance of the series SVC single phase products,the input phase system is threephase and fourwise system,the output voltage is 220V of phase and 380V of line volta......
Send Inquiry
Product Description
Product Description:
Productions Complation:
SVC/TNS Three phase high accuracy full automatic AC voltage stabilizers.it is combined
the performance of the series SVC single phase products,the input phase system is three
phase and fourwise system,the output voltage is 220V of phase and 380V of line voltage,
within the roted capacity range,they also can be used for the equipment of which the source
voltage is single phase 220V or three phase 380V.
Specification:
SVC/TNS Three phase high accuracy full automatic AC voltage stabilizers.it is combined
the performance of the series SVC single phase products,the input phase system is three
phase and fourwise system,the output voltage is 220V of phase and 380V of line voltage,
within the roted capacity range,they also can be used for the equipment of which the source
voltage is single phase 220V or three phase 380V.
Specification:
| Input voltage | 277V-430V |
| Output voltage | 380V±3% |
| Phase | Three phase |
| Frequency | 50HZ/60HZ |
| Response time | within 1sec. |
| Environment temperature | -5ºC-+40ºC |
| Opposite degree of humidity | Less than<95% |
| Waveform disortion | No-lack distortion in waveform |
| Insulation resistance | comply with naiorlty international standard |
Technique parameter:
| Model | Products' size(cm) | Package size(cm) | PCS/CTN | G.W.(kg) |
| SVC/TNS-6K | 27.5*30.5*66.5 | 38*41.5*77 | 1 | 32 |
| SVC/TNS-9K | 31*32.5*77.5 | 44*41.5*87 | 1 | 43 |
| SVC/TNS-15K | 33.5*35.5*85 | 45.5*45.5*94 | 1 | 56 |
| SVC/TNS-20K | 47*42*89 | 52.5*56.5*99 | 1 | 92 |
| SVC/TNS-30K | 47*42*89 | 52.5*56.5*99 | 1 | 110 |
| SVC/TNS-40K | 55*48*116 | 66.5*56.5*130 | 1 | 153 |
| SVC/TNS-50K | 55*45*116 | 66.5*56.5*130 | 1 | 174 |
| SVC/TNS-60K | 55*45*116 | 66.5*56.5*130 | 1 | 185 |
| SVC/TNS-75K | 62*51.5*131 | 64.5*74*144 | 1 | 226 |
| SVC/TNS-90K | 62*51.5*131 | 64.5*74*144 | 1 | 240 |
