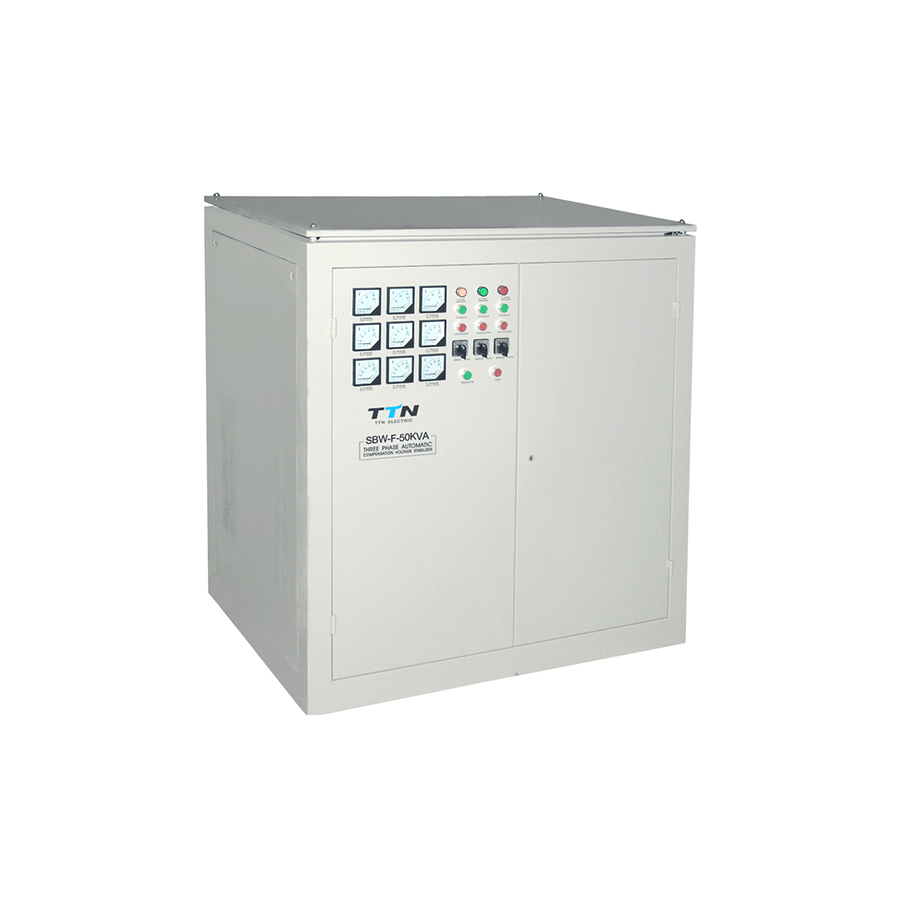

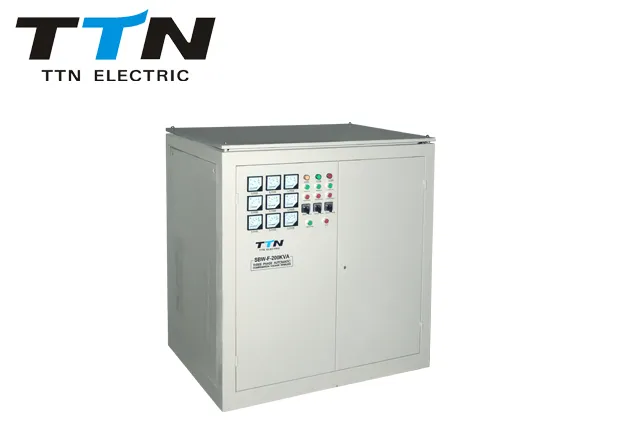

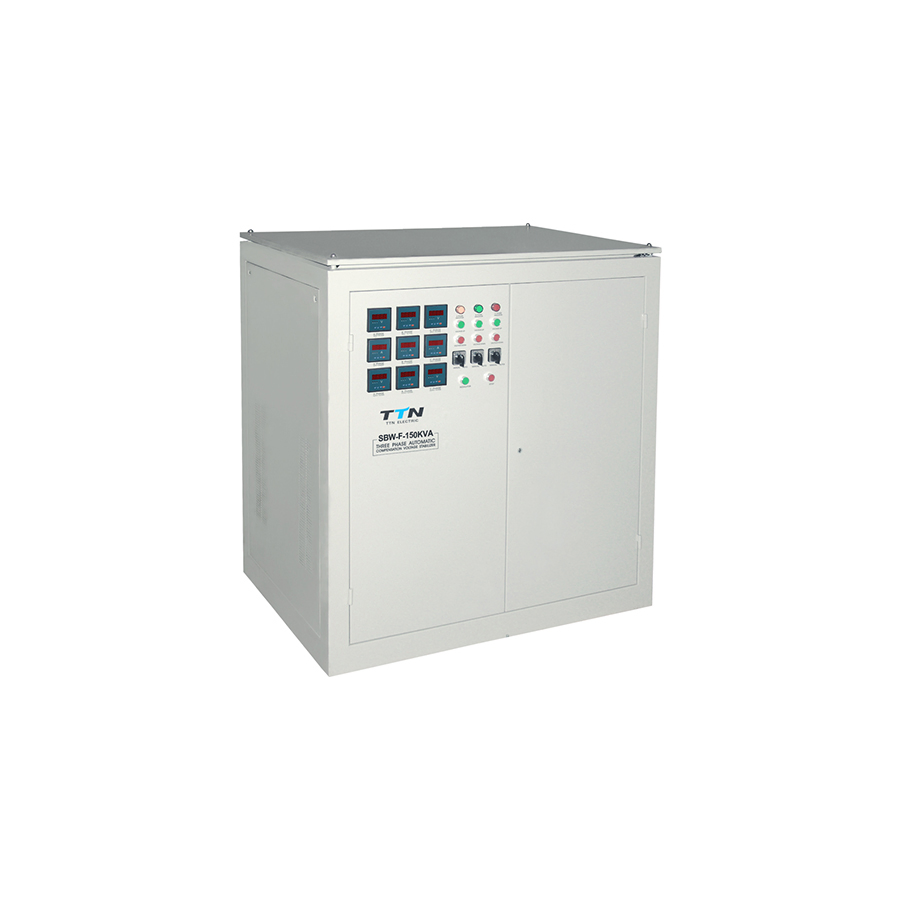

Servo Motro Control Voltage Stabilizer SBW-F 320kVA Three Phase
Advantages:1.AC Automatic Voltage Stabilizer2.LED Display:Display various protection data3.Protection Function:Over Voltage Protect;Low Voltage Protect;Delay time;Circuit Breaker4.Wide input voltage range5.Efficiency more than 95%6.No additional waveform distortion7.CE,ISO certificatesSpecifications......
Send Inquiry
Product Description
Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Delay time;Circuit Breaker
4.Wide input voltage range
5.Efficiency more than 95%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:SBW-F-320KVA
2.Input Voltage:Single phase:175-265V
Three phase four-line:175V-265V(phase voltage) 300-465V(line voltage)
154V-286v(phase voltage) 270-490v(line voltage)
3.Output Voltage:Single phase 220V(adjustable)
three phase 380V(adjustable)
4.Frequency:50HZ/60HZ
5.Phase: Three Phase
6.Packing Size:135*100*196cm
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Delay time;Circuit Breaker
4.Wide input voltage range
5.Efficiency more than 95%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:SBW-F-320KVA
2.Input Voltage:Single phase:175-265V
Three phase four-line:175V-265V(phase voltage) 300-465V(line voltage)
154V-286v(phase voltage) 270-490v(line voltage)
3.Output Voltage:Single phase 220V(adjustable)
three phase 380V(adjustable)
4.Frequency:50HZ/60HZ
5.Phase: Three Phase
6.Packing Size:135*100*196cm
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| MODEL | SBW-F-50KVA | SBW-F-80KVA | SBW-F-100KVA | SBW-F-150KVA | SBW-F-200KVA | SBW-F-250KVA |
| SBW-F-320KVA | SBW-F-400KVA | SBW-F-500KVA | SBW-F-600KVA | SBW-F-800KVA | SBW-F-1000KVA | |
| TECHNOLOGY | Servo Motor Control | |||||
DISPLAY | Meter | A/B/C phase input voltage | Light | A phase working indicator | ||
| A/B/C phase output voltage | B phase working indicator | |||||
| A phase output voltage | B phase working indicator | |||||
| B phase output voltage | input working indicator | |||||
| C phase output voltage | output working indicator | |||||
PROTECTION | Over voltage | Output voltage ≥248v±4v | ||||
| Low voltage | Output voltage ≤170v±4v | |||||
| Delay time | Long time(3-8M)/short time(5 second) | |||||
| Circuit breaker | Regulator/By-pass | |||||
| Feed phase | ||||||
INPUT VOLTAGE | Single phase:175v-265v Three phase four-line: 175v-265v(phase voltage) 300v-465v(line voltage) 154v-286v(phase voltage) 270v-490v(line voltage) | |||||
OUTPUT VOLTAGR | Single phase 220v(adjustable) Three phase 380v(adjustable) | |||||
| FREQUENCY | 50Hz/60Hz | |||||
| PHASE | Three phase | |||||
| RESPONSE TIME | ≤1.5S | |||||
| EFFICIENCY | ≥95% | |||||
| AMBIENT TEMPERATURE | -10ºC-40ºC | |||||
| OVERLOAD | Double related current,one min | |||||
| WAVEFORM DISTORTION | no additional wave form distortion | |||||
| INSULATION RESISTANCE | Normally more than 2MΩ | |||||
| SPECIFICATIONS | ||||||
| POWER | 50KVA | 80KVA | 100KVA | 150KVA | 200KVA | 250KVA |
| PACKING SIZE(CM) | 110*85*137 | 110*85*137 | 110*85*137 | 125*100*196 | 125*100*196 | 135*100*196 |
| PACKING(PCS) | 1 | 1 | 1 | 1 | 1 | 1 |
| POWER | 320KVA | 400KVA | 500KVA | 600KVA | 800KVA | 1000KVA |
| PACKING SIZE(CM) | 135*100*196 | 135*100*196 | 135*100*196 | 135*100*196 | 135*100*196 | 203*106*230 |
| PACKING(PCS) | 1 | 1 | 1 | 1 | 1 | 1 |
