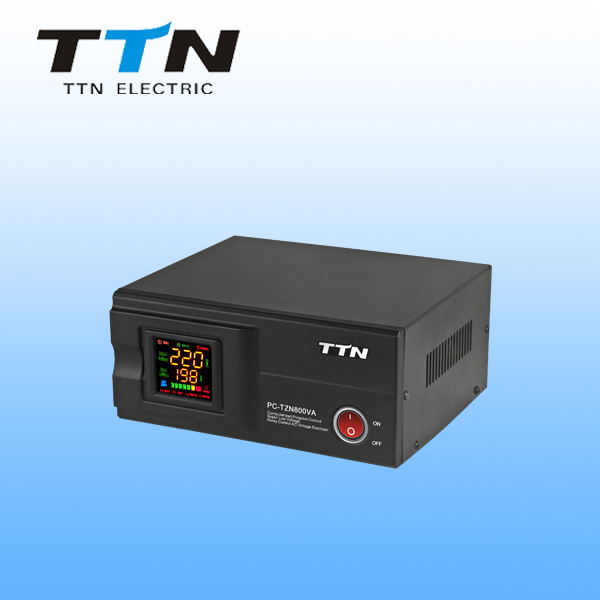

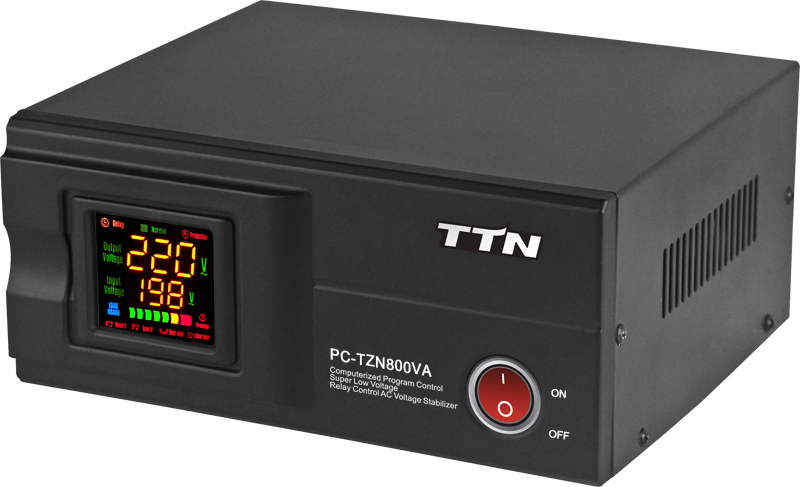

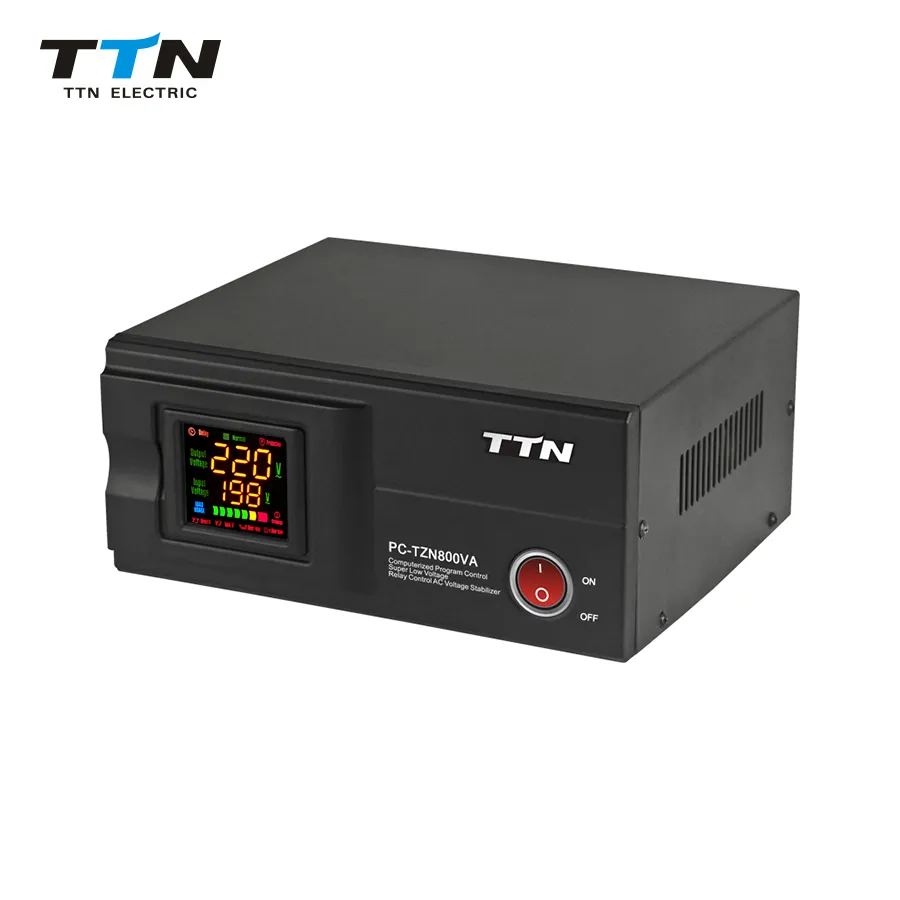

Relay Control AC Automatic Voltage Stabilizer PC-Tzn800va Regulator
PC-TZN series Relay Control Voltage Stabilizer 1. IntroductionPC(programed control computerized)TZN series RELAY CONTROL AC automatic voltage stabilizer , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of ......
Send Inquiry
Product Description
PC-TZN series Relay Control Voltage Stabilizer
1. Introduction
PC(programed control computerized)TZN series RELAY CONTROL AC automatic voltage stabilizer , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of the entire machine. It improved many shortcomings of the formerly simulated voltage stabilizer and made the quality of the products to be more reliable, the performance to be more stable, the function to be more formidable.
The product has the low energy consumption, the over-voltage protection, the low voltage protection, the over- current protection, the over-power protection, the over-temperature protection, the leakage protection and so on. It boasts for many kinds of protection functions integrated to one product. It also has the following functions: the selective time delay, the anti- impact, the LED multi- demonstrations, the collection energy conservation and the environmental protection etc. This is a brand-new concept product which possess many new technologies! This series products simultaneously has applied for many technical monopolies.
2. Advantages of our products
1. High technology: programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spare parts is made by ourselves, for example, transformer, PCB.
4.Perfect protection function: over/low voltage protection, over-heating, over-loading protection
5.High efficiency: more than 90%
6.Experienced manufactory: more than 20 years
3. Specifications(technical data):
Model: PC-TZN Series Relay Control single phase
Capacity: 500VA~2KVA
Input voltage: AC80V~270V or customize
Output voltage: 220V+/-10%
Remark: pls kindly check the detail information in following chart
OUR SAMPLE ROOM
4. SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
5. Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair
6. COMPANY INFORMATION:
ZHEJIANG TTN ELECTRIC CO., LTD
The Product line
The Developing and Research center
The employee interaction
The packaging deliver
1. We are professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
2. We have best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .
3. We have strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass,lets the users be satisfied.
4. As manufacturer we have 12 product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
5. Best OEM/ODM service.
7. OUR SERVICES
1. Service for sample:
We can provide sample for your testing
2. Service for Customization:
We can do as your requirement, we accept OEM.
3. After-sale service
Policy:1.sent the spareparts, 1 years warranty.
2.sent you the documents of technical skills for repairing the cargo
The sparepartsfor example will be sent,LED display,PCB,carbon brush in case of demage, which will be sent together with the cargos.
1. Introduction
PC(programed control computerized)TZN series RELAY CONTROL AC automatic voltage stabilizer , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of the entire machine. It improved many shortcomings of the formerly simulated voltage stabilizer and made the quality of the products to be more reliable, the performance to be more stable, the function to be more formidable.
The product has the low energy consumption, the over-voltage protection, the low voltage protection, the over- current protection, the over-power protection, the over-temperature protection, the leakage protection and so on. It boasts for many kinds of protection functions integrated to one product. It also has the following functions: the selective time delay, the anti- impact, the LED multi- demonstrations, the collection energy conservation and the environmental protection etc. This is a brand-new concept product which possess many new technologies! This series products simultaneously has applied for many technical monopolies.
2. Advantages of our products
1. High technology: programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spare parts is made by ourselves, for example, transformer, PCB.
4.Perfect protection function: over/low voltage protection, over-heating, over-loading protection
5.High efficiency: more than 90%
6.Experienced manufactory: more than 20 years
3. Specifications(technical data):
Model: PC-TZN Series Relay Control single phase
Capacity: 500VA~2KVA
Input voltage: AC80V~270V or customize
Output voltage: 220V+/-10%
Remark: pls kindly check the detail information in following chart
OUR SAMPLE ROOM
| Model | PC-TZN500VA | PC-TZN1000VA | PC-TZN1500VA | PC-TZN2000VA | PC-TZN3000VA | PC-TZN5000VA | PC-TZN8000VA | PC-TZN10000VA |
| Technology | Relay Control System+Micro compute programed control | |||||||
| LED Display | Color | Colorful | ||||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | |||||||
| Protection | Over Voltage | Output voltage ≥ 248v± 4 | ||||||
| Low Voltage | Output voltage ≤ 185V± 4 | |||||||
| Over Loading | more than 120% | |||||||
| Over Temperture | 120C± 10 | |||||||
| Delay time | Long time(255 second)/short time (5 second) | |||||||
| Creepage | ||||||||
| Language | English/Russian/Chinese | |||||||
| Input Voltage | AC150-270V(A Type); AC135V-AC270V(B Type); AC105V-AC270V(C Type); AC80V-AC270V(D Type) | |||||||
| Output Voltage | 220V± 10% adjustable | |||||||
| Frequency | 50Hz/60Hz | |||||||
| Phase | Single Phase | |||||||
| Efficiency | ≥ 95% | |||||||
| Ambient Temperature | - 15~45C | |||||||
| Relative Humidity | < 95% | |||||||
| Waveform distortion | no additional wave form distortion | |||||||
| Insulating Resistance | Normally more than 2MΩ | |||||||
| Specifications | ||||||||
| Power | 500W | 1000W | 1500W | 2000W | 3000W | 5000W | 8000W | 1000W |
| Packing Size | 47.5x28.5x41cm | 47.5x28.5x41cm | 47.5x28.5x41cm | 41.3x35.5x47.8cm | 54.5x39.1x30.8cm | 53.6x44.5x30.8cm | 54.5x44.5x30.8cm | 48.2x34.2x41.2cm |
| Packing | 6 | 6 | 6 | 4 | 2 | 2 | 2 | 1 |
| G. M | 14.95KG | 18.25KG | 20.25KG | 27.35KG | 21.35KG | 32.5KG | 37KG | 23KG |
4. SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
5. Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair
6. COMPANY INFORMATION:

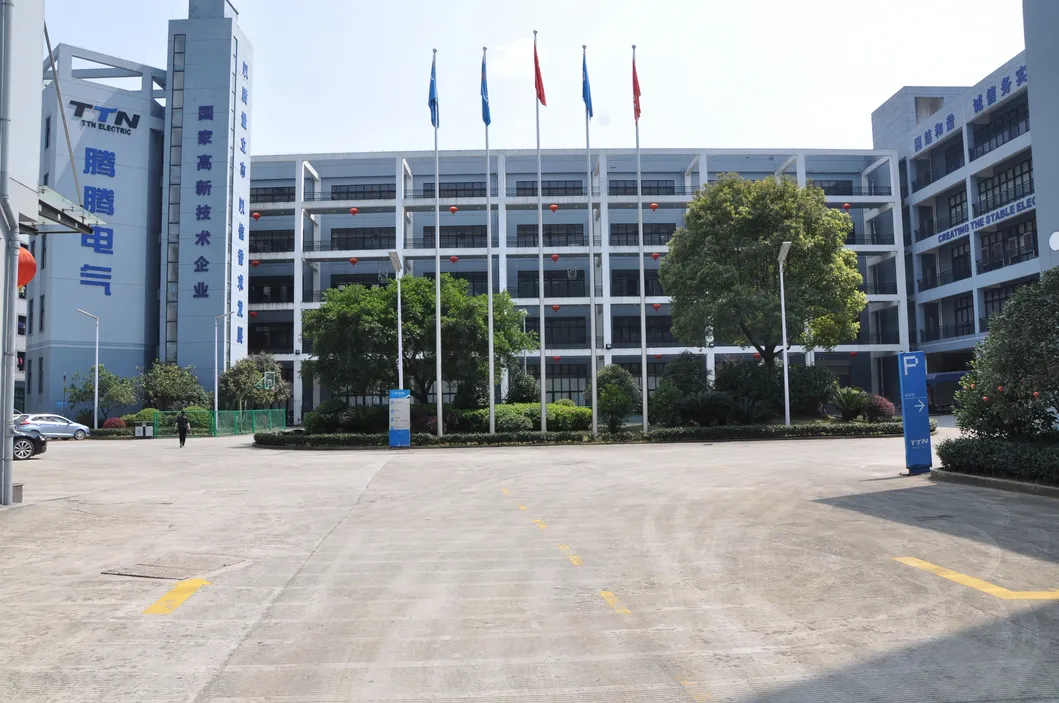

ZHEJIANG TTN ELECTRIC CO., LTD

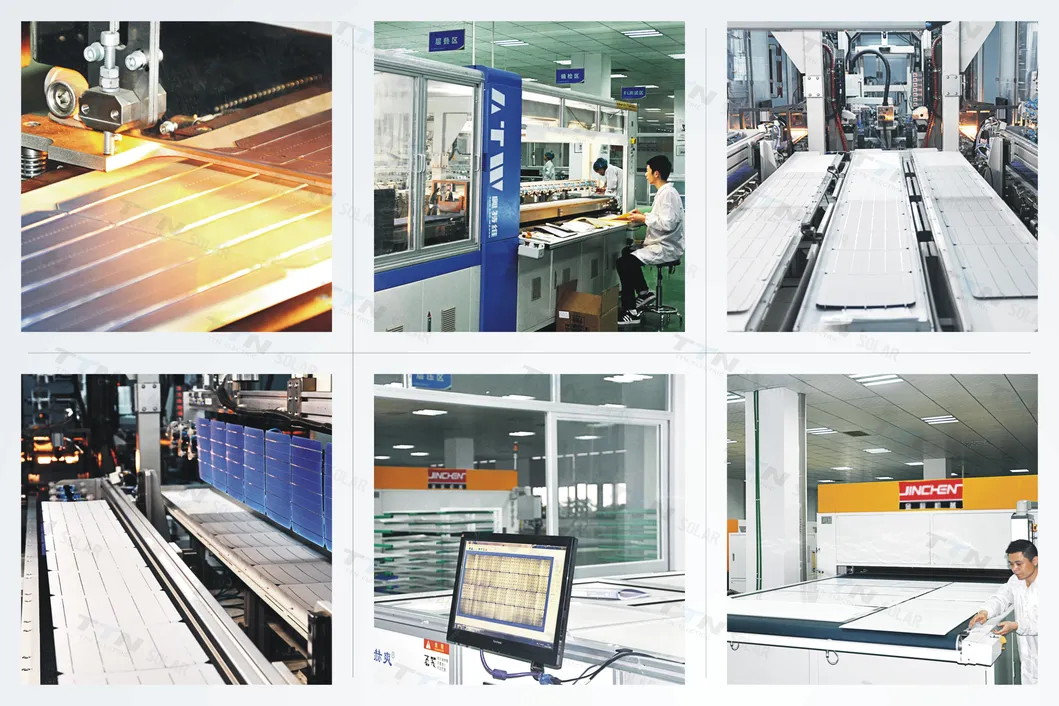

The Product line

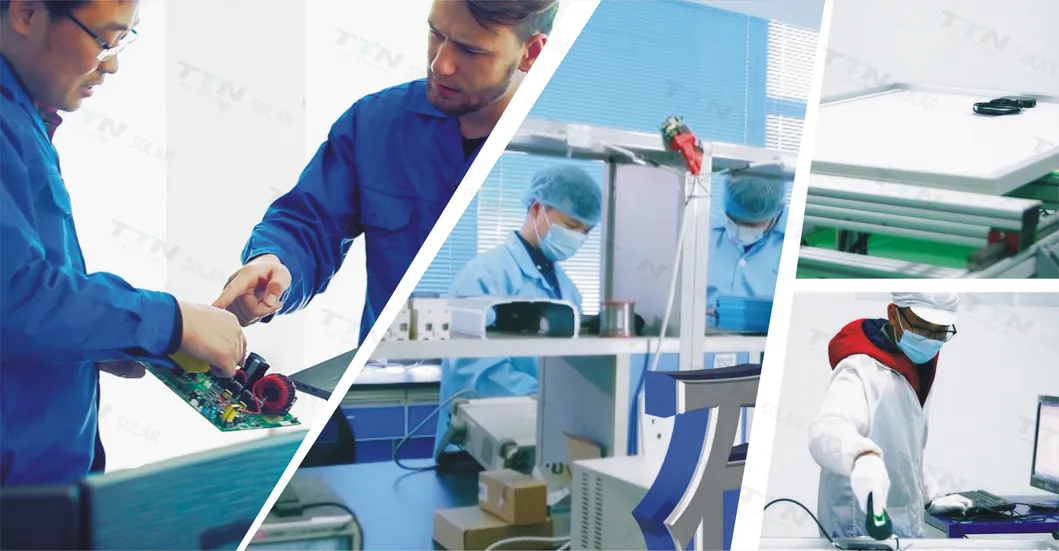

The Developing and Research center
The employee interaction

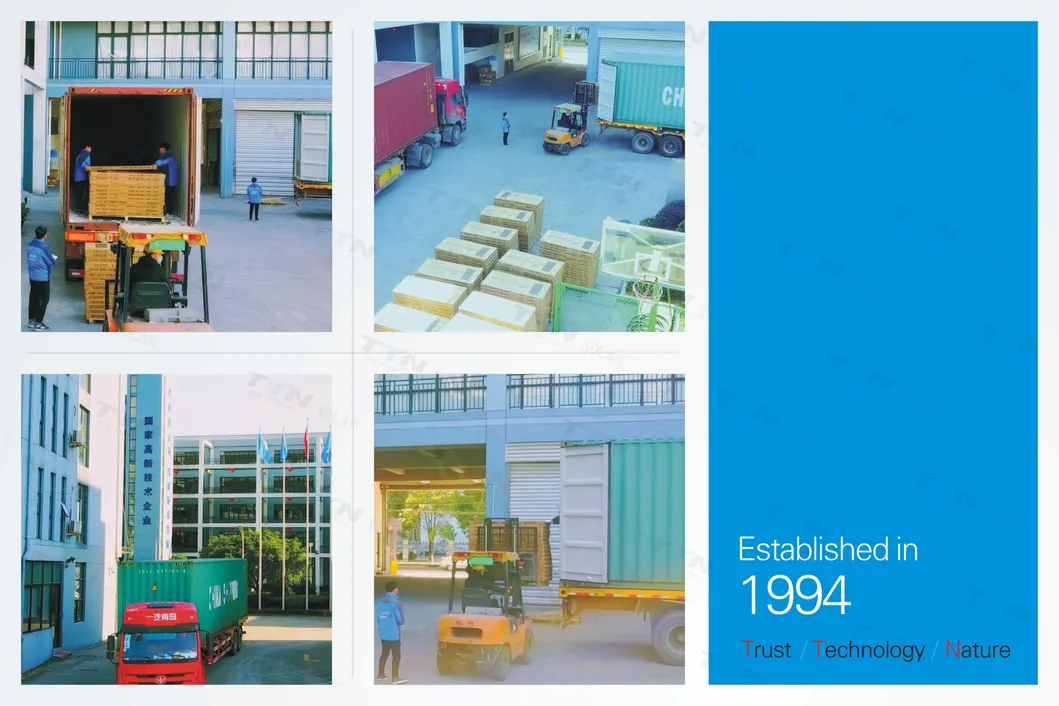

The packaging deliver
1. We are professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
2. We have best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .
3. We have strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass,lets the users be satisfied.
4. As manufacturer we have 12 product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
5. Best OEM/ODM service.
7. OUR SERVICES
1. Service for sample:
We can provide sample for your testing
2. Service for Customization:
We can do as your requirement, we accept OEM.
3. After-sale service
Policy:1.sent the spareparts, 1 years warranty.
2.sent you the documents of technical skills for repairing the cargo
The sparepartsfor example will be sent,LED display,PCB,carbon brush in case of demage, which will be sent together with the cargos.
