Home > Products > Voltage Regulator > PC-TM 8000va Relay Control Model AC Automatic Voltage Stabilizer

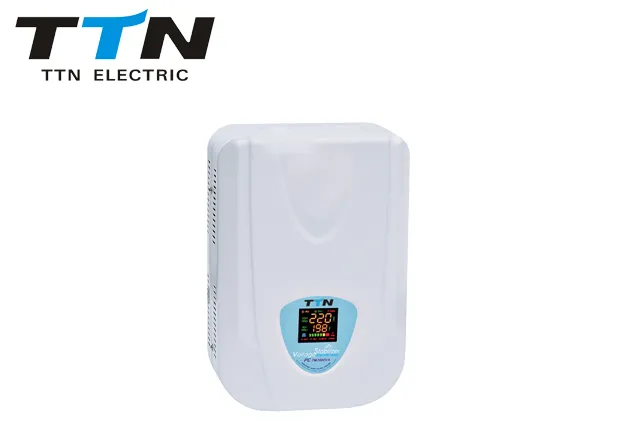

PC-TM 8000va Relay Control Model AC Automatic Voltage Stabilizer
1. IntroductionThe PC-TM series relay AC control regulator is a high-performance voltage regulator independently developed by our company. It has the characteristics of wide capacity, wide range and low loss. The product has good loadability and can adjust the voltage balance output. At the same tim......
Send Inquiry
Product Description
1. Introduction
The PC-TM series relay AC control regulator is a high-performance voltage regulator independently developed by our company. It has the characteristics of wide capacity, wide range and low loss. The product has good loadability and can adjust the voltage balance output. At the same time, it also has automatic protection devices such as overvoltage, undervoltage, phase loss, overload, overcurrent, overtemperature, short circuit, etc. It has multiple functions protection and energy saving and environmental protection. This is a brand new concept product with many new technologies! This series of products is suitable for many technical monopolies.
We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3
2.Use for equipment:
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment
3. PERFORMANCE:
4. The Features of PC-TM:
1.High technology:programmed control computerized
2.Unique design:LED display which can show all protection functions.
3.Quality ensurance:every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%FAQ
5.COMPANY INFORMATION:
1.We are professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
2. We have best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .
3.We have strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass,lets the users be satisfied.
4.As manufacturer we have 12 product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
5. Best OEM/ODM service.
EXHIBITION
6. OUR SERVICES:
1. Service for sample:
We can provide sample for your testing
2. Service for Customization:
We can do as your requirement, we accept OEM.
3. After-sale service
Policy:1.sent the spareparts, 1 years warranty.
2.sent you the documents of technical skills for repairing the cargo
The sparepartsfor example will be sent,LED display,PCB,carbon brush in case of demage, which will be sent together with the cargos.
The PC-TM series relay AC control regulator is a high-performance voltage regulator independently developed by our company. It has the characteristics of wide capacity, wide range and low loss. The product has good loadability and can adjust the voltage balance output. At the same time, it also has automatic protection devices such as overvoltage, undervoltage, phase loss, overload, overcurrent, overtemperature, short circuit, etc. It has multiple functions protection and energy saving and environmental protection. This is a brand new concept product with many new technologies! This series of products is suitable for many technical monopolies.
We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3
2.Use for equipment:
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment
3. PERFORMANCE:
| MODEL | PC-TM3000VA | PC-TM5000VA | PC-TM8000VA | PC-TM10000VA | PC-TM12000VA | |
| TECHNOLOGY | RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL | |||||
LED DISPLAY | INFORMATION | INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION | ||||
PROTECTION | Over Voltage | Output Voltage≥243±4v | ||||
| Low Voltage | Output Voltage≤188v±4v | |||||
| Over Loading | More Than 120% | |||||
| Over Temperture | 120ºC±10ºC | |||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||||
| Creepage | ||||||
| Language | English/Russia/Chinese | |||||
| Input Voltage | AC150-270V(A TYPE);AC135-AC270V(B TYPE) AC105-AC270(C TYPE);AC80V-AC270V(DTYPE) | |||||
| Output Voltage | 220+/-10% adjustable | |||||
| Frequency | 50Hz/60Hz | |||||
| Phase | Single phase | |||||
| Efficency | ≥90% | |||||
| Ambient Temperature | -15ºC-45ºC | |||||
| Relative humidity | <95% | |||||
| Waveform distortion | No additional wave from distortion | |||||
| Insulation resistance | Normally more than 2MΩ | |||||
| Power | 3000VA | 5000VA | 8000VA | 10000VA | 12000VA | |
| Packing size(cm) | 43.2*31.9*39.9 | 45.7*34.9*43.9 | 45.7*34.9*43.9 | 51.8*39.0*27.0 | 51.8*39.0*27.0 | |
| Packing (pcs) | 2 | 2 | 2 | 1 | 1 | |
4. The Features of PC-TM:
1.High technology:programmed control computerized
2.Unique design:LED display which can show all protection functions.
3.Quality ensurance:every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%FAQ
5.COMPANY INFORMATION:
1.We are professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
2. We have best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .
3.We have strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass,lets the users be satisfied.
4.As manufacturer we have 12 product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
5. Best OEM/ODM service.
EXHIBITION
6. OUR SERVICES:
1. Service for sample:
We can provide sample for your testing
2. Service for Customization:
We can do as your requirement, we accept OEM.
3. After-sale service
Policy:1.sent the spareparts, 1 years warranty.
2.sent you the documents of technical skills for repairing the cargo
The sparepartsfor example will be sent,LED display,PCB,carbon brush in case of demage, which will be sent together with the cargos.
