Home > Products > Voltage Regulator > PC-SVR5000va Relay Control Voltage Stabilizer with Full Protection

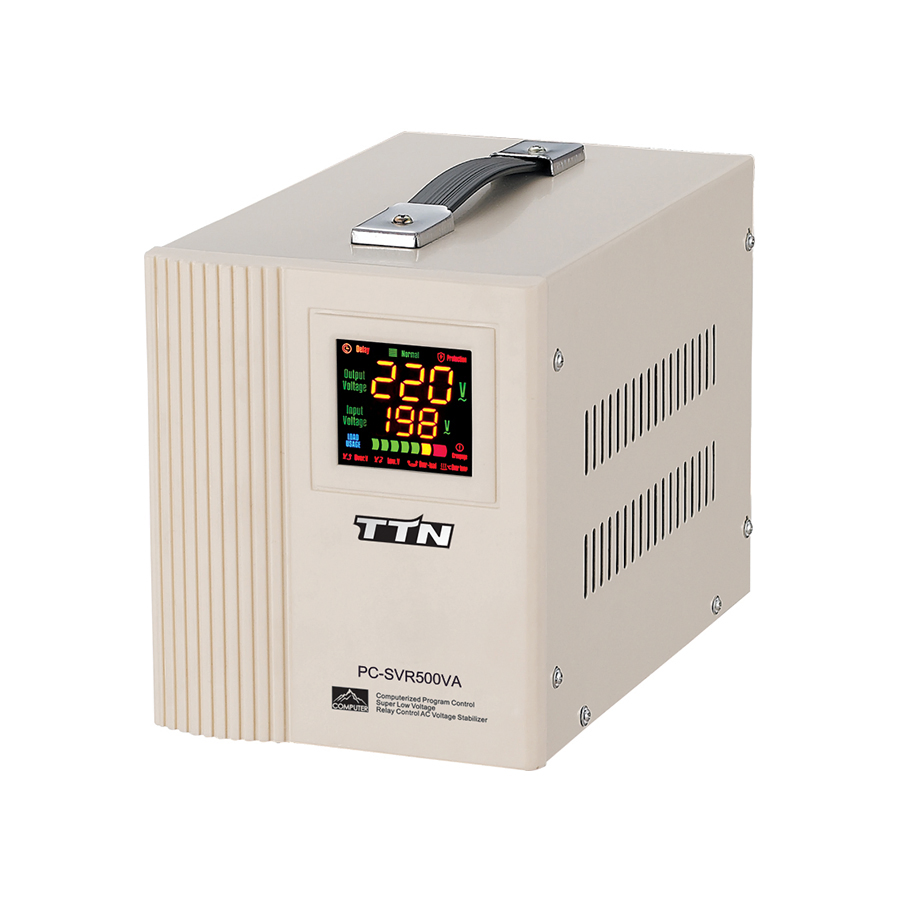

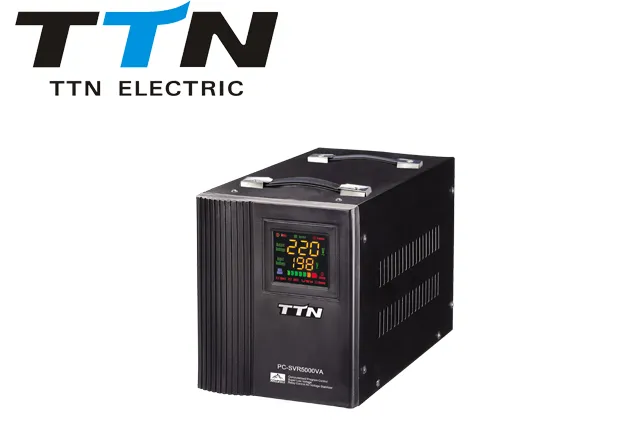

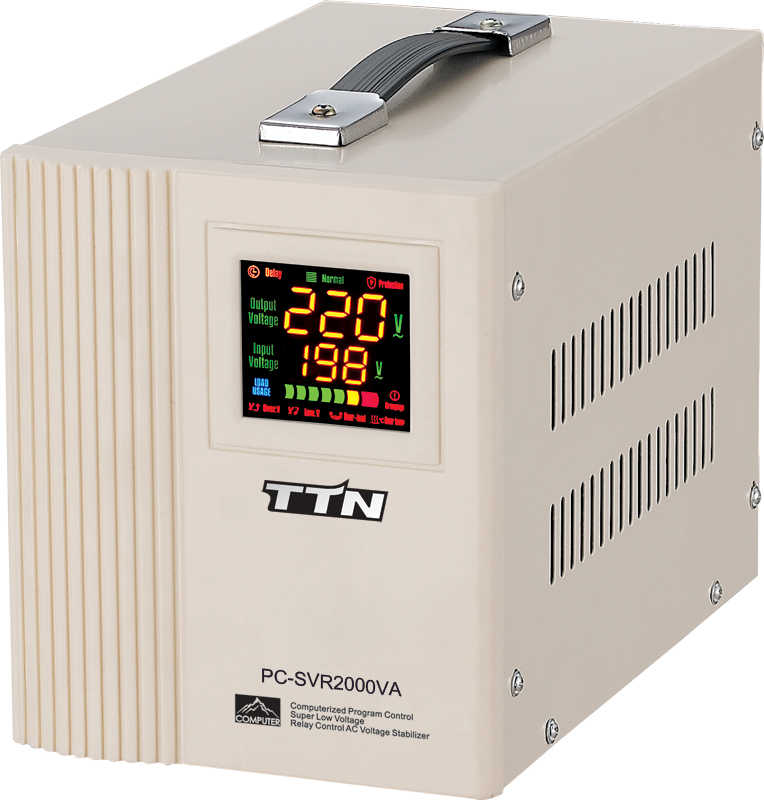

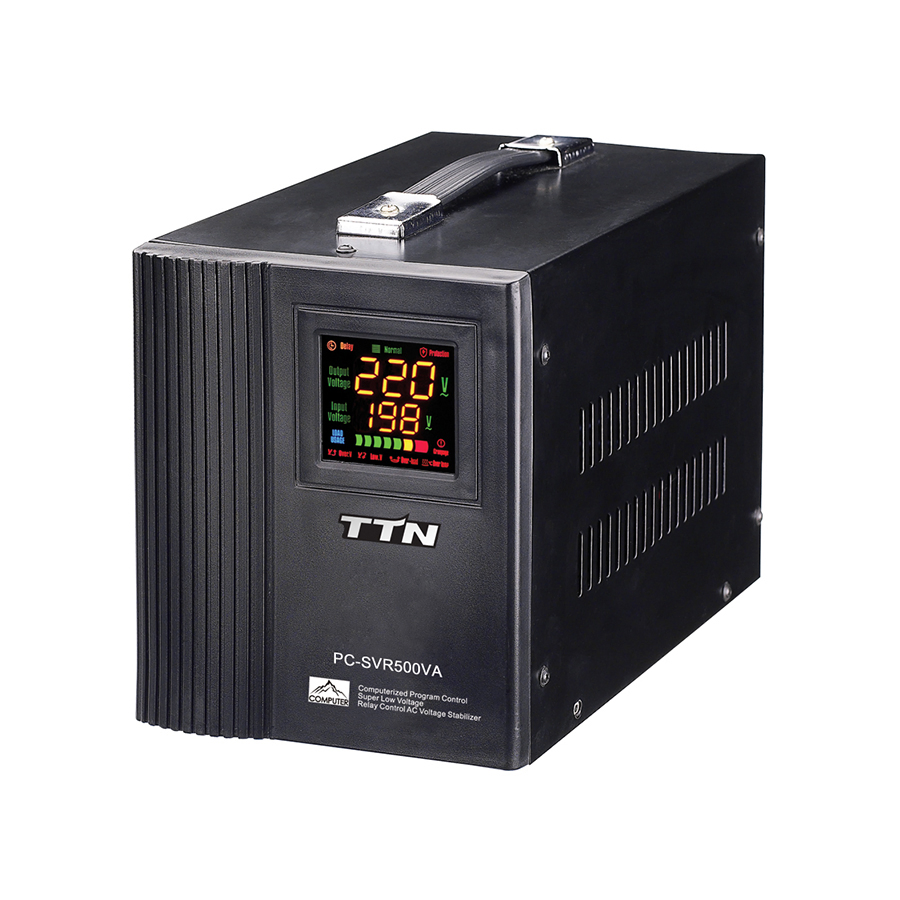

PC-SVR5000va Relay Control Voltage Stabilizer with Full Protection
Advantages:1.AC Automatic Voltage Stabilizer2.LED Display:Display various protection data3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect4.Wide input voltage range5.Efficiency more than 90%6.No additional waveform disto......
Send Inquiry
Product Description
Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:PC-SVR 5000VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:38.6*27.7*29.8cm
7.G.W.:16.89kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:PC-SVR 5000VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:38.6*27.7*29.8cm
7.G.W.:16.89kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| MODEL | PC- SVR500VA | PC- SVR1000VA | PC-SVR1500VA | PC-SVR2000VA | PC-SVR3000VA | PC-SVR5000VA | PC-SVR8000VA | PC-SVR10000VA |
| TECHNOLOGY | Relay Control System+Micro computer program control | |||||||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
Protection | Over Voltage | Output Voltage≥243±4V | ||||||
| Low Voltage | Output Voltage≤188±4v | |||||||
| Over Loading | More than 120% | |||||||
| Over Temperture | 120ºC±10ºC | |||||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||||||
| Circuit Beaker | Regulator/Bypass | |||||||
| Language | English/Russian/Chinese | |||||||
| INPUT VOLTAGE | AC150V-270V(A Type);AC135V-270V(B Type);AC105V-270V(C Type);AC80V-270V(D Type) | |||||||
| OUTPUT VOLTAGE | 220V±10% ,adjustable | |||||||
| FREQUENCY | 50HZ/60HZ | |||||||
| PHASE | Single Phase | |||||||
| EFFICIENCY | ≥90% | |||||||
| AMBIENT TEMPERATURE | -15ºC-45ºC | |||||||
| RELATIVE HUMIDITY | <95% | |||||||
| WAVEFORM DISTORTION | No additional wave from distortion | |||||||
| INSULATING RESISTANCE | Normally more than 2MΩ | |||||||
| SPECIFICATIONS | ||||||||
| POWER | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 8000VA | 10000VA |
| PACKING SIZE(CM) | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 39.6*35.3*46.7 | 38.6*27.7*29.8 | 38.6*27.7*29.8 | 43.3*27.7*29.8 | 44.2*30.4*37.1 |
| PACKING(pcs) | 4 | 4 | 4 | 4 | 1 | 1 | 1 | 1 |
| G.M(kgs) | 12.33 | 14.51 | 15.27 | 24.66 | 11.66 | 16.89 | 18.75 | 25.55 |
