Good Price 5000va /5kVA Servo Motor Single Phase Automatic Voltage Stabilizers Regulator
Brief Introduction:SVC series single and three phase full automatic AC voltage regulator is made of contact type auto regulator, servo motor and auto controlled circuit. When the voltage is unstable or load changes, the auto control system will send signal to start servo motor, to let output voltage......
Send Inquiry
Product Description
Brief Introduction:
SVC series single and three phase full automatic AC voltage regulator is made of contact type auto regulator, servo motor and auto controlled circuit. When the voltage is unstable or load changes, the auto control system will send signal to start servo motor, to let output voltage adjust to rated value and stable voltage.
Feature:
The series product is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.
Application:
Computer, Testing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and home appliance etc.
Technical parameters:
| 1 | Type | ADR | |
| 2 | Capacity | 5KVA | |
| 3 | AC Input voltage | Switch | 1P20A(Chint brand switch) |
| Phase | Single Phase | ||
| Voltage | 176V-264V (or customized) | ||
| Frequency | 50/60HZ | ||
| 4 | AC Output voltage | Phase | Single Phase |
| Voltage | 220V( or customized) | ||
| Frequency | 50/60HZ | ||
| 5 | Rated output current | 22A | |
| 6 | Voltage Accuracy | ±1-5%V Adjustable(Factory set±2%) | |
| 7 | Certificates | CE,ROHS | |
| 8 | Power Factor | 0.85 | |
| 9 | Efficiency | >98% | |
| 10 | Insulation strength | 2500V/Min | |
| 11 | Insulation Class | H class (200 degree C) | |
| 12 | Waveform Distortion | No distortion (the same with input waveform) | |
| 13 | Over load capacity | 200%-5s,150%-1min | |
| 14 | Cooling method | Natural cooling/ Fan system cooling | |
| 15 | Resist electric strengh | 2500VAC/min | |
| 16 | Noise | ≤55db(No include forced air cooling system) | |
| 17 | Temperature Rise | ≤75ºC | |
| 18 | Size: | Length320 *Width 240* High290(mm) | |
| 19 | Weight : | Net weight:15KG | |
| 20 | Environment | Ambient Temperature | -10~50ºC |
| Related humidity | 15~85%(25ºC) | ||
| Altitude | <1500M | ||
| 21 | Warranty | 2 yeas | |
Protection | |||||||||
Over Temperature | Auto Shutdown at 120 ºC | ||||||||
Short Circuit | Auto Shutdown | ||||||||
Overload | Auto Shutdown | ||||||||
Over / Under Voltage | Auto Shutdown | ||||||||

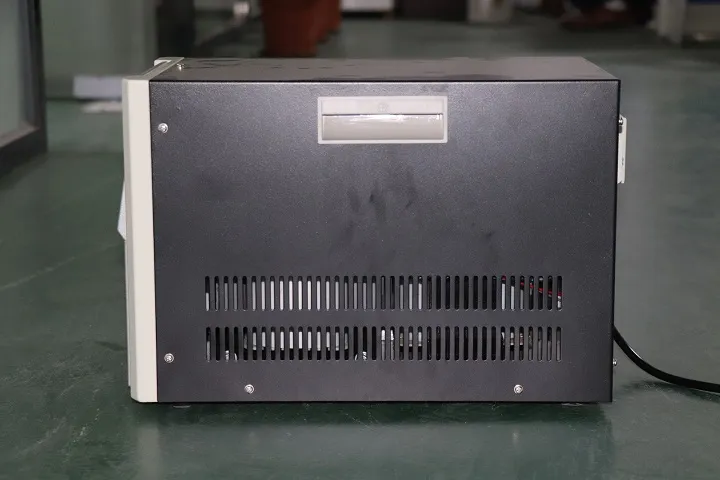

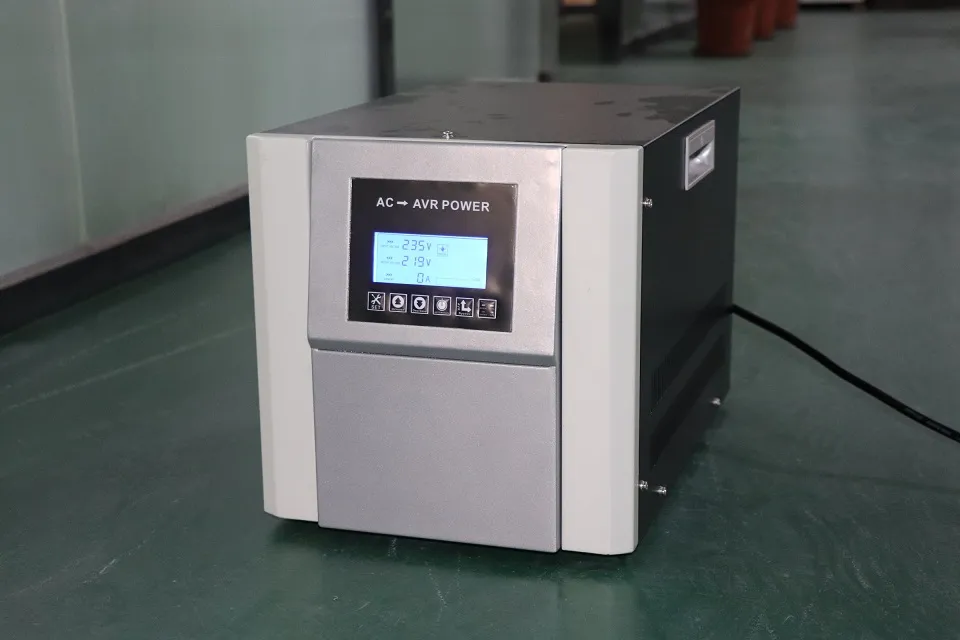

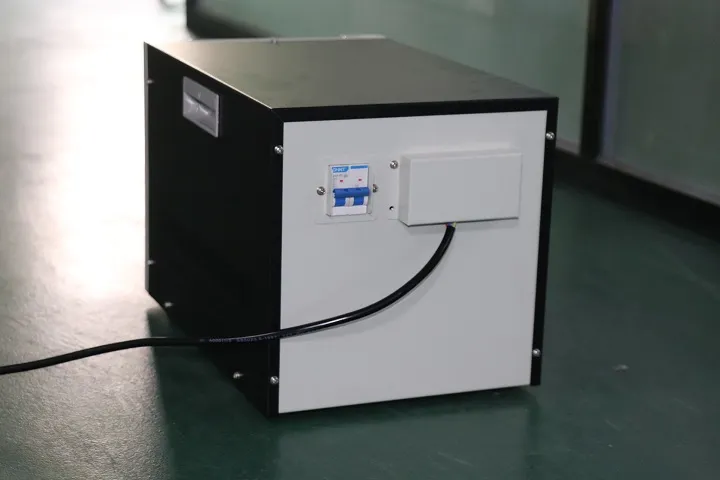

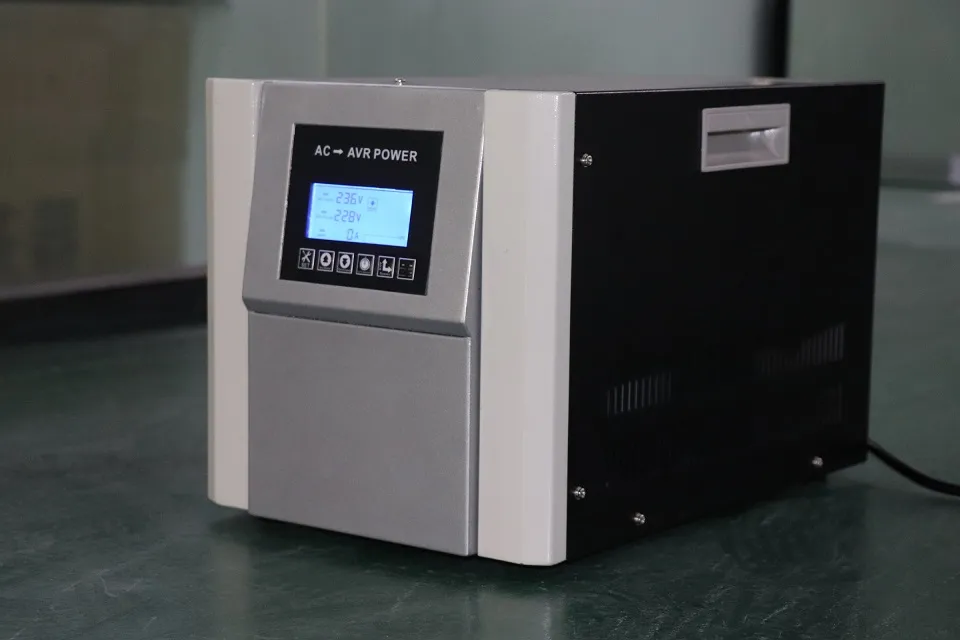

5kva single phase avr pictures for you reference:

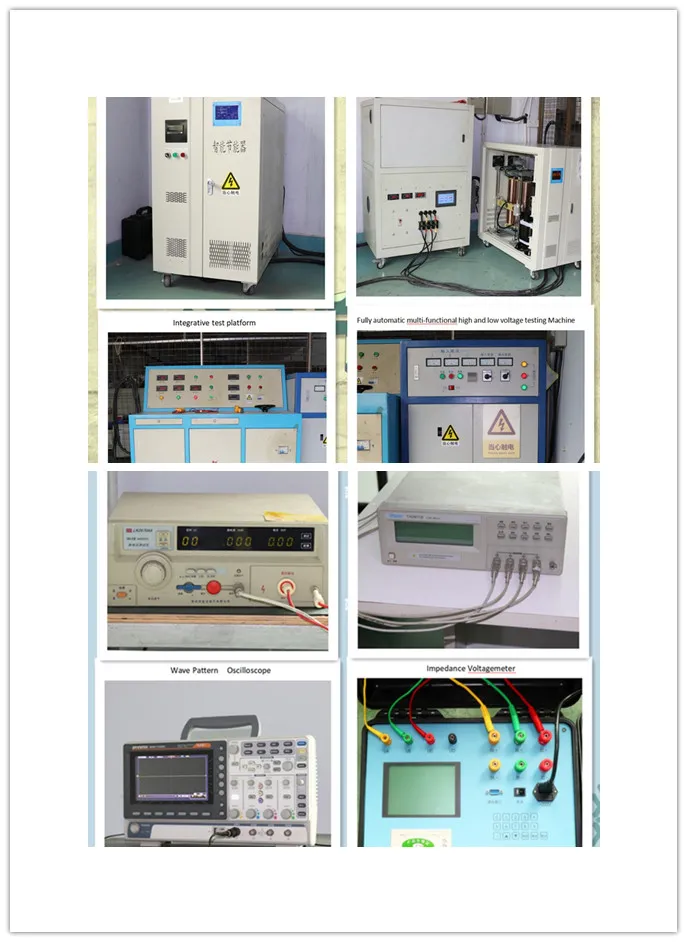

Some Xingkerong testing machine:
FAQ:
Q 1. what's the payment term?
A. We accept TT, Paypal, or Western union.
Q 2. How is your delivery time ?
A. For bulk order usually it will take about 10-25 days for production.For sample order within7 workdays.
Q 3.What's your packaging material?
A. Using strong wooden case for protection.
Q 4.Do you accept to use our logo ?
A.Our logo is R(please kindly find the previous pic to check).If your order has good quantity,it absolute no problem to do OEM.
But if you use our logo R will be high appreciated.
Q 5.What's your month capacity?
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 5000pcs and big capacity near 1000pcs.
Q 6. What's the materials?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your require. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
For transformer,Aluminum or Copper material is accorsing your demind.
Q 7.Could you offer Form A or other original documents?
A. Yes, we can offer. please tell us all your requires after you pay.
Q 8. what kind of certificate you got?
A. Our company already obtained CE,ISO9001, ROHS, SGS,design and technical patents certificates.
Q9.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, EasternAsia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10.Do you accept the Customized?
A: Yes,Welcome customized. sending us your requires,we will draw a drawing for you checking soon.
