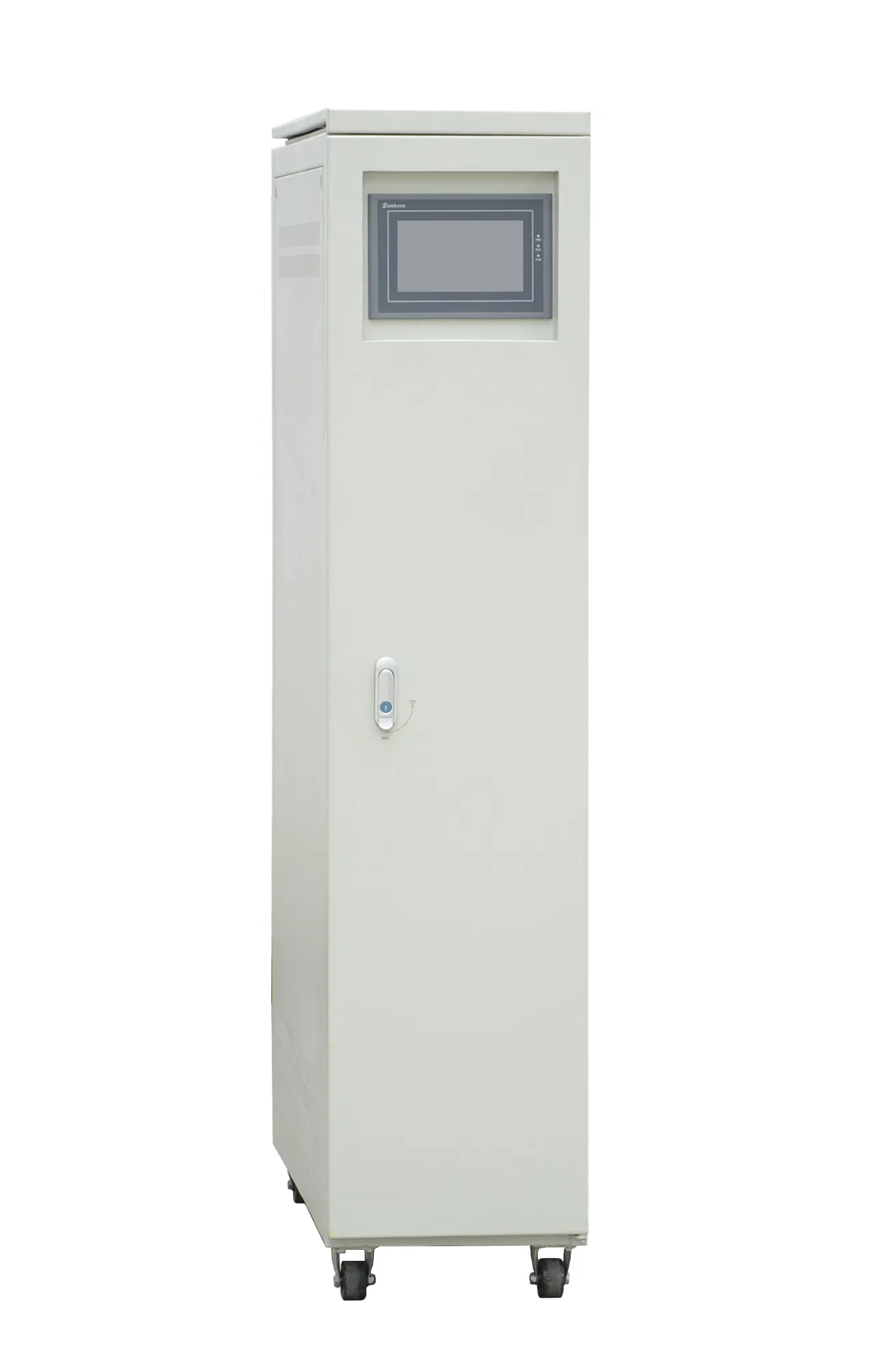

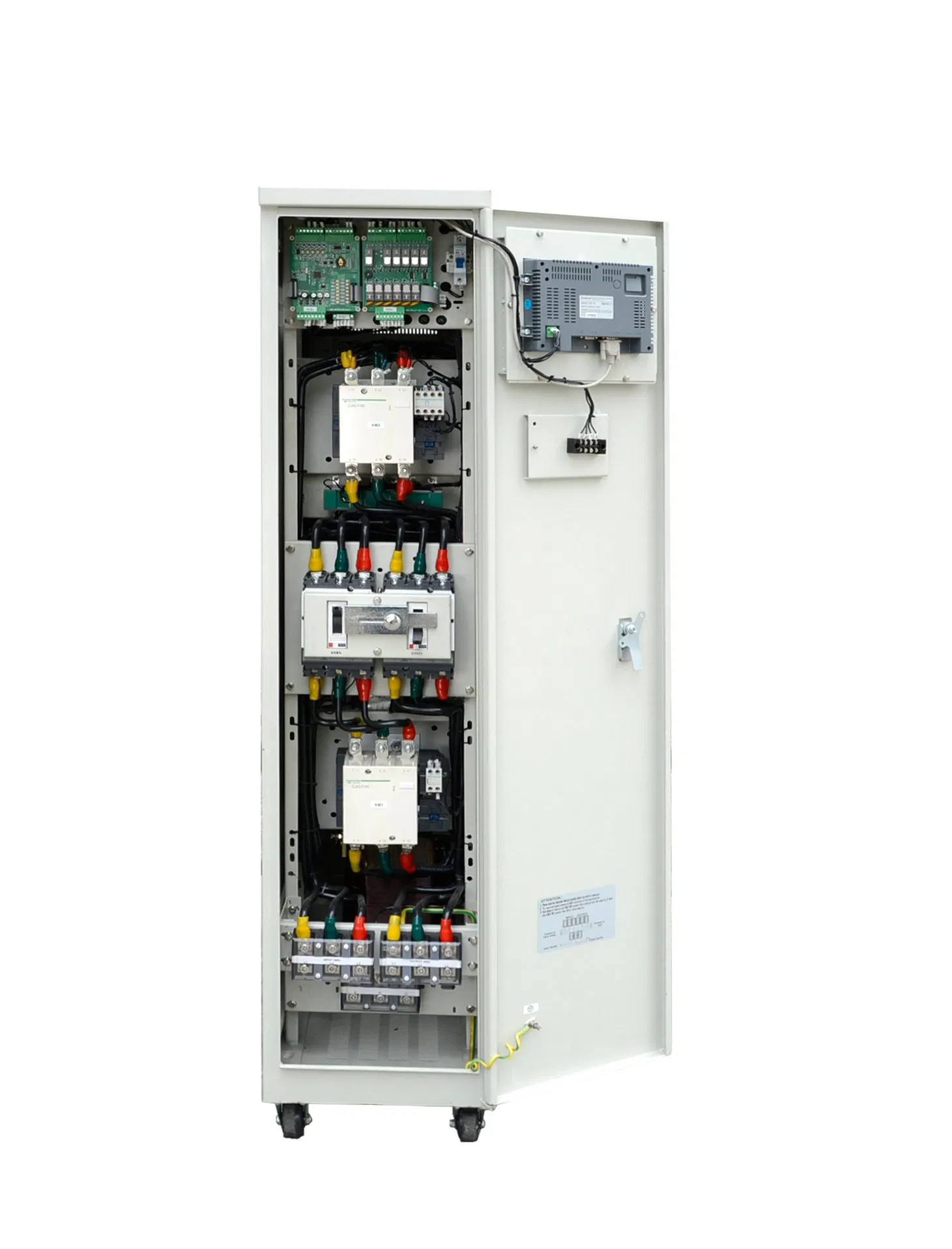

Electrical Power Conditioner for Elevator Specific

Product Description

Elevator Specific Stabilizer
Features and benefits:
1. Wide input voltage
2. Maintenance free roller type carbon brush
3. No additional wave distortion, no phase deviation
4. Continually operation mode and withstand to instantaneous overload
5. Protection circuit(over, under voltage and over current auto shutoff after delayed)
6. Manual by-pass function
7. Start output delayed function
8. Lightning device addition is available as request

Applications:
1. Passenger Elevator
2. Cargo Elevator
3. Ropeway elevator
4. Escalator

Elevators play an increasingly important role in inhabitation high-rises, busy business building, and hotels. MODERN designed elaborately the elevator specific power conditioner considering voltage pulsation caused by ceaseless ups and downs and frequent running and pauses of elevators. The systematic regulation adopts roller type carbon brush and high polishing processing of regulating transformer so that the friction loss of carbon brush can be reduced to less than 0.2mm every 10, 000 times. In addition, swift speed of regulation resonance, impressive ability of anti load impact and flawless protection guarantee normal and cycling operation of elevator. It also has dual delayed function, by-pass function and the auto restore facility after power cut.

Model			DBW	SBW
Capacity (KVA)			1000
Input voltage			Single Phase: 220V±20%
			Three Phase:380V±20%
Output voltage			Singel Phase:220V- 230V(Adjustable)
			Three Phase: 380V - 405V(Adjustable)
Output accurac y			±1-5% Upon your request
Frequency			50Hz
Insulation resistance			≥2MΩ
Noise			<55dB
Voltage regulation mode			Independent phase regulation
Wave deformation			Nil
Insulation class of transformer			H class
Wire system			Single Phase
			Three Phase : 3-Phase-4-wire-system or 3-Phase-5-wire system
Operation time			≥80,000 hours
Long Life Time Carbon brush			140,000 times with only about 0.01mm roller carbon brush abrasion
Method of voltage regulation			Regulation transformer with servomotor
Insulated strength			Single phase: 2000V/1min without puncture
			Three phase: 2500V/1 min without puncture
Package Material			Carton for batch volume, Wooden packing for small volume
Efficiency			>96%
Housing			IP20(Indoor)	IP55(Outdoor)
Electrical safety			CE equivalent
Operating temperature			-20 °C to +50 °C
Altitude			<1000m
Relative Humidity			<90%
Material of Sliding coil			Copper, and inner and outer winding both
Functions			Malfunction protection;Short-circuit protection,
			Lack Phase protection; Manual bypass,Safe start
			Alarm and silence, Under/Over voltage Protection
Optional Functions			Auto Power-on;Isolation Transformer; Surge Protection;Remote Monitor

Phase	Model	Capacity(KVA)	Dimension(H×W×D)mm	Cabinet(QTY)
Single Phase	DBW-10	10	1020×300×700	1
	DBW-15	15	1020×300×700	1
	DBW-20	20	1020×300×700	1
	DBW-30	30	1020×300×700	1
	DBW-50	50	1120×380×750	1
	DBW-80	80	1220×400×780	1
	DBW-100	100	1220×400×780	1
	DBW-150	150	1420×450×930	1
	DBW-200	200	1420×450×930	1
Three Phase	SBW-10	10	1020×300×700	1
	SBW-20	20	1020×300×700	1
	SBW-30	30	1020×300×700	1
	SBW-50	50	1120×380×750	1
	SBW-80	80	1220×400×780	1
	SBW-100	100	1220×400×780	1
	SBW-150	150	1420×450×930	1
	SBW-200	200	1520×520×980	1
	SBW-300	300	1720×600×1380	1
	SBW-500	500	1860×720×1580	1
	SBW-800	800	1860×900×1080	1
	SBW-1000	1000	1860×900×1080	2
	SBW-1500	1500	1860×900×1080	3
	SBW-2000	2000	1860×900×1080	3
