Cheap Servo Motor Voltage Regulator & Stabilizer
The sample price is subject to actual situation,specific products.Honle SVC AC Voltage Stabilizer for computer test equipmentFeatures1.Operating principleSVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When......
Send Inquiry
Product Description
The sample price is subject to actual situation,specific products.

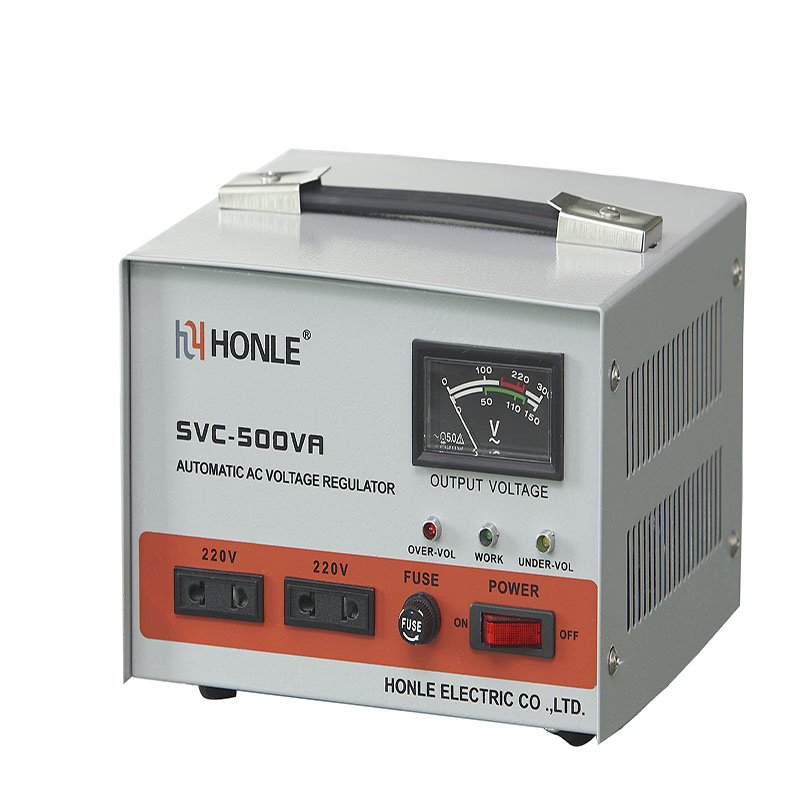

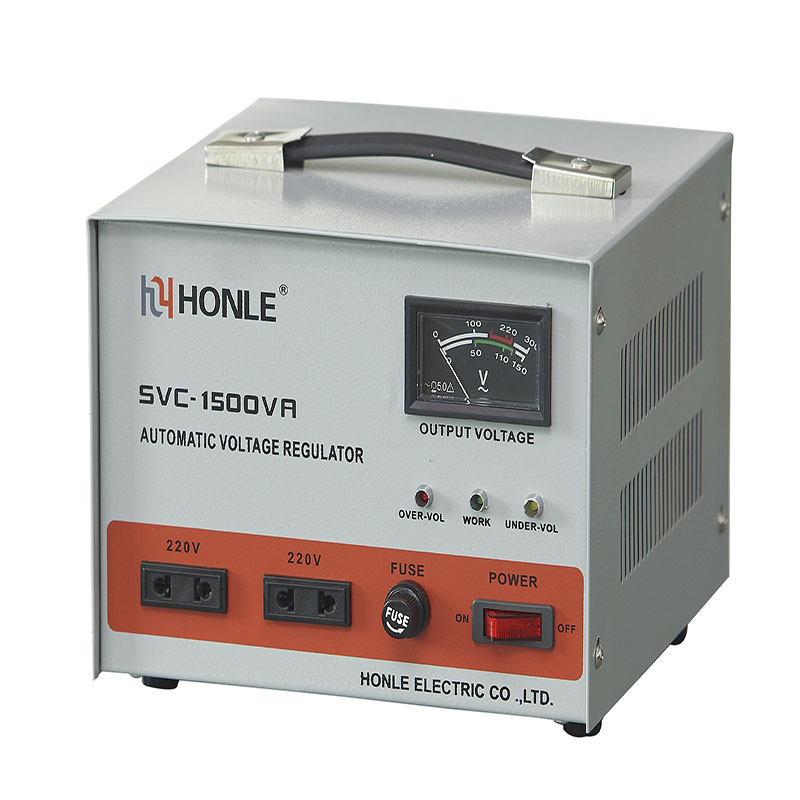

Honle SVC AC Voltage Stabilizer for computer test equipment
•Features
1.Operating principle
SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the postion of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
2.Product advantages
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, etc.
3.Product warranty
Our products are of superior quality and have fine workmanship. Most of products use imported parts,every product must be inspected many times before it is exported.
•Application
Computers, test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment, digital control machine tools, TV sets, office appliances.
•Technical Index
•Specifications and Model
•Company Information
•FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, D/P,Western Union PayPal. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 30 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 8. what kind of certificates you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS and so on.
Dear friends, we are your Reliable Voltage Stabilizer Partner!
We appreciate if you leave detail product information here or send email to our mail box: .
It's our honor to relate with you!
We will feedback as soon as possible. Thanks very much.

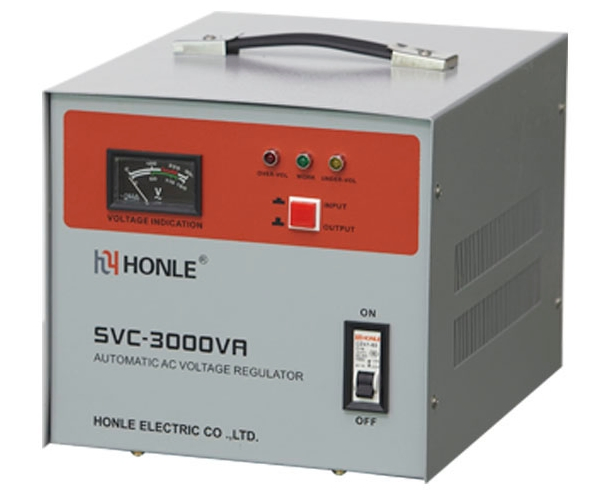

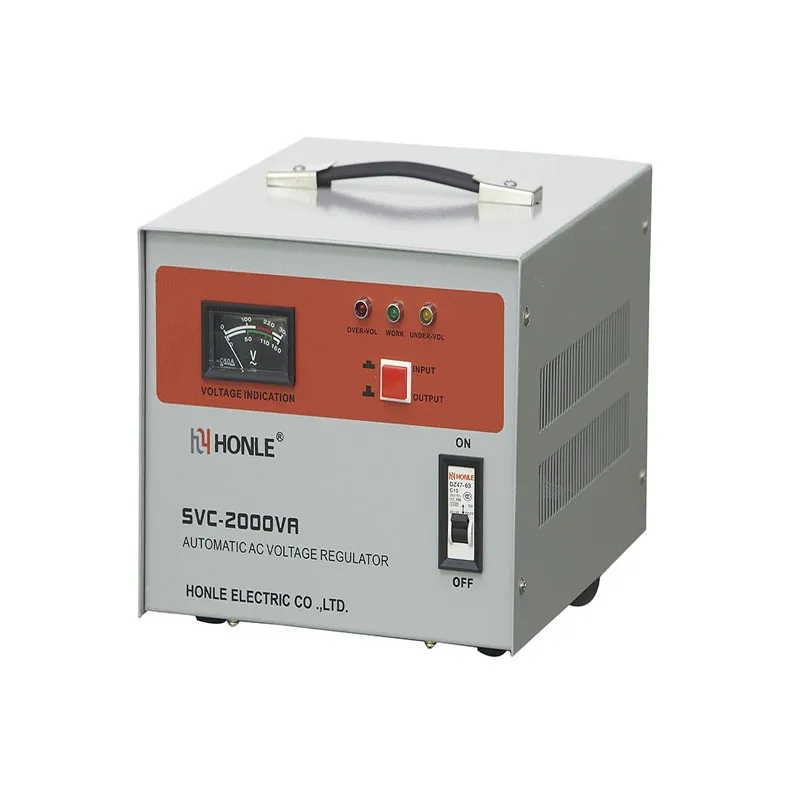

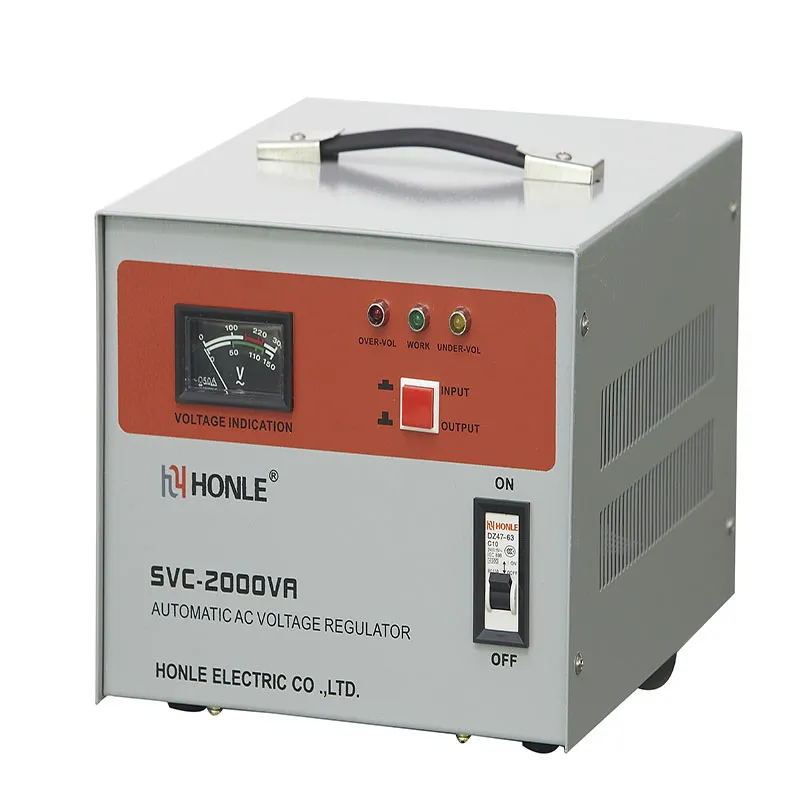

Honle SVC AC Voltage Stabilizer for computer test equipment
•Features
1.Operating principle
SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the postion of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
2.Product advantages
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, etc.
3.Product warranty
Our products are of superior quality and have fine workmanship. Most of products use imported parts,every product must be inspected many times before it is exported.
•Application
Computers, test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment, digital control machine tools, TV sets, office appliances.
•Technical Index
| Input voltage | 160-250V |
| Output voltage | 220±3% 110±4% |
| Phase | single-phase |
| Frequency | 50-60HZ |
| Adjusting time | <1S (When input voltage has a change of 10%) |
| Max of | 0.5KVA 1KVA 1.5KVA 2KVA 3KVA 5KVA 8KVA 10KVA 15KVA 20KVA 30KVA |
| Output current | 2A 4A 6.5A 8A 12A 20A 32A 40A 60A 80A 120A |
| Protection over voltage | 245±5V |
| Delay | Short Delay 3-7sec long Delay 3-7min |
| Ambient temperature | -5~+40°C |
| Temperature rise | <60°C (full load) |
| Relative humidity | <90°C |
| Wave form distortion | No additional wave form distortion |
| Efficiency | >95% |
| Insulation resistance | ≥2MΩ |
•Specifications and Model
| Model | Unit | Package size(cm) | Weight(kg) |
| 500VA | 4 | 22×20.5×16.3 | 6 |
| 1000VA | 4 | 26.5×23.7×18 | 7.5 |
| 2000VA | 2 | 32×29.2×21.8 | 12.5 |
| 3000VA | 2 | 34.5×29×26 | 15 |
| 5000VA | 1 | 54×29.5×30.5 | 25 |
| 10000VA | 1 | 34.5×29.5×54 | 46 |
| 15000VA | 1 | 36×34×66 | 60 |
| 20000VA | 1 | 49.2×41×87 | 75 |
| 30000VA | 1 | 49.2×41×87 | 90 |

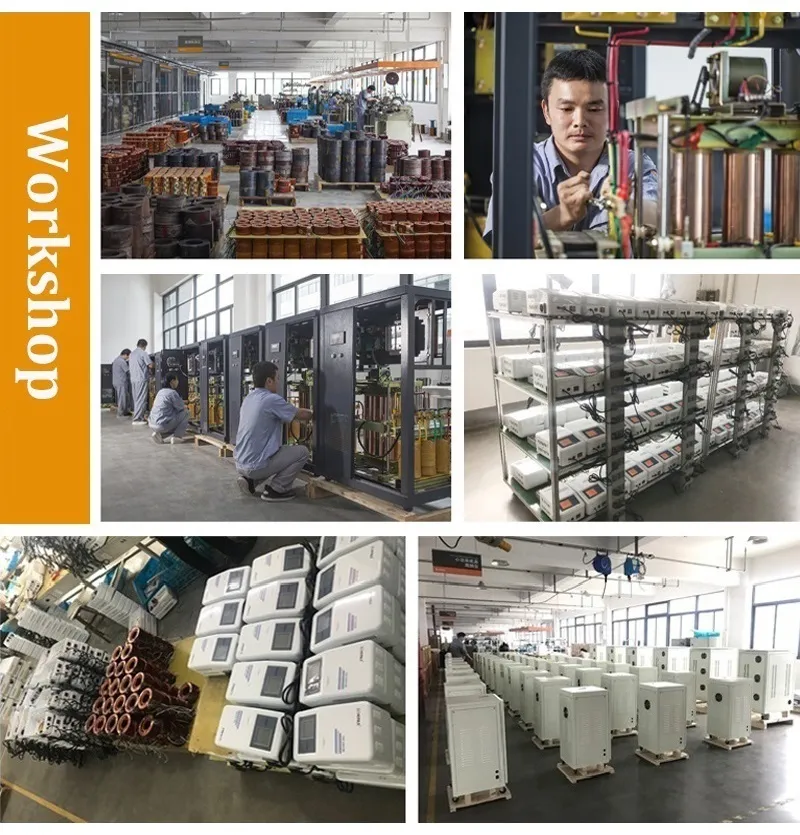

•Company Information
•FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, D/P,Western Union PayPal. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 30 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 8. what kind of certificates you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS and so on.
Dear friends, we are your Reliable Voltage Stabilizer Partner!
We appreciate if you leave detail product information here or send email to our mail box: .
It's our honor to relate with you!
We will feedback as soon as possible. Thanks very much.
