AVR R450 R250, R220, R230, R438, R448 Auto Voltage Regulator Leroy Somer Cat Denyo Marathon Diesel Generator Set AVR Replacement

Leroy somer R450 AVR is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage.

On Application of load, the rotation speed of the generator set deceases, when it passes below the preset frequency threshold the LAM causes the voltage to drop by approximately13% or 25% and consequently the quantity of active load applied is reduced by approximately 25% to 45%, until the speed reaches its rated value again. Hence the LAM can be used either to reduce the speed variation (frequency) and its duration for a given applied load, or to increase the applied load probable for one speed variation (turbo-charged engine).

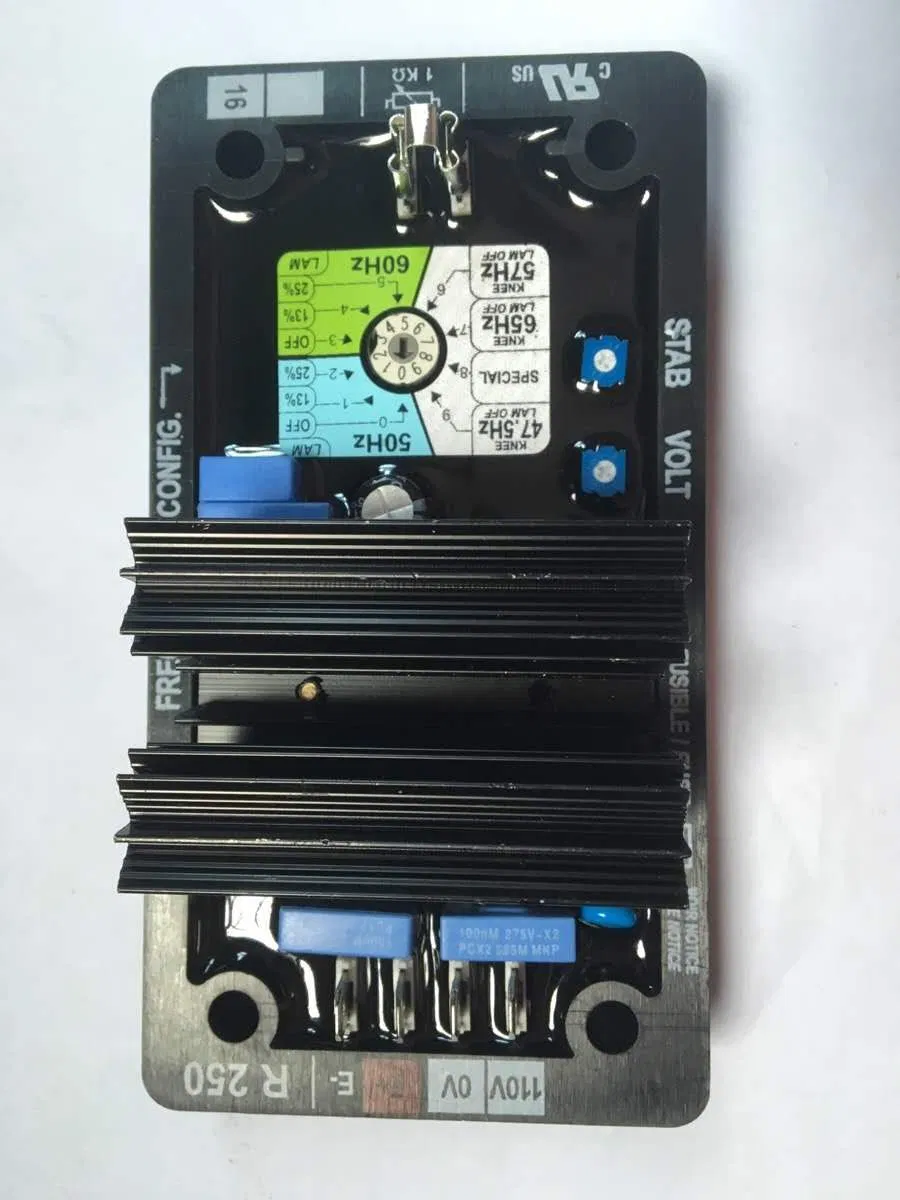

1. Leroy SomerAutomatic Voltage Regulator R450
2. Single or three phase voltage sensing with optional module.
3. Load acceptance module, PMG / AREP excitation system
4. Phase to phase voltage sensing.
5. Suitable for high levels of vibration and harsh environments

Main characteristics:

Voltage regulation +/- 0.5% at steady state and constant speed.

Control by transistor means that the regulation quality is independant of applied load.

Phase to phase voltage sensing.

Suitable for high levels of vibration and harsh environments.

Integrated "LAM" and " auto adaptative LAM" system to cope with load impacts applied to the engine

AREP or PMG excitation with normal or fast response.

Single or three phase voltage sensing with optional module.

Rotating switch facilitating selection.

*50 Hz or 60 Hz frequency option

*Remote voltage adjustment option

*LAM enable/disable option

*Alternator frame selection

*Excitation system selection

Specificaion

Input voltage: 70-140V AC, (PMG, or auxiliary
winding, single, three phases)
Reaction is measured : 90-480V AC
MAX. output :DC 10A 125V
Function: Built-in low-speed , over excitation
LAM,
REGULATION: +/-0.5%




Product Description

 *3 Phase Sensing Permanent Magnet Generator type voltage regulator is a compatible replacement for Newage MX321 and Onan 305-0823.

* MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.Excitation power is derived from a three phased permanent magnet generator(PMG),to isolate the AVR control circuits from the effects of nonlinear loads and to reguce radio frequency interence on the generator terminals.Sustained generator short circuit current is another feature of the PMG system.

* The AVR sense the voltage in the main generator winding and controls the excitation to maintain the generator output voltage with the specified limits,compensating for load,speed,temperature and power factor of the generator.Thress phase RMS sensing is emplyed for superior voltage regulation.

* Adjustable soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
