              AC Stabilizer for Generator Parts
              • AC Stabilizer for Generator PartsAC Stabilizer for Generator Parts
              • AC Stabilizer for Generator PartsAC Stabilizer for Generator Parts
              • AC Stabilizer for Generator PartsAC Stabilizer for Generator Parts
              • AC Stabilizer for Generator PartsAC Stabilizer for Generator Parts

              AC Stabilizer for Generator Parts

              ac stabilizer for generator partsSERVICE OCCASIONS:ComputerTest equipmentLighting equipmentAlarm and security system X-ray equipmentMedical equipmentDuplicatorBroadcasting equipmentNumeric control machine toolIndustrial robotPhotographic processing equipmentLaboratory instrumentHi-Fi equipment1.High......

              Send Inquiry

              Product Description

              ac stabilizer for generator parts

              SERVICE OCCASIONS:
              Computer
              Test equipment
              Lighting equipment
              Alarm and security system
              X-ray equipment
              Medical equipment
              Duplicator
              Broadcasting equipment
              Numeric control machine tool
              Industrial robot
              Photographic processing equipment
              Laboratory instrument
              Hi-Fi equipment

              AC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator PartsAC Stabilizer for Generator Parts



              1.High technology:programmed control computerized
              2.Unique design:LED display which can show all protection functions.
              3.Quality ensurance:every spareparts is made by ourself,for example,transforma,PCB.
              4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
              5.High efficiency:more than 90%

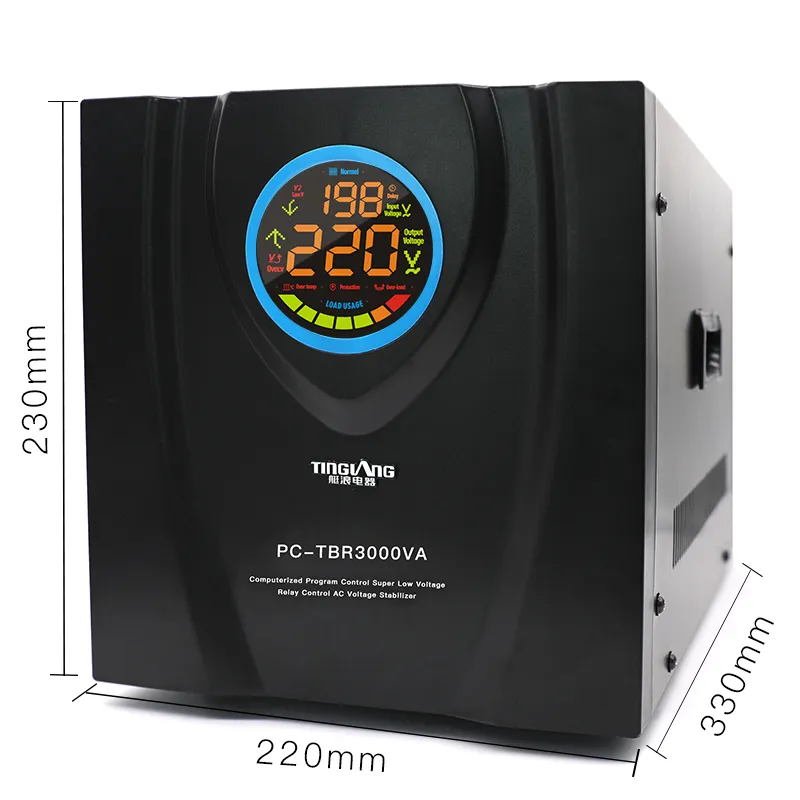

              Model
              PC-TBR500VAPC-TBR1000VAPC-TBR1500VAPC-TBR2000VAPC-TBR3000VAPC-TBR5000VAPC-TBR8000VAPC-TBR10000VA
              TechnologyRelay Control System+Micro compute programed control

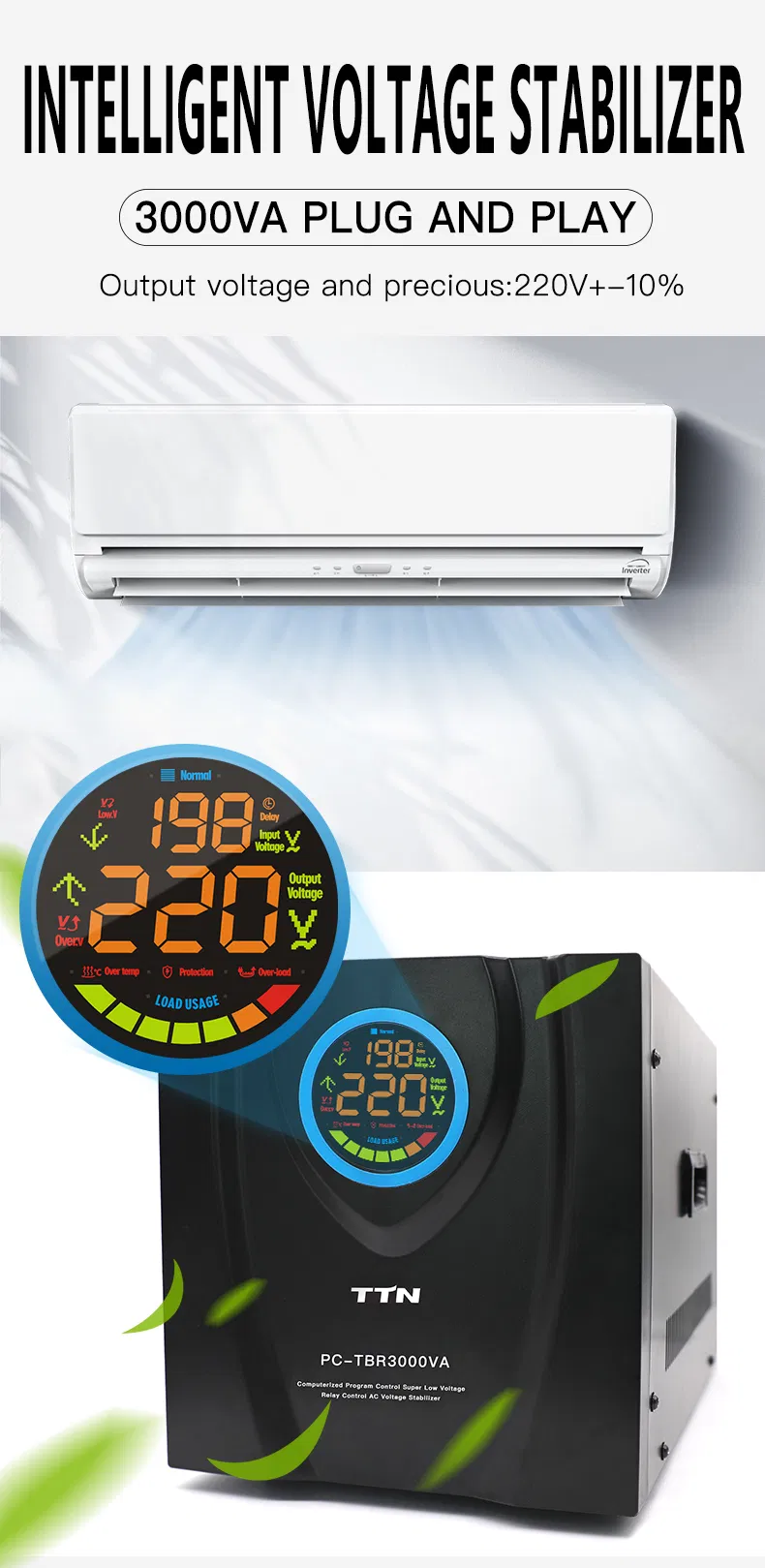

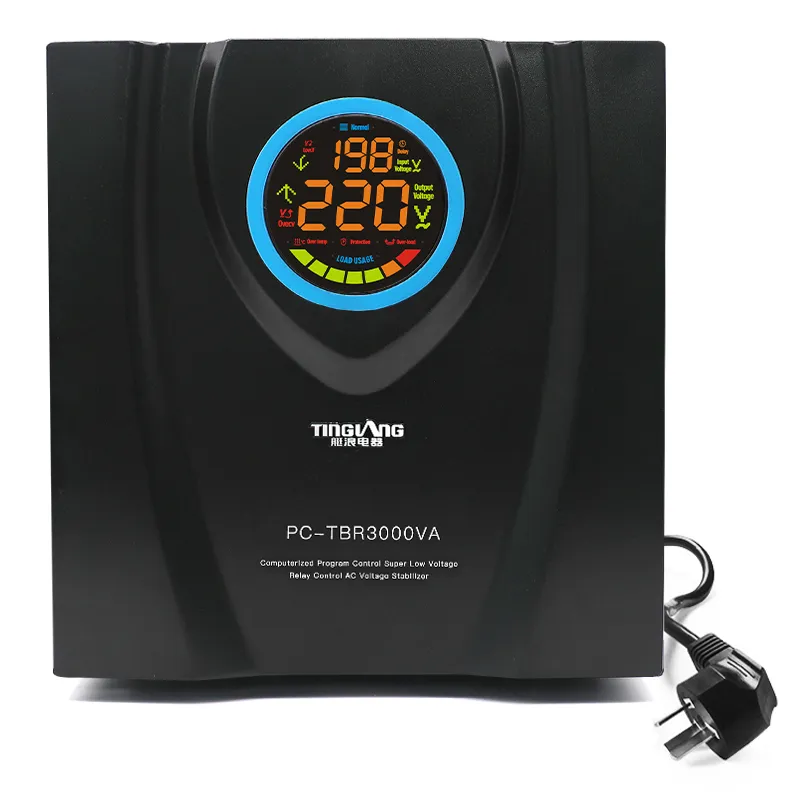

              LED DisplayColorColorful
              InfoInput Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
              ProtectionOver VoltageOutput voltage ≥ 248v± 4
              Low VoltageOutput voltage ≤ 185V± 4
              Over Loadingmore than 120%
              Over Temperture 120C± 10

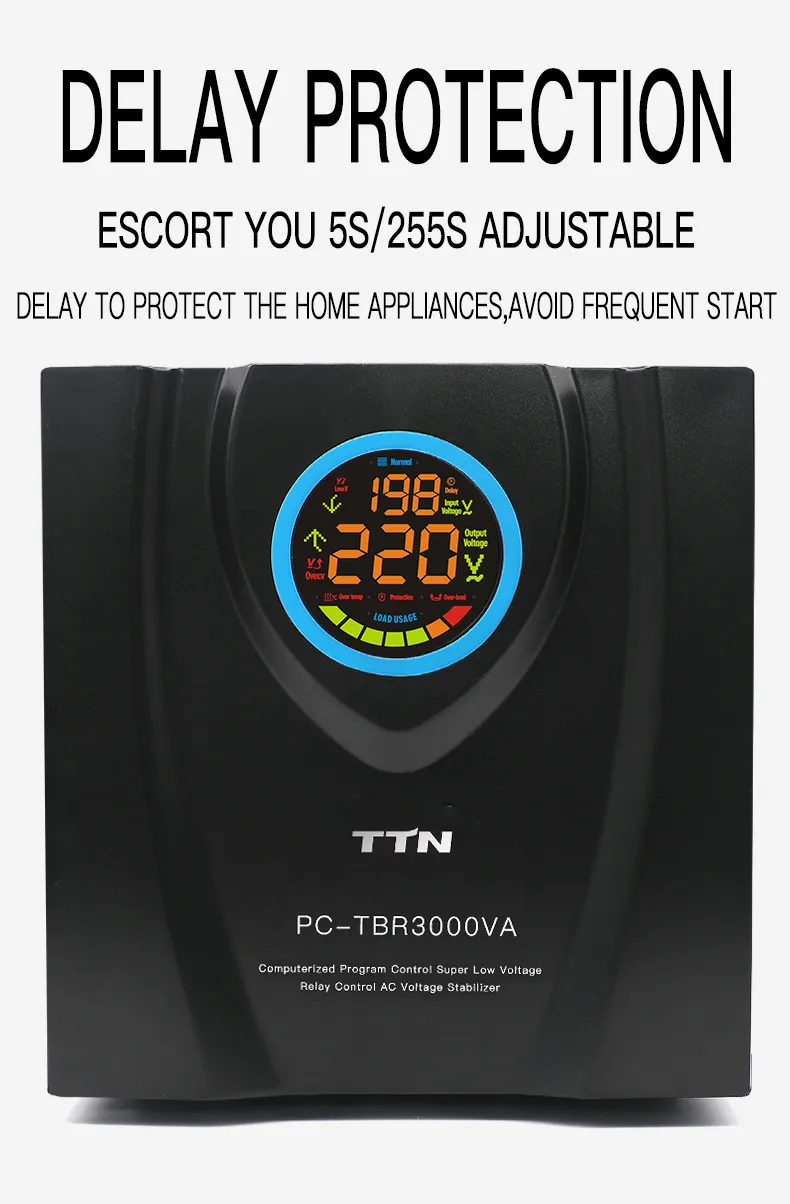

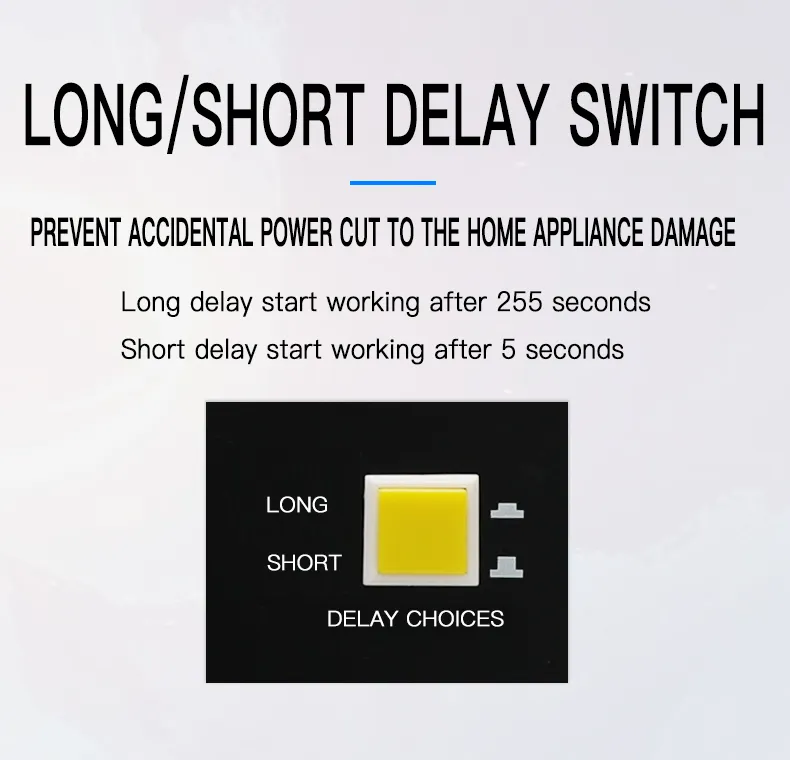

              Delay time Long time(255 second)/short time (5 second)
              Creepage
              LanguageEnglish/Russian/Chinese
              Input VoltageAC150-270V(A Type); AC135V-AC270V(B Type); AC105V-AC270V(C Type); AC80V-AV270V(D Type)
              Output Voltage220V± 10%    adjustable
              Frequency50Hz/60Hz
              PhaseSingle Phase
              Efficiency≥ 95%
              Ambient Temperature- 15~45C
              Relative Humidity< 95%
              Waveform distortionno additional wave form distortion
              Insulating ResistanceNormally more than 2MΩ

              Specifications
              Power500W1000W1500W2000W3000W5000W8000W1000W

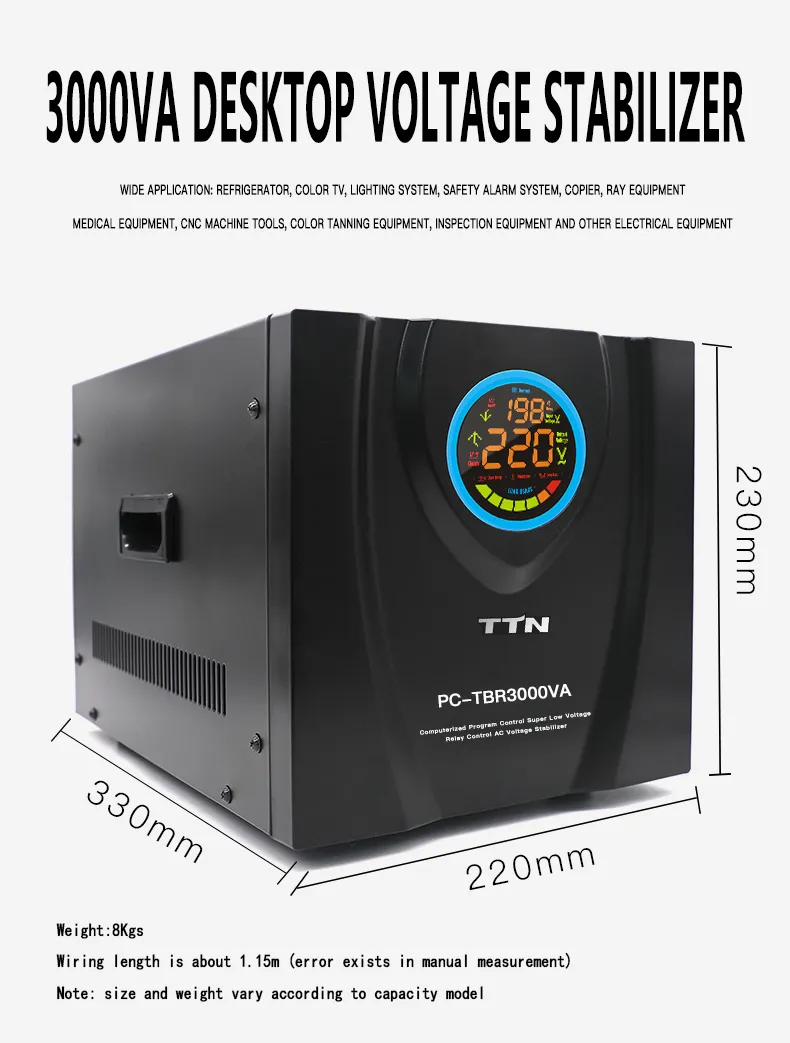

              Packing Size35.8x30.3x42.3cm35.8x30.3x42.3cm35.8x30.3x42.3cm39.6x35.3x46.7cm38.6x27.7x29.8cm38.6x27.7x29.8cm42.3x27.7x29.8cm44.2x30.4x37.1cm
              Packing4  4441111
              G. M12.33KG14.51KG15.27KG24.66KG21.35KG32.5KG37KG23KG

              FAQ


              Q 1. what's the payment terms?
              A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
              Q 2. how's the delivery time ?
              A. usually it will take about two weeks for production
              Q 3. tell me the standard of package?
              A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
              Q 4. what kind of material of transformer?

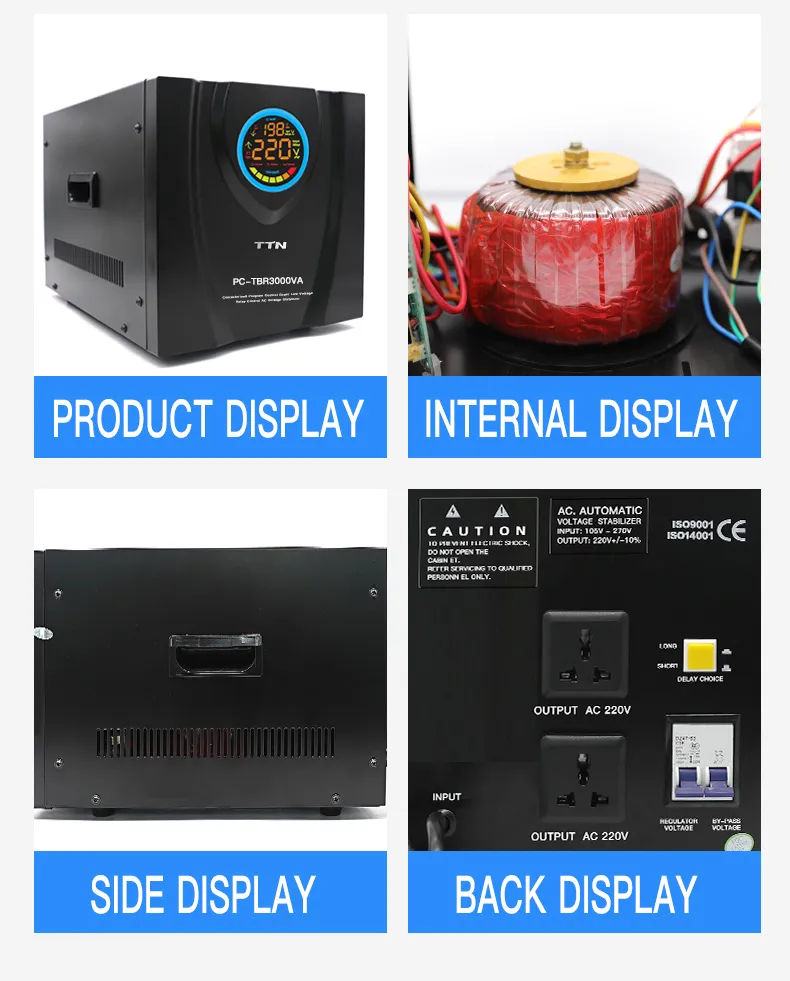

              A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
              Q 5.Could you offer Form A or C/O ?
              A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
              Q 6.Would you accept to use our logo ?
              A.If you have good quantity,it absolute no problem to do OEM.
              Q 7.We want to know month capacity.
              A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs   and big capacity near 2000pcs.
              Q 8.Where is your market?
              A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
              Q 9. what kind of certificate you have ?
              A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap

              COMPANY INFORMATION:
              AC Stabilizer for Generator Parts

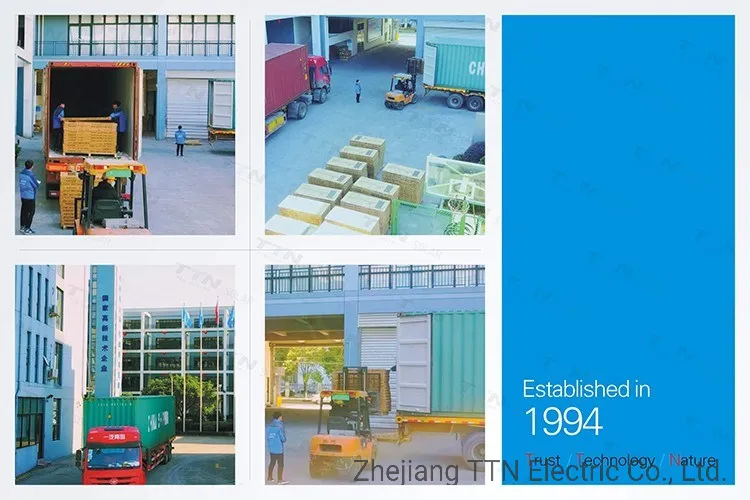

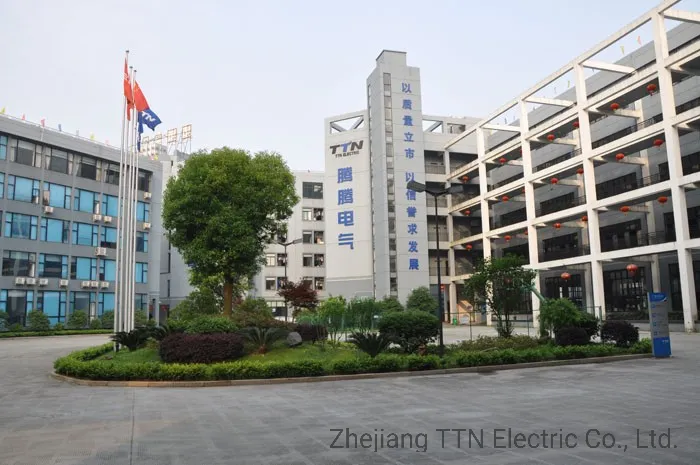

              ZHEJIANG TTN ELECTRIC CO., LTD

              1)We are professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
              2)We have best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .

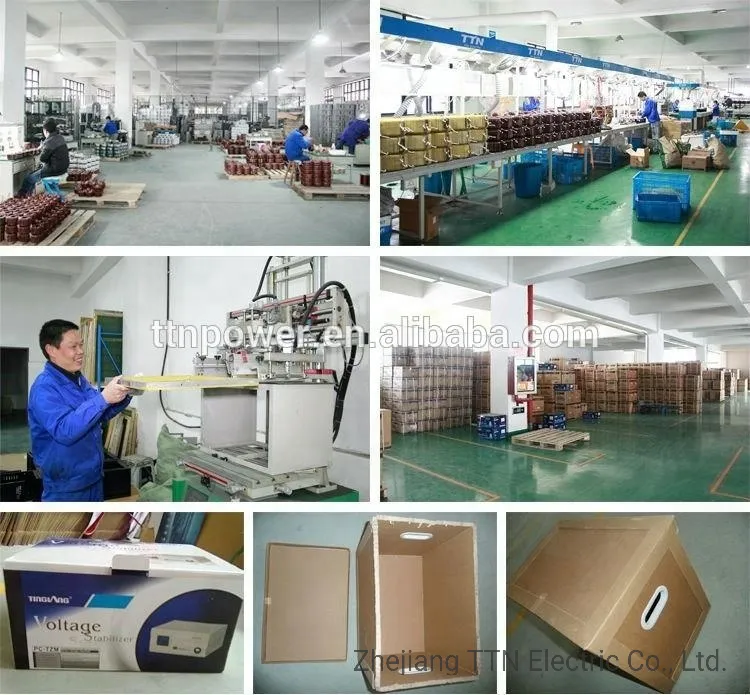

              3) We have strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass,lets the users be satisfied.
              4 ) As manufacturer we have 12product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
              5 )Best OEM/ODM service.

              OUR SERVICE
              Service for sample:
              We can provide sample for your testing

              Service for Customization:
              We can do as your requirement, we accept OEM.

              After-sale service
              Policy:1.sent the spareparts, 2 years warranty.
                        2.sent you the documents of  technical skills for repairing the cargo

              we will sent the sparepartsfor example,LED display,PCB,carbon brush in case of demage.It will be sent together with the cargos.
