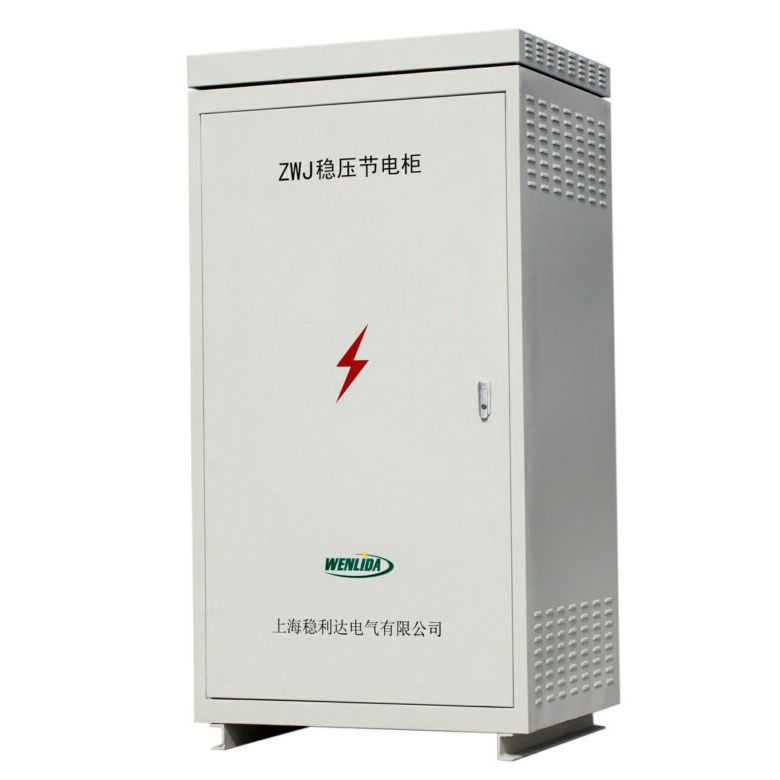

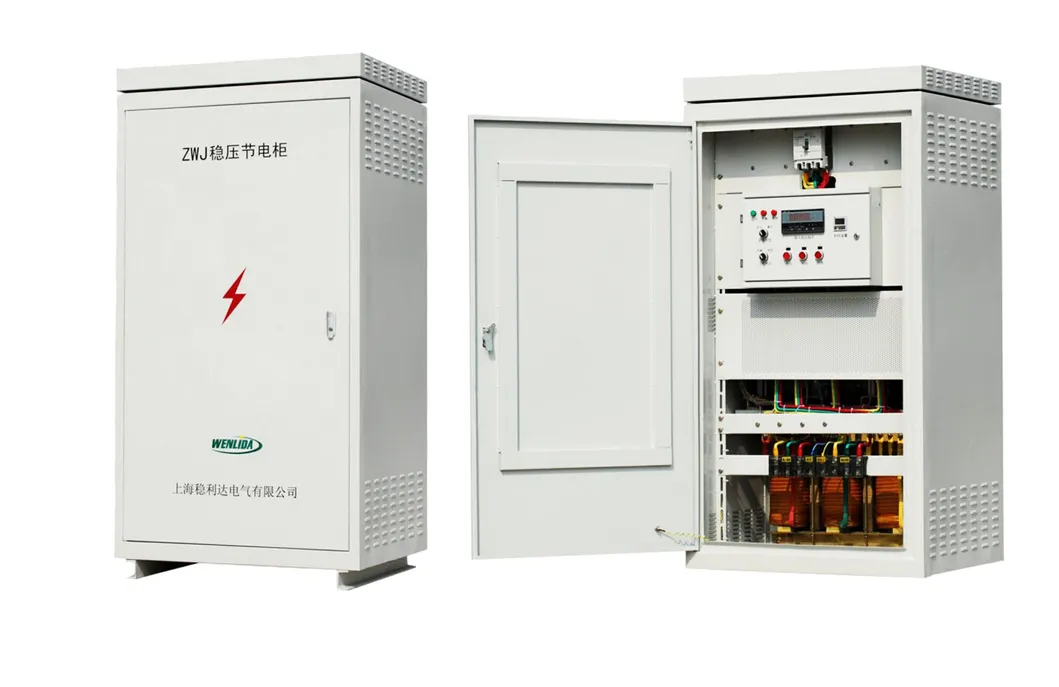

50kVA Intelligent Power Energy Saver Three-Phase Wjdz-3050
Production intorduction:WJD power saver is intelligent three-phase independent adjustment (unit adjustment) way to reduce voltage and stabilize voltage, and provide the maximum energy saving power (saving electricity and saving money). Electricity saving effect is remarkable; the efficiency reaches1......
Send Inquiry
Product Description
Production intorduction:
WJD power saver is intelligent three-phase independent adjustment (unit adjustment) way to reduce voltage and stabilize voltage, and provide the maximum energy saving power (saving electricity and saving money). Electricity saving effect is remarkable; the efficiency reaches15% ~ 35%, and the useful life is more than 10 years with long-term benefit. Power saver's working is safe and reliable, has manual/automatic bypass function, stable operation, no wave distortion. High intelligent control, easy to use, and can be Binary programming to the running time and voltage of lighting. Cost is effective control. Because of reducing voltage and lighting's temperature, extend the service life of lamps and lanterns (more than two times), and greatly reduce maintenance costs.
MAIN TECHNICAL SPECIFICATIONS:
ADVANTAGES:
1.Effective energy saving
20%-55% energy saving rate is determined by the quality of the electric grid and envirement, the span time is 15 years, one time investment, make profit forever.
2.Safe and reliable operation
It will ensure the easy star and stable operation for the lighting system, without spark, complete sine wave output voltage, without any harmonic, with the auto bypass function.
3.High Intelligent control
Users can set up the voltage, design process for the operation time and method according to their requirements in the operating panel.
4.Reduce maintenance costs
Temperature down of the lights, can filte the harmonic and Transient suppression, this prolong the life span to two times,reduce the maintenance costs.
5.Long term free maintenance
This product can operates reliabley in long time on the bad electric grid condition and complex load, we use the patent of our thyristor control voltage stabilizer and high quality components in this product.
USAGE PF THE WJD INTELLIGENT LIGHTING ENERGY SAVING DISTRIBUTION CABINET:
○ Municipal Lighting ---- highways, tunnels, bridges, urban roads, etc.
○ Traffic Lighting ---- railways, civil aviation, railway stations, quay, highways, etc.
○ Public lighting ---- banks, hospitals, schools, gas stations,stadium, etc.
○ Commercial lighting ---- large shopping malls, shopping malls, supermarkets, hotels, large advertising boards.
○ Factory lighting ----- electricity, telecommunications, textiles, paper, machinery and electronics, petrochemicals, garments, food processing, etc.
WJD power saver is intelligent three-phase independent adjustment (unit adjustment) way to reduce voltage and stabilize voltage, and provide the maximum energy saving power (saving electricity and saving money). Electricity saving effect is remarkable; the efficiency reaches15% ~ 35%, and the useful life is more than 10 years with long-term benefit. Power saver's working is safe and reliable, has manual/automatic bypass function, stable operation, no wave distortion. High intelligent control, easy to use, and can be Binary programming to the running time and voltage of lighting. Cost is effective control. Because of reducing voltage and lighting's temperature, extend the service life of lamps and lanterns (more than two times), and greatly reduce maintenance costs.
MAIN TECHNICAL SPECIFICATIONS:
| Phase | TYPE | Rated Capacity (KVA) | Output Current (A) | Size(mm) Width*Height*Depth |
| Single-phase | WJDZ-1005 | 5 | 23 | 380×300×600 |
| WJDZ-1007 | 7 | 32 | ||
| WJDZ-1010 | 10 | 45 | ||
| WJDZ-1015 | 15 | 68 | 450×350×750 | |
| WJDZ-1020 | 20 | 91 | ||
| WJDZ-1025 | 25 | 114 | ||
| WJDZ-1030 | 30 | 136 | ||
| WJDZ-1040 | 40 | 182 | 500×400×950 | |
| WJDZ-1050 | 50 | 227 | ||
| WJDZ-1060 | 60 | 272 |
| Phase | TYPE | Rated Capacity (KVA) | Output Current (A) | Size(mm) Width*Height*Depth |
| Three-phase | WJDZ-3010 | 10 | 15 | 500×420×1150 |
| WJDZ-3015 | 15 | 23 | ||
| WJDZ-3020 | 20 | 30 | ||
| WJDZ-3025 | 25 | 38 | ||
| WJDZ-3030 | 30 | 46 | 600×450×1250 | |
| WJDZ-3040 | 40 | 61 | ||
| WJDZ-3050 | 50 | 76 | ||
| WJDZ-3060 | 60 | 91 | ||
| WJDZ-3080 | 80 | 122 | 650×550×1480 | |
| WJDZ-3100 | 100 | 152 | ||
| WJDZ-3120 | 120 | 182 | ||
| WJDZ-3150 | 150 | 228 | 950×850×2000 | |
| WJDZ-3180 | 180 | 273 | ||
| WJDZ-3200 | 200 | 304 | ||
| WJDZ-3225 | 225 | 342 | ||
| WJDZ-3250 | 250 | 380 | ||
| WJDZ-3300 | 300 | 456 | 1100×1000×2200 | |
| WJDZ-3350 | 350 | 532 | ||
| WJDZ-3400 | 400 | 608 | ||
| WJDZ-3450 | 450 | 684 | ||
| WJDZ-3500 | 500 | 760 | ||
| WJDZ-3550 | 550 | 836 | ||
| WJDZ-3600 | 600 | 912 |
| output voltage range | 190v-270v 330v-467v | output voltage | 209v 195V |
| the wave form of the output voltage | Sine wave | Reactive power compensation | 0.15 |
| connection mothed | In series in a circuit | operating envirement humidity | «92% |
| Incremental harmonic | <0.3%(transient) <0.2%(steady-state) | operating envirement temperature | -40---45 |
| Insulated | >5M | continusous overload capacity | 1.2 times |
| Insulation class | E | Transient overload capacity | 1.5 times |
| Frequency | 50HZ | standard saving rate | 0%--55% |
| Withstand electric strength | 2000V 1min | power polution | no |
| max temerature rise permitable | 70 | Life span | 15 years |
ADVANTAGES:
1.Effective energy saving
20%-55% energy saving rate is determined by the quality of the electric grid and envirement, the span time is 15 years, one time investment, make profit forever.
2.Safe and reliable operation
It will ensure the easy star and stable operation for the lighting system, without spark, complete sine wave output voltage, without any harmonic, with the auto bypass function.
3.High Intelligent control
Users can set up the voltage, design process for the operation time and method according to their requirements in the operating panel.
4.Reduce maintenance costs
Temperature down of the lights, can filte the harmonic and Transient suppression, this prolong the life span to two times,reduce the maintenance costs.
5.Long term free maintenance
This product can operates reliabley in long time on the bad electric grid condition and complex load, we use the patent of our thyristor control voltage stabilizer and high quality components in this product.
USAGE PF THE WJD INTELLIGENT LIGHTING ENERGY SAVING DISTRIBUTION CABINET:
○ Municipal Lighting ---- highways, tunnels, bridges, urban roads, etc.
○ Traffic Lighting ---- railways, civil aviation, railway stations, quay, highways, etc.
○ Public lighting ---- banks, hospitals, schools, gas stations,stadium, etc.
○ Commercial lighting ---- large shopping malls, shopping malls, supermarkets, hotels, large advertising boards.
○ Factory lighting ----- electricity, telecommunications, textiles, paper, machinery and electronics, petrochemicals, garments, food processing, etc.
