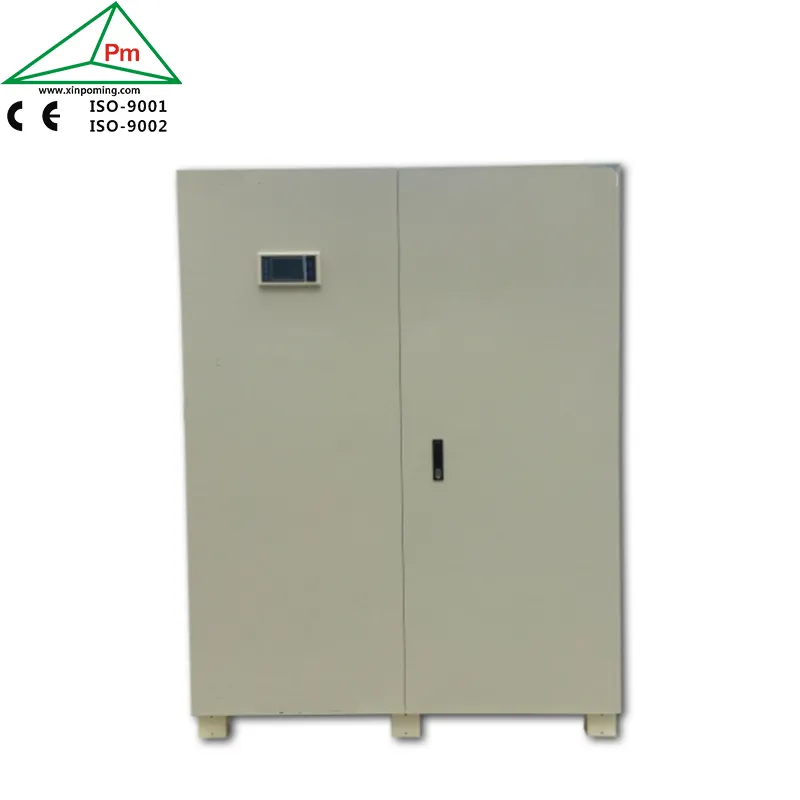

220V Intelligent Automatic Voltage Regulator Suitable for Resistive Capacitive Inductive and Mixed Loads
Technical parametersIn order to give you the best price, please kindly specify your requirements as clearly as possible.OEM and ODM is welcome, we have professional and experienced engineer team for you.Model N.O.DZW-330DZW-345DZW-360DZW-375DZW-3100DZW-3120DZW-3150DZW-3200DZW-3300DZW-3500AC inputRat......
Send Inquiry
Product Description
Technical parameters
In order to give you the best price, please kindly specify your requirements as clearly as possible.OEM and ODM is welcome, we have professional and experienced engineer team for you.
| Model N.O. | DZW-330 | DZW-345 | DZW-360 | DZW-375 | DZW-3100 | DZW-3120 | DZW-3150 | DZW-3200 | DZW-3300 | DZW-3500 |
| AC input | Rated voltage | 3-phase 4-wrie 380V/220V | ||||||||
| Regulation rang | ±15% | Frequency | 35hz-63Hz | |||||||
| AC | Rated voltage | 3-phase 4-wrie 380V/220V | Regulation precision | ±1-5%(optional) | ||||||
| Waveform distortion | Without additional waveform distortion(static) | |||||||||
| output | Efficiency | ≥98% | Response time | ≤0.04s | ||||||
| Power factor | 0.8 | Anti-interference | Lightning arrestor , emi filter lg filter | |||||||
| Protections | Overvoltage or undervoltage | Voltage at output phase over 10%,cutting off output or continuous steering bypass | ||||||||
| Overload | Electronic detection , cutting off output within 3 minute of overload | |||||||||
| Missing phase | With (automatic cut-off) | Bypass | Continuous automatic bypass in case of failure | |||||||
| Alarm | LED display and audio alarm | Ambient temperature | 0-45ºC | |||||||
| Overload capacity | 5 times of rated current for 1 second | LCD display | voltage current abnormality | |||||||
| Application | CNS machining center , slow wire cutting , mirror-surface electrical discharge machine , SMT machine , numerical control punch , PCB drilling machine , automatic equipment , CNC, imported printing machine ,medical equipment , injection machine ,laser machine , automatic plug-in machine ,nuclear magnetic resonance machine and etc. | |||||||||
| Size(mm) | 380*780*800 | 430*790*1180 | 520*860*1300 | 1200*860*1650 | ||||||
| NW (kg) | 120 | 150 | 170 | 200 | 230 | 260 | 350 | 410 | 680 | 820 |

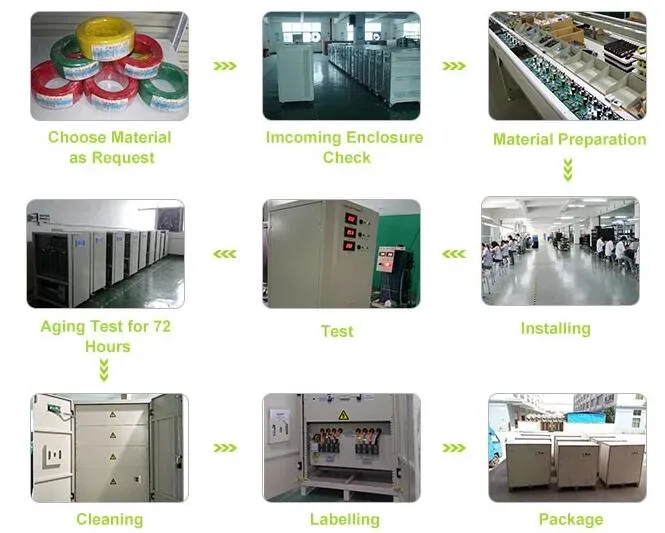

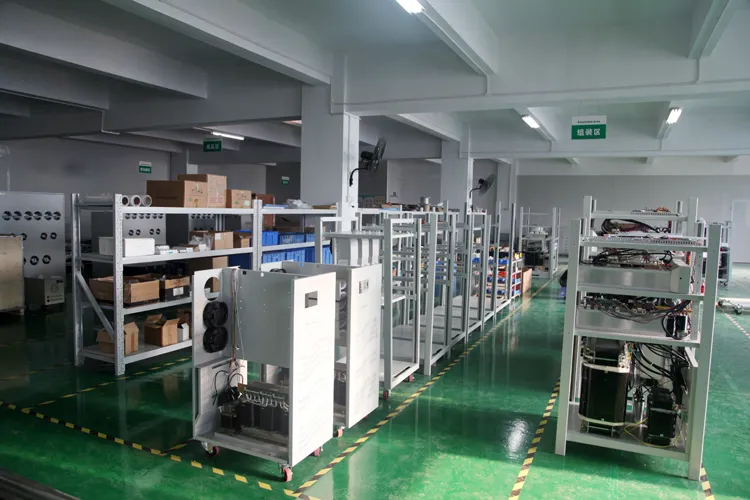

Production Process:
Quality Control & Certifications:
1 years warranty.
With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
About us
Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .
R&D Capacity
We accept customized service, and we develop new items to help our customers to grab the market more easier. Pls give us your detialed requirement if you need us to design for you.

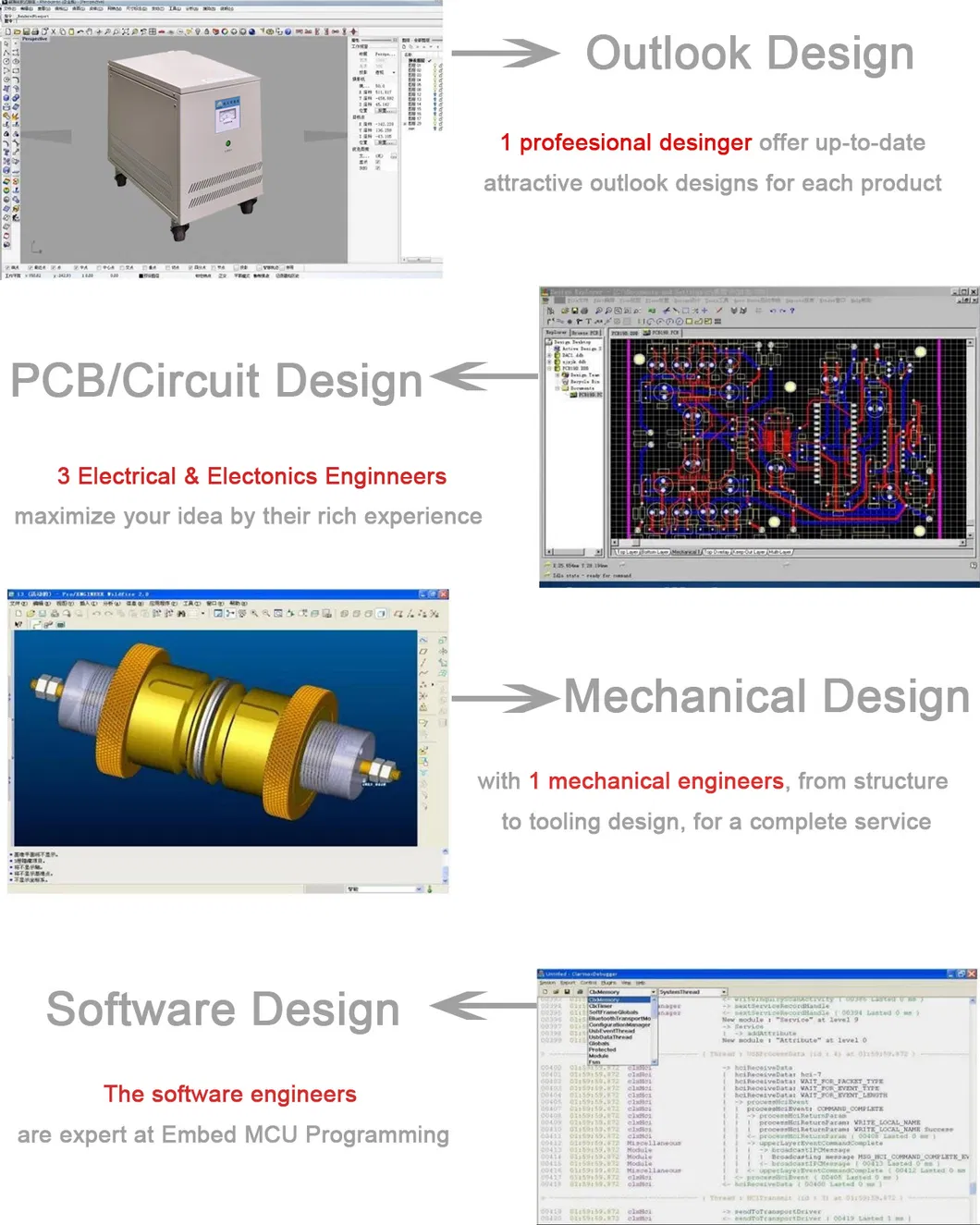

Outlook Design:1 profeesional desinger offer up-to-date attractive outlook designs for each product.
PCB/Circuit Design: 3 Electrical & Electonics Enginneers maximize your idea by their rich experience.
Mechanical Design: with 1 mechanical engineers, from structure to tooling design, for a complete service.
Software Design: The software engineers are expert at Embed MCU Programming.
FAQ(Frequent Asked Qestions)
Q1: What is the MOQ ?
A1: 1 set.
Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q3: Can we put/show our own Logo on your products?
A3: Yes.
Q4: What is the Terms of Payment?
A4: T/T, Western Union.
Q5: Can you offer Form A or Form E or C/O ?
A5: Yes, no problem, we can apply for it from our local government.
Q6: How is the delivery time ?
A6: It depends your order quantity and it normally takes 3-20 days .
Q7: How long is the service life ?
A7: It is 20-30 years.
Q8: How long is the warranty ?
A8: Within one year from the sale date, if there are any accessory problems,
you just provide the photos of damaged accessory, then we will provide free accessory.
According to the number of products, we will provide easily damaged accessories for free.
We also can provide technical support if you need.
You're welcomed to contact us for any questions.
