20kVA Digital Stabilizer Relay Wall Mount Voltage Regulator
Wall Mounted Relay Controlled Type Voltage Stabilizer with Digital Display Features:+ Single phase relay type + Wall mount, strong metal case+ High precision regulation output+ Digital display+ Fully automatic MCU controlled circuit+ Available power capac......
Send Inquiry
Product Description
Wall Mounted Relay Controlled Type Voltage Stabilizer with Digital Display
Features:
+ Single phase relay type
+ Wall mount, strong metal case
+ High precision regulation output
+ Digital display
+ Fully automatic MCU controlled circuit
+ Available power capacity from 0.5K, 1K, 1.5K, 2K, 3K, 5KVA, 7.5KVA, 10KVA, 12KVA
+ Full protection: over voltage, under voltage, overheat, overload, sag and short circuit
+ Delay Time to protect the equipment from rapid fluctuations
+ CE certified
Applications:
+ Refrigeration equipments: fan, refrigerator, chest freezer, cooler and air conditioner
+ Kitchen appliances: microwave oven, rice cooker
+ Entertainment appliances: TV, DVD, VCR, DVB, HiFi
+ IT & Office equipments: PC, workstation, fax machine, photocopier
+ Heating systems: gas boiler, circulation pump
Specifications:
Features:
+ Single phase relay type
+ Wall mount, strong metal case
+ High precision regulation output
+ Digital display
+ Fully automatic MCU controlled circuit
+ Available power capacity from 0.5K, 1K, 1.5K, 2K, 3K, 5KVA, 7.5KVA, 10KVA, 12KVA
+ Full protection: over voltage, under voltage, overheat, overload, sag and short circuit
+ Delay Time to protect the equipment from rapid fluctuations
+ CE certified
Applications:
+ Refrigeration equipments: fan, refrigerator, chest freezer, cooler and air conditioner
+ Kitchen appliances: microwave oven, rice cooker
+ Entertainment appliances: TV, DVD, VCR, DVB, HiFi
+ IT & Office equipments: PC, workstation, fax machine, photocopier
+ Heating systems: gas boiler, circulation pump
Specifications:
| Model | WVR-500VA | WVR-1000VA | WVR-1500VA | WVR-2000VA | WVR-3000VA | WVR-5000VA | WVR-7500VA | WVR-10000VA | WVR-12000VA | |
| Power | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 7500VA | 10000VA | 12000VA | |

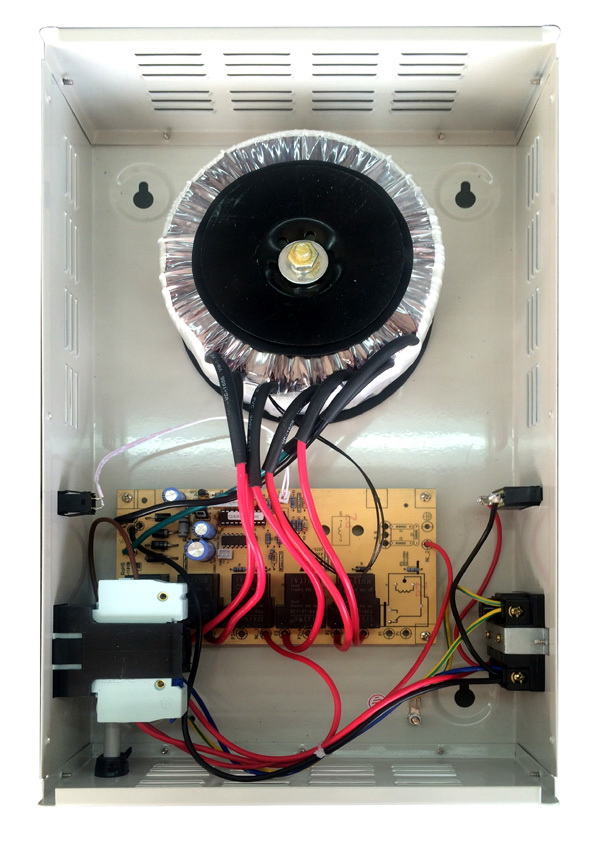

| Technology | Fully automatic MCU controlled circuit + toroidal transformer | |||||||||
| Input | Input voltage range | 130-270V; 95-280V | ||||||||
| Input frequency | 50Hz | |||||||||
| Output | Output voltage | 220V AC / 220V+110V | ||||||||
| Output precision | ± 10%; ± 8% | |||||||||
| Delay Time | 6s /180s selectable | |||||||||
| Efficiency | ≥95% | |||||||||
| Phase | Single phase | |||||||||
| Display | Digital LED | Input voltage, output voltage | ||||||||
| Icon display | Working, delaying, overload, over voltage, under voltage | |||||||||
| Protection | High voltage | Output cutoff + working icon flashes | ||||||||
| Low voltage | Output cutoff + low-volt icon flashes | |||||||||
| Over load | Output cutoff + over-load icon flashes | |||||||||
| High temperature | Output cutoff at temperature 115ºC | |||||||||
| Short circuit | Circuit breaker trip off | |||||||||
| Cooling system | Air Cooled | |||||||||
| Safety standards | CE (LVD + EMC) , EN60950, EN55024 | |||||||||
| Operating conditions | Operating temperature | -5ºC - 45ºC | ||||||||
| Stroage temperature | -15ºC - 45ºC | |||||||||
| Operating relative humidity | 10%RH - 90%RH, Non-condensing | |||||||||
