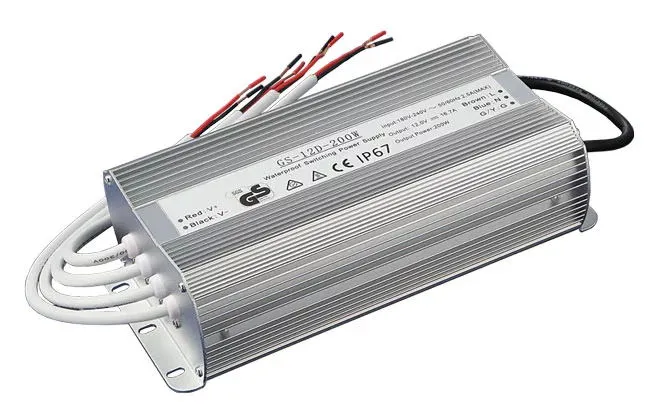

200W AC 110V Input Voltage DC12V Output Voltage LED IP67 Waterproof Power Supply
200W AC 110V input voltage DC12V output voltage LED IP67 waterproof power supply Product Description1.Protections: Short circuit/Over load/Over temperature.2.IP67 design for indoor or outdoor installations.3.EN60950-1 power unit.4.Cooling by free air convection.5.100% full load burn-in test.6.High r......
Send Inquiry
Product Description
200W AC 110V input voltage DC12V output voltage LED IP67 waterproof power supply
1.Protections: Short circuit/Over load/Over temperature.
2.IP67 design for indoor or outdoor installations.
3.EN60950-1 power unit.
4.Cooling by free air convection.
5.100% full load burn-in test.
6.High reliability.
7.Suitable for moving sign applications.
8.2 year warranty.
Specifications:
HG-12DC-200WB-FS | ||
Output | Rated Power | 200W(MAX) |
DC Voltage | DC 12V | |
Rated current | 16.7A | |
Voltage Tolerance | ±2% | |
Input | Voltage Range | 100-120V DC |
Frequency range | 47-63Hz | |
Efficiency (Typ) | 83% | |
AC Current | 2.0A / 230V AC | |
Power Factor | PF>0.6 | |
Protection | Over Load | >120% |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
MTBF | 20000hrs min. | |
Package | Dimension | 285*110*65mm |
Package | 10PCS, 30.5Kg | |
Remark!! | IP rating | IP67 |

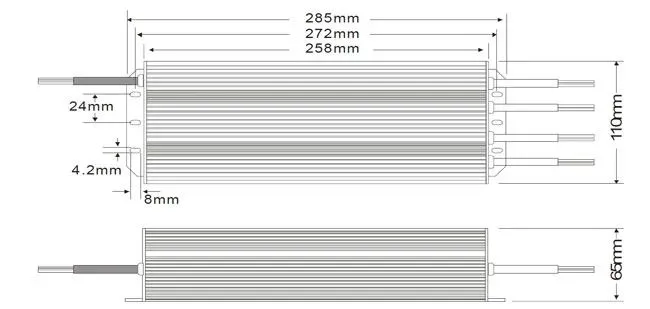

Demension:
