Yingjiao Custom Manufactured Power Adapter 85W 5V 2.5A 9V 100Ma

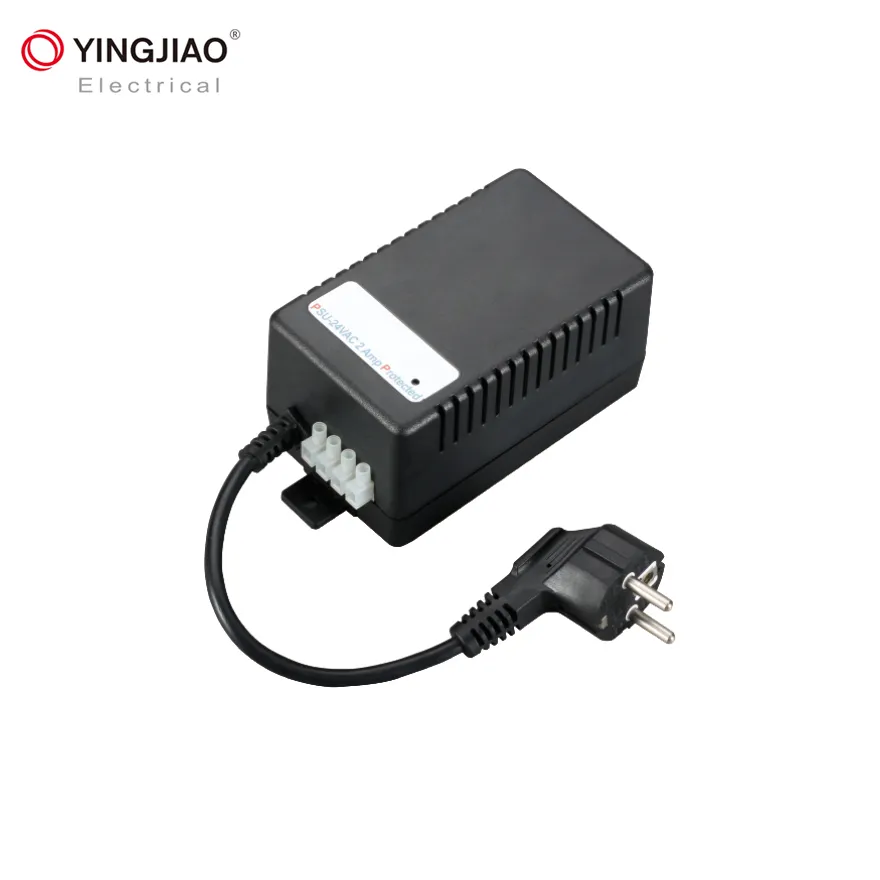

Linear power adapter	Desktop type
Model:	YL50
Rated Power:	50W
Input:	100-120VAC 60Hz or 220-240 VAC 50Hz
Output Voltage:	5-36VAC
Output Current:	1.35-6A
Input current:	0.83A max.or 0.42A max
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
No Load Power Consumption :	< 1.5W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer's choice
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25 C ambient
Life:	3-5 years alternative
Dimension:	12474.563mm
Weight:	795g
Packing:	10PCS/CTN,47398.5cm

Details:

Model:	YL50-0506000	YL50-0905000	YL50-1503200	YL50-1902500	YL50-2402000	YL50-3601350
AC Voltage:	5V	9V	15V	19V	24V	36V
Rated Current:	6A	5A	3.2A	2.5A	2A	1.35A
Current Range:	0-6A	0-5A	0-3.2A	0-2.5A	0-2A	0-1.35A
Rated Power:	30W	45W	48W	47.5W	48W	48.6W
Ripple & Noise(max.):	50mVp-p	90mVp-p	150mVp-p	190mVp-p	240mVp-p	360mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.

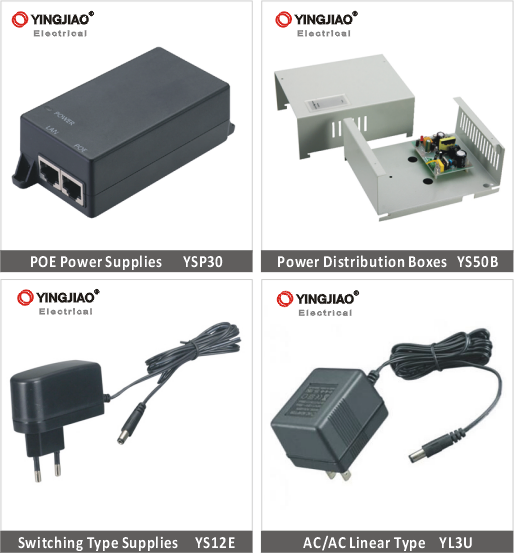

Related Products

Yingjiao Custom Manufactured Power Adapter 85W 5V 2.5A 9V 100mA

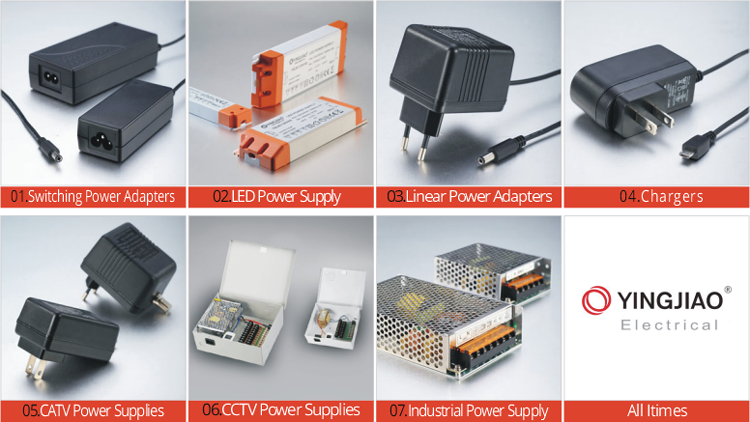

Products Catalog

Why Choose Us

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of Switching and Linear Power Adapters, Transformers, Chargers, Car Chargers and Power Cords. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

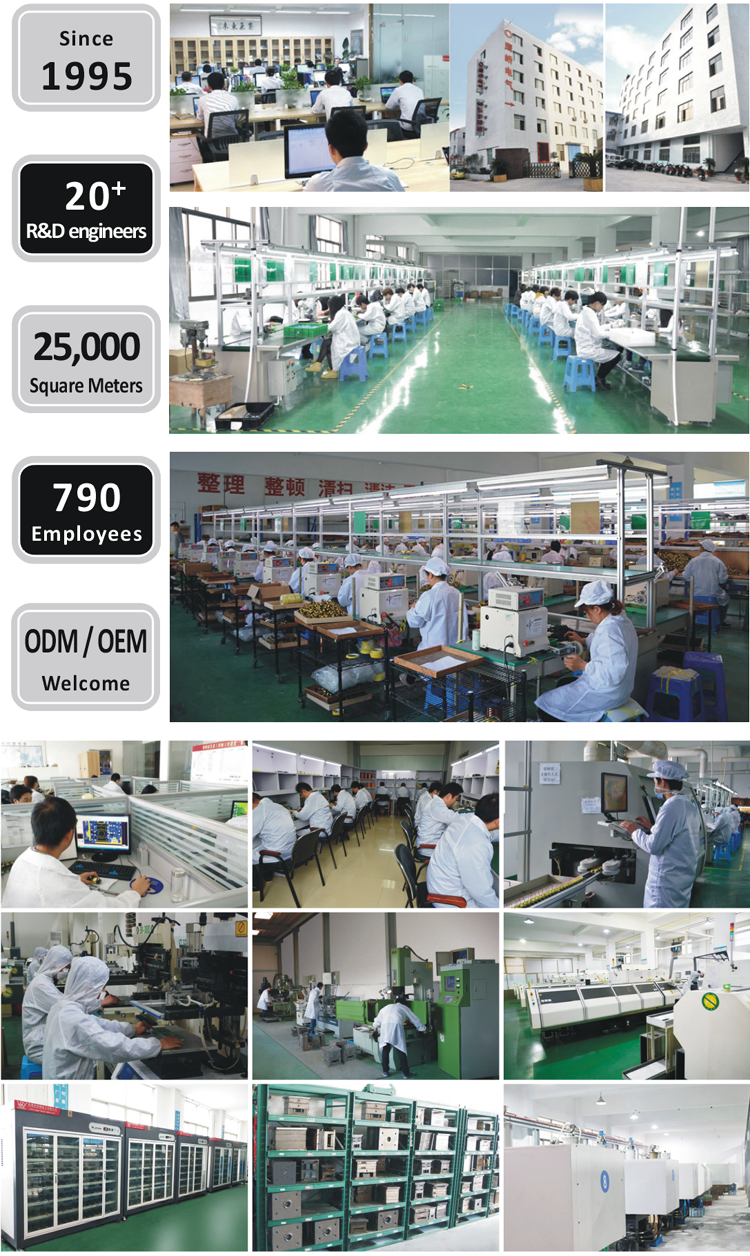

Located in Ningbo, a coastal city in East China, we possess convenient location and transportation facility. We built up an area of 15,000 square meters working building, have about 600 skillful employees, and have 12 pieces for high frequency transformers, and an independent power cord workshop. We also imported some advanced equipments for production, including 2 sets the most advanced Panasonic high speed SMT, 2 sets lead-free wave soldering machine and 16 sets big plastic injection machine etc.
Being exported to over 30 countries and regions, such as Europe, America, Japan, Australia, Africa, Middle-East, South America, our products have won good comments from our customers.
We have a strict quality control and guarantee system and have been ISO9001:2000 certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese Quality Certification Center. Besides, we also carry out the international authoritative certifications, such as UL, CUL, TUV, CSA, and GS, etc.
We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcomed too.
