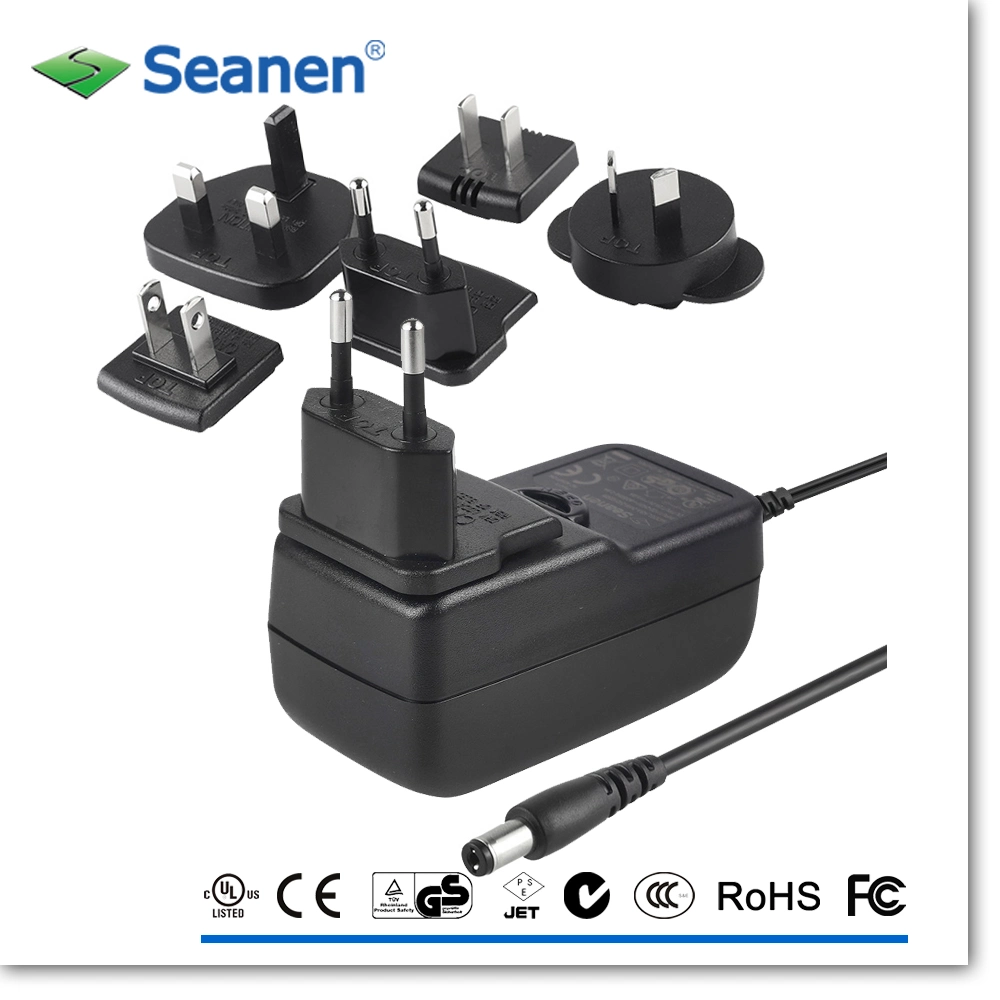

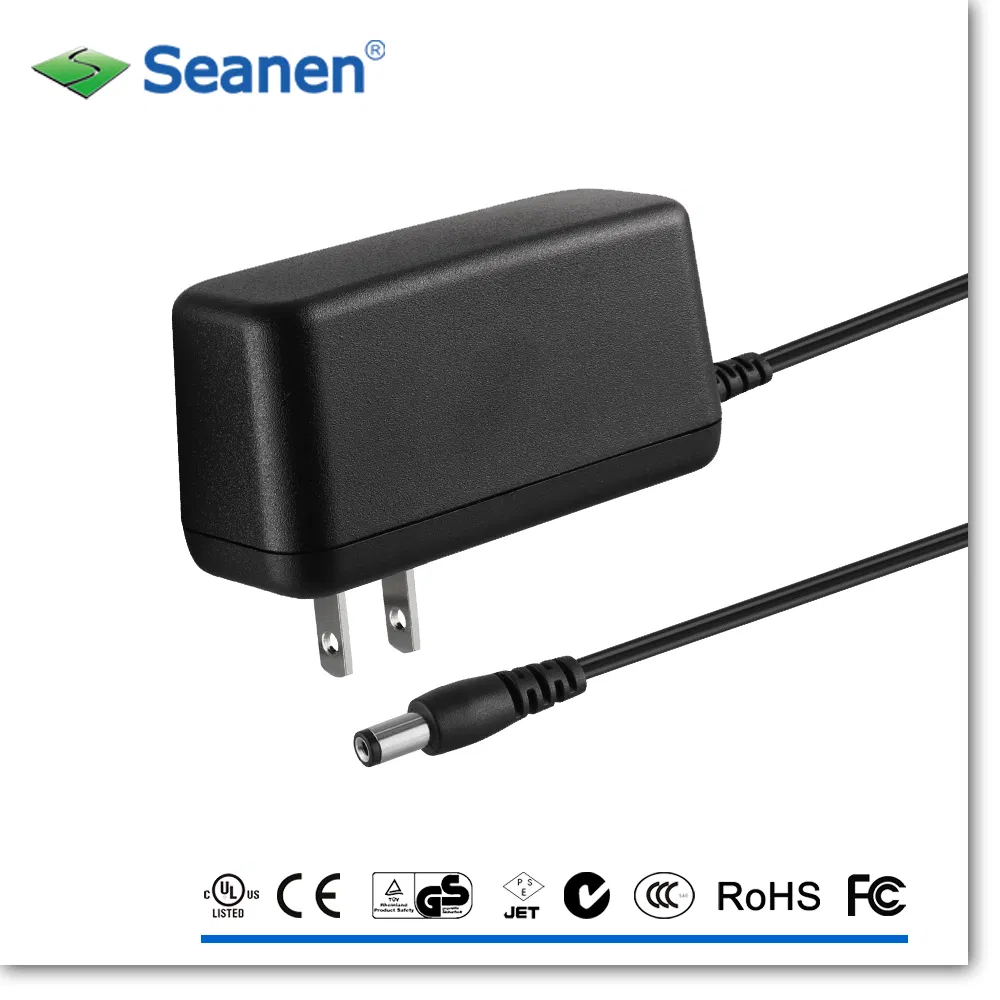

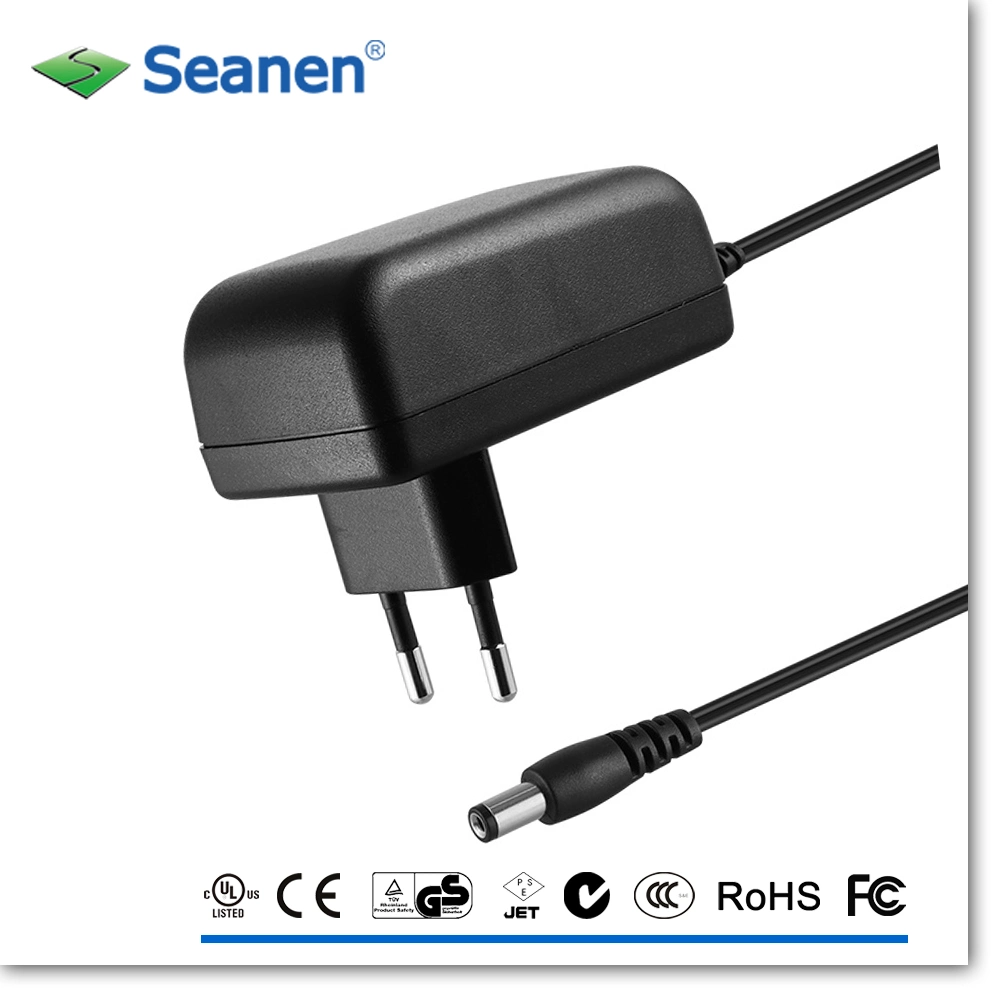

UL GS Ce SAA Approved 24W Switching Power AC/DC Adapter
UL GS CE SAA approved 24W Switching Power AC/DC Adapter 1) Rated Input: 100-240V AC, 50/60Hz2) Operating range: 90-264V AC, 47-63Hz3) Output: 24W Max4) RoHS, PAHs, REACH, WEEE compliant5) Energy efficiency: DOE VI, COC Tire 26) Input current: 0.25A max7) Power consumption (no loading): 0.075W Max8) ......
Send Inquiry
Product Description
2) Operating range: 90-264V AC, 47-63Hz
3) Output: 24W Max
4) RoHS, PAHs, REACH, WEEE compliant
5) Energy efficiency: DOE VI, COC Tire 2
6) Input current: 0.25A max
7) Power consumption (no loading): 0.075W Max
8) Leakage Current: 0.25mA max
9) Load regulation: ± 5%
10) Ripple and noise: <150MVP-p
11) MTBF: 50K hours at 25'C
12) Safety standard: EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/SAA/CCC/PSE
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Environmental requirements
1) Operating Temperature: 0-40°C
2) Storage Temperature: -25°C+80°C
3) Operating Relative humidity: 10-90% RH
| SPECIFICATION | ||
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz | |
| leakage current | 0.25mA max | |
| Power consumption (no loading) | 0.075W Max | |
| Energy efficiency | DOE VI, COC Tire 2 | |
| Output | Voltage | Available from 9VDC to 24VDC |
| Current | Available from 50mA to 1.33A | |
| Power | 1-24W | |
| Load regulation | +/-5% | |
| Hold-up time | 7ms minimun at 115V AC / full load | |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request | |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes | |
| Over current protection | Yes | |
| Envionmental requirements | Operating Temperature | 0-40°C |
| Storage Temperature | -25°C+80°C | |
| Operating Relative humidity | 10-90% RH | |
| Others | MTBF | 50K hours at 25'C |
| Led indicator | / | |
| Size | 89.0*33*44.5mm (L*W*H) | |
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC | |
| Standards | UL60950-1,IEC/EN60950-1,AS/NZS60950-1,J60950,FCC part 15 class B | |
| Compliance | RoHS, PAHS, REACH, WEEE | |
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies and chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.

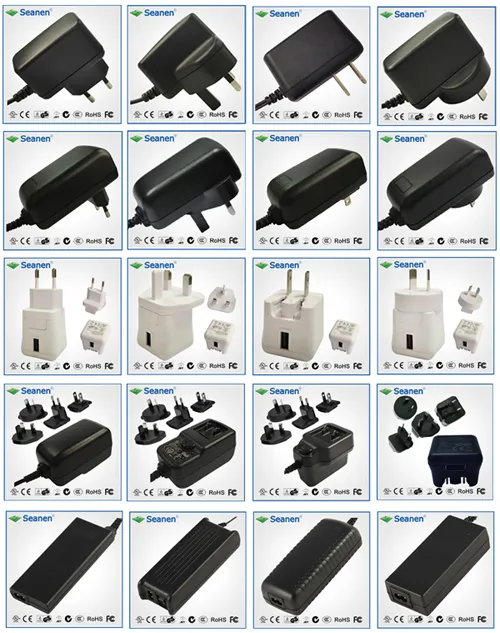

Our standard products cover the full range items,from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.
