UL 60601-1, TUV En 60601 Approval 16W to 36W 5V 9V 12V Medical AC DC Power Adaptor 24V 48V Wall Transformer with Removeable Plugs

Product Description

UL 60601-1, TUV En 60601 Approval 16W to 36W 5V 9V 12V Medical AC DC Power Adaptor 24V 48V Wall Transformer with Removeable Plugs

Features:

• 100-240VAC Universal Input

• 2 x MOPP Compliance, IEC/EN60601-1 Approval

• LPS Compliance

• Protections: Short circuit / Over voltage / Over current

• Energy Efficiency Level VI

• No Load Power Consumption ≤ 0.1W (VI)

• MTBF > 100,000 hours

Product Specification:

• Input Range: 100 to 240 VAC

• Frequency: 50 to 60Hz

• Input Current: ≤0.8A
• Safety: UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE

• Inrush Current: 40A/100VAC 80A/230VAC

• Hold Up Time: ≥8.3ms

• Turn On Time: ≤3s

• Short Circuit Protection: Auto Recovery

• Over Voltage Protection: Auto Recovery

• Over Current Protection: Auto Recovery

• Operating Temperature: 0 to 40°C

• Storage Temperature: -20 to 85°C

• Operating Humidity: 10% to 90%

• Storage Humidity: 5% to 95%

• Case Size: 62.5L X 41W X34h (mm)

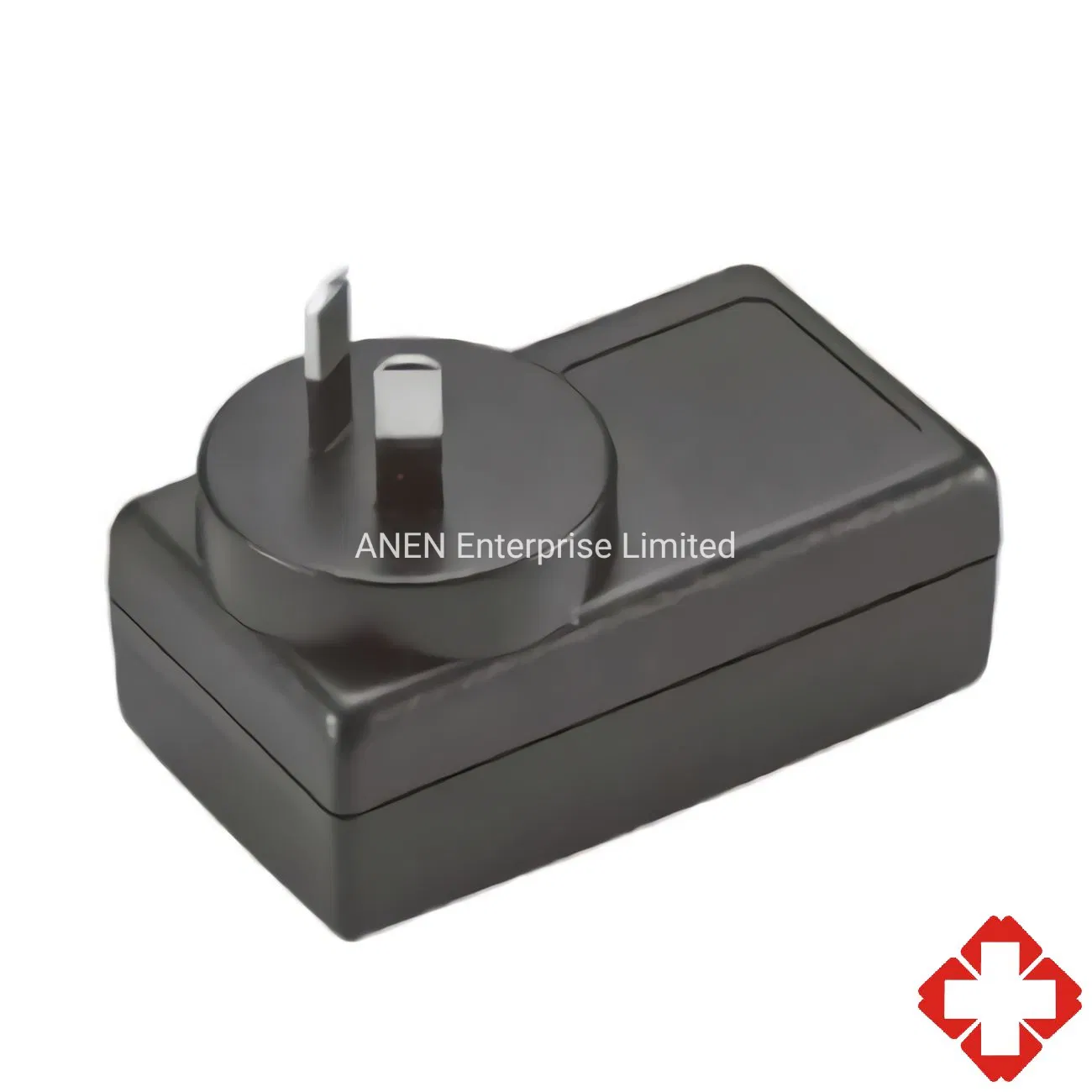

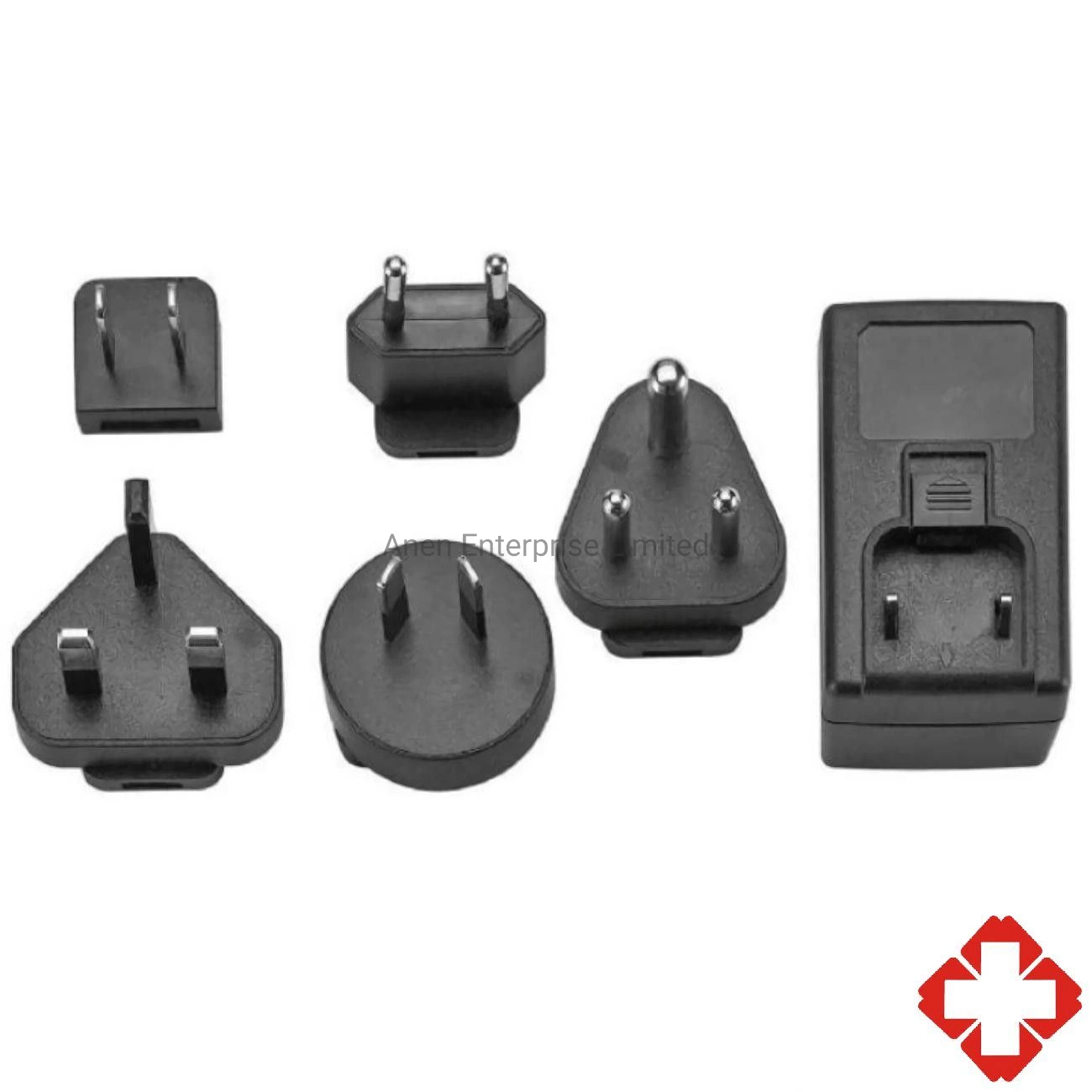

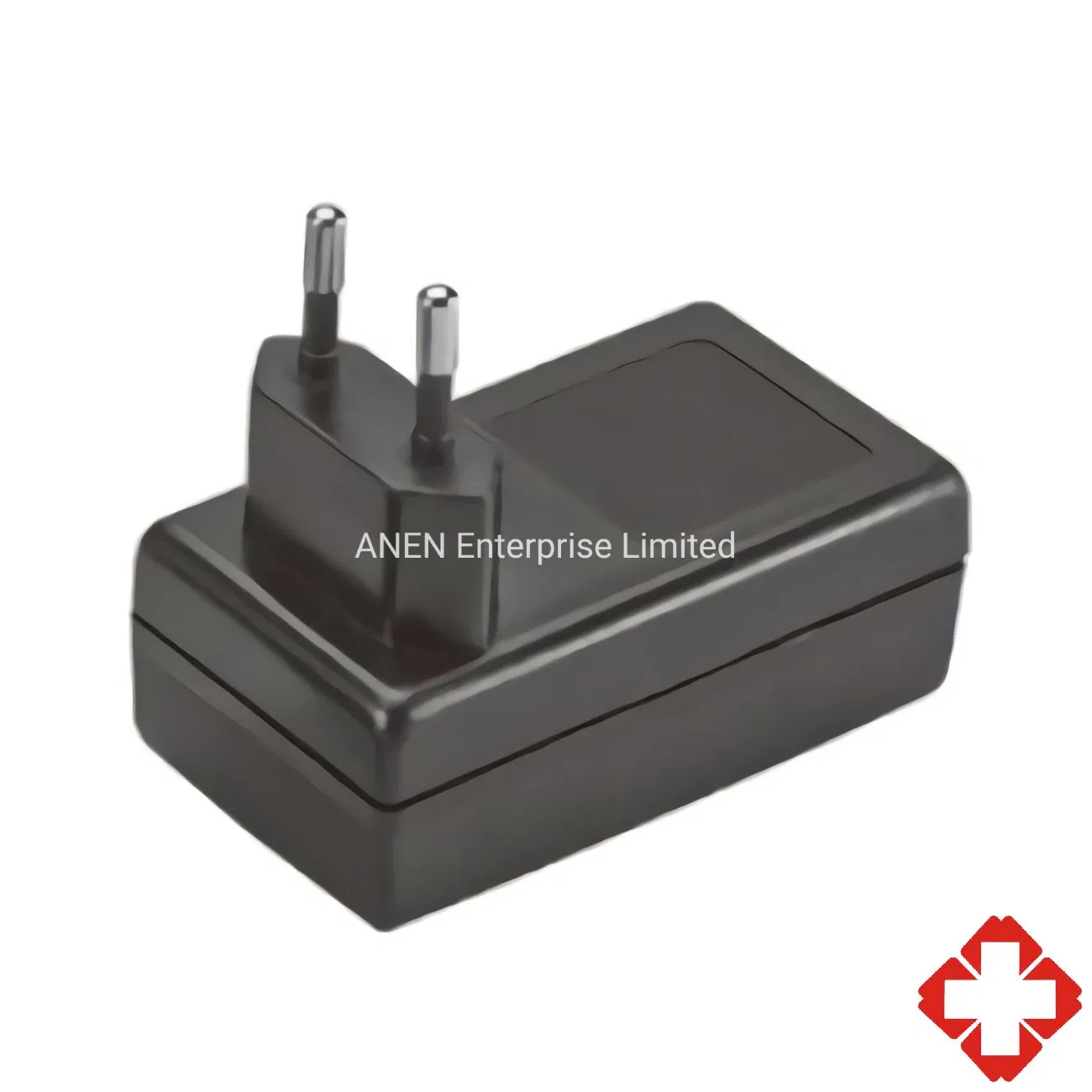

• AC Plug: U: USA, E: EU, K: UK, A: SAA, C: China

• Weight: 150g

Application:
For Diagnostic equipment and systems
For Therapy equipment and systems
For Monitoring and display
For Home patient care
For Surgical devices
For Medical printers
For Biolife science
For X-ray

Model NO.	MAX OUTPUT POWER	OUTPUT VOLTAGE	MIN LOAD	MAX LOAD	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
EM1024AR	16W	5-8V	0A	2.0A	±5%	±1%	100mV
EM1024BR	20W	5-8V	0A	3.0A	±5%	±1%	100mV
EM1024CR	18W	5-8V	0A	4.0A	±5%	±1%	100mV
EM1024DR	24W	9-11V	0A	1.5A	±5%	±1%	250mV
EM1024ER	27W	9-11V	0A	2.0A	±5%	±1%	250mV
EM1024FR	20W	9-11V	0A	3.0A	±5%	±1%	250mV
EM1024GR	30W	12-17V	0A	1.66A	±5%	±1%	250mV
EM1024HR	24W	12-17V	0A	2.5A	±5%	±1%	250mV
EM1024JR	30W	18-24V	0A	1.33A	±5%	±1%	350mV
EM1024KR	30W	18-24V	0A	1.66A	±5%	±1%	350mV
EM1024MR	20W	36-48V	0A	0.55A	±5%	±1%	480mV
EM1024NR	30W	36-48V	0A	0.83A	±5%	±1%	480mV
EM1024PR	36W	12V	0A	3.0A	±5%	±1%	250mV
EM1024QR	24W	12V	0A	2.0A	±5%	±1%	250mV
EM1024RR	36W	24V	0A	1.5A	±5%	±1%	350mV

Advantages:
1, Custom designed power supply developed and manufactured by us, Our main products including: Medical Power Supplies, Battery Chargers, Switching Power Supplies, AC/DC Adapters, LED Power Supplies, USB-C PD Chargers, etc.
2, Strictly following ISO 9001 & ISO 14001 quality management systems & ERP system.

3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.

5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.

6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.

FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.

2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.

3. What's your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.

4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it's usually in a week.

5. What's your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong

6. How long is the warranty?
It's 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.

Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.
