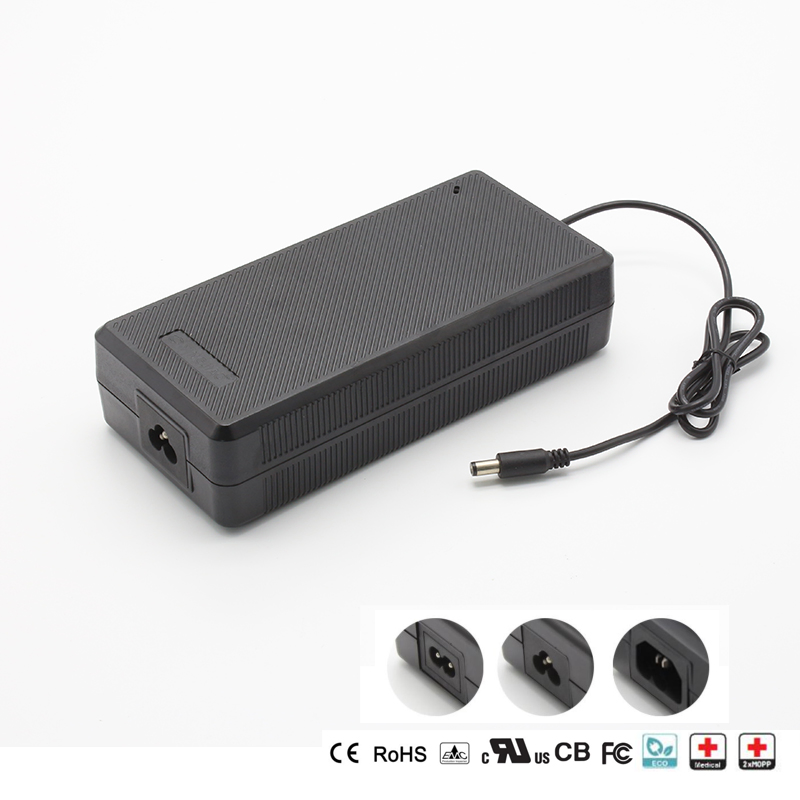

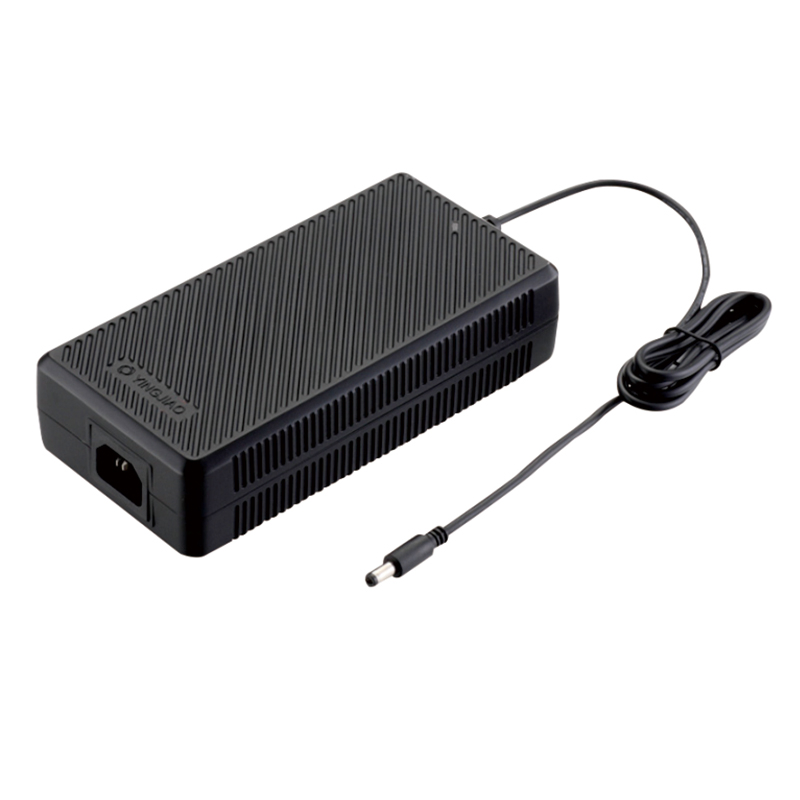

IEC/En60601 Power Adapter 19V 15V 12V Universal Medical Power Supply Adapter Laptop with Safety Certifications
IEC/EN60601 Power Adapter 19V 15V 12V Universal Medical Power Supply Adapter Laptop With Safety Certifications Input:100-240VAC 50/60HzOutput Voltage: 5V-30V DCRated Power : 180W max. Features :Univeral AC input/ Full rangeMedical safty approved(2×MOPP) ......
Send Inquiry
Product Description
IEC/EN60601 Power Adapter 19V 15V 12V Universal Medical Power Supply Adapter Laptop With Safety Certifications
Input:100-240VAC 50/60Hz
Output Voltage: 5V-30V DC
Rated Power : 180W max.
Features :
- Univeral AC input/ Full range
- Medical safty approved(2×MOPP)
- Leakage Current: <100μA
- Extremely low leakage current
- Protection:Over load/Over voltage/Short circuit
- Withstand voltage : 4KV
- Life Warranty: 3 years
Applications:
- Colour to exceed
- Biochemistry analyzer
- Hematology analyzer
- Plasma collector
- Electrolyte analyzer
- Chemiluminescence immunoanalyzer
Model: | YS200-12015000 | YS200-13013800 | YS200-15012000 | YS200-1909400 | YS200-2407500 |
Power: | 180W | ||||
Input: | AC100-240V | ||||
Output Voltage: | 12V DC | 13V DC | 15V DC | 19V DC | 24V DC |
Output Current: | 0-15A | 0-13.8A | 0-12A | 0-9.4A | 0-7.5A |
Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
Leakage Current: | <100μA | ||||
No Load Power Consumption : | <0.5W | ||||
Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection | ||||
Short Circuit Protection (SCP): | Protection to Zero Voltage | ||||
Over Voltage Protection (OVP): | ≤Vout*150% | ||||
Over Current Protection (OCP): | 110%-180% | ||||
Withstand voltage: | I/P-O/P 4kVAC | ||||
Working TEMP.: | -20°C-50°C | ||||
EMC standards: | EN55011 class B,EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020 | ||||
Safety standards: | ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved | ||||
Dimension: | 196*98*47mm | ||||
