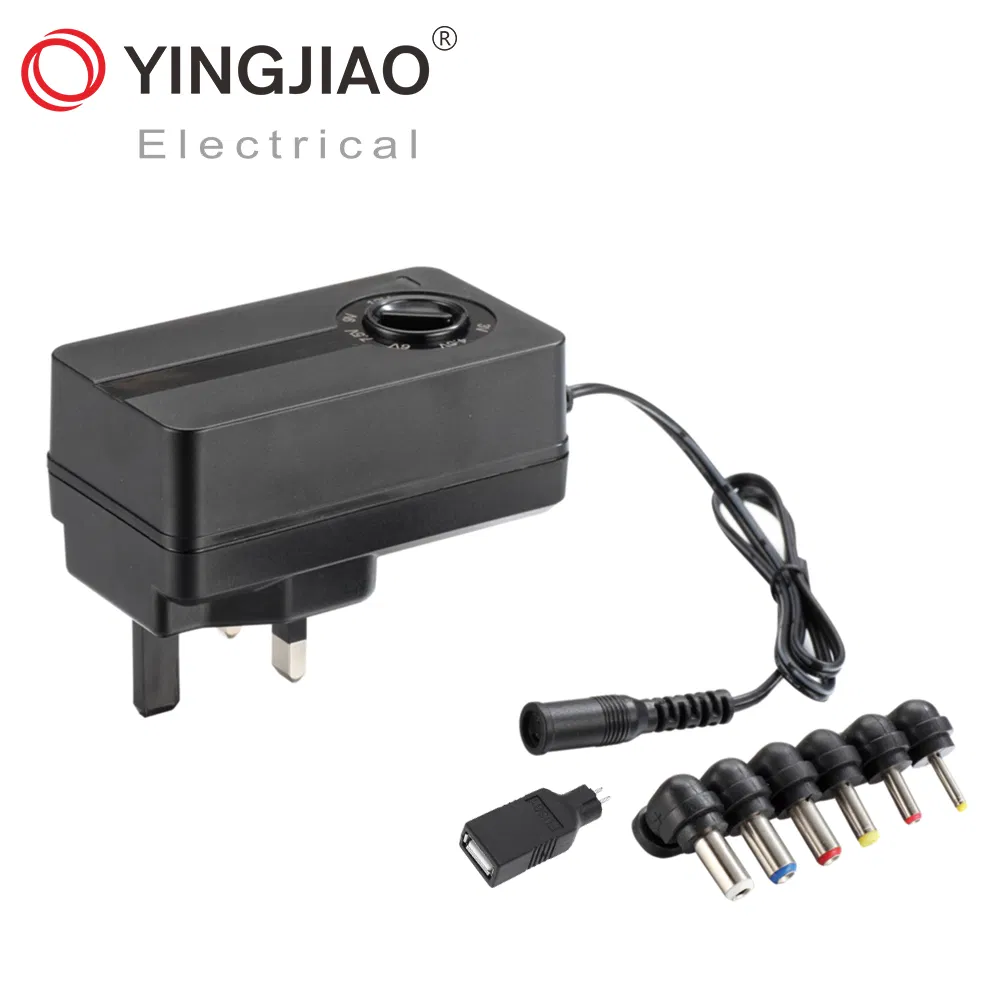

Factory Wholesale 24W /27W AC/DC Variable Power Adapter with UL

Product Description

24W Linear Variable Power Adapter

DATA:

Model:	YSV2000
Power:	24W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	3V 4.5V 6V 7.5V 9V 12VDC
Output Current:	2000mA
Input current:	1A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
Energy Efficiency Level VI :	V
No Load Power Consumption :	<0.3W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer's choice
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25ºC ambient
Life:	3-5 years alternative
Dimension:	884835mm
Weight:	150g
Packing:	50PCS/CTN,734123cm

DETAILS:

Model:	YSV2000B
DC Voltage:	3V 4.5V 5V 6V 7.5V 9V 12VDC
Rated Current:	2000mA
Current Range:	0-2000mA
Rated Power:	24W
Ripple & Noise(max.):	200mVp-p
Voltage Tolerance:	±5%
Line Regulation:	±3%
Load Regulation:	±5%
Efficiency:	80.00%
Setup,Rise,Hold up time:	1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load.
