En62368 Certified 12V3a 36W Universal Power Adapter with Mount Clip
EN62368 Certified 12V3A 36W Universal Power Adapter with Mount ClipInput Voltage Range100-240Vac 50/60HzOutput Voltage12VOutput Current3ARated Power36WLine Regulation±1%Load Regulation±5%Ripple & Noise<120mVPFC (Power Factor Correction) >0.99Efficiency at Average Load......
Send Inquiry
Product Description

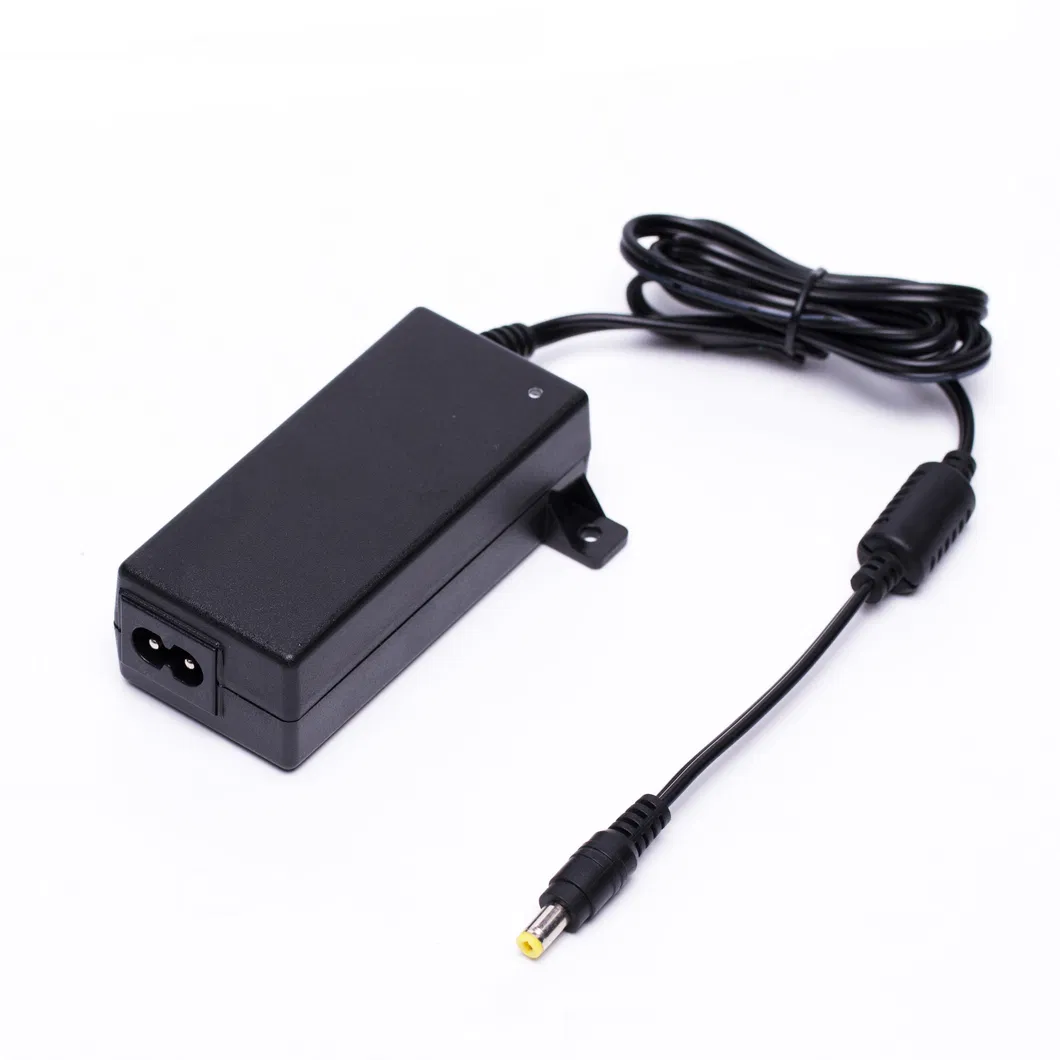

EN62368 Certified 12V3A 36W Universal Power Adapter with Mount Clip
| Input Voltage Range | 100-240Vac 50/60Hz |
| Output Voltage | 12V |
| Output Current | 3A |
| Rated Power | 36W |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Ripple & Noise | <120mV |
| PFC (Power Factor Correction) | >0.99 |
| Efficiency at Average Load | 88% min |
| Standby Power | <0.1W |
| Operation Temperature | -10 to +50ºC |
| Storage Temperature | -20 to +85ºC |
| Operation Humidity | 20-90% RH |
| Cooling | Convection |
| Over Current Protection | 130%~150% Auto Recovery |
| Over Voltage Protection | 115%~135% |
| Short Circuit Protection | Auto Recovery |
| Aging Test | Full Load 12 Hours Auto Recovery |
| Approval | CE, FCC, RoHS |
| Weight | 990g |
| Size(WxLxH) | 93x54x63mm |
| Cable Length and Thickness | 1200mm (or Customized Length) |
| AC Input Connector | IEC 320-C8 (or Customized Type) |
| Output Connector | 5.5*2.5 (or Customized Connector) |
| MTBF 100%, 25ºC | 50,000 hours |
| Warranty | 2 years |
MOQ (Min Order Qty): 500 PCS
Trade Term: FOB, EXW, CIF
Lead-Time: 15-25 Days
Warranty Period: 24 Months
Supply Capability: 20,000 Units Per Working Day
Payment Methods: T/T, Paypal, Western Union, L/C
Shipping Mode: Express Courier, Air, Sea, Railway
Q1: Do you accept OEM/ODM service? Can I have my own logo on the adapter?
A1: Yes, OEM or ODM is available.
Q2: Can you put my own logo for our order?
A2: Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
Q3: Did you get approvals for your power adapters & other products?
A3: We got CE ROHS FCC CB PSE KC SAA ETL approval for most of our products, Our customers from more than 40 countries from all over the world.
Q4: How long we can get samples?
A4: The lead time for samples is 5 days for regular products.
Q5: How about the warranty for your products?
A5: Full 24 months Warranty for power adapters, 12 months for accessories.
