Home > Products > Power Adaptor > Desktop Power Adapter 12V 15V 24V 48V 1A 2A 2.5A 3A AC to DC Power Supply for EU Us Type

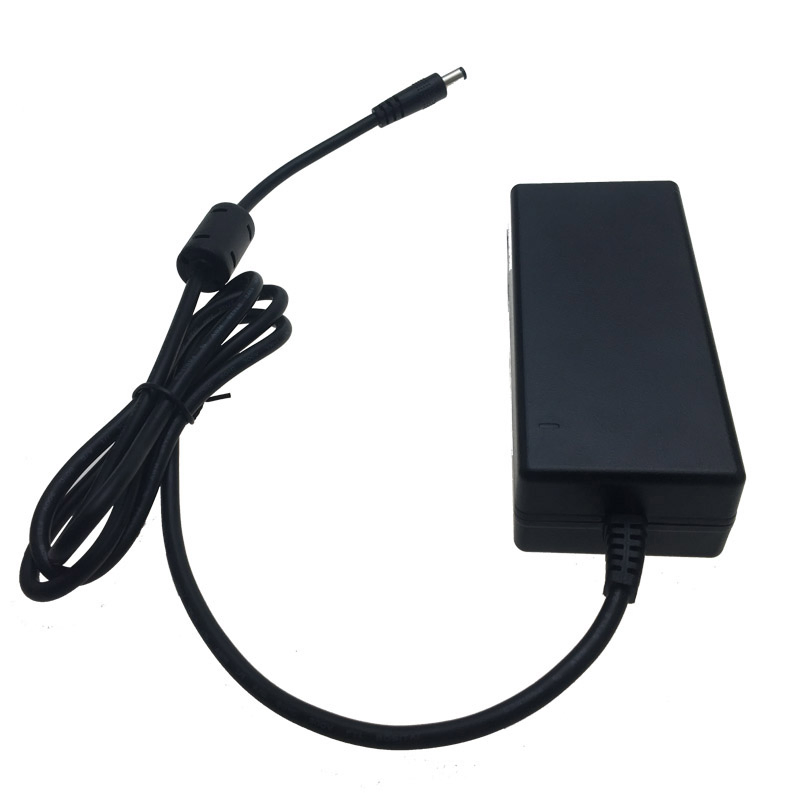

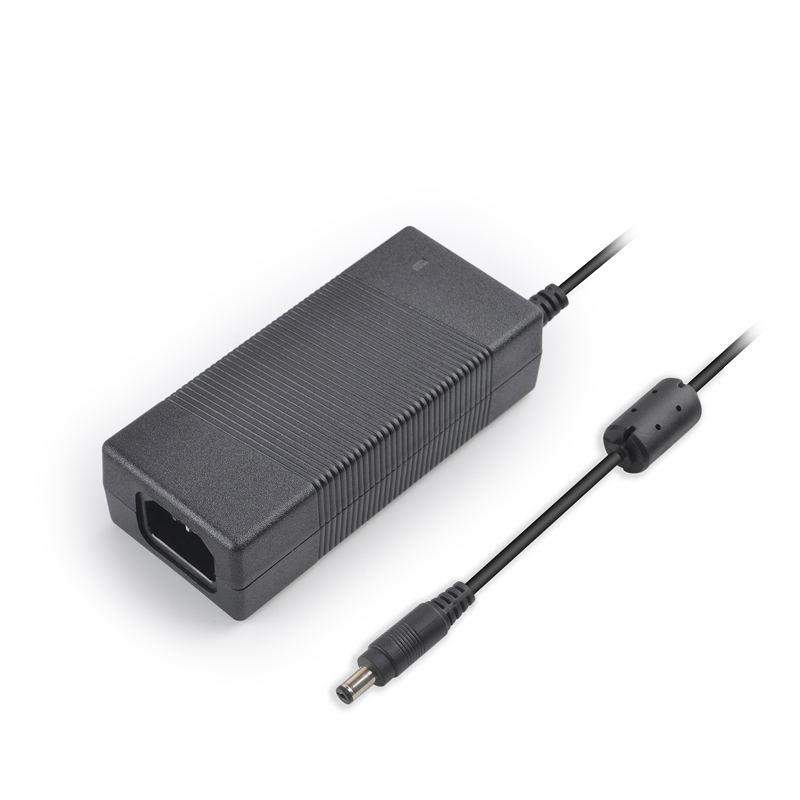

Desktop Power Adapter 12V 15V 24V 48V 1A 2A 2.5A 3A AC to DC Power Supply for EU Us Type
desktop Power Adapter 12v 15v 24v 48v 1a 2a 2.5a 3a AC to DC power supply for EU US typeSPECIFICATION SHEET:Item: Desktop Power Adapter Input Voltage: 100V - 240V AC / 47Hz - 63HzOutput Voltage: 8V-48V Output Current: 0&peri......
Send Inquiry
Product Description
desktop Power Adapter 12v 15v 24v 48v 1a 2a 2.5a 3a AC to DC power supply for EU US type
SPECIFICATION SHEET:
Item: Desktop Power Adapter Input Voltage: 100V - 240V AC / 47Hz - 63HzOutput Voltage: 8V-48V Output Current: 0.1-5.0AmpProtection:Short-circuit ProtectionOver-current ProtectionOver-voltage ProtectionOver-temperature protectionWarranty: 1 yearTesting:Burn-in test: 4H x 80-100% rated load @ 40±5°CMTBF: at least 20,000hours @ 25ºC, Full load. Height: 1m, the product should be fall off on the 20mm thick hardwood. Average fault-free times under 25°C maximum working load.Average fault-free time 50,000 hours (As per IEC60950 standards)
Data Sheet:
ITEM: Power Adapter
SPECIFICATION SHEET:
Item: Desktop Power Adapter Input Voltage: 100V - 240V AC / 47Hz - 63HzOutput Voltage: 8V-48V Output Current: 0.1-5.0AmpProtection:Short-circuit ProtectionOver-current ProtectionOver-voltage ProtectionOver-temperature protectionWarranty: 1 yearTesting:Burn-in test: 4H x 80-100% rated load @ 40±5°CMTBF: at least 20,000hours @ 25ºC, Full load. Height: 1m, the product should be fall off on the 20mm thick hardwood. Average fault-free times under 25°C maximum working load.Average fault-free time 50,000 hours (As per IEC60950 standards)
Data Sheet:
ITEM: Power Adapter
| Item | AC DC Desktop Power Adapter |
| Input | 100V - 240V AC / 47Hz - 63Hz |
| Output | 8V - 48V DC / 100mA - 5000mA |
| Load Regulation | ±5% |
| Working Efficiency | Class VI |
| Ripple/Noise | 100mV Min(P-P) |
| Inrush Current | 15A Max @ 115V AC |
| Line Regulation | ±1% |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10 to 70°C |
| DC Jack (Plug) | 5.5mm x 2.1mm x 10mm 5.5mm x 2.5mm x 10mm 4.0mm x 1.7mm x 10mm 3.5mm x 1.35mm x 10mm |
| DC Cable Length | 1.5/1.8/2.0/2.5/3.5m |
| Weight | 235g |
| COLOR | Black/white |
