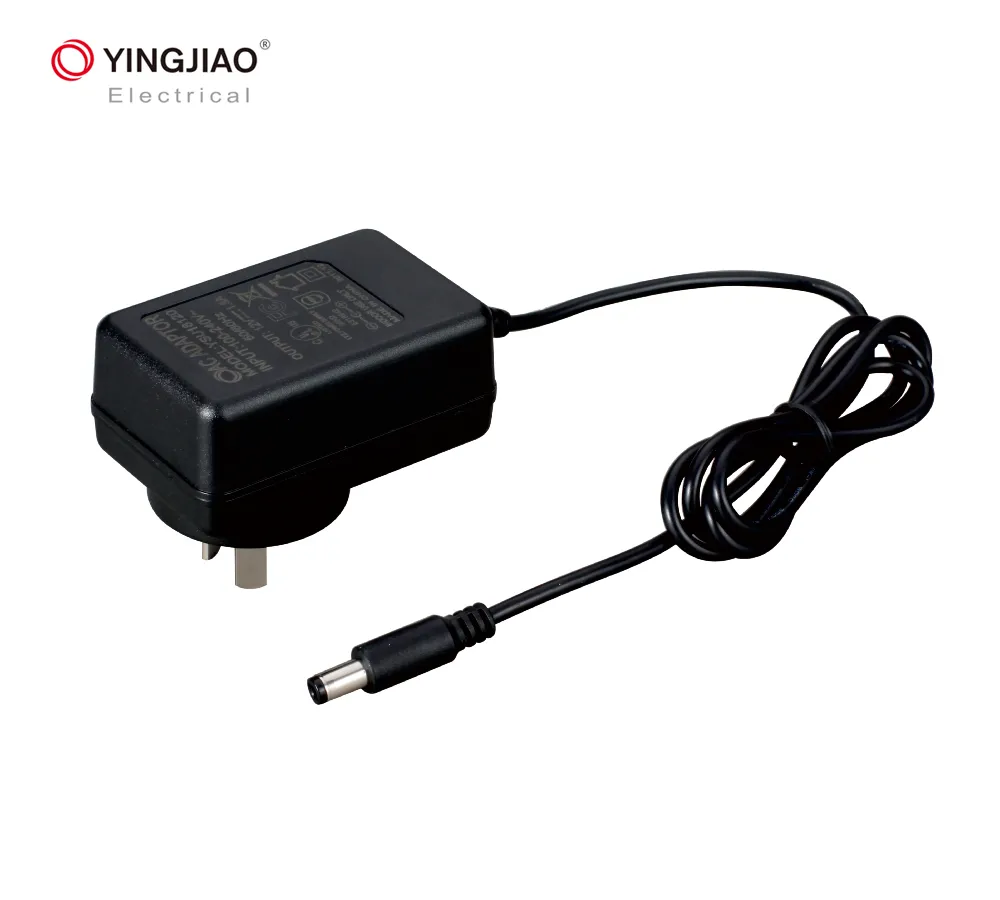

AU Plug Wall Adapter 220V to 9V 2A 18W 12V AC DC Power Adapter With RoHS Approval

Product Description

Model:	YS16A
Power:	18W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	5-36V
Output Current:	0.1-3A
Input current:	0.4A max.
Inrush Current:	40 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
Energy Efficiency Level VI :	CoC 5 / DoE 6 / CEC VI
No Load Power Consumption :	<0.075W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	AU 2pin
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 MF Test:EN 61000-4-8 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25 ambient
Life:	3-5 years alternative
Dimension:	704530mm
Weight:	120g
Packing:	100PCS/CTN,4528.531mm

Details:

Model:	YS16-0503000	YS16-0902000	YS16-1201670	YS16-1501250	YS16-2400750	YS16-3600500
DC Voltage:	5V	9V	12V	15V	24V	36V
Rated Current:	3A	2A	1.67A	1.25A	0.75A	0.5A
Current Range:	0-3A	0-2A	0-1.67A	0-1.25A	0-0.75A	0-0.5A
Rated Power:	15W	18W	20W	18.75W	18W	18W
Ripple & Noise(max.):	50mVp-p	90mVp-p	120mVp-p	150mVp-p	240mVp-p	300mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Efficiency:	81.84%	85.45%	85.98%	85.66%	85.45%	85.45%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
