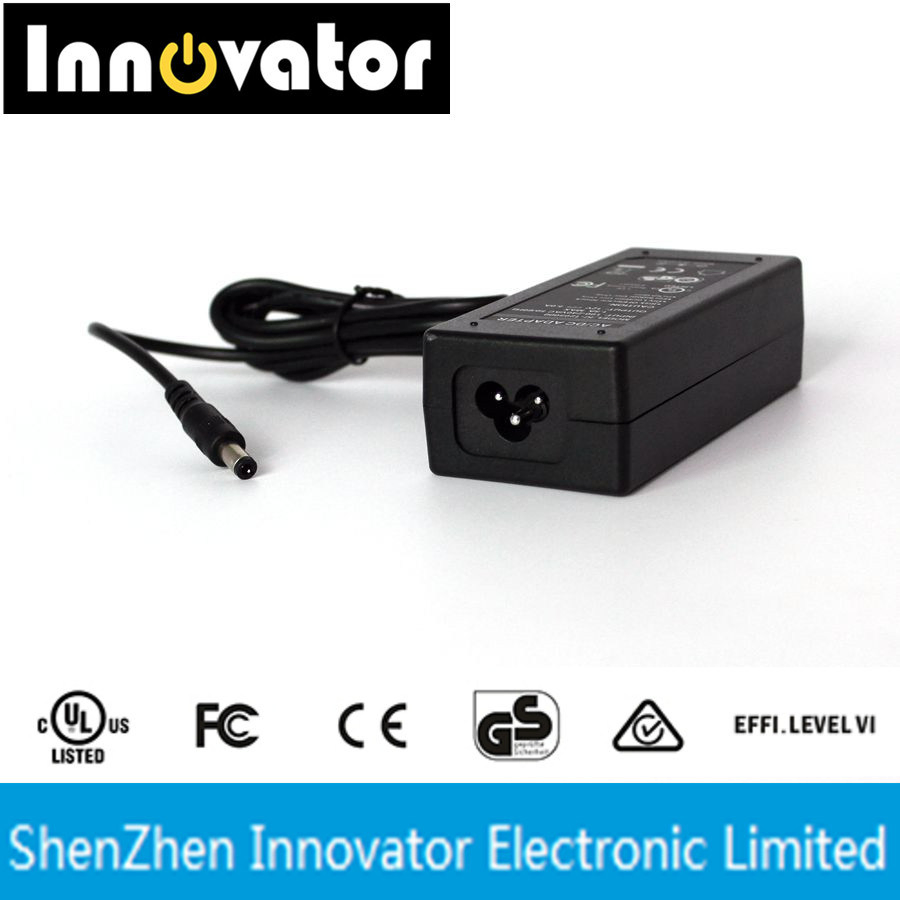

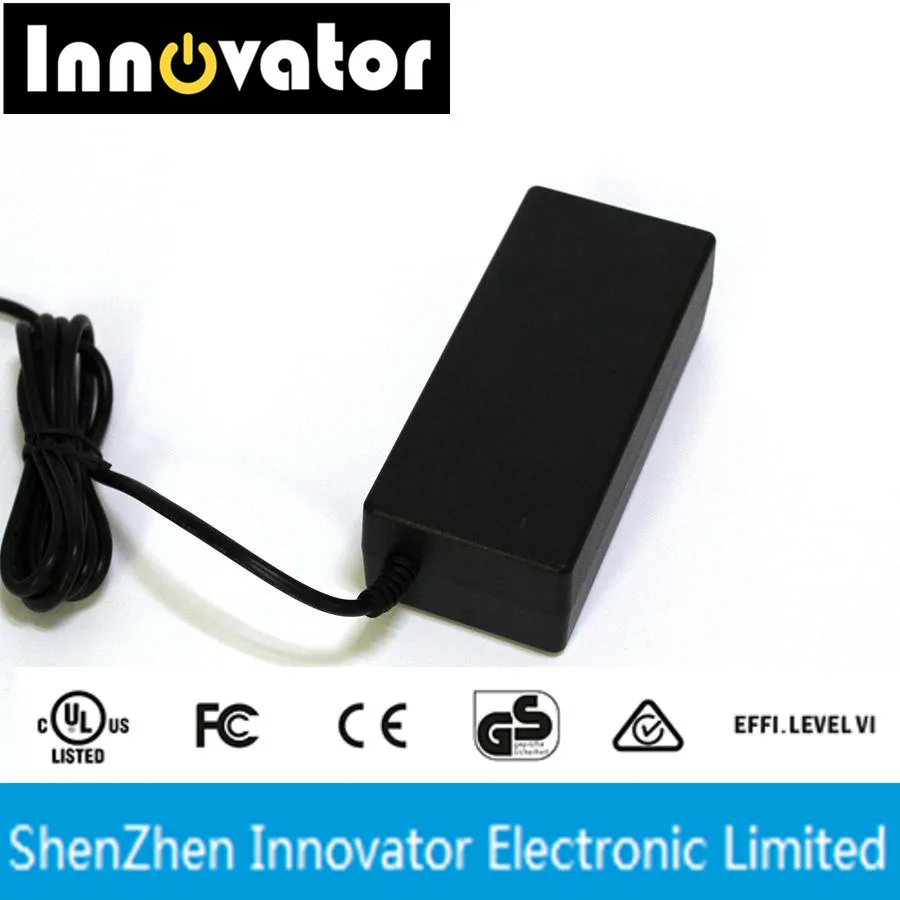

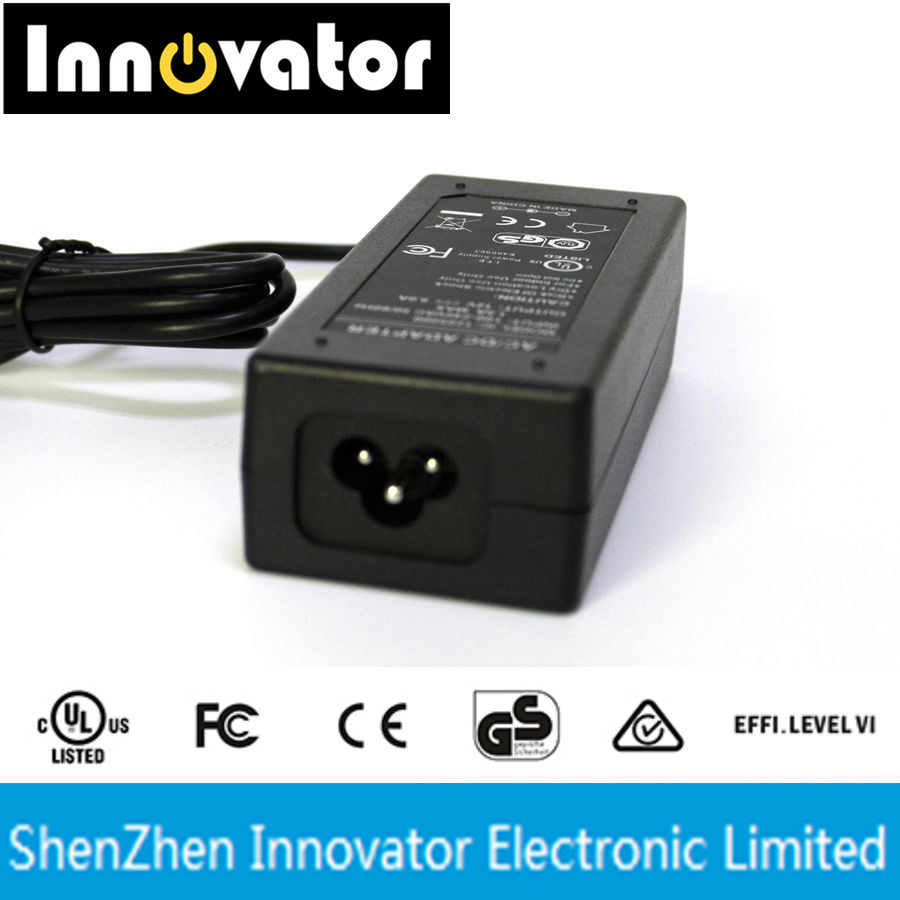

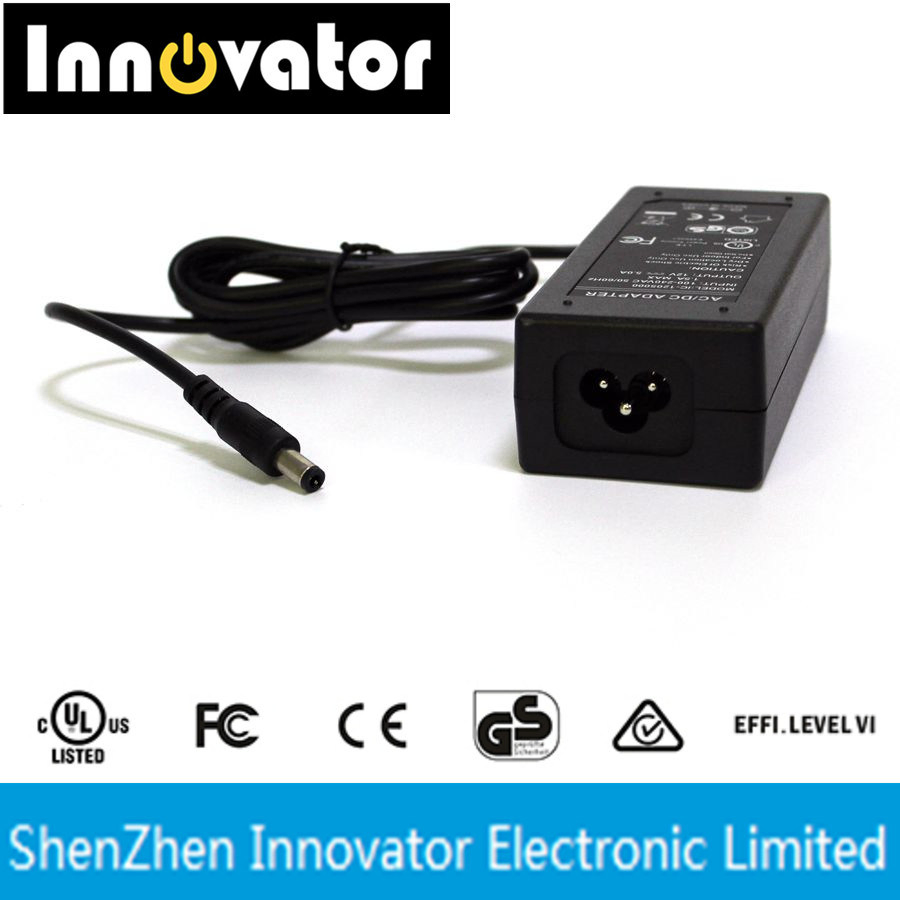

60W Desktop Type AC DC Power Adapter 12V 5A 24V 2.5A C8 Socket EU Us UK Plug with Ce UL for Intelligent Robot
60W Desktop Type AC DC Power Adapter 12V 5A 24V 2.5A C8 Socket EU Us UK Plug with Ce UL for Intelligent RobotProduct Description:Features:1.Built-in EMI filter2.100% full load burn-in test3.Low output ripple and noise4.Protection:Over load/Over voltage/Short circuitSpecifications60W 12V 5A desktop t......
Send Inquiry
Product Description
60W Desktop Type AC DC Power Adapter 12V 5A 24V 2.5A C8 Socket EU Us UK Plug with Ce UL for Intelligent Robot
Product Description:
Features:
1.Built-in EMI filter
2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
Innovator Electronic Limited can be produce and provide
All kind of wall mount power supply, power adapter, AC DC adapter
Desktop Power Supply Adapter, Power Adapter,
Switch power supply Adaptor, Power Supply Adapter,
LED Power Supply, LED Rainproof power supply, LED ultra thin light box
All for LED light, thermal printer,audio, display,digital camera Router, Modem etc

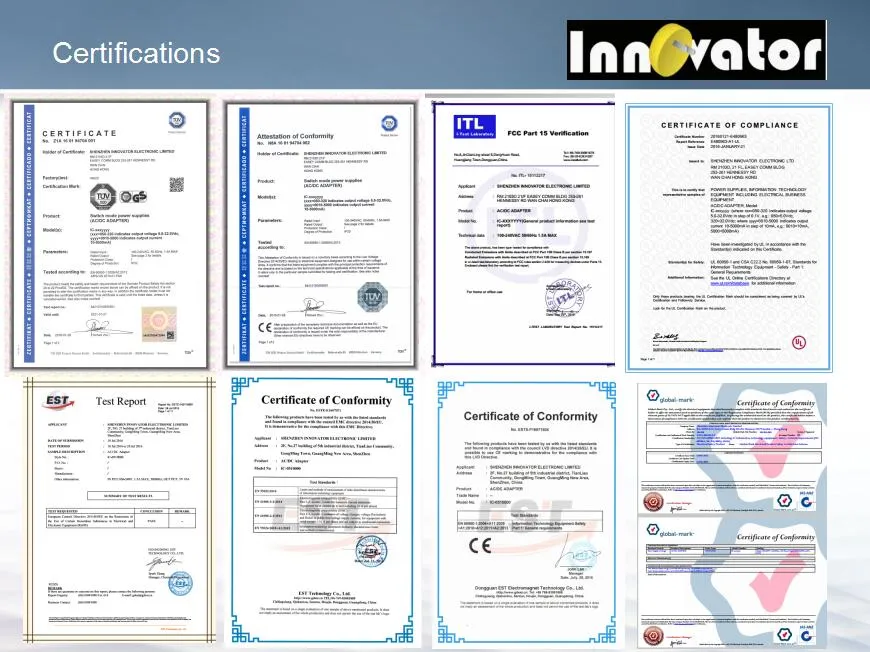

Certification: UL, FCC,CE, GS, SAA, CCC,TUV and RoHS, RCM etc.
Output Voltage 5 V, 9 V, 12 V, 24 V and 36 V series
Output current is 0.3 A, 0.5 A, 1 A, 1.2 A, 1.5 A, 2 A, 2.5 A, 3 A, 3.5 A, 4 A, 5 A, 10 A series We can realize the ODM / OEM processing and customize your specifications.
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 500-1000pcs, we also can accept trail order to support new customers.
Free samples are also provided
Q2: WHAT'S YOUR WARRANTY?
A2: 2-3 years warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 15-20 working days.
Product Description:
Features:
1.Built-in EMI filter
2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
| Specifications | |
| 60W 12V 5A desktop type power supply | |
| Model No. | IC-1205000 |
| DC cord | 1.2m / 1.5m / 1.8m |

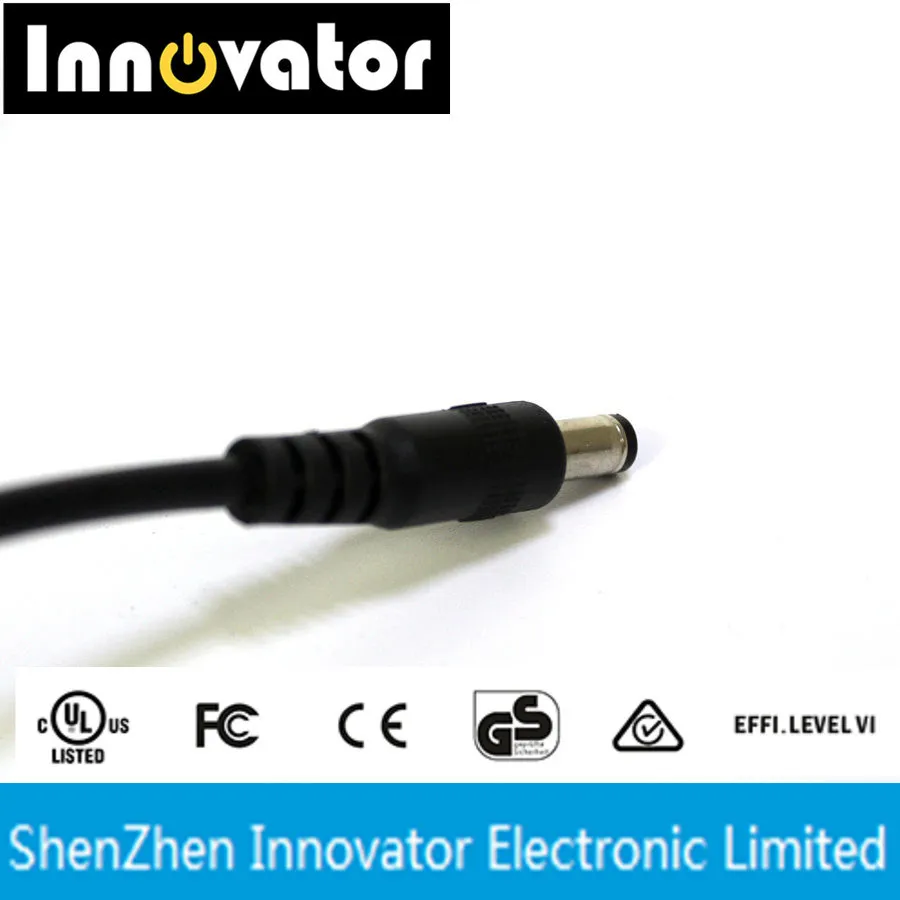

| DC jack | USB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin |
| AC plug | US UK AU EU KR IN etc |
| Input | |
| Input current | 1.5AMax |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47/63Hz |
| Output | |
| Output Voltage Range | 12V |
| Output Current Range | 5A |
| Output Power | 60W Max |
| Environment | |
| Operating Temperature | 0°C ~40°C |
| Protection | |
| Over Load Protection | Yes |
| Over Current Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Certificates | |
| CE, ROHS, FCC, SAA, TUV&GS, UL, Erp V CEC RoHS | |
| Terms and Conditions | |
| Unload standly power | 0.1W Min |
| AC leakage Current | 0.25mA Max |
| DIELECTRIC STRENGTH Hi-Pot | 3000Vac/5mA/5s |
| Insulation resistance | 10MΩMin at 500V DC |
| Surge | 2KV |
| SAFETY STANDARD | UL60950,IEC60950,UL60065 |
| EMC STANDARD | EN55020/EN55024 |
| Delivery date | 18 days for mass production, 3-5 days for samples |
Innovator Electronic Limited can be produce and provide
All kind of wall mount power supply, power adapter, AC DC adapter
Desktop Power Supply Adapter, Power Adapter,
Switch power supply Adaptor, Power Supply Adapter,
LED Power Supply, LED Rainproof power supply, LED ultra thin light box
All for LED light, thermal printer,audio, display,digital camera Router, Modem etc
Certification: UL, FCC,CE, GS, SAA, CCC,TUV and RoHS, RCM etc.
Output Voltage 5 V, 9 V, 12 V, 24 V and 36 V series
Output current is 0.3 A, 0.5 A, 1 A, 1.2 A, 1.5 A, 2 A, 2.5 A, 3 A, 3.5 A, 4 A, 5 A, 10 A series We can realize the ODM / OEM processing and customize your specifications.
- USA plat pin
- European round pin
- UK plug pin
- AUK plug pin
- SAA pin
Competitive Advantages
Well and High Quality Control,
Prompt Delivery,
Competitive Prices,
ODM Accepted,
OEM Accepted.
Fore more information, please contact us at any time.
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 500-1000pcs, we also can accept trail order to support new customers.
Free samples are also provided
Q2: WHAT'S YOUR WARRANTY?
A2: 2-3 years warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 15-20 working days.
