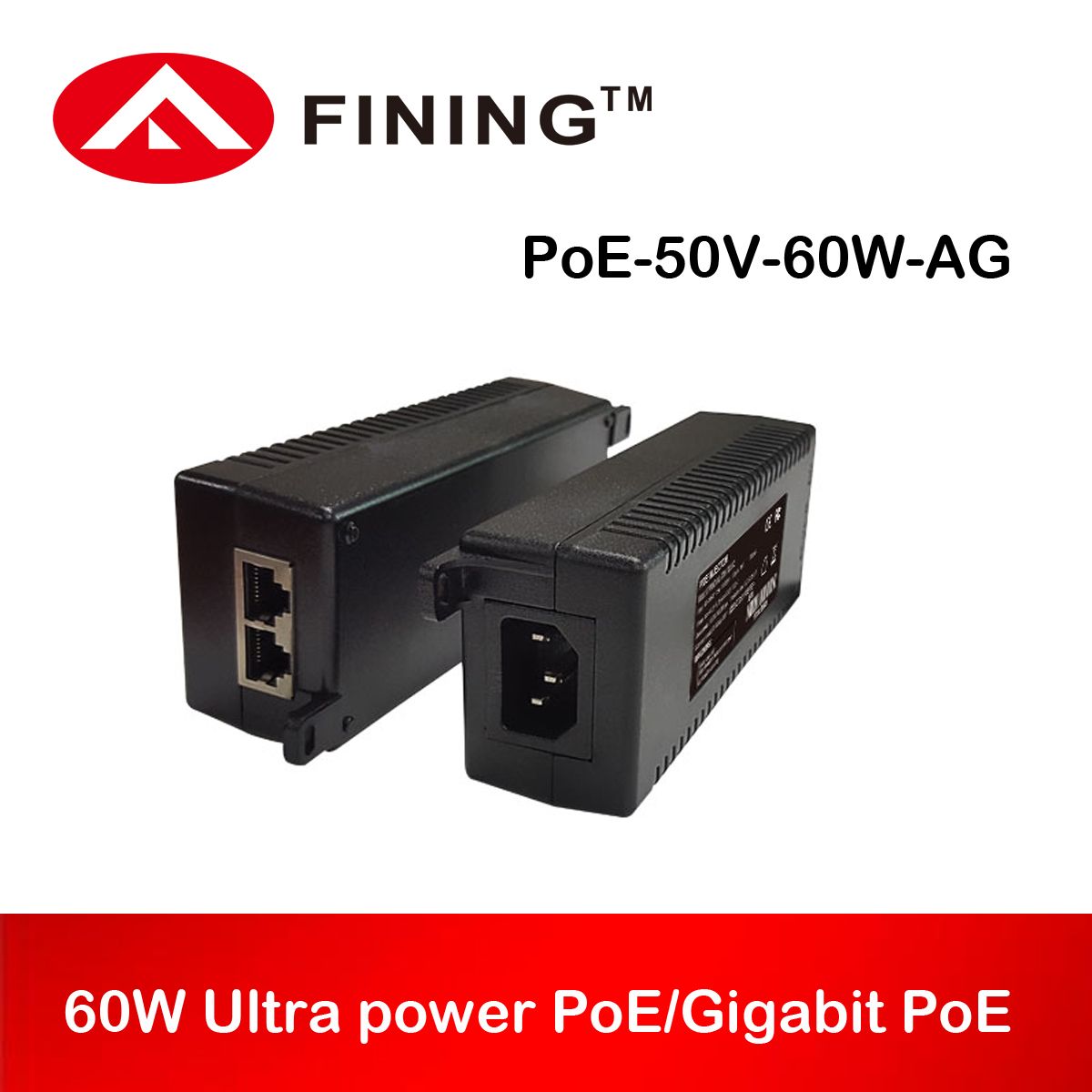

50V1.2A IEEE 802.3af/at Poe/Poe+ Injector Adapter for WLAN Device
50V1.2A IEEE 802.3af/at PoE/PoE+ injectorThe PoE injector can realize simultaneous delivery of device network data and power via oneEthernet cable (Cat.5 or better). The output power of the PoE port is up to 60W&......
Send Inquiry
Product Description
50V1.2A IEEE 802.3af/at PoE/PoE+ injectorThe PoE injector can realize simultaneous delivery of device network data and power via one
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 60W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 60W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.
Product Features:
| Full 60W Ultra Power |
| Single Source 4 Pair Power Current Sharing |
| Diagnostic LEDs |
| Full Protection OCP, OVP |
| Gigabit Compatible |
| Power Over Ethernet |
| One PoE port to power connected devices for flexible network deployment |
| Plug and Play |
| Plastic case & power plug integrated design |
| Easy setup, no configuration required |
| 60W power output |
Product Specifications:
| Data Rate: | 10/100/1000Mbps |
| DC Output Voltage: | 50VDC |
| DC Output Current: | 1200mA |
| Interface: | 2 X RJ-45 (Data-In LAN+PoE Out) |
| Power Out Pins: | V(+) on pins 1, 2, 4, 5; V(-) on pins 3, 6, 7, 8 |
| Operating Temp: | 0 to 40°C |
| Power Input: | 100/240VAC |
| Output voltage regulation precision: | 50VDC±5% |
| Loading regulation: | 50VDC±1% |
| AC Input Current: | 1.5A Max |
| Standard: | IEEE802.3af/at PoE+ |
| UL and CE/FCC Certified | |
Product Applications:
IP Surveillance Industy:IP Network Camera
IP Phone:Desktop IP Phone &Wireless IP Phone
WLAN Devices: Wireless APS
Other Ethernet Devices
