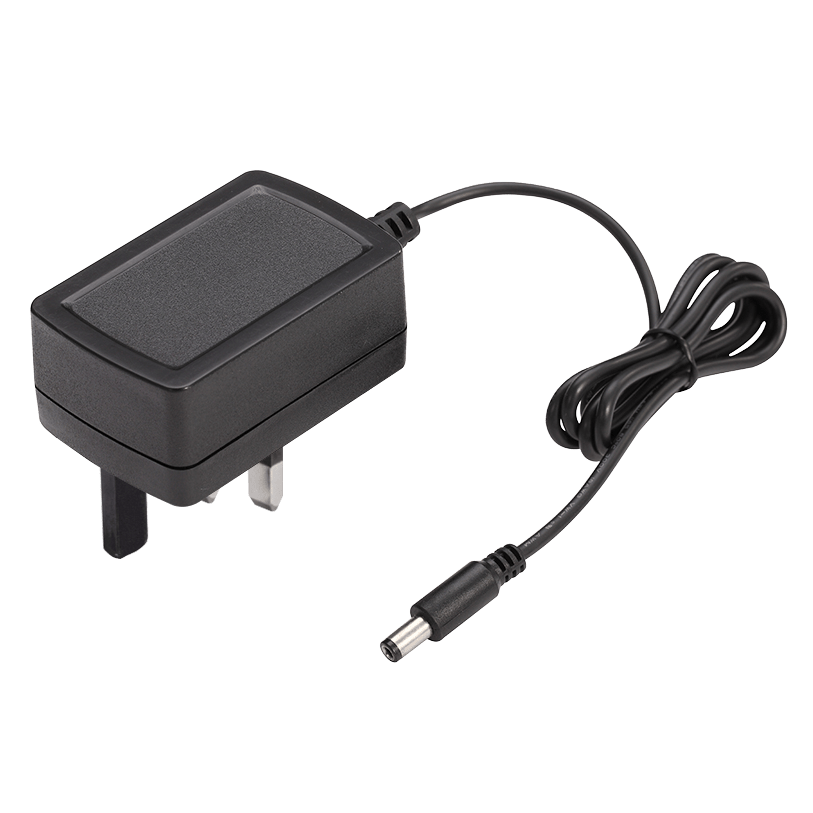

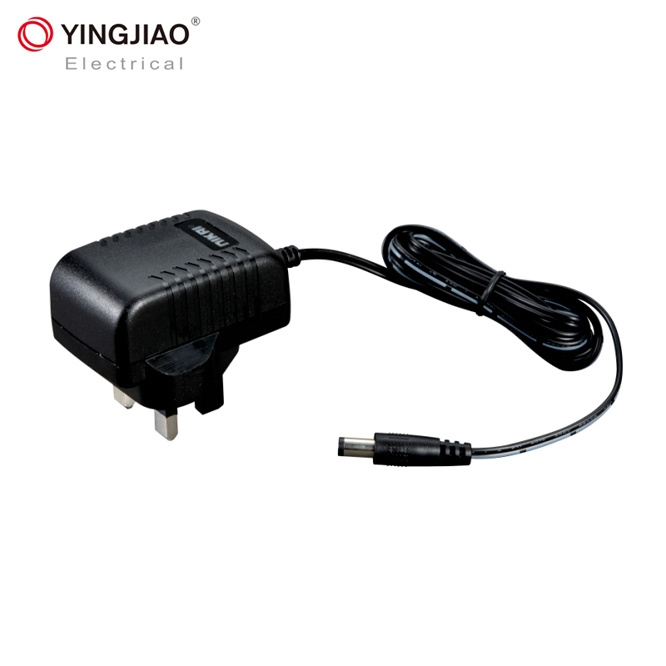

500mA Battery Charger 1.2V NiMh Nicd Wall Battery Charger

Product Description

Battery charger	NI-MH battery charger
Model:	YS7B
Rated Power:	6W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	3V / 4.5V /6V /9V /12V /13.5V/ 15V /16.5V /18V
Output Current:	0.1-2A Constant Current
Input current:	0.2A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
No Load Power Consumption :	<0.3W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	≤Iout*150%
Working TEMP.:	'-20-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	,-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input plug	EU,UK plug option
Certificates and approvals:	CE,EMC,RoHS,REACH
LVD	EN 60335-1 /EN60335-2-29
EMI EMISSION:	EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3
MTBF:	100000 hours minimum at full load at 25 C ambient
Dimension:	603926.5mm
Weight:	65g
Packing:	100PCS/CTN, 392629.5cm

Details:

Model:	YS7-0300800	YS7-0450500	YS7-0601000	YS7-0900500	YS7-1200500
DC Voltage:	3V	4.5V	6V	9V	12V
Rated Current:	800mA	500mA	1000mA	500mA	500mA
Current Range:	100-800mA	100-500mA	100-1000mA	100-500mA	100-500mA
Rated Power:	2.4W	2.25W	6W	4.5W	6W
Voltage Range:	±5%
Line Regulation:	±3%
LED indicator	Red is charging ,Green is idle and full charged. There will be a continous float charging current 150mA after full charged .
Setup,Rise,Hold up time:	1000ms,50ms,16ms at full load
