36W Max Universal SMPS 24W Desktop Transformers 5V 8V 9V Single Output AC/DC Adapters 12V 24V 36V External Medical Grade Switching Mode Power Supply

Product Description

36W Max Universal SMPS 24W Desktop Transformers 5V 8V 9V Single Output AC/DC Adapters 12V 24V 36V External Medical Grade Switching Mode Power Supply with EN/IEC/UL 60601 Listed

• Wattage : 16~36W
• Output : 5~48VDC
• 100~240VAC Universal Input
• Frequency: 50~60Hz
• AC Inlet : C14, C8, C6, C18
• Energy Efficiency Level VI
• No Load Power Consumption <= 0.1W
• Safety: UL/cUL 60601-1, TUV EN 60601-1,
CB IEC 60601-1, FCC, CE
• Case Size : 98L * 45.5W * 31.2H (mm)
• Weight: 200g

INPUT:
• Input Range: 100 to 240 VAC
• Frequency: 50 to 60Hz
• Input Current: ≤0.8A
• Safety: UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE
• Inrush Current: 40A/100VAC 80A/230VAC
• Hold Up Time: ≥8.3ms
• Turn On Time: ≤3s

OUTPUT:
• Short Circuit Protection: Auto Recovery
• Over Voltage Protection: Auto Recovery
• Over Current Protection: Auto Recovery

ENVIROMENT:
• Operating Temperature: 0 to 40°C
• Storage Temperature: -20 to 85°C
• Operating Humidity: 10% to 90%
• Storage Humidity: 5% to 95%

APPLICATION:
For Diagnostic equipment and systems
For Therapy equipment and systems
For Monitoring and display
For Home patient care
For Surgical devices
For Medical printers
For Biolife science
For X-ray

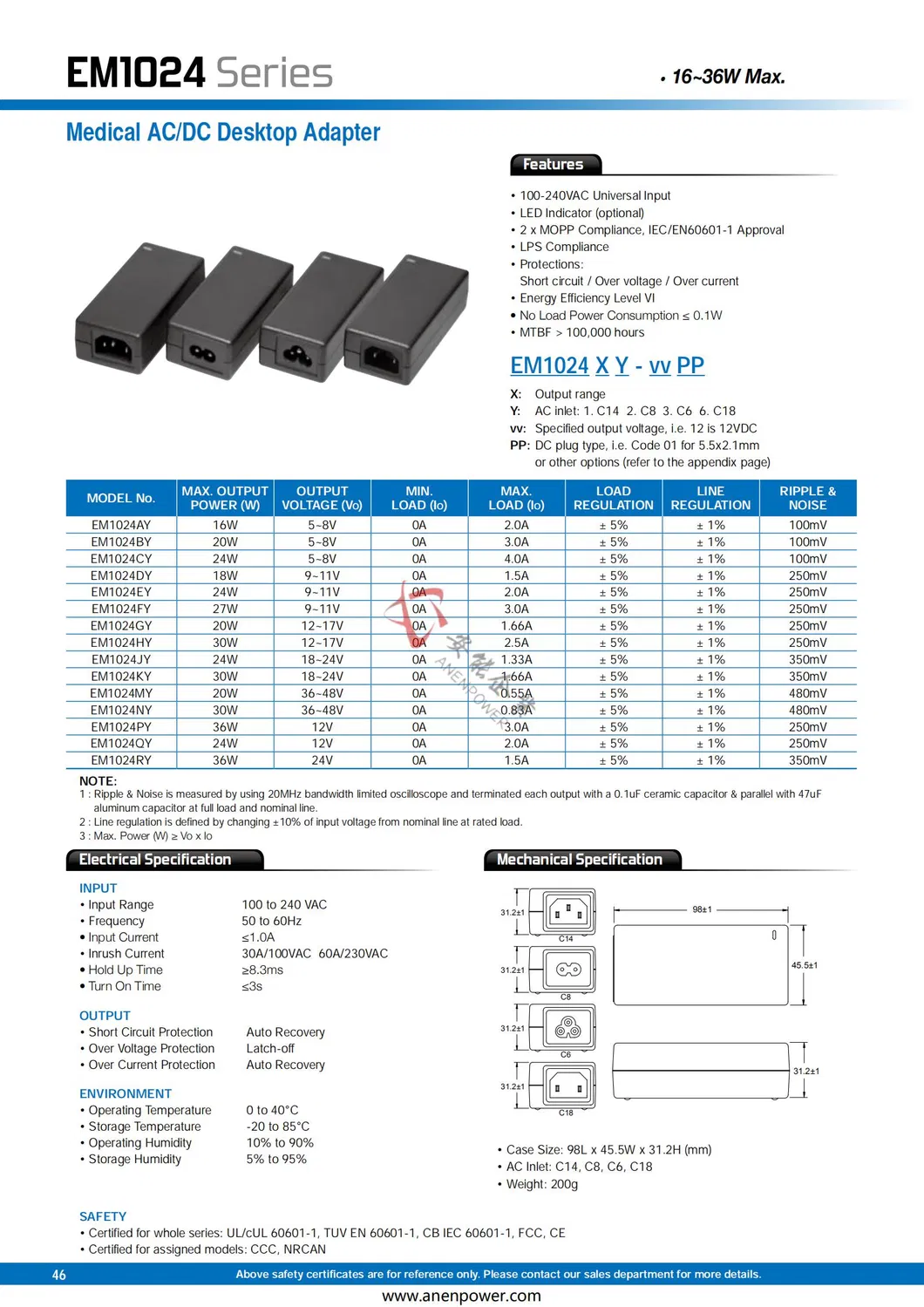

MODEL No.	Max. Output Power(W)	Output Voltage (vo)	Min. Load (io)	Max.Load (io)	Load Regulation	Line Regulation	Ripple & Noise
EM1024AY	16W	5~8V	0A	2.0A	± 5%	± 1%	100mV
EM1024BY	20W	5~8V	0A	3.0A	± 5%	± 1%	100mV
EM1024CY	24W	5~8V	0A	4.0A	± 5%	± 1%	100mV
EM1024DY	18W	9~11V	0A	1.5A	± 5%	± 1%	250mV
EM1024EY	24W	9~11V	0A	2.0A	± 5%	± 1%	250mV
EM1024FY	27W	9~11V	0A	3.0A	± 5%	± 1%	250mV
EM1024GY	20W	12~17V	0A	1.66A	± 5%	± 1%	250mV
EM1024HY	30W	12~17V	0A	2.5A	± 5%	± 1%	250mV
EM1024JY	24W	18~24V	0A	1.33A	± 5%	± 1%	350mV
EM1024KY	30W	18~24V	0A	1.66A	± 5%	± 1%	350mV
EM1024MY	20W	36~48V	0A	0.55A	± 5%	± 1%	480mV
EM1024NY	30W	36~48V	0A	0.83A	± 5%	± 1%	480mV
EM1024PY	36W	12V	0A	3.0A	± 5%	± 1%	250mV
EM1024QY	24W	12V	0A	2.0A	± 5%	± 1%	250mV
EM1024RY	36W	24V	0A	1.5A	± 5%	± 1%	350mV

Advantages:
1, Custom designed power supply developed and manufactured by us, Our main products including: Medical Power Supplies, Battery Chargers, Switching Power Supplies, AC/DC Adapters, LED Power Supplies, USB-C PD Chargers, etc.

2, Strictly following ISO 9001 & ISO 14001 quality management systems & ERP system.

3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.

4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.

5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.

6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.

FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.

2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.

3. What's your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.

4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it's usually in a week.

5. What's your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong

6. How long is the warranty?
It's 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.

Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.
