29V 7A AC to DC Mass Power AC Adapter with UL Approval
29V 7A ac to dc mass power ac adapter with UL approvalProduct Description:Our battery charger,power adapter and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power to......
Send Inquiry
Product Description
29V 7A ac to dc mass power ac adapter with UL approval
Product Description:
Our battery charger,power adapter and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc
*Passed ISO9001 since 2007.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*Three years of warranty.
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Our battery charger,power adapter and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc
Advantage:
*Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.*Passed ISO9001 since 2007.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*Three years of warranty.
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Specification :
| Item | Parameter |
| Part name: | 29V 7A ac to dc mass power ac adapter with UL approval |
| Model No. | FY2907000 |
| AC Input: | 100-240V,50/60HZ |
| Max charging voltage: | 29V |
| Max charging current: | 7A |
| Inrush current: | Limited 15A when cold starting |
| Protection: | short circuit, over current and over voltage protection. |
| Efficiency: | 88% |
| Power factor: | 0.89 |
| HIPOT testing: | 3000-3700V |
| Drop testing: | meet UL standard. |
| Temperature: | Case 65 ºC Max. |
| Operating temperature | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| MTBF: | 30000 hours full rated load at 25ºC |
| Energy Efficiency: | Level VI( DOE or COC) |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |
| Weight | 0.78kg/pcs. |
| packing | 15pcs/ctn. |
| dimension: | 46*24.5*28cm/CTN |
More Pictures:
Application:

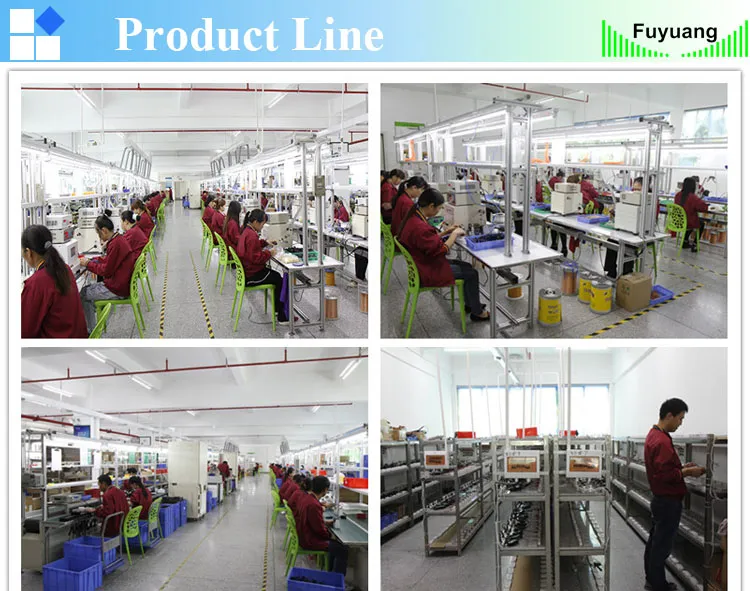

Producttion dept consist of coiling team, DIP team, injection, rework, assembling, packing, wire processing etc.
Certifications File No:
- UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:fuyuang.en.made-in-china.com
- TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:fuyuang.en.made-in-china.com
- SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/
- C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html
- PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://fuyuang.en.made-in-china.com
- EK file No.:HU10419-7001A Check here: www.ktc.re.kr,
- KC file No.:HU10419-9002A Check here: www.ktc.re.kr
- CE file No.:E0604412-01&S1403017 Check here:fuyuang.en.made-in-china.com
- RoHS file No.:CANEC1313005401 Check here: http://fuyuang.en.made-in-china.com
- CCC file No.:2014010907681379 Check here: http://fuyuang.en.made-in-china.com
- CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:fuyuang.en.made-in-china.com
The range of li-ion battery charger we can make
Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
Max charging voltage(V) | 4.2 | 8.4 | 12.6 | 16.8 | 21 | 25.2 | 29.4 | 33.6 | 37.8 | 42 | 46.2 | 50.4 | 54.6 | 58.8 |
Max charging current(A) | ≤10A | ≤8.5A | ≤7.5A | ≤6.5A | ≤5.5A | ≤5A | ≤4.5A | ≤4A | ≤3.6A | |||||
The range of lifepo4 battery charger we can make
Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
Max charging voltage(V) | 3.65 | 7.3 | 10.95 | 14.6 | 18.25 | 21.9 | 25.55 | 29.2 | 32.85 | 36.5 | 40.15 | 43.8 | 47.45 | 51.1 | 54.75 | 58.4 |
Max charging current(A) | ≤10A | ≤9.5 | ≤8.5 | ≤7.5 | ≤6.5 | ≤6 | ≤5 | ≤4.5 | ≤4 | ≤3.5 | ||||||
The range of Lead acid battery charger we can make
Battery Qty (cell) | 1 | 2 | 3 | 4 |
Max charging voltage(V) | 14.5 | 29 | 43.5 | 58 |
Max charging current(A) | ≤10A | ≤7.5 | ≤5 | ≤3.5 |
