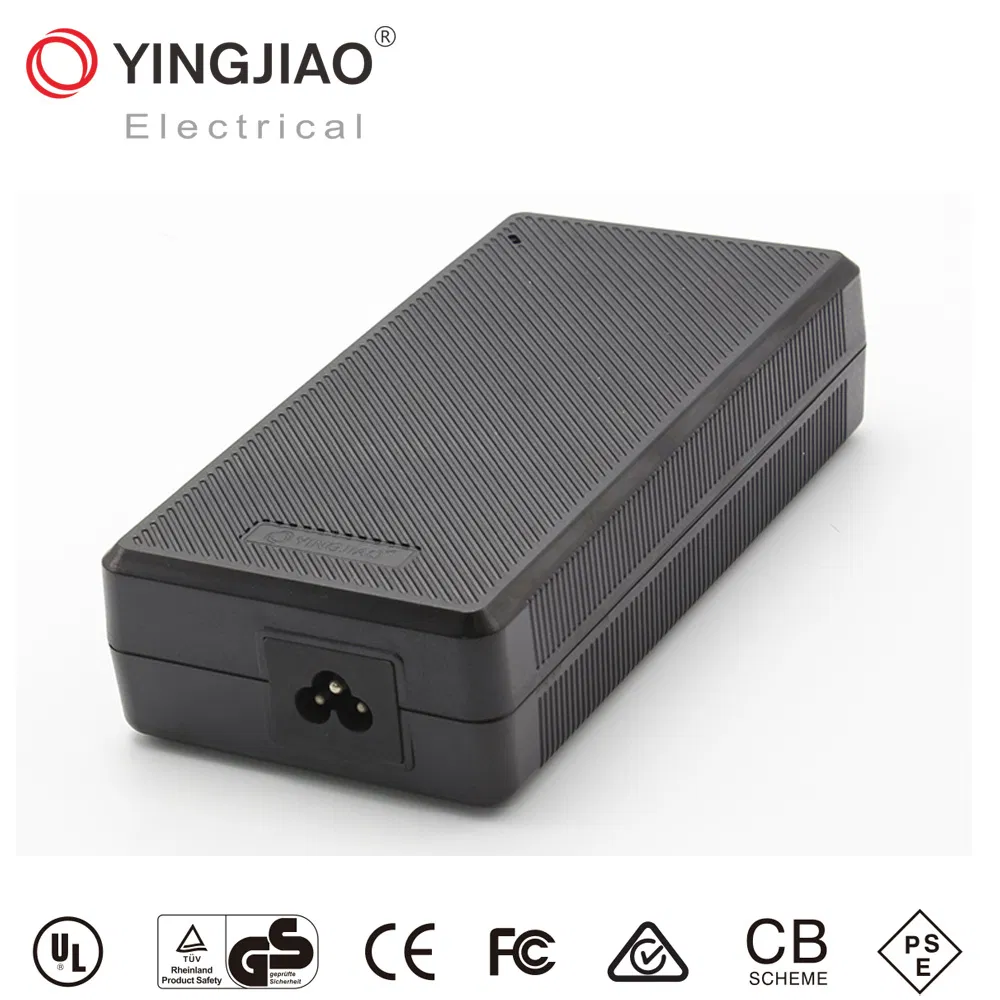

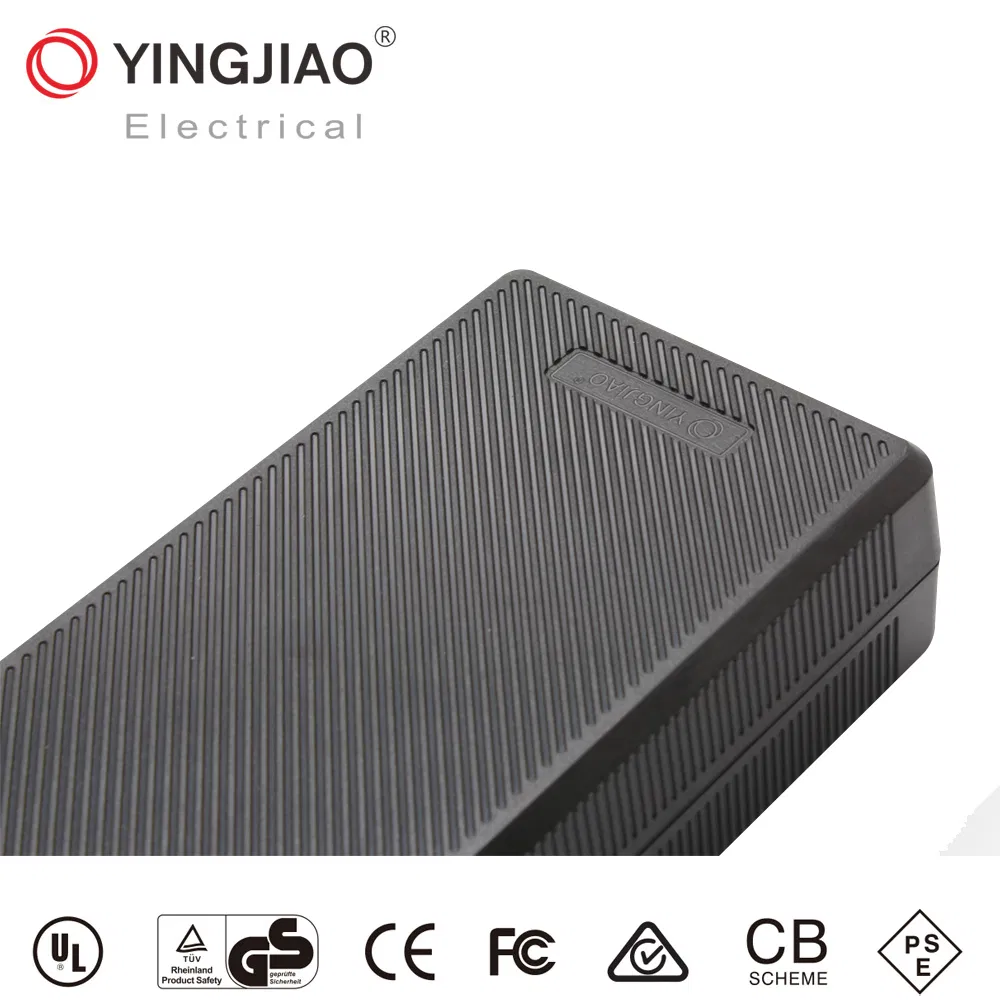

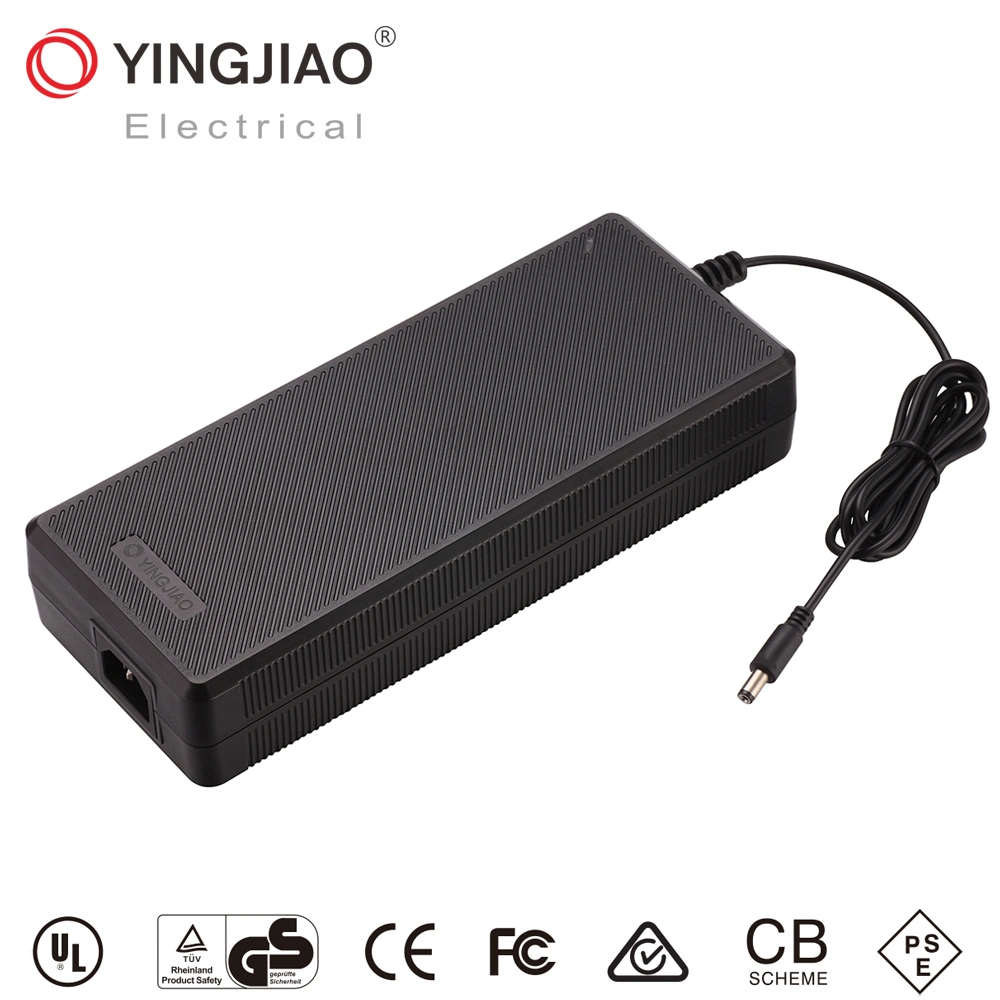

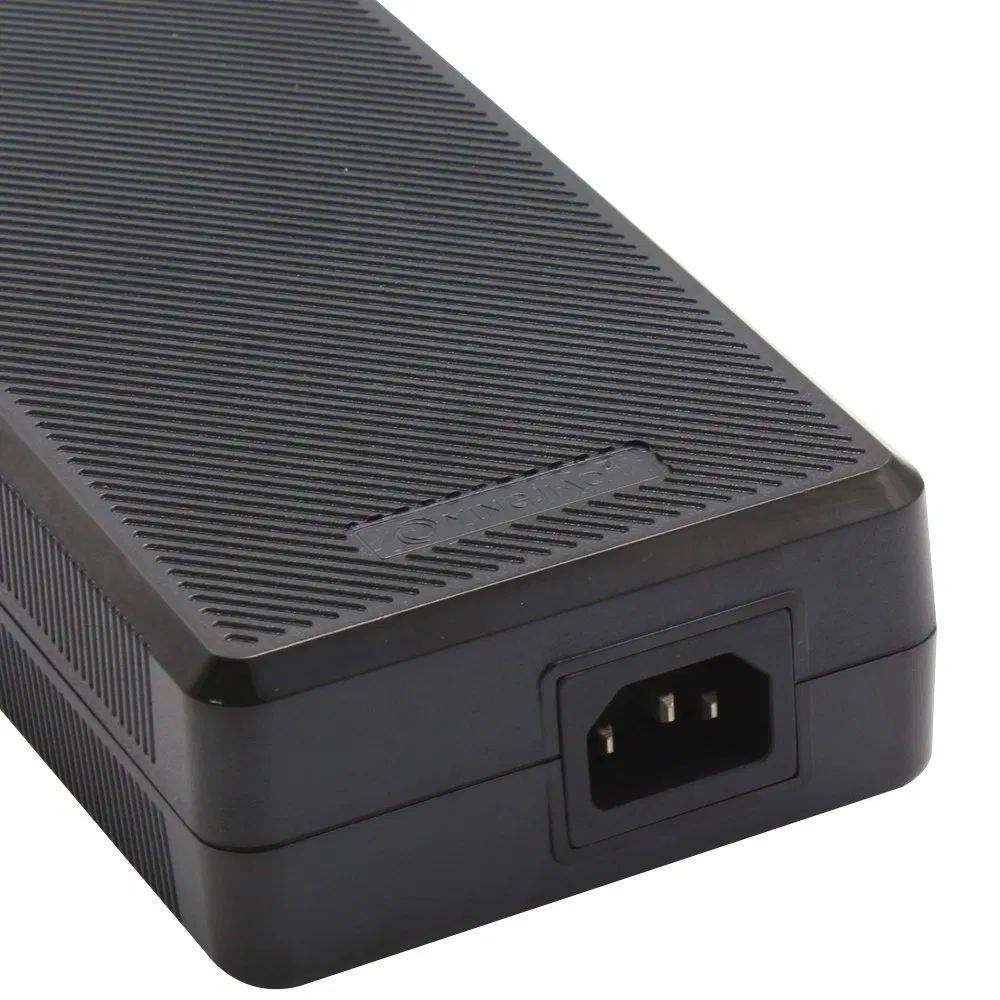

25A/23A/20A/15A/12A 12V/ 13V /15V/19V/24V/48V 100V-240V AC/DC Switching Power Supply
We are a professional manufacturer of switching power supply / adaptor, laptop power adaptor, AC/DC power adaptor, both wall mount adaptor and desktop types.Model: YS300 seriesRated Power: 300W max.Universal Input: 100-240V AC 50/60HzSample Output Specifications:Other output voltage and current also......
Send Inquiry
Product Description
We are a professional manufacturer of switching power supply / adaptor, laptop power adaptor, AC/DC power adaptor, both wall mount adaptor and desktop types.
Model: YS300 series
Rated Power: 300W max.
Universal Input: 100-240V AC 50/60Hz
Sample Output Specifications:
Other output voltage and current also available
Features:
Universal Input: 100-240V AC 47/63Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
With PFC or without PFC optional
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
DATA:
Model: YS300 series
Rated Power: 300W max.
Universal Input: 100-240V AC 50/60Hz
Sample Output Specifications:
Other output voltage and current also available
Features:
Universal Input: 100-240V AC 47/63Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
With PFC or without PFC optional
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
DATA:
| Model: | YS300 |
| Power: | 300W max. |
| Input: | 100-240VAC, 50/60Hz |
| Output Voltage: | 12-48V |
| Output Current: | 0.1-25A |
| Input current: | 2.2A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 1.5mA Max. at 264VAC input |
| Energy Efficiency Level VI : | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption : | <0.15W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU,US,UK,AU etc. type according to customer's choice |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 238*98*45mm |
| Weight: | 1350g |
| Packing: | 20PCS/CTN,42.5*42*20cm |
