24W Poe Power Adapter 12V, 24V, 48V

PoE Power Injector Adapter 24Watt










Description:
Voltage Input:  AC 100-240 V 50/60Hz
Voltage Output: DC24V 1A/48V0.5A
Netork Type: 10BASE-T, 100BASE-T
Efficiency:Min 80%
Line / Load Regulation:3% /5%
Ripple / Noise 200mV p-p
Turn-On Delay: 2s Max
Rise Time:40ms Max

POE (Power Over Ethernet) refers to the existing Ethernet cabling infrastructure Cat. It do not make any alteration of the circumstances, for a number of IP-based terminals (such as IP telephones, wireless LAN access point AP , network cameras, etc.) to transmit data signals at the same time, but also for the provision of DC power supply such equipment technology. POE technology to ensure the safety of the existing structured cabling at the same time to ensure the normal operation of the existing network, minimizing costs.

POE is also known as the power supply system based on local area network (POL, Power over LAN) or Active Ethernet.

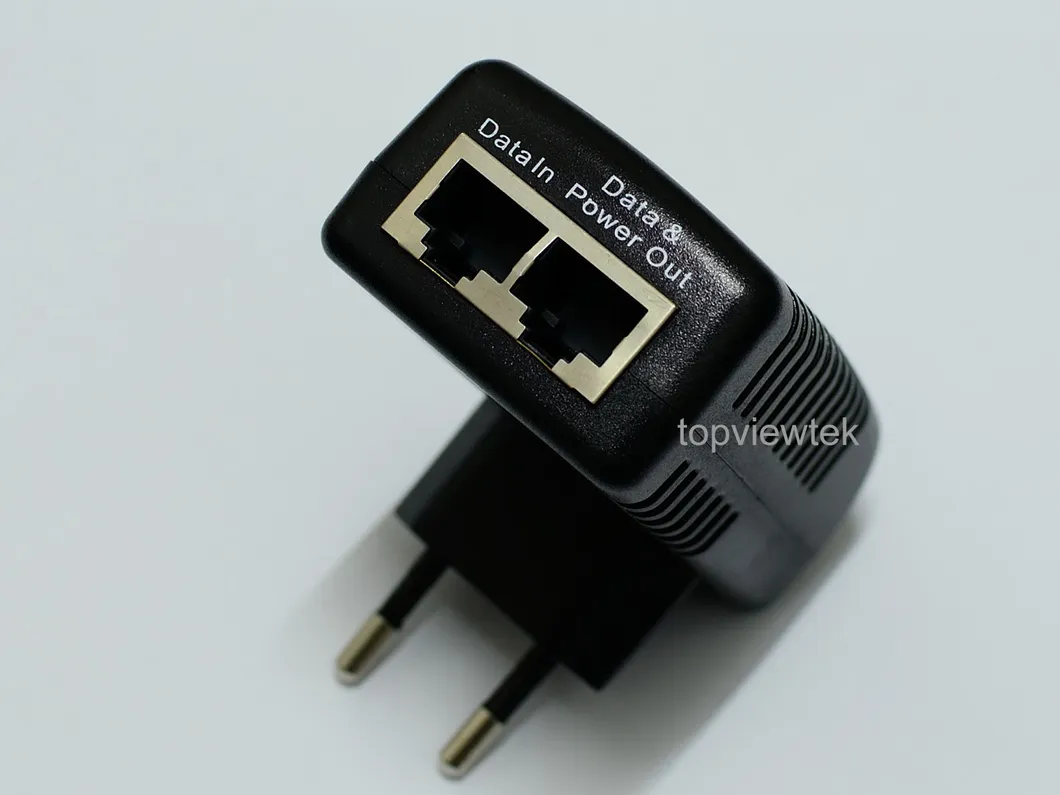

This Adapter only support 10/100M connection, do not support gigabit ethernet connection, because Data & Power Out port using 4,5,7,8 pin as power transfer, Please do not connect any gigabit ethernet device on "Out" port, this will damage your device.

 It supplies power NO MATTER WHAT, so don't plug the "Data and Power Out" side into anything that isn't ready for it.

Compatible 24V POE device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....

Protections Auto Recover Over-Voltage, Short Circuit, Over-Current
Safety and EMC Standards UL 60950, CE
Environmental Standards RoHs
Operating Temperature -10 to +40°C (14 to +104°F)
Operating Humidity (RH) 5% - 90%
Storage Temperature -20 to +85°C (-4 to +185°F)
Network Connector Type RJ45 Shielded
POE Type Passive POE ( Pins 4,5 V+, Pins 7,8 V-)

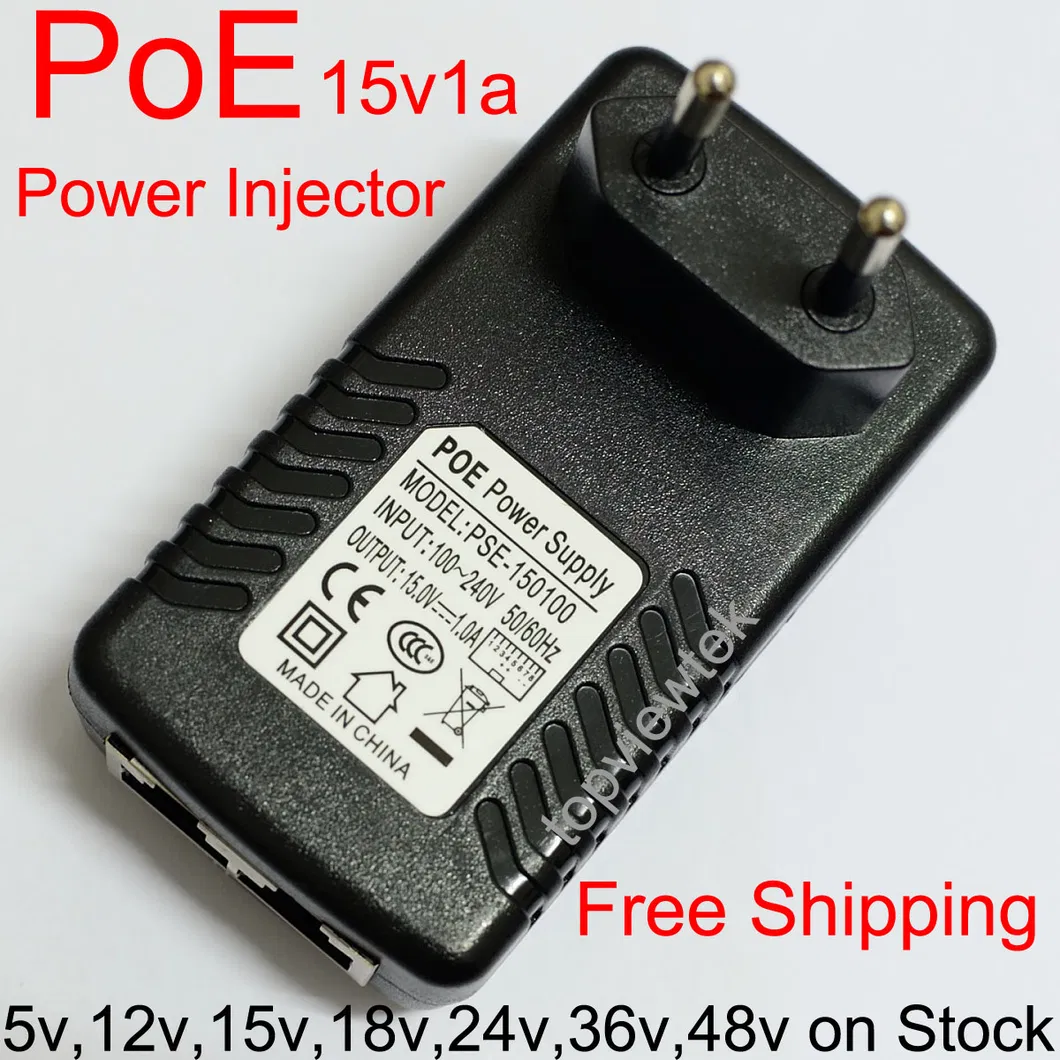

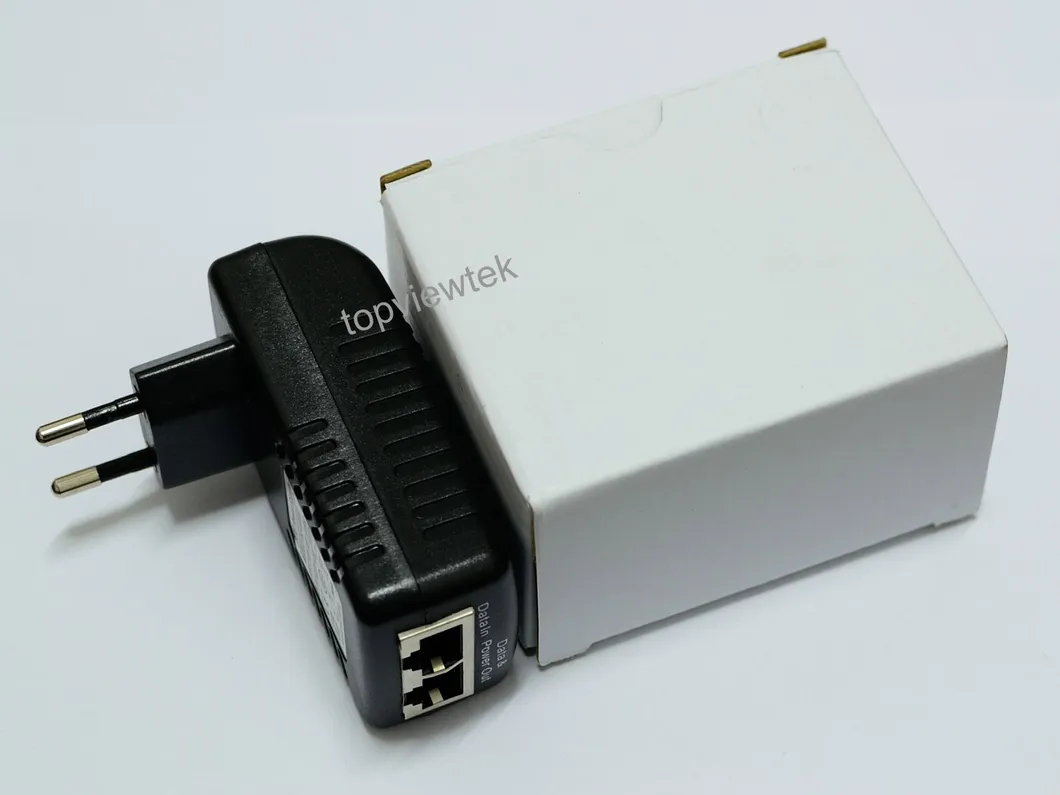

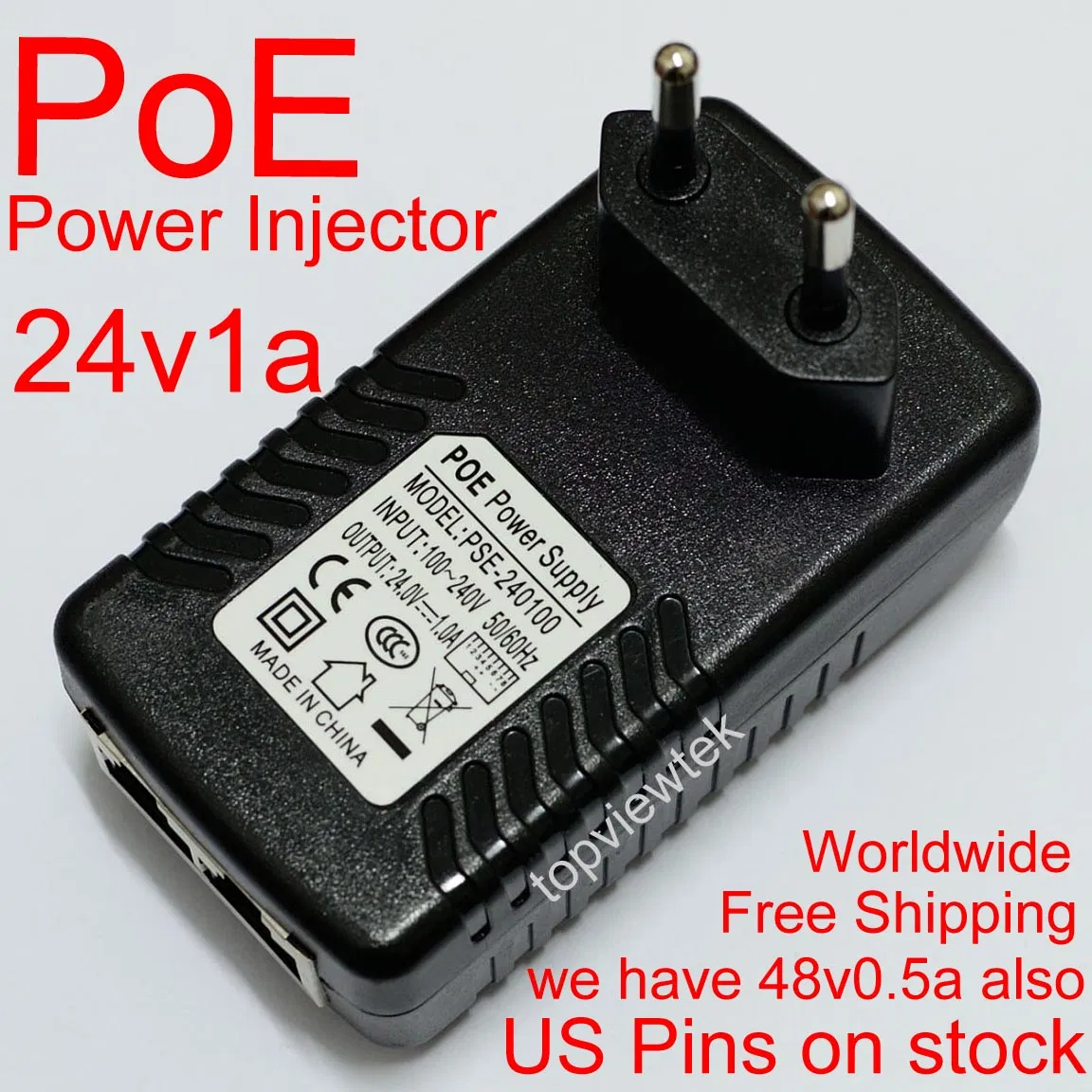

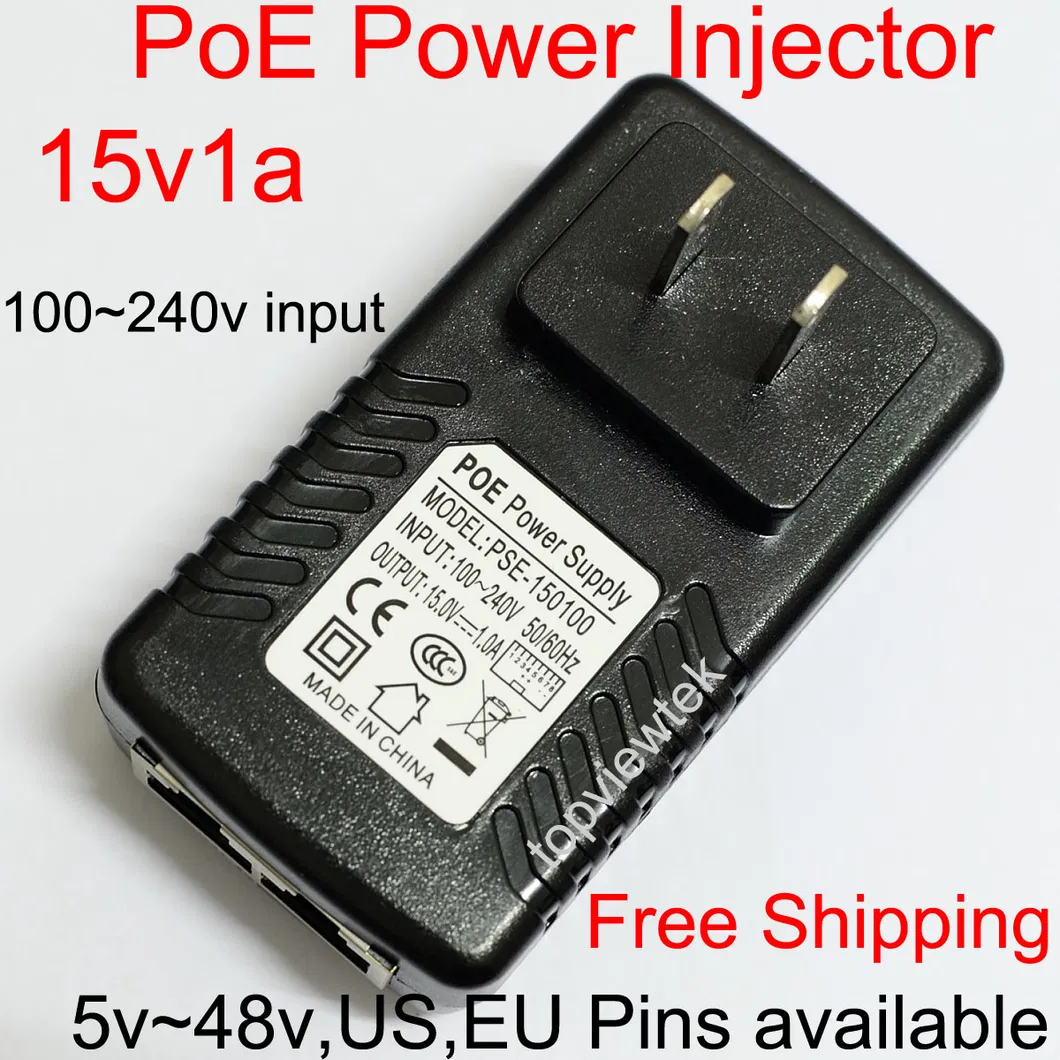

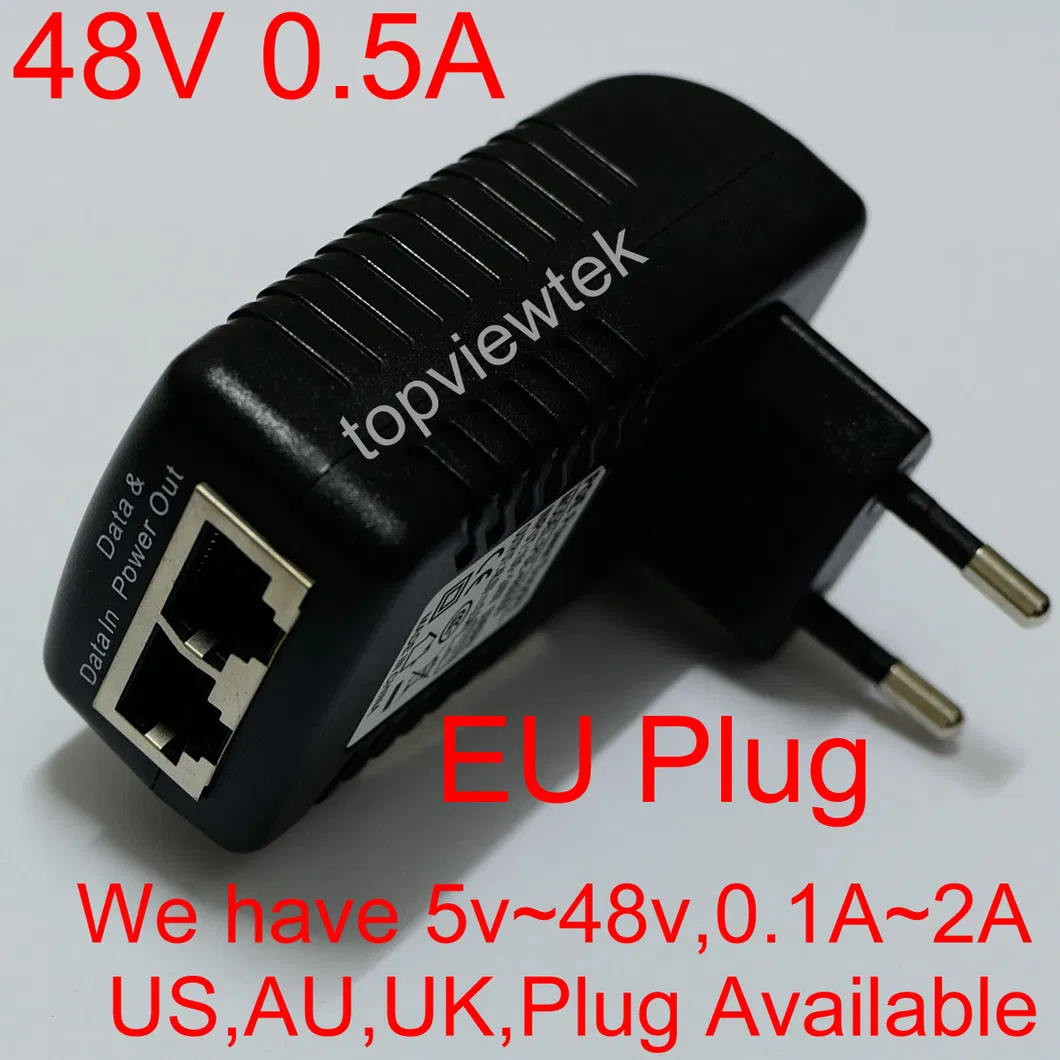

Picture:
