Product Description

We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.

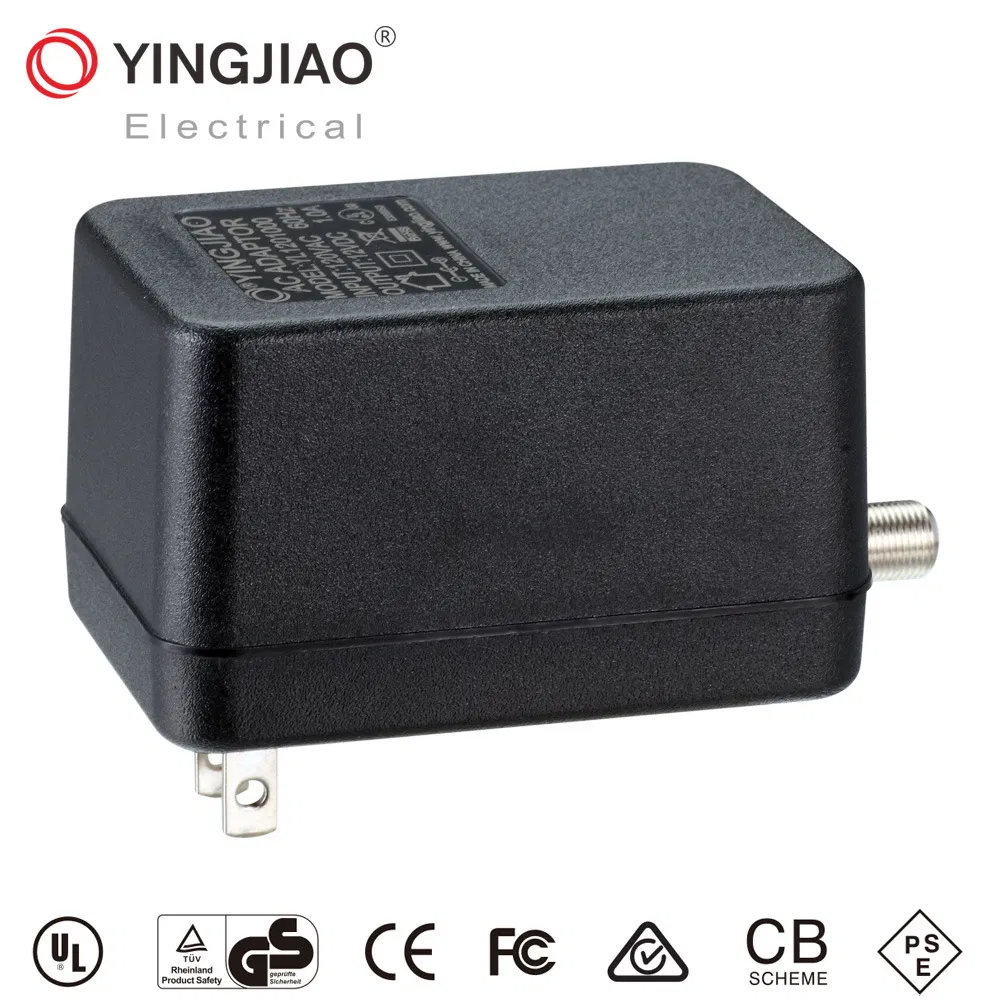

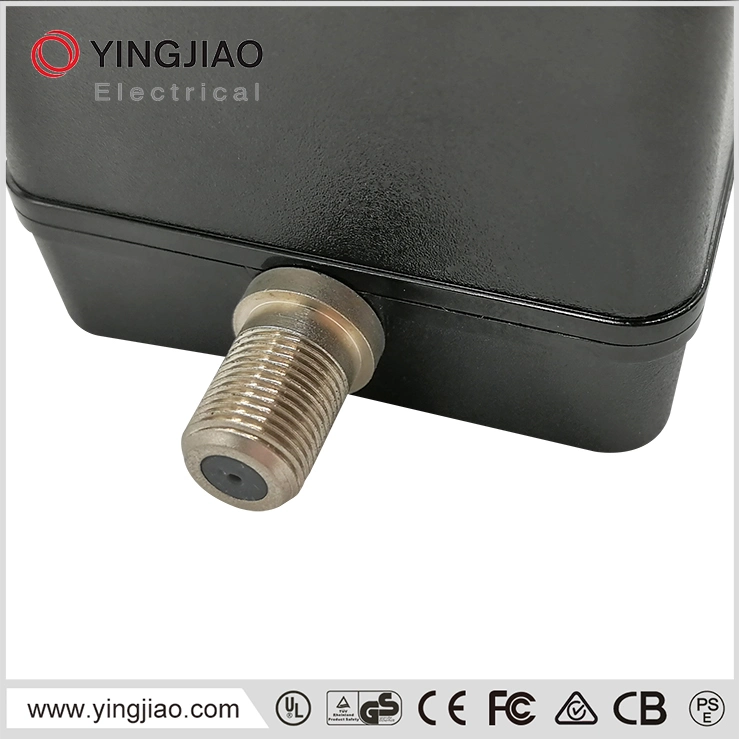

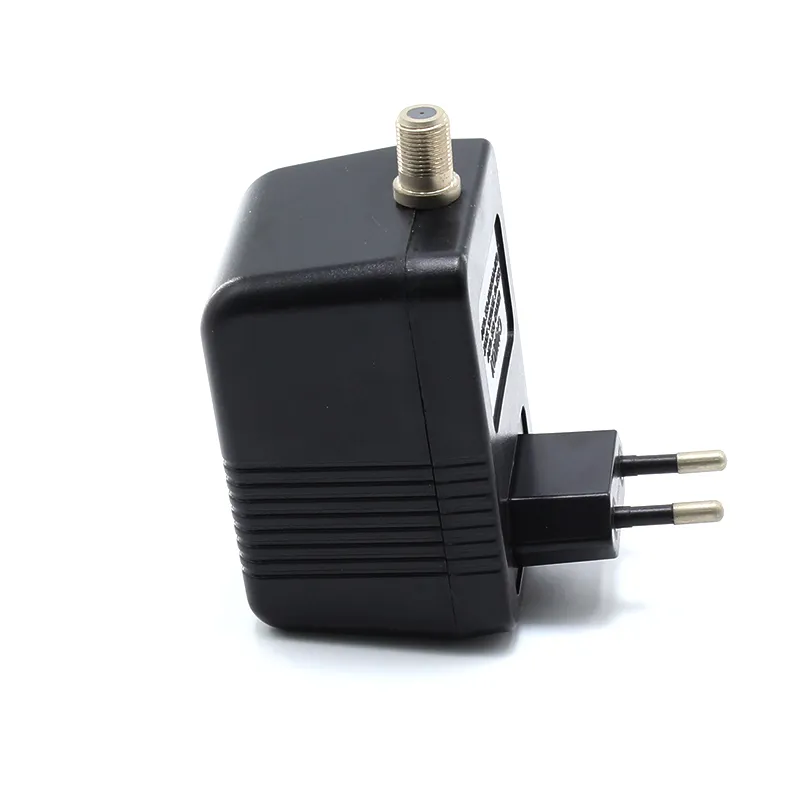

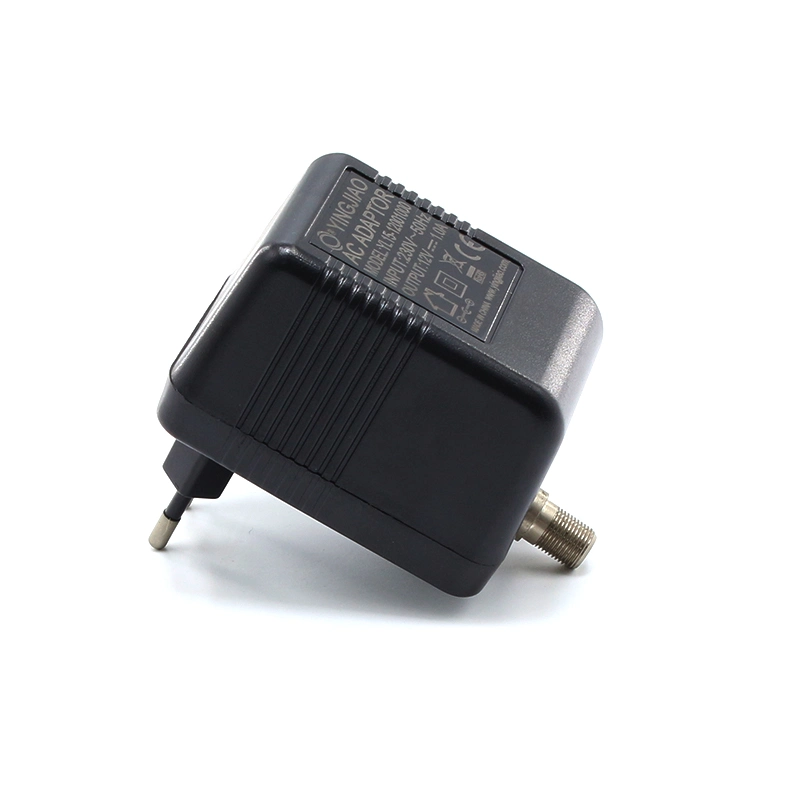

2019 Quliaty AC / DC Adapter Linear Adapter for CATV

2019 Quliaty AC / DC Adapter Linear Adapter for CATV

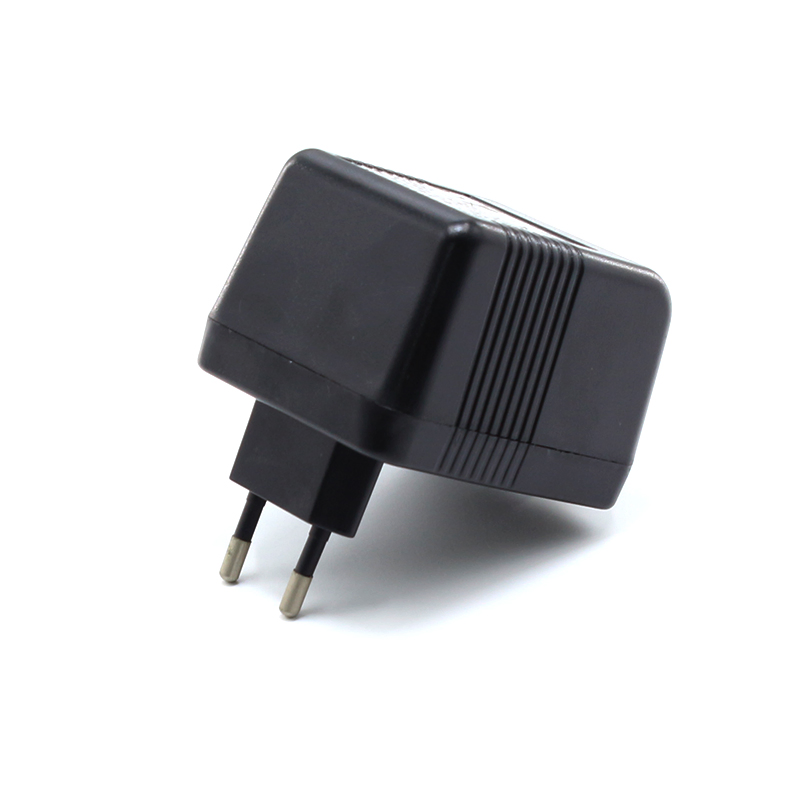

15W Plug IN Linear Power Adapter
AC/DC, AC/AC Adapters
Model: YL15 series
Range: 6-15W
Rated Power: 15W
Input: 220-240V AC 50/60Hz
Dimension: 81*55*47mm

Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.

Data:

Linear power adapter
Model:	YL15E-F
Rated Power:	15W
Input:	100-240VAC 50/60Hz
Output Voltage:	5-36V(AC/DC)
Output Current:	0.4-2.5A
Input current:	0.125A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
Efficiency:
No Load Power Consumption :	< 1.5W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	AU 3pin & EU 2pin &US 2pin
Certificates and approvals:	GS,CE,EMC,RoHS,REACH
EMC Regulation compliance according to standard EN50083-2	EN55024:1998 (Immunity) EN550022 (Conducted Disturbance at Mains Terminals) class B EN55013 (30MHz to 1000MHz , the "absorbing clamp method " radiated disturbance power )
CE mark according to EN60950-1 Low Voltage Directive	Meets the Limits of EN61000-3-2 (Harmonic Current Emissions) EN61000-3-3 (Voltage Fluctuations + Flicker) EN61000-4-2 (Electrolitic Discharge -ESD) EN61000-4-3 (Radio-Frequency, Continuous Radiated Disturbance) EN61000-4-4 (Electrical Fast Transient /Burst Immunity) EN61000-4-5 (Lightening Surge) EN61000-4-6 (Conducted RF Immunity) EN6000-4-11 (AC input Voltage Periodic & Random Disturbance)
RoHs compliance	ROHS directive " 2011/65/EU "
Surge test	Phase angle: 90, 270 degrees, - Pulse Repetition rate: 60 sec. combination wave and ring wave ±6KV
MTBF:	100000 hours minimum at full load at 25 C ambient
Life:	3-5 years alternative
Dimension:	815547mm
Weight:	245g
Packing:	20PCS/CTN,53.52615.5cm

Details:

Model:	YL15-0502500	YL15-0901200	YL15-1501000	YL15-1900750	YL15-2400600	YL15-3600400
AC/DC Voltage:	5V	9V	15V	19V	24V	36V
Rated Current:	2.5A	1.2A	1A	0.75A	0.6A	0.4A
Current Range:	0-2.5A	0-1.2A	0-1A	0-0.75A	0-0.6A	0-0.4A
Rated Power:	12.5W	10.8W	15W	14.25W	14.4W	14.4W
Ripple & Noise(max.):	50mVp-p	90mVp-p	150mVp-p	190mVp-p	240mVp-p	360mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
