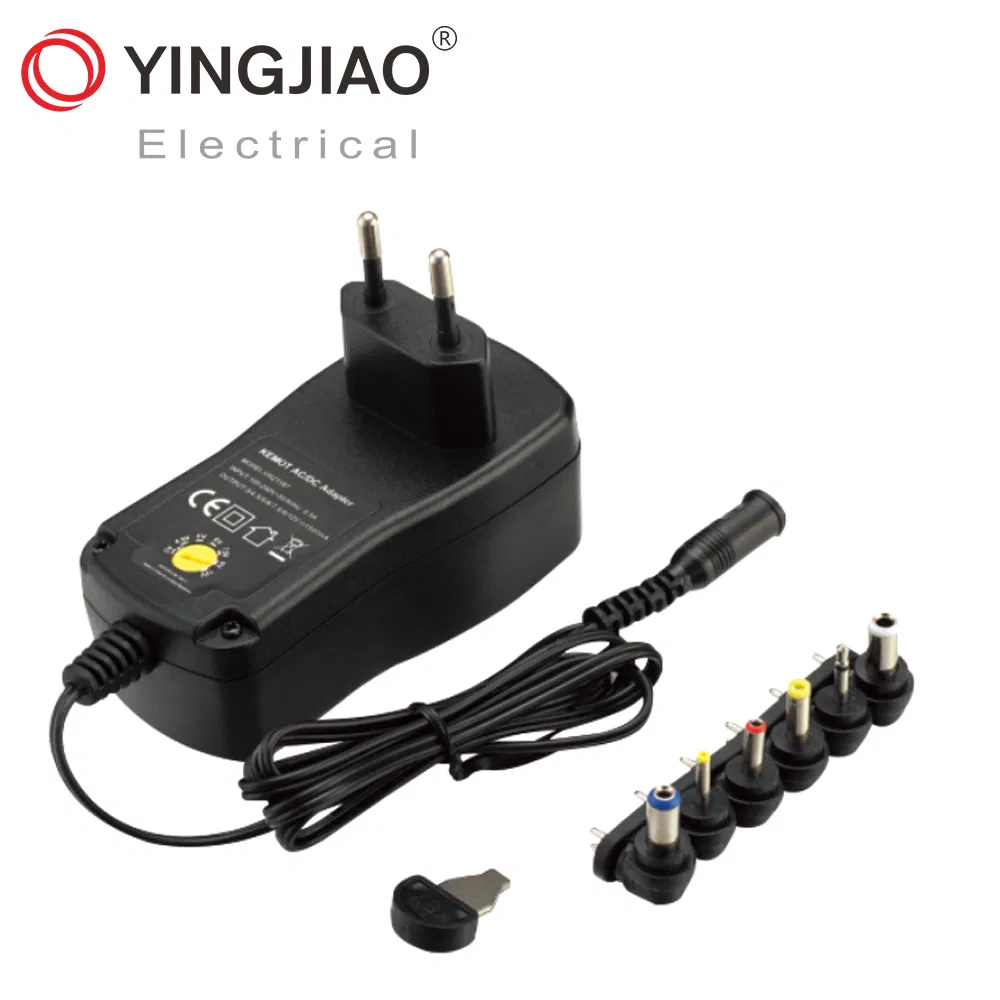

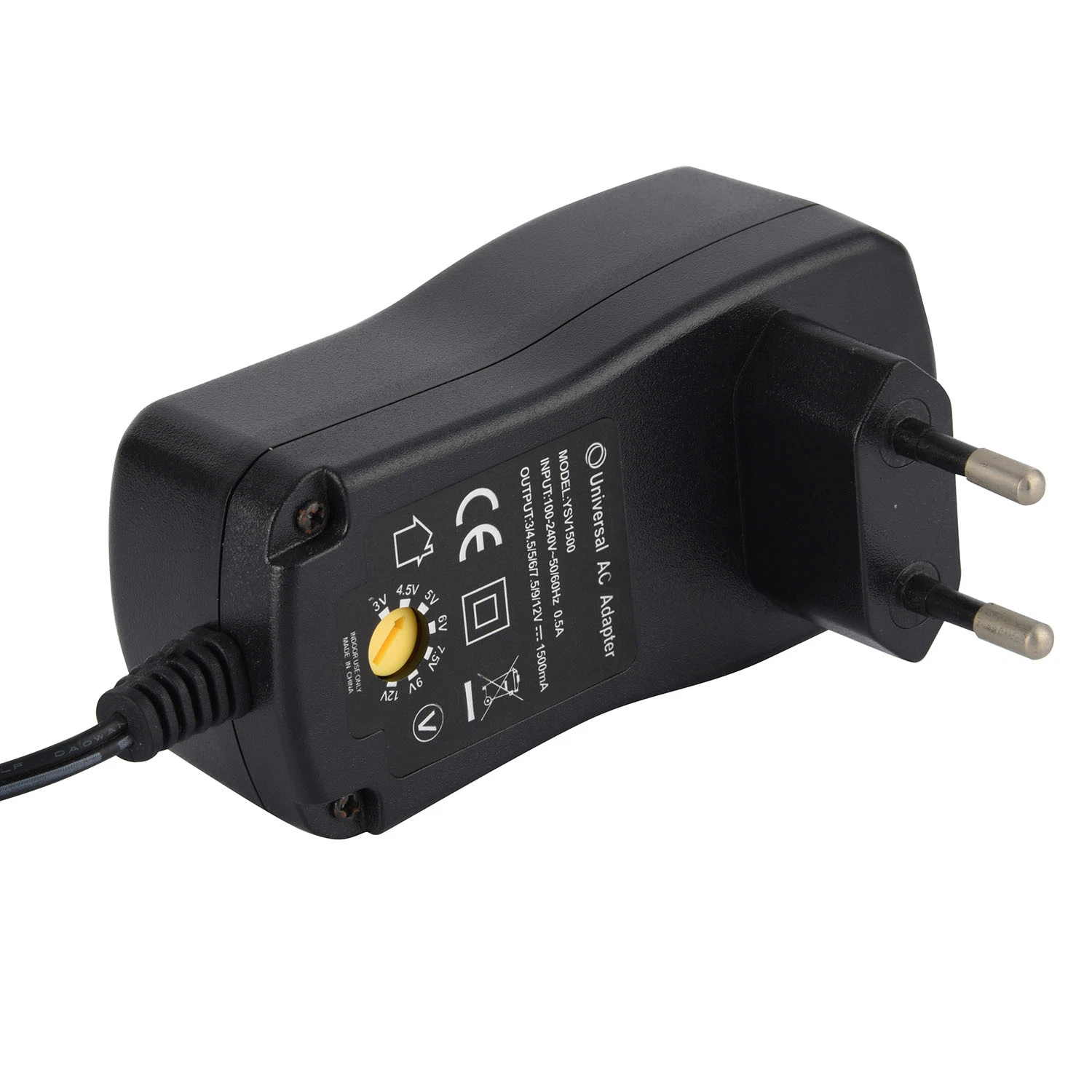

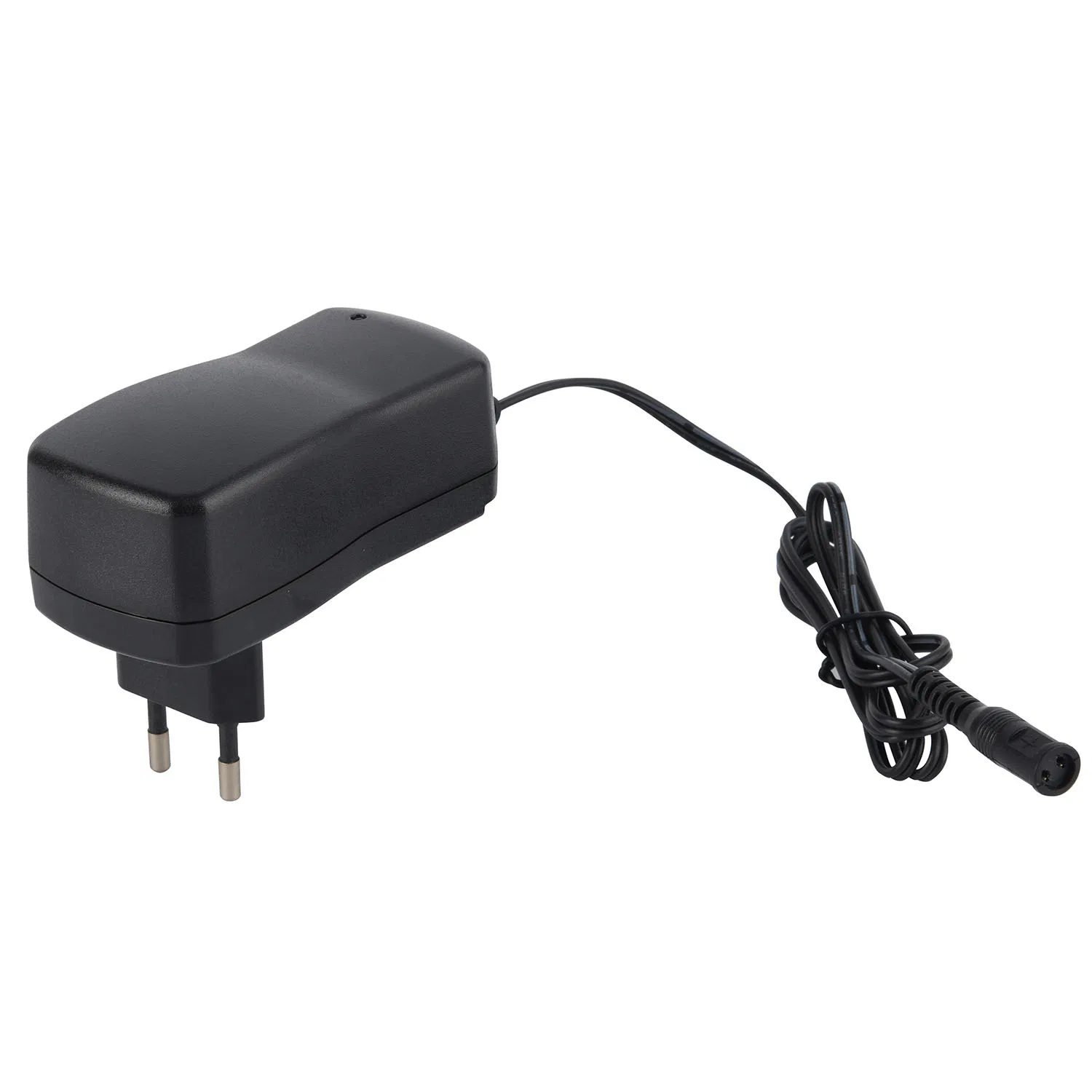

18W/ 24W /27W/12V 4.5V 5V 6V 7.5V 9V Multiple DC Output Universal Variable Power Adapter Adaptor Made in China
18W/24W/27W/12V 4.5V 5V 6V 7.5V 9V Multiple DC Output Universal Variable Power Adapter Adaptor Made in ChinaDATA:Model:YSV1500Power:18W max.Input:100-240VAC 50/60HzOutput Voltage: 3V 4.5V 5V 6V 7.5V 9V 12VDC Output Current:1500mA Input current:0.8A max.Inrush Current:65 Amps max. at 230VAC/50Hz,ful......
Send Inquiry
Product Description
18W/24W/27W/12V 4.5V 5V 6V 7.5V 9V Multiple DC Output Universal Variable Power Adapter Adaptor Made in China
DATA:
DETAILS:
Features:
LED monitor indicating output voltage setting
Reliable rotary voltage change switch & reverse polarity switch
Short-circuit & overload protection
Applications: Radios, calculators, cassette recorders, telephone recorders, mini computers, portable TV, keyboard, discman, printer and other battery-operated equipment
Especially use for personal stereos.
Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.
our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.
Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.
DATA:
| Model: | YSV1500 |
| Power: | 18W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 3V 4.5V 5V 6V 7.5V 9V 12VDC |
| Output Current: | 1500mA |
| Input current: | 0.8A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level VI : | V |
| No Load Power Consumption : | <0.3W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU,US,UK,AU etc. type according to customer's choice |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 93*45.5*73mm |
| Weight: | 135g |
| Packing: | 20PCS/CTN,40*30*20cm |
| Model: | YSV1500 |
| DC Voltage: | 3V 4.5V 5V 6V 7.5V 9V 12VDC |
| Rated Current: | 1500mA |
| Current Range: | 0-1500mA |
| Rated Power: | 18W |
| Ripple & Noise(max.): | 200mVp-p |
| Voltage Tolerance: | ±5% |
| Line Regulation: | ±3% |
| Load Regulation: | ±5% |
| Efficiency: | 78.00% |
| Setup,Rise,Hold up time: | 1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load. |
Features:
LED monitor indicating output voltage setting
Reliable rotary voltage change switch & reverse polarity switch
Short-circuit & overload protection
Applications: Radios, calculators, cassette recorders, telephone recorders, mini computers, portable TV, keyboard, discman, printer and other battery-operated equipment
Especially use for personal stereos.
Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.
our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.
Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.
