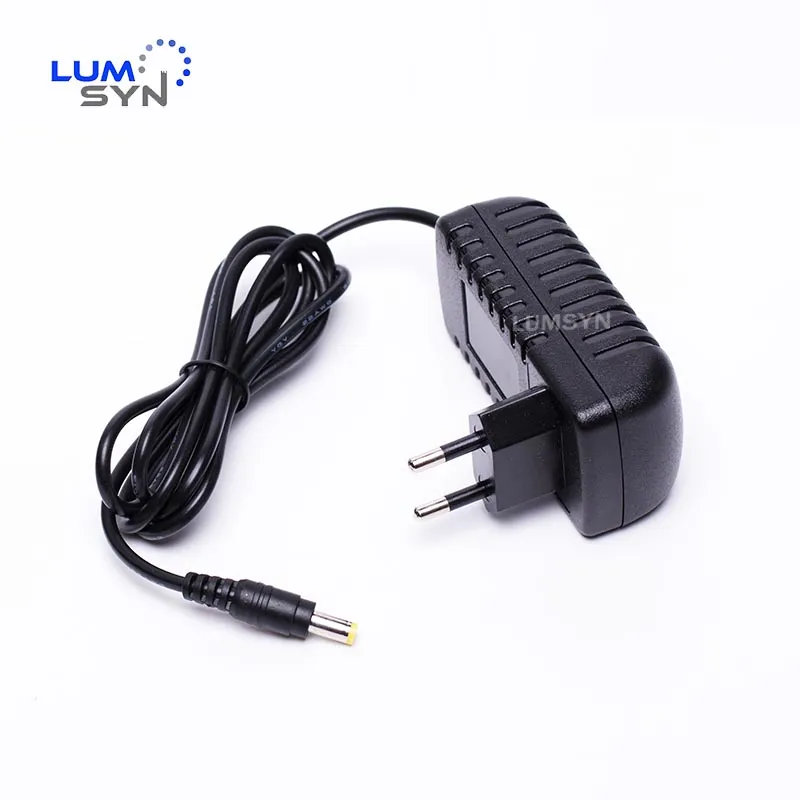

12V2a 24V0.5A Mains AC-DC Adaptor Power Supply with Negative Polarity Plug
12V2A 24V0.5A Mains AC-DC Adaptor Power Supply with Negative Polarity PlugInput Voltage Range100-240Vac 50/60HzOutput Voltage6V 9V 12V 24V 36V 48VOutput Current1A 2A 3A 4ARated power24WLine Regulation±5%Load Regulation±5%Ripple & Noise<120mvEfficiency LevelVIOperation Te......
Send Inquiry
Product Description
12V2A 24V0.5A Mains AC-DC Adaptor Power Supply with Negative Polarity Plug
| Input Voltage Range | 100-240Vac 50/60Hz |
| Output Voltage | 6V 9V 12V 24V 36V 48V |
| Output Current | 1A 2A 3A 4A |
| Rated power | 24W |
| Line Regulation | ±5% |
| Load Regulation | ±5% |
| Ripple & Noise | <120mv |
| Efficiency Level | VI |
| Operation Temperature | -10 to +40ºC |
| Storage Temperature | -20 to +80ºC |
| Operation Humidity | 5-90% RH |
| Cooling | Convection |
| Over Current Protection | Auto Recovery |
| Over Voltage Protection | Auto Recovery |
| Short Circuit Protection | Auto Recovery |
| Aging Test | Full Load 12 Hours Auto Recovery |
| Approval | CE, FCC, UKCA, UL, RoHS |
| Weight | 113g |
| Size(WxLxH) | 68X33X51mm |

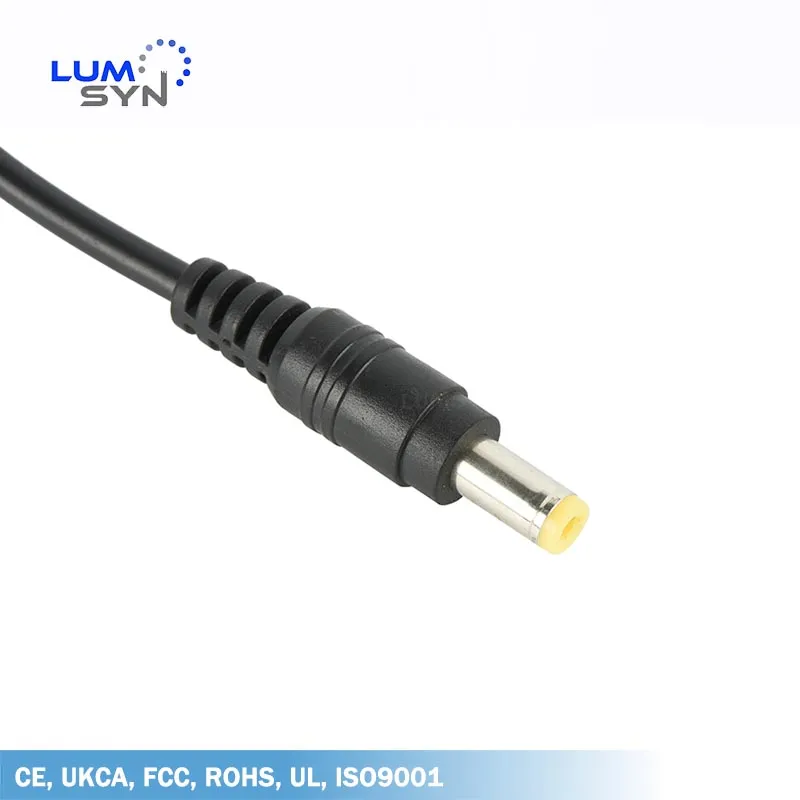

| Output Connector | 5.5*2.1, 3.5*1.35 or Customized connector |
| MTBF 100%, 25ºC | 50,000 hours |
| Warranty | 2 years |
