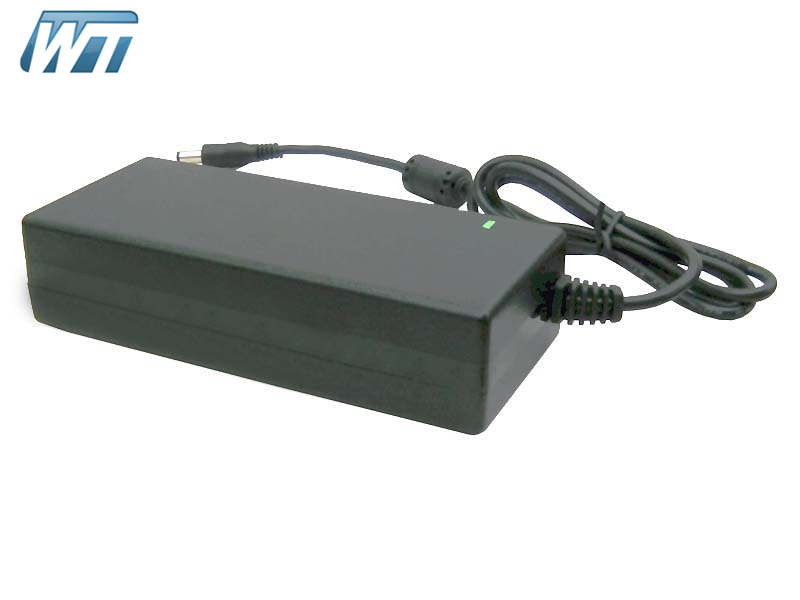

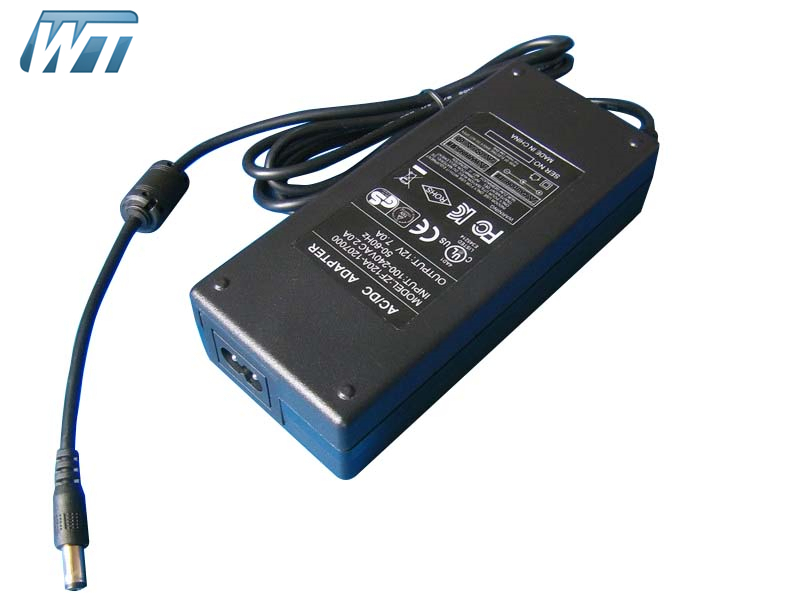

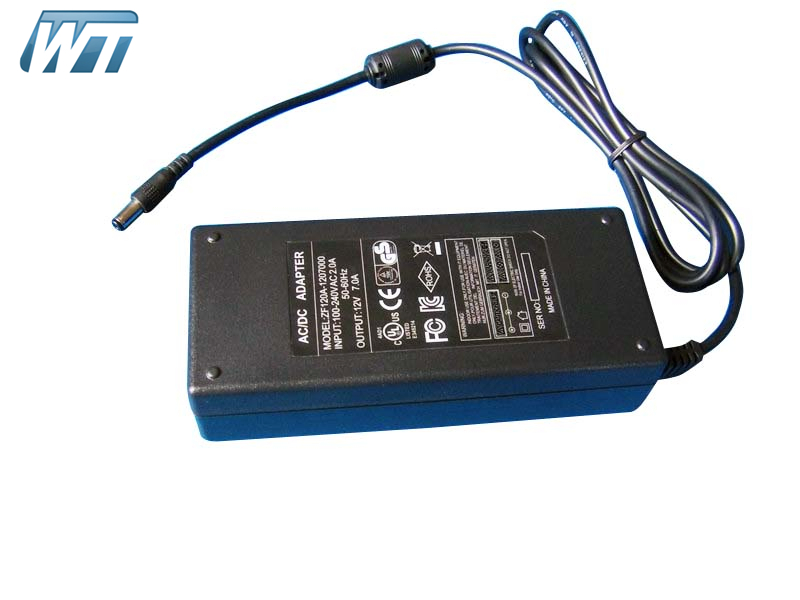

12V 7A AC/DC Switching Power Supply Desktop Adaptor OEM
FEATURES:Input Voltage Range100-240V ACInput Voltage Frequency47-63HzOutput Voltage12VDCOutput Current7AOutput Power (optional)84W MaxEfficiency≥90%CertificatesUL/CUL/CE/CB/KC/PSE/GS/TUV/CCC/BIS/SAA...AC Plug (optional)US/UK/EU/KR/JP/AU...DC connector (optional)5.5x2.1/5.5x2.5/3.5x1.35(mm)DC ......
Send Inquiry
Product Description
FEATURES:
| Input Voltage Range | 100-240V AC |
| Input Voltage Frequency | 47-63Hz |
| Output Voltage | 12VDC |
| Output Current | 7A |
| Output Power (optional) | 84W Max |
| Efficiency | ≥90% |
| Certificates | UL/CUL/CE/CB/KC/PSE/GS/TUV/CCC/BIS/SAA... |

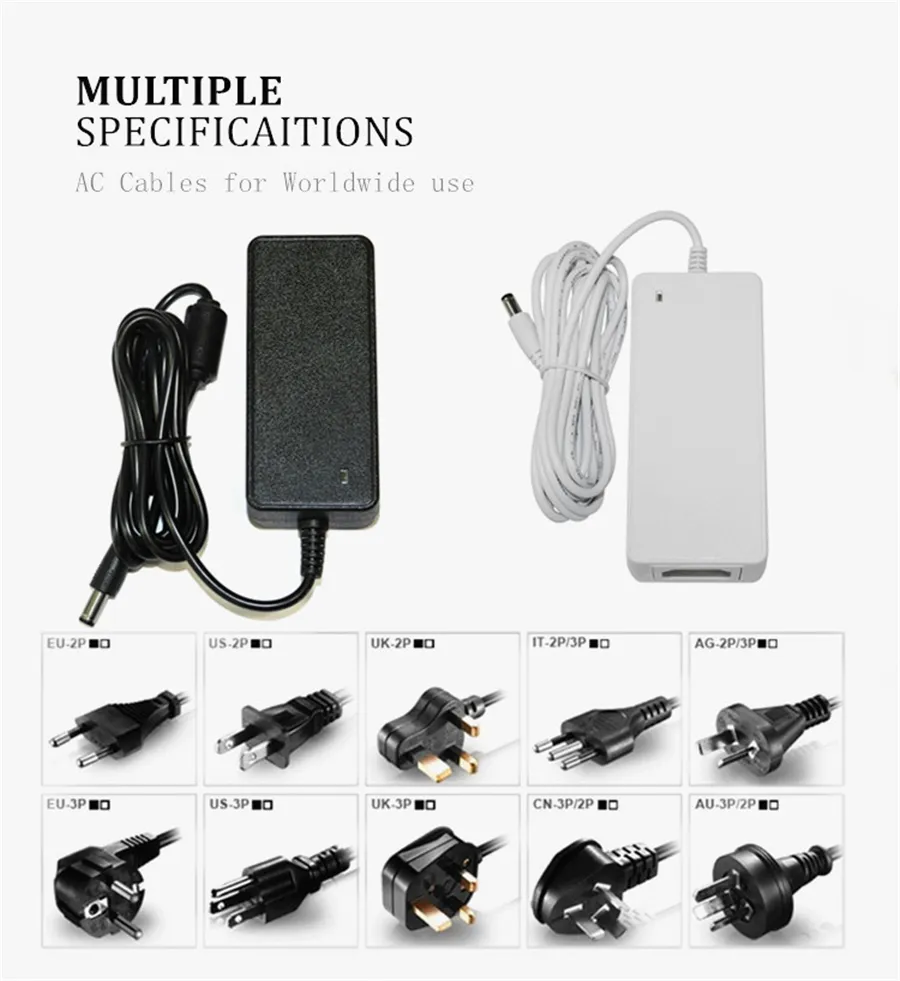

| AC Plug (optional) | US/UK/EU/KR/JP/AU... |

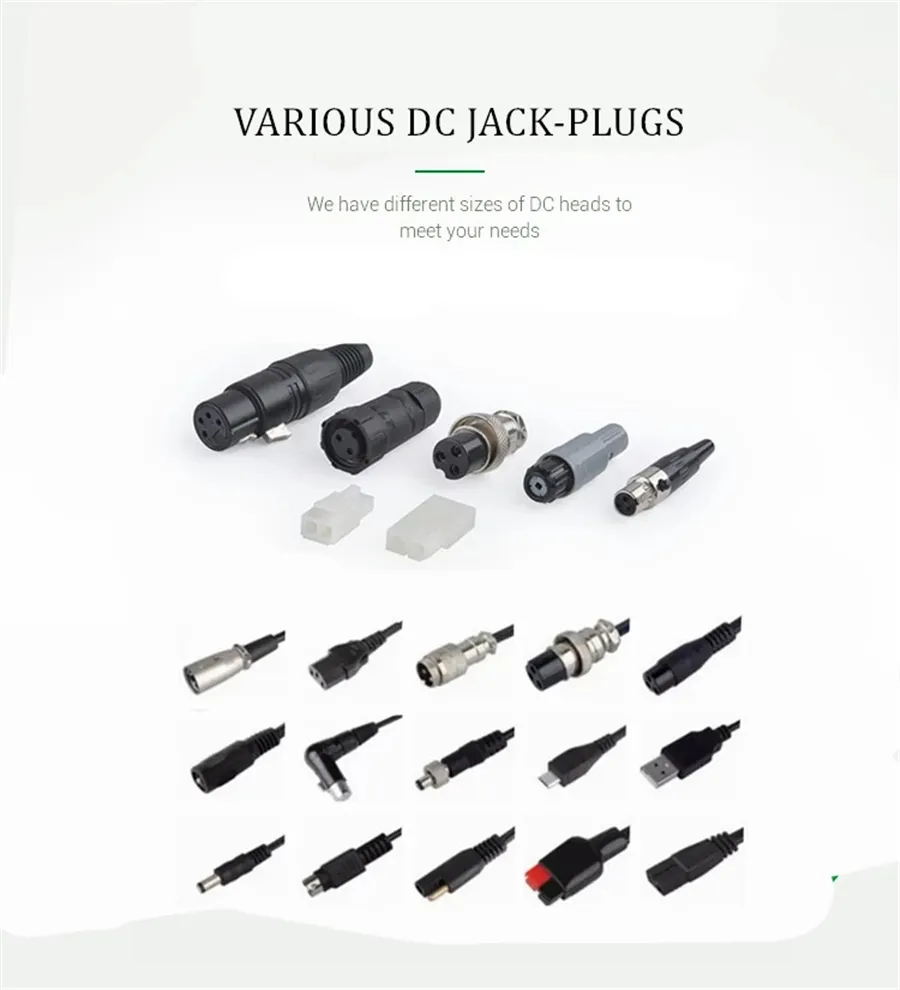

| DC connector (optional) | 5.5x2.1/5.5x2.5/3.5x1.35(mm) |
| DC wire long (optional) | 1.2m/1.5m / 1.8m |
| Output ripple and noise | 100mvpp at full road with 20MHz bandwidth |
| Output voltage Adjustable rate | ±5% |
| No-load Power Consumption | <0.15W |
| Energy Efficiency Standard | Level VI |
| Transistor connecting method | Single-ended type |
| Turn On Delay Time | <3S (AC:110V and full load) |
| WORKING ENVIRONMENT: | -10ºC-40ºC 5%-90%RH |
| STORAGE ENVIRONMENT: | -20ºC-85ºC 5%-95%RH |
| Warranty | 3years |
Professional
10 years' experience of Power Adapters Production
WINGTECH is a professional factory specializing in R&D and production of power adapters only,which doesn't supply any other hot selling electronic products. That is why we can keep advanced skills and stable quality all the time.
Cooperating with Famous Companies
With good products and business reputation,WINGTECH has won the trust of various famous companies
We've established long term partnetship with the companies as Gree , Samsung ,Walmart ETC.
Comprehensive Explanation of AC DC Power Adapters
With so many years experience,it took many years for our team to creat a standard book which is used to help our clients to find suitable adapters quickly. The particular specification of each model can help you fully understand what products you need.
Top Quality Management System
We have a complete quality assurance system and solutions for the products in questions to ensure products quality and our outstanding after sale service.
Reliable
·ISO9001 Certification and Assessed Supplier on MIC.
We have already passed ISO factory inspection and have been an Assessed Supplier on MIC.
·AQL Acceptance Standards
The final inspection shipments will be in strict accordance with the AQL acceptance standards.The power adapter shall be burnt for 4 hours under normal input and 80% rated load at 40°C +/- 5 °C
·Your smart choice
We believe that we can meet with success only if our clients did it.

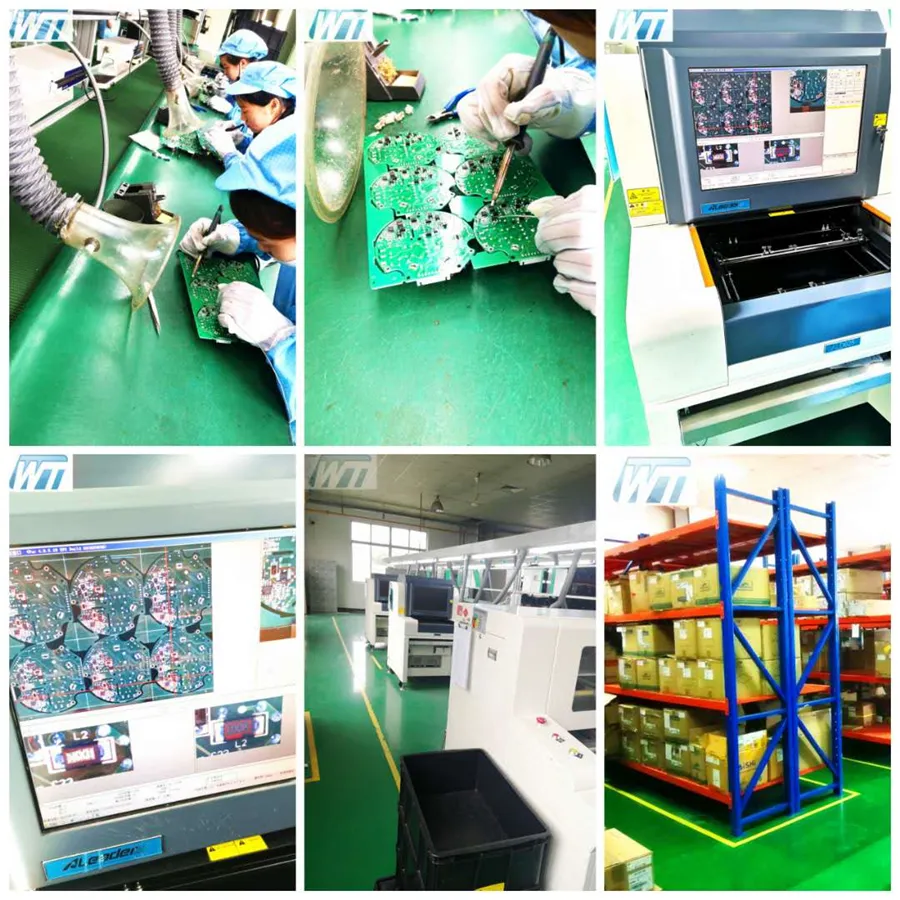

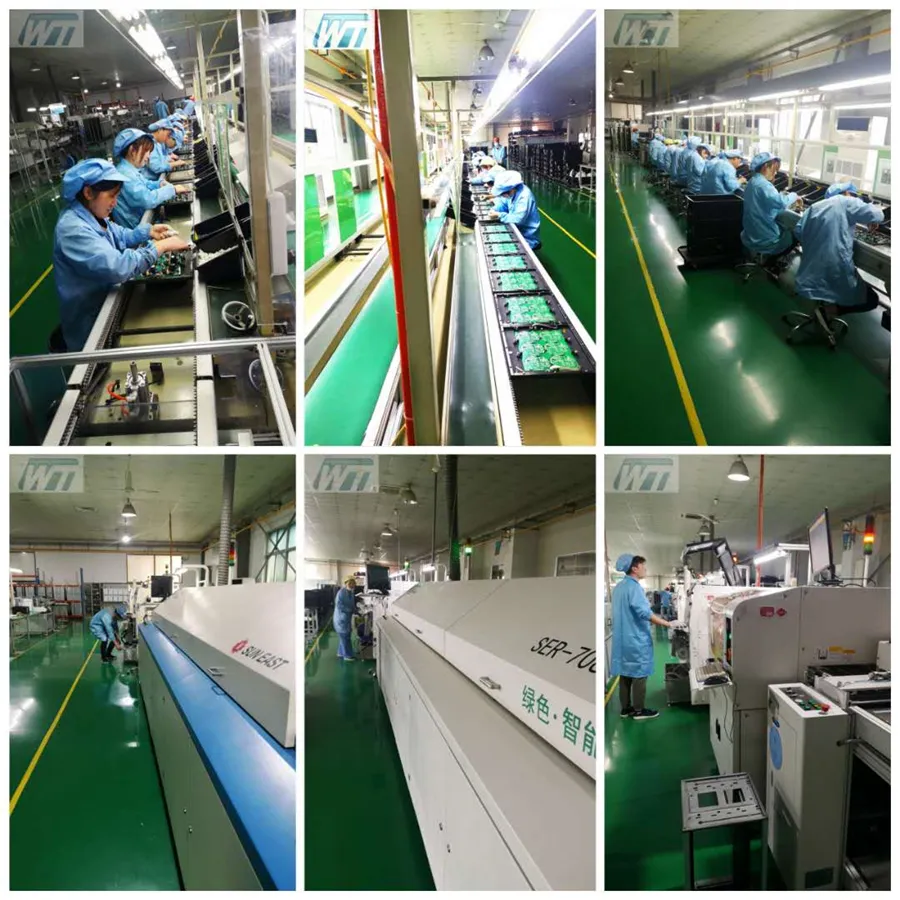

High Quality Production Line:
Different package(OEM) and different way to make delivery:
