12V 6A power supply 72W AC DC adaptor with ETL CE FCC RoHS CB SAA C-Tick Approved
12V 6A power supply 72W AC DC adaptor with ETL CE FCC RoHS CB SAA C-Tick Approved(1)High efficiency, High reliability, Long life time(2)Efficiency: 85% min(3)Approved CE RoHS FCC ETL certification(4)Warranty: Two years(5)Protection: Over current protection, Over voltage protection, Short circuit p......
Send Inquiry
Product Description
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 85% min
(3)Approved CE RoHS FCC ETL certification
(4)Warranty: Two years
(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(6) Real power, high reliablity, long life

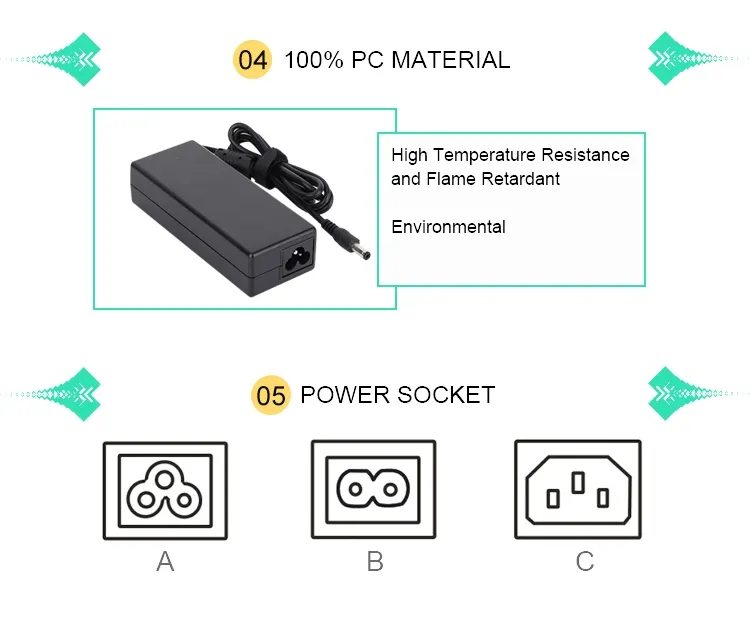

IEC320-C14, IEC320-C6 and IEC-C8 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).
(7)Suit for: LED, LCD, CCTV camera, Motor,etc.
| Part. No. | PC-120060 |
| AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
| DC Voltage | 12V |
| Rate Current | 6A |
| Current Range | 0~6A |
| Rate Power | 72W |
| Material | 100% PC |
| Certification | Approved CE RoHS FCC C-TICK ETL certification |
| Voltage Tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | >85% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over Voltage Protection | 115%~135% |
| Operating Temperature | -10ºC~50ºC(±10ºC) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40ºC~80ºC(±10ºC) |

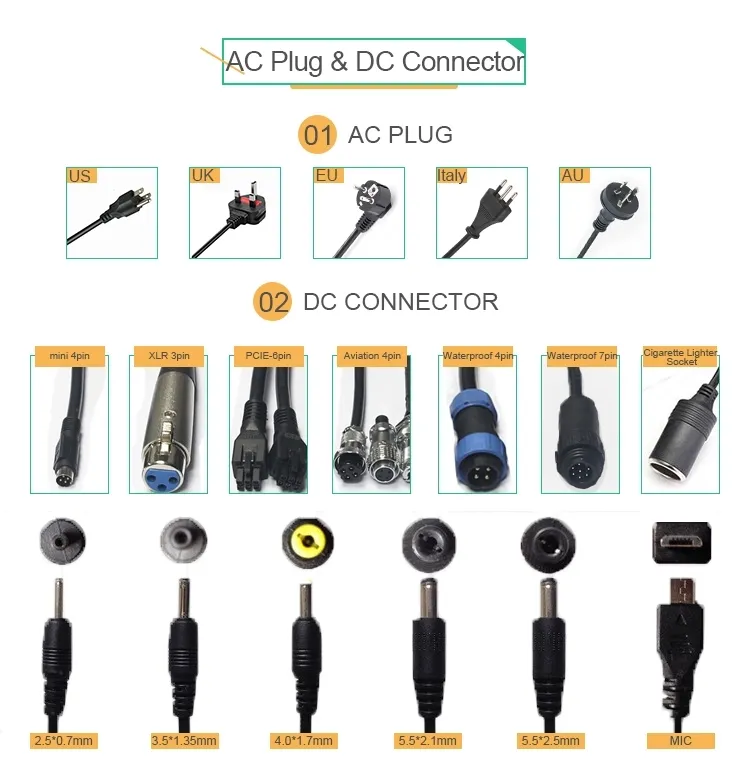

| DC Connector | 5.5*2.1mm or 5.5*2.5mm(Customized available) |
| DC Cable | 0.9M,1.2M, 1.5M(Customized available) |
| AC Cable | 1.2m ac cable with USA/UK/EU/AU/India Plugs(Customized available) |

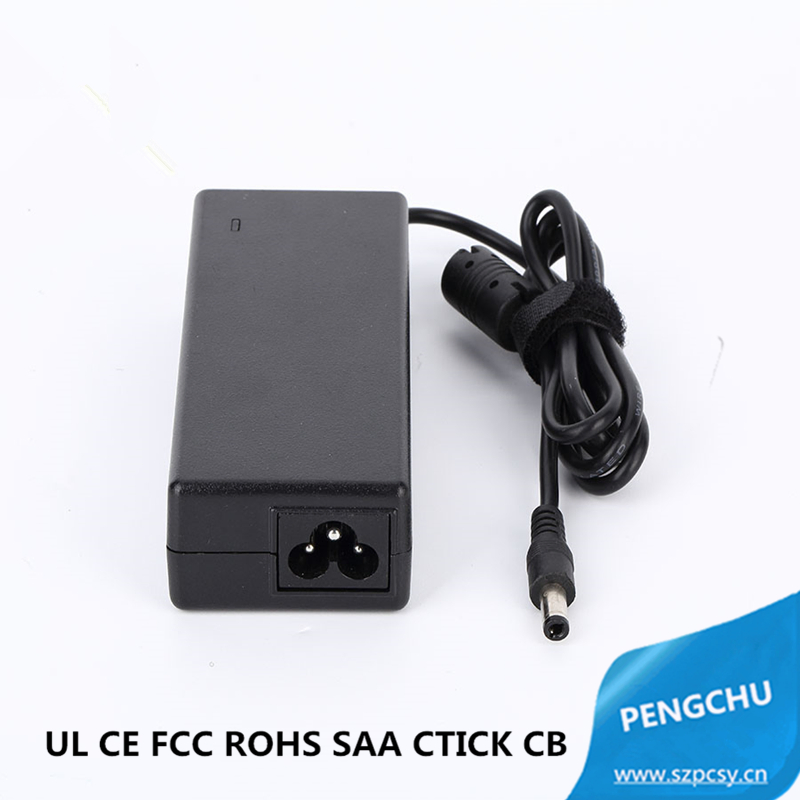

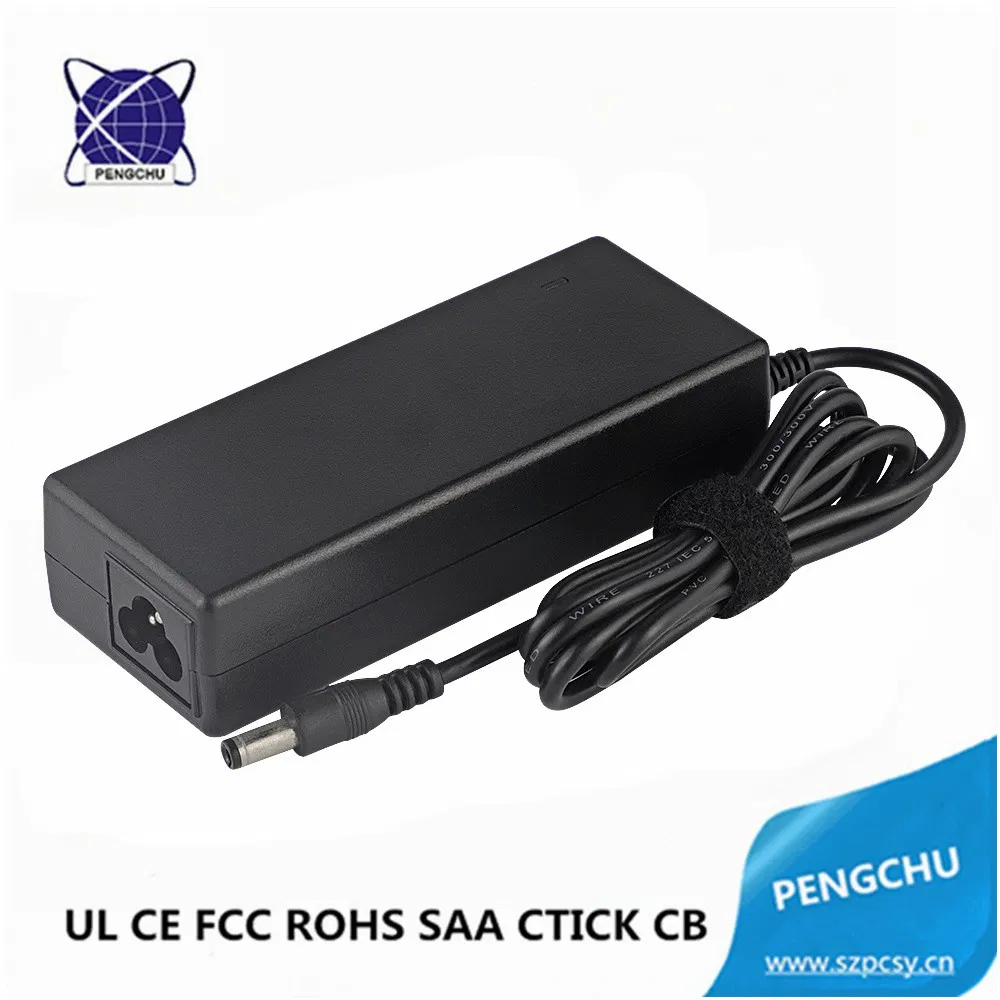

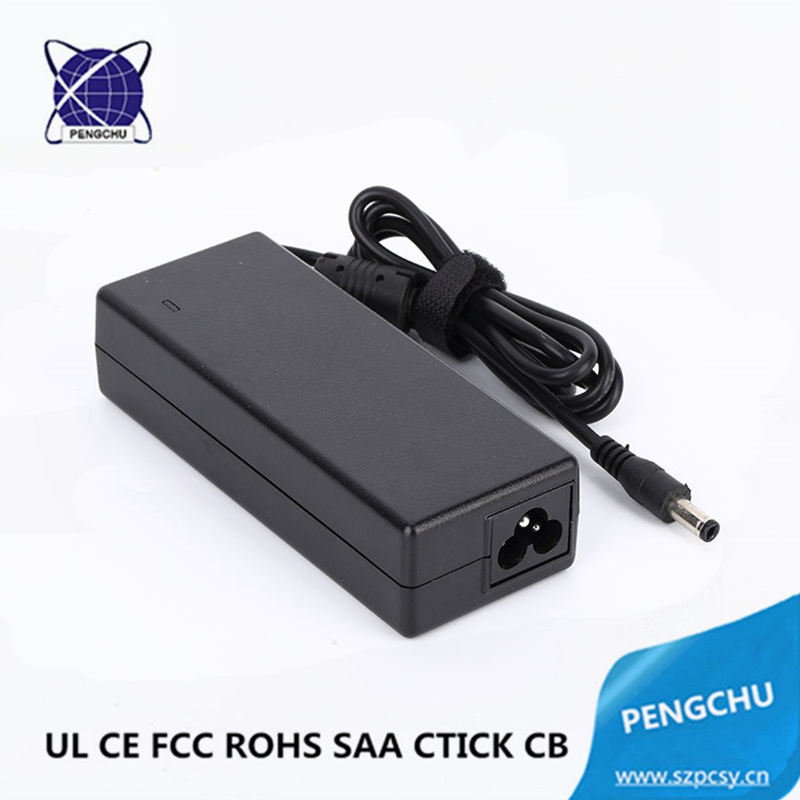

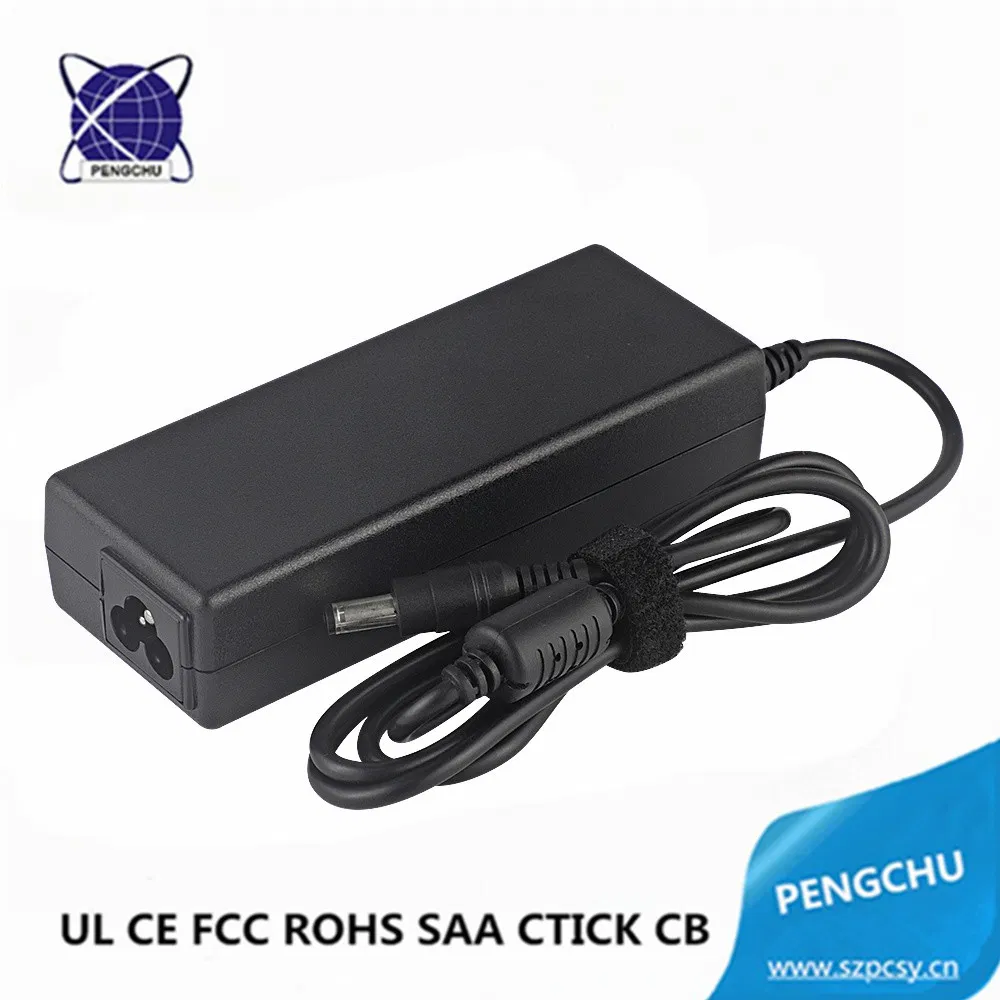

Product show:
