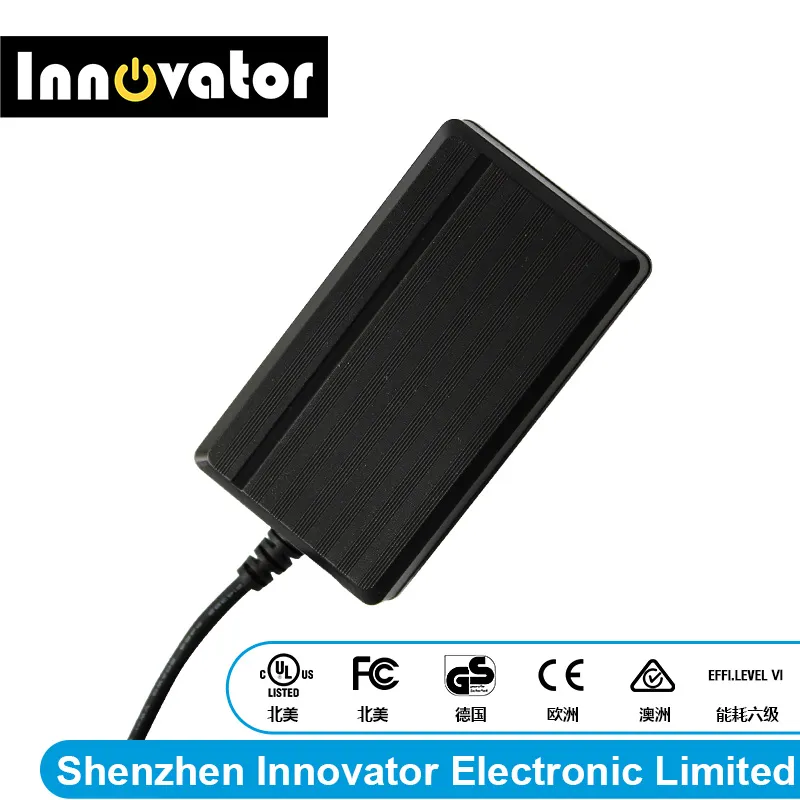

              12V 2V 24W Series Black AC DC Power Adapter
              • 12V 2V 24W Series Black AC DC Power Adapter12V 2V 24W Series Black AC DC Power Adapter
              • 12V 2V 24W Series Black AC DC Power Adapter12V 2V 24W Series Black AC DC Power Adapter
              • 12V 2V 24W Series Black AC DC Power Adapter12V 2V 24W Series Black AC DC Power Adapter
              • 12V 2V 24W Series Black AC DC Power Adapter12V 2V 24W Series Black AC DC Power Adapter

              12V 2V 24W Series Black AC DC Power Adapter

              Product Description:Features:1.Built-in EMI filter2.100% full load burn-in test3.Low output ripple and noise4.Protection:Over load/Over voltage/Short circuit5.High efficiency,High reliability,Long lifetime Specifications24W 12V 2A wallmount type power supplyModel No.IC-1202000DC cord1.2m / 1.5m / 1.......

              Send Inquiry

              Product Description

              Product Description:

              Features:
              1.Built-in EMI filter
              2.100% full load burn-in test
              3.Low output ripple and noise
              4.Protection:Over load/Over voltage/Short circuit
              5.High efficiency,High reliability,Long lifetime

              Specifications
              24W 12V 2A wallmount type power supply
              Model No.IC-1202000

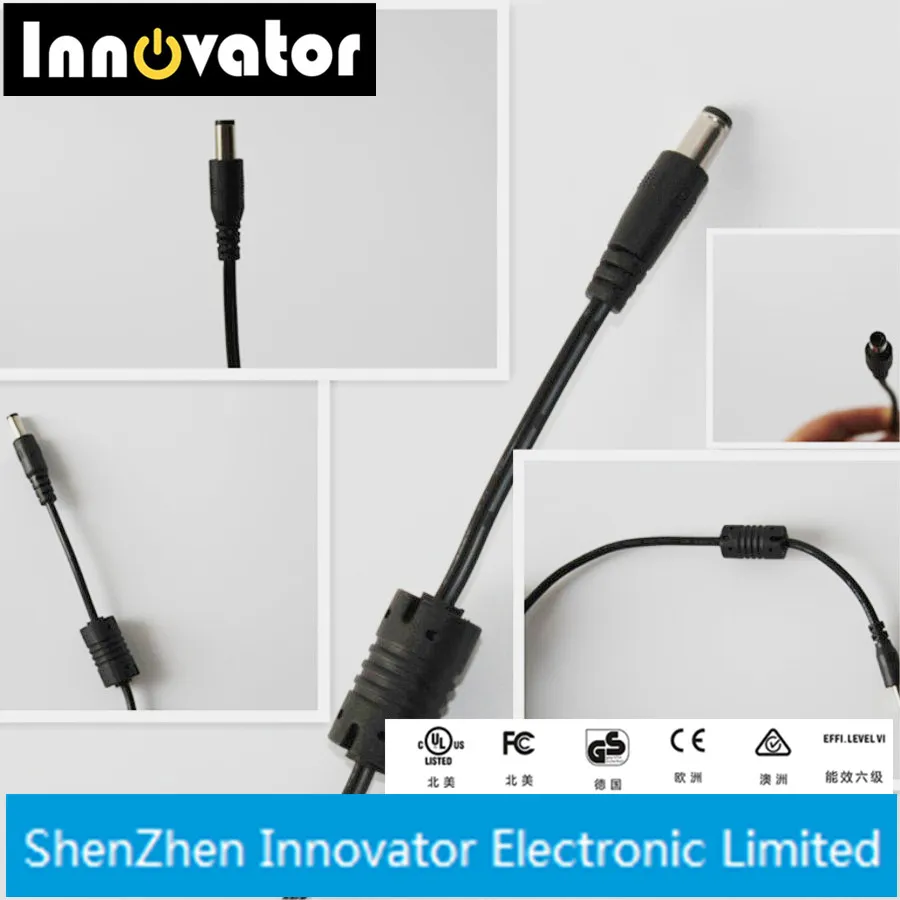

              DC cord1.2m / 1.5m / 1.8m
              DC jackUSB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin

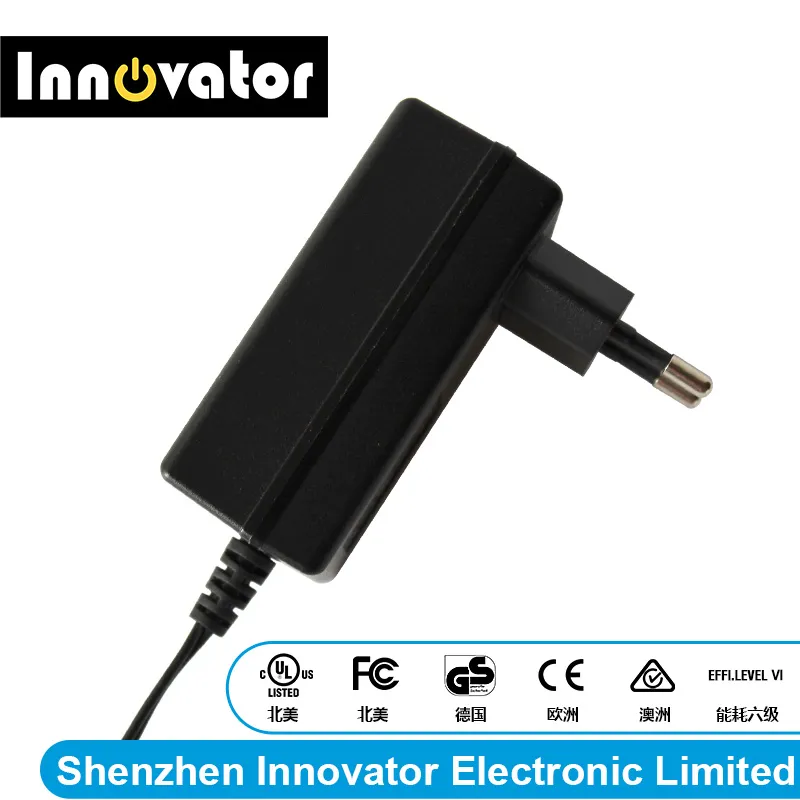

              AC plugUS UK AU EU KR IN etc
              AC Input
              Input current1.5AMax
              Input Voltage Range100-240V
              Input Frequency Range47/63Hz
              DC Output
              Output Voltage Range12V
              Output Current Range3A
              Output Power36W Max
              Environment
              Operating Temperature0°C ~40°C
              Protection
              Over Load ProtectionYes
              Over Current Protection
              Short Circuit Protection
              Over Temperature Protection
              Certificates
              CE, ROHS,  FCC, SAA, TUV&GS, UL, Erp V CEC RoHS
              Terms and Conditions
              Unload standly power0.1W Min
              AC leakage Current0.25mA Max
              DIELECTRIC STRENGTH Hi-Pot3000Vac/5mA/5s
              Insulation resistance10MΩMin at 500V DC
              Surge2KV
              SAFETY STANDARDUL60950,IEC60950,UL60065
              EMC STANDARDEN55020/EN55024
              MOQ500-1000pcs
              Warranty12months
              Delivery date18 days for mass production, 3-5 days for samples
              PaymentT/T , L/C ,Paypal
              Trade termsFOB Shenzhen
              Package

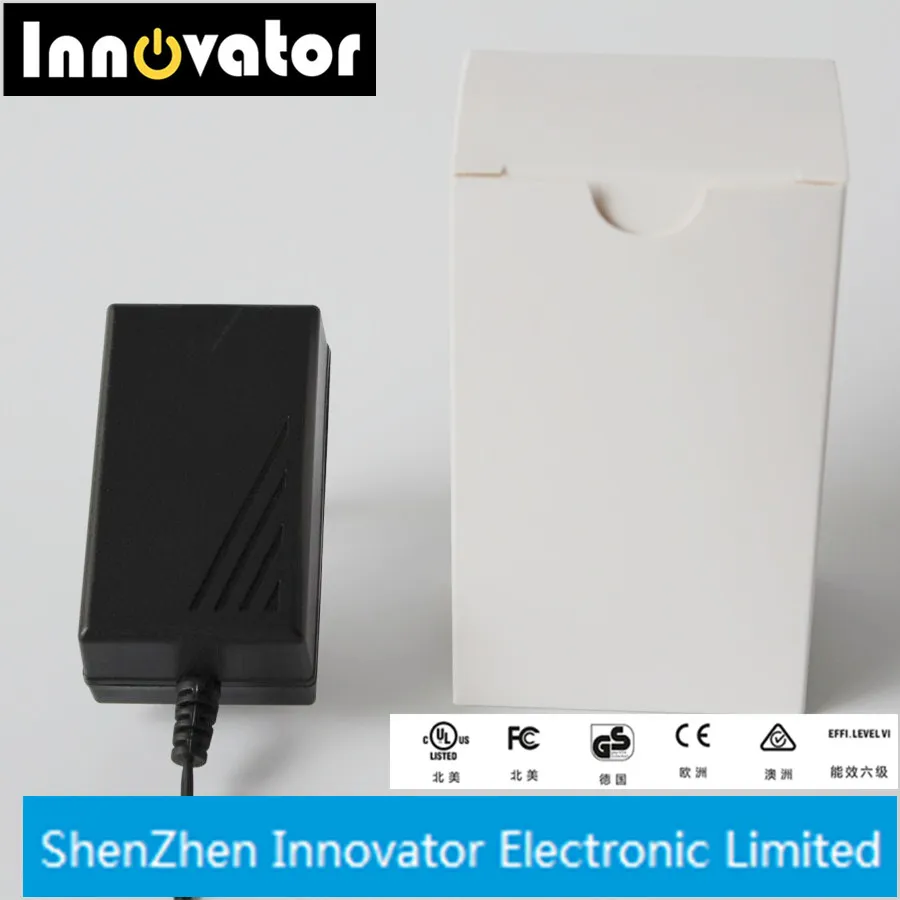

              PE bag + inner box+ Carton
              Warranty
              Warranty1 year

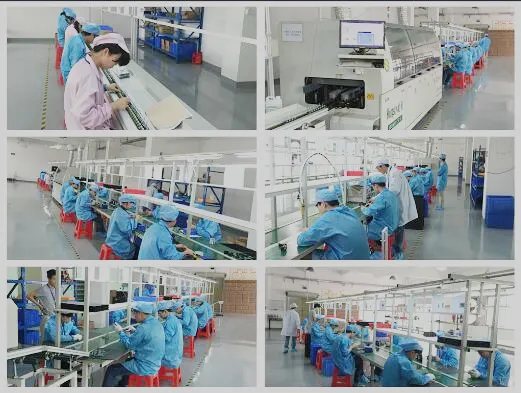

              Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply/LED ultra thin light box power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply  products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!
              Our Advantages
              As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
              Application of Products
              With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include-   -- Billboards   --LED Lighting  --Display screen  --Printer  --CCTV camera  --Laptop  --Audio  -- Telecommunication  --STB    -- Intelligent robot
