Product Description

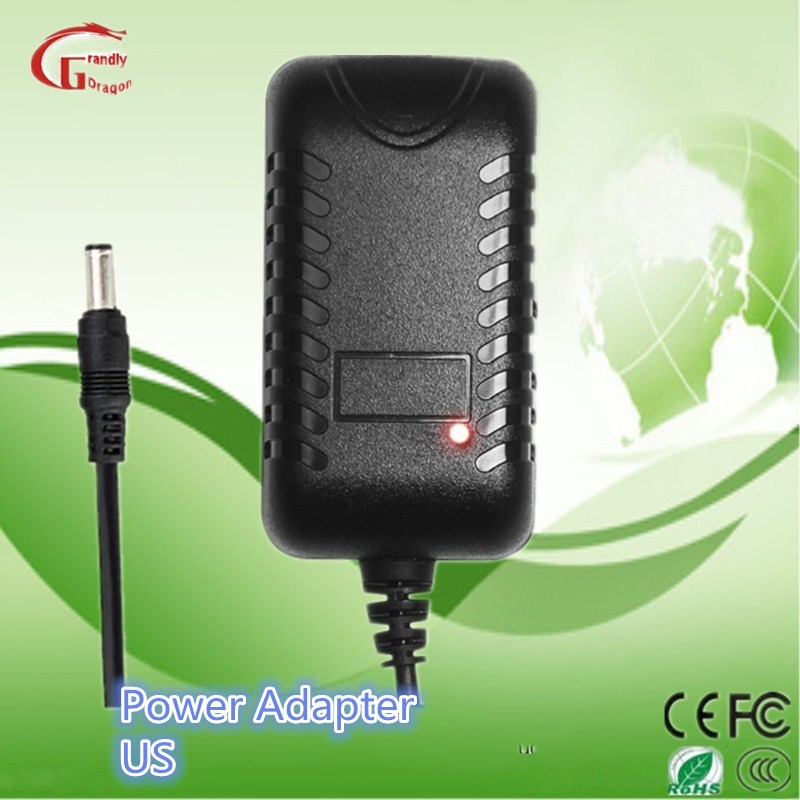

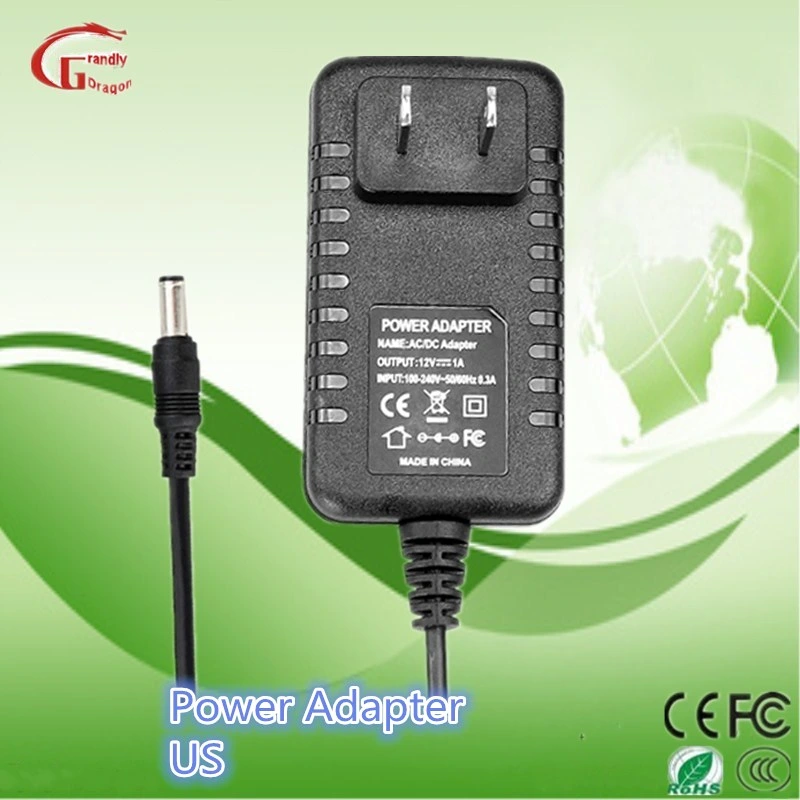

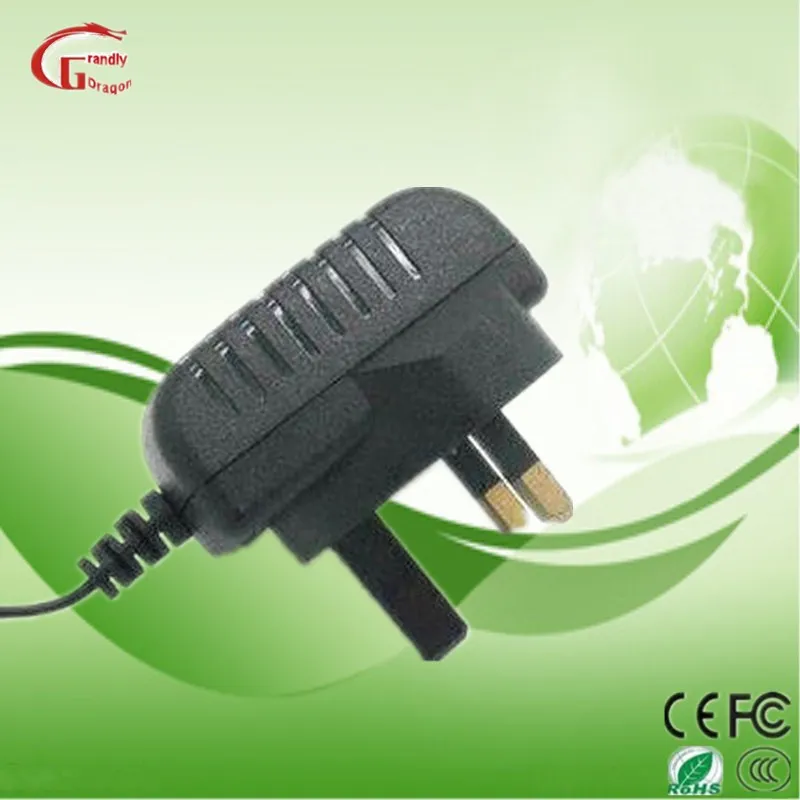

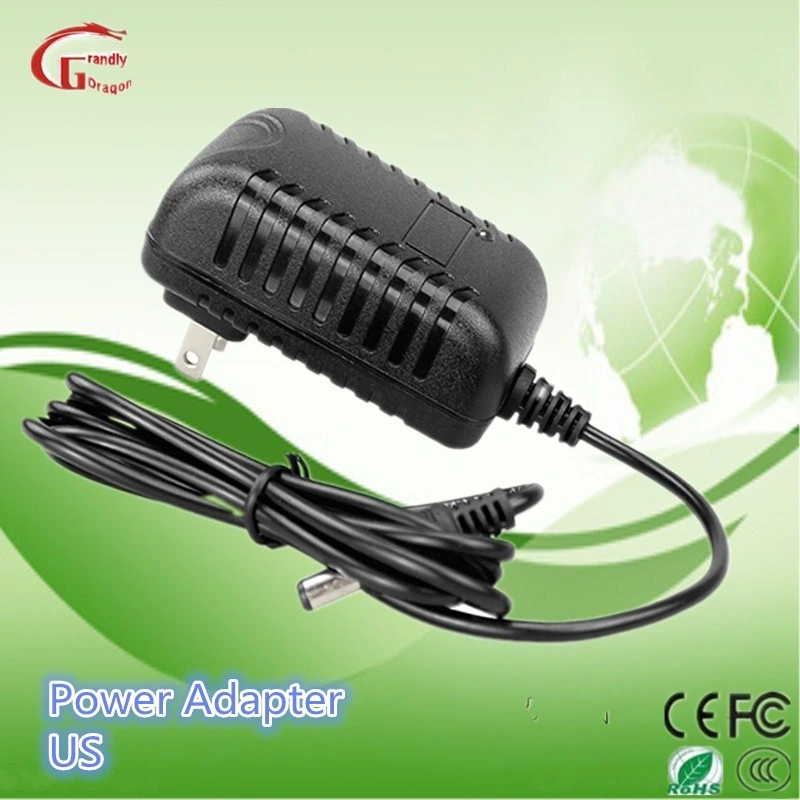

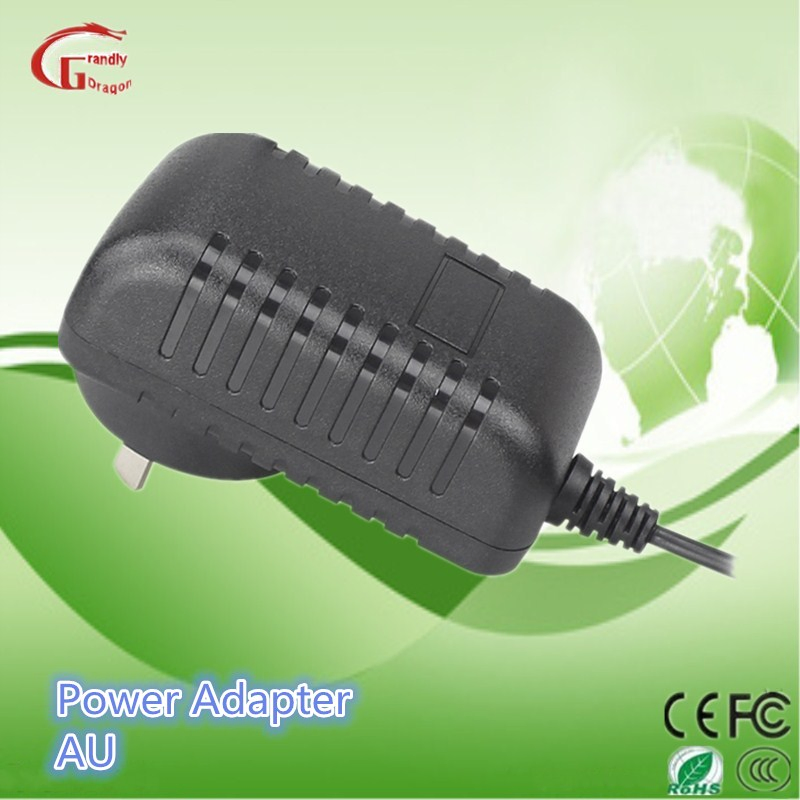

110V/220V AC 12V2a AC DC Adapter Wall Mount Power Adapter Charger
Specifications
Vin | Safety Approvals Input Voltage Range | 100~240Vac | |
Operate Voltage Range | 90~264Vac | ||
Fin | Input Frequency | 50/60Hz | |
Po | Output Power | 24W | |
Vo | Output Voltage | 12 VDC +/-5% | |
Io | Output Current | 2A | |
IiI | Input Current Low Line | Io=Full load, Vin=100VAC | 2.5A |
Iih | Input Current High Line | Io=Full load, Vin=240VAC | 1.2A |
Ir | Inrush Current Low Line | Io=Full load, 25ºC ,Cool start,Vin=115Vac | 30A |
Inrush Current High Line | Io=Full load, 25ºC ,Cool start,Vin=230Vac | 40A | |
Eff | Efficiency | Io=Full load,Vin=230Vac | 88% |
REG-i | Line Regulation | Io=Full load | 0.5~2% |
REG-o | Load Regulation | Vin=230Vac | 4~5% |
OCP | Over Current Protection | Auto recovery | 120~150% |
Ttr | Time of Transient Response | Io=Full load to Hakf Load, Vin=100Vac | 4mS Max. |
Th | Hold-up Time | Io=Full load, Vin=110Vac | 10mS Min. |
Ts | Start Up Time | Io=Full load, Vin=100Vac | 3S Max. |
Vp-p | Ripple & Noise Peak to Peak | Io=Full load, Vin=90Vac | 1% Max. |
Ilk | Safety Ground Leakage Current | Vin=240Vac/60Hz | 0.75A Max. |
TC | Temperature Coefficinet | All output | +/-0.04%/ºC |
Pno | No-Load Power Consumption | No load, Vin=230Vac | 0.21W |
Vps | Dielectric Withstanding Voltage | Primary to secondary | 3750Vac Min./3S FAQ |
