Why Does a 24 kV Voltage Transformer Need Regular Maintenance and Calibration

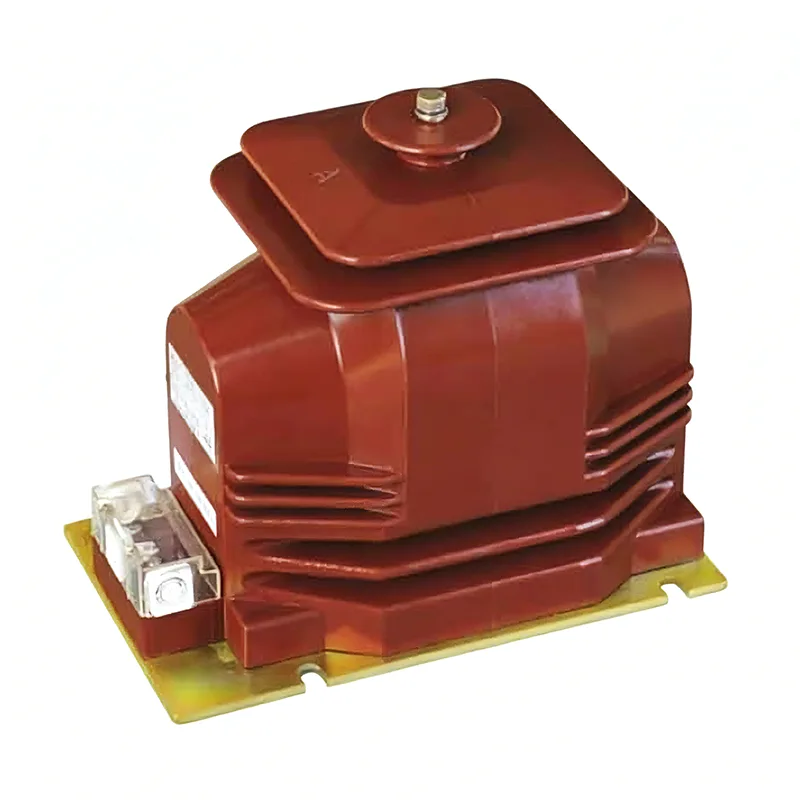

A 24 kV Voltage Transformer plays a critical role in medium voltage switchgear, providing accurate voltage signals for metering, protection, and control systems. At Youbian, we have seen how even minor drift or insulation degradation in a 24 kV Voltage Transformer can lead to incorrect billing, false tripping, or catastrophic failure. Regular maintenance and calibration are not optional—they are essential for safety, accuracy, and long-term reliability.

The Core Reasons for Routine Care

A 24 kV Voltage Transformer operates under continuous electrical and thermal stress. Over time, factors such as moisture ingress, partial discharge, burden variation, and aging insulation affect its performance. Without scheduled service, the device may still "work," but its output may no longer be trustworthy.

Youbian recommends a structured maintenance and calibration plan based on IEC 61869 and local utility standards. The table below summarizes the main risks and the corresponding maintenance actions.

Key Maintenance and Calibration Tasks

1. Visual and mechanical inspection – Check for cracks, corrosion, oil leaks, and tightness of primary and secondary terminals on the 24 kV Voltage Transformer.

2. Insulation resistance test – Verify the integrity of primary and secondary windings to ground.

3. Ratio and phase error calibration – Confirm the transformation ratio and phase displacement meet accuracy class requirements.

4. Burden test – Ensure the connected burden does not exceed the rated burden of the 24 kV Voltage Transformer.

5. Partial discharge measurement – Detect early signs of insulation degradation.

6. Secondary circuit verification – Check wiring, grounding, and fuses for reliable signal transmission.

Youbian provides calibrated reference standards and on-site calibration services that minimize downtime while ensuring traceability.

Why Calibration Cannot Be Skipped

Calibration ensures that the 24 kV Voltage Transformer delivers a proportional and phase-correct secondary voltage. A drift of even 1% can cause significant revenue loss in metering applications or unnecessary tripping in protection schemes. Regular calibration also creates a documented history that supports predictive maintenance and extends the service life of the asset.

FAQ: Common Questions About 24 kV Voltage Transformer

How often should a 24 kV Voltage Transformer be maintained and calibrated?
A 24 kV Voltage Transformer should receive a visual inspection every 6 to 12 months, with full calibration at least every 2 to 3 years, or more frequently in harsh environments or critical substations.

What are the signs that a 24 kV Voltage Transformer needs immediate calibration?
Warning signs include unexplained metering discrepancies, frequent protection relay alarms, abnormal noise, overheating, or partial discharge activity. Any of these indicates the 24 kV Voltage Transformer should be tested without delay.

Can a 24 kV Voltage Transformer be calibrated on-site, or must it be sent to a laboratory?
Many calibration tasks for a 24 kV Voltage Transformer can be performed on-site using portable test sets, but full accuracy verification under reference conditions may require a laboratory. Youbian offers both on-site and laboratory calibration to match your operational needs.

Building a Reliable Maintenance Program

A successful program combines scheduled inspections, accurate records, and qualified personnel. Youbian supports utilities and industrial users with calibrated test equipment, technical training, and expert guidance tailored to each 24 kV Voltage Transformer installation. By treating maintenance and calibration as a continuous process, operators reduce failure risk and ensure compliance with safety and quality standards.

Contact us today to learn how Youbian can help you build a cost-effective maintenance and calibration plan for your 24 kV Voltage Transformer fleet.
