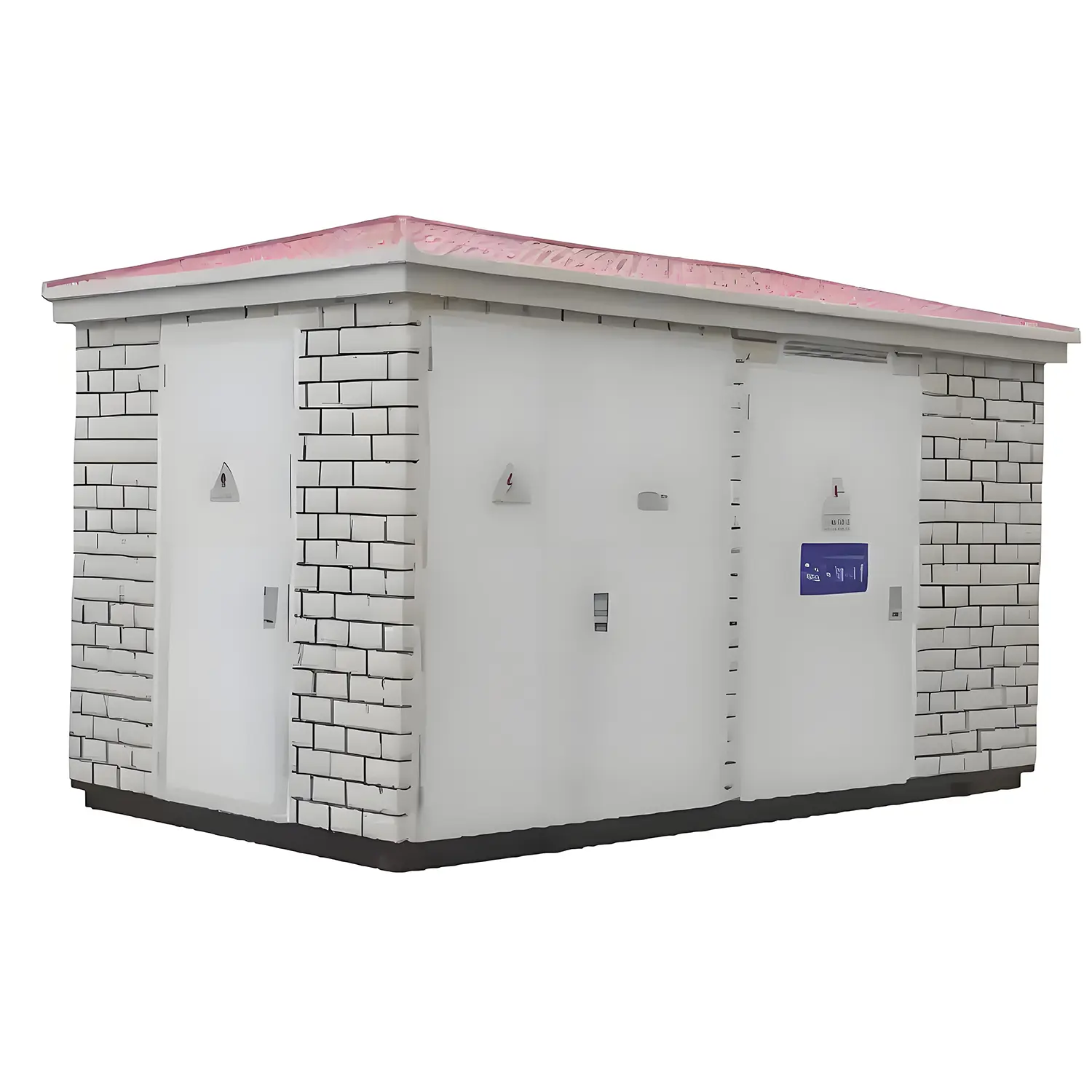

Why Are European Type Substations Known for Their Compact Design
2026-02-09
When optimizing power distribution networks for urban and industrial areas, space efficiency is a critical challenge. This is precisely where the European Type Substation excels, establishing a global benchmark for compact, reliable, and safe electrical infrastructure. At Lugao Power, we specialize in delivering these advanced solutions, integrating their intelligent design principles to maximize performance within minimal footprints. The renowned compactness of these substations is not accidental but the result of deliberate, innovative engineering choices.
Core Engineering Principles Behind the Compact Design
The space-saving advantage stems from several key integrated design features:
-
Modular, Prefabricated Construction: Components are assembled in controlled factory conditions by experts like our team at Lugao Power, leading to a significantly reduced on-site footprint and faster installation.
-
Gas-Insulated Switchgear (GIS) Technology: This is a pivotal factor. GIS uses sulfur hexafluoride (SF6) gas for insulation, allowing live components to be placed much closer together than in air-insulated systems, drastically cutting required space.
-
Integrated Protection and Control Systems: Advanced digital relays and control units are compactly housed within the switchgear panels, eliminating the need for separate, spacious control rooms.
Comparative Analysis: Compact Design Impact
The following table illustrates the tangible benefits of the compact European Type Substation design compared to traditional layouts:
| Feature | Traditional AIS Substation | European Type Compact Substation (with GIS) |
|---|---|---|
| Required Area | Large (100% baseline) | Can be up to 70% smaller |
| Installation Time | Long (on-site assembly) | Drastically reduced (prefabricated modules) |
| Environmental Resilience | Exposed components, vulnerable to weather | Sealed, highly reliable in polluted or humid environments |
| Safety & Accessibility | Live parts often accessible | Encapsulated live parts, enhancing operational safety |
European Type Substation FAQ
Q: Can a compact European Type Substation be as powerful as a larger traditional one?
A: Absolutely. Compactness does not compromise capacity or voltage level. The use of GIS technology allows these substations to handle medium and high-voltage applications efficiently. The design prioritizes intelligent layout and superior insulation, not a reduction in electrical performance.
Q: Is the higher initial cost of a European Type Substation justified?
A: Yes, when considering the total cost of ownership. The initial investment is offset by major savings in land cost, reduced construction time, lower maintenance needs due to sealed components, and minimal operational disruptions. For space-constrained projects, it is often the most economical long-term solution.
Q: How does Lugao Power ensure reliability in such a densely packed system?
A: At Lugao Power, we combine premium, certified components with rigorous factory testing. Every module undergoes complete dielectric, mechanical, and functional tests before shipment. Our design emphasizes not only compactness but also optimal thermal management and easy access for periodic maintenance, ensuring long-term reliability.
The compact design of the European Type Substation represents a smart, future-proof investment for modern power distribution. It solves critical space constraints while delivering enhanced safety, reliability, and lower lifecycle costs.
