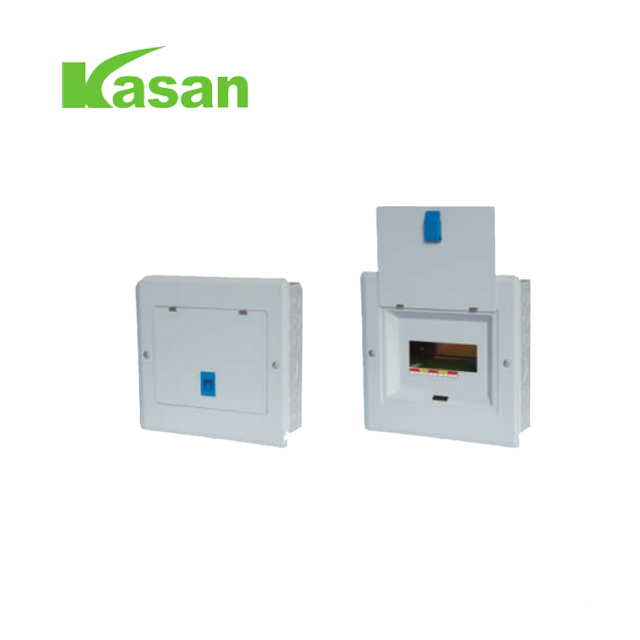

What Size Single Phase Electrical Distribution Box Do I Need for a 3-Bedroom House

Selecting the correct electrical panel is one of the most critical decisions for any homeowner or contractor. For a typical 3-bedroom residential property, the Single Phase Electrical Distribution Box serves as the central hub for all branch circuits, protecting appliances, lighting, and outlets from overloads and short circuits. Getting the sizing wrong can lead to nuisance tripping, fire hazards, or expensive rewiring work later. This is where Kasan, a trusted name in electrical distribution equipment, provides clear, code-compliant solutions tailored to modern household demands.

Step 1: Calculate Your Total Load Demand

The National Electrical Code (NEC) provides a standardized method for residential load calculations. For a 3-bedroom house, you must account for:

• General lighting and receptacle outlets (3 VA per square foot)

• Small-appliance branch circuits (two 1,500 VA circuits for kitchen)

• Laundry circuit (1,500 VA)

• Fixed appliances (water heater, dishwasher, garbage disposal)

• HVAC system (heating and cooling loads)

• Electric range or cooktop (8,000–12,000 VA typical)

Typical Load Breakdown for a 3-Bedroom Home

After applying NEC demand factors (first 10 kVA at 100%, remainder at 40%), the net calculated load typically falls between 80–100 amps for most 3-bedroom homes without electric heating. However, if you have a heat pump or electric resistance heating, that figure can jump to 125–150 amps.

Step 2: Determine the Minimum Main Breaker Size

Based on the above calculation, a 100-amp Single Phase Electrical Distribution Box is the absolute minimum for a 3-bedroom house with gas heating and a gas range. For all-electric homes, Kasan strongly recommends a 125-amp or 150-amp panel to accommodate future additions like EV chargers, solar inverters, or home battery systems. Upgrading to a larger bus rating (e.g., 200A) costs marginally more upfront but offers significant expansion headroom.

Step 3: Count the Number of Circuits (Spaces)

Physical spaces matter as much as amperage. A 3-bedroom home typically requires:

• 6–8 general lighting/receptacle circuits

• 2 dedicated kitchen small-appliance circuits

• 1 dedicated laundry circuit

• 1 dedicated dishwasher circuit

• 1 dedicated garbage disposal circuit

• 1 dedicated bathroom GFCI circuit (or shared with lighting)

• 1–2 HVAC circuits (condenser + air handler)

• 1 range circuit

• 1 water heater circuit

• Optional: EV charger, workshop, sump pump

That totals 16–24 branch circuits. Therefore, choose a Single Phase Electrical Distribution Box with at least 24 spaces (commonly called 24/32 or 30/40 panels). Kasan offers modular designs ranging from 12 to 42 spaces, with copper bus bars for superior conductivity and corrosion resistance.

Step 4: Consider Voltage and Phase Confirmation

In North America, residential single-phase power is delivered as 120/240V split-phase. Ensure your Single Phase Electrical Distribution Box is rated for 240V AC maximum with a frequency of 60 Hz. All Kasan panels are UL-listed and comply with NEC Article 408, featuring clearly labeled neutral and ground bars separated per code requirements.

Decision Table – Which Panel Size Should You Choose?

Frequently Asked Questions About the Single Phase Electrical Distribution Box

Q1: Can I install a 100A Single Phase Electrical Distribution Box in a 3-bedroom house and later upgrade to 200A without replacing the entire panel?

A1: It depends on the bus bar rating. Most 100A panels have bus bars rated only for 100A, so upgrading the main breaker to 200A would violate NEC 408.36 and create a fire risk. However, Kasan offers "convertible" panels where the bus bars are rated for 200A but shipped with a 100A main breaker. In that case, you can swap the main breaker later without replacing the enclosure. Always check the panel's label for the maximum bus rating before purchase. If your existing panel is not convertible, you must replace the entire Single Phase Electrical Distribution Box to upgrade service capacity.

Q2: How do I know if my current Single Phase Electrical Distribution Box has enough spaces for new circuits like an EV charger or a home office?

A2: Open the panel door and count the total number of single-pole slots (each slot is 1 inch wide for most brands). Subtract the number of already occupied slots. Tandem breakers (two circuits in one slot) can increase density, but NEC limits their use in certain positions. As a rule of thumb, if you have fewer than 4 free spaces, you should consider a larger panel. For a new EV charger (requires a 2-pole 40A or 50A breaker), you need 2 adjacent free spaces. Kasan panels feature a clear circuit directory and numbered slots, making it easy to perform this count in under 2 minutes.

Q3: What is the difference between a main-lug and main-breaker Single Phase Electrical Distribution Box, and which one is right for my 3-bedroom house?

A3: A main-breaker panel has a built-in large circuit breaker that serves as the service disconnect — this is required when the panel is the first point of entry after the utility meter. A main-lug panel does not have a main breaker; it relies on a separate disconnect upstream (e.g., at the meter base) and is typically used for sub-panels in garages or additions. For your primary 3-bedroom house, you need a main-breaker Single Phase Electrical Distribution Box because code requires a single means to shut off all power inside the dwelling. Kasan manufactures both types, but the main-breaker version (e.g., KS series with factory-installed main) is the standard choice for new construction and full service upgrades.

Final Recommendations from Kasan

For a typical 3-bedroom house (1,500–2,000 sq ft) with mixed gas/electric appliances, a 125A Single Phase Electrical Distribution Box with 30 spaces offers the best balance of cost, safety, and future flexibility. If you plan to add solar, a heat pump, or an EV charging station within the next five years, jump to a 150A or 200A panel today — the labor cost is identical, and the material price difference is minimal compared to a second upgrade.

Kasan panels are engineered with tin-plated copper bus bars, double-sided dead-front covers, and generous wiring gutters that make installation cleaner and faster. Every unit undergoes rigorous factory testing to ensure compliance with UL 67 standards.

Ready to Select the Right Panel? Contact Us Today

Choosing the correct Single Phase Electrical Distribution Box does not have to be complicated, but it must be done correctly. The Kasan technical team is available to review your specific appliance list, square footage, and future expansion plans — at no charge. We provide one-line diagrams, breaker coordination schedules, and same-day shipping on stocked models. Contact us through our website or call our support line to speak directly with a licensed electrical engineer. Let Kasan power your home safely, reliably, and code-compliant — from the meter to every outlet. Your project deserves a partner who understands both the code and the craft. Reach out now and secure your panel upgrade with confidence.
