What Size Refrigeration Power Distribution Box Do You Need for a 3-Phase Compressor System

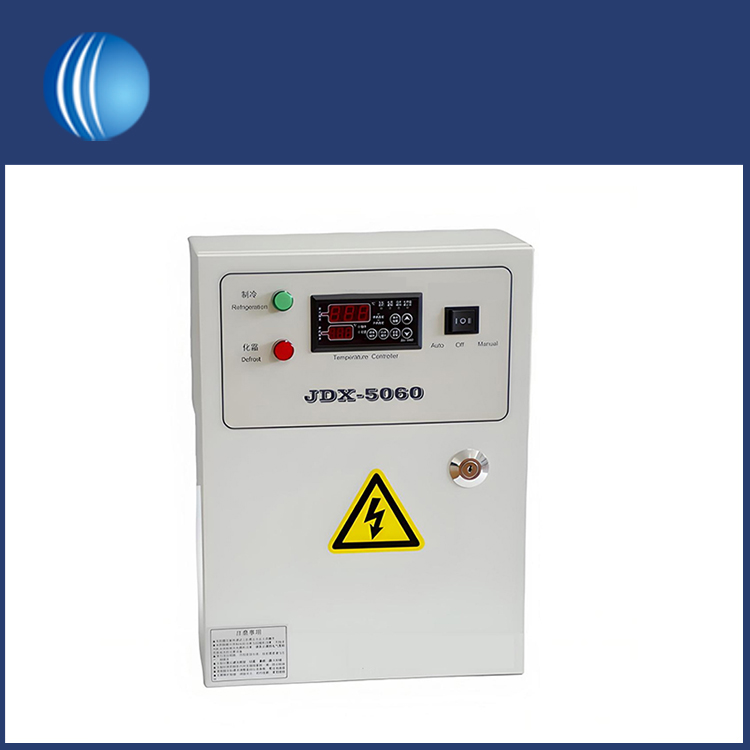

Selecting the correct capacity for a Refrigeration Power Distribution Box is one of the most critical decisions when installing or upgrading a 3-phase compressor system. An undersized unit leads to frequent tripping, voltage drops, and premature motor failure, while an oversized unit wastes capital and offers no additional protection. For commercial cold rooms, ice plants, and industrial blast freezers, the right Refrigeration Power Distribution Box must match the compressor’s locked rotor amperage (LRA), running load amperage (RLA), and startup surge characteristics. At Shouke Yuantuo, we engineer distribution solutions that align with IEC and NEMA standards, ensuring your 3-phase compressor operates within safe thermal and electrical limits from the first start to the last defrost cycle.

Step 1: Determine Your Compressor’s Full-Load Current

Every 3-phase compressor nameplate lists RLA (rated load amps) and LRA (locked rotor amps). The Refrigeration Power Distribution Box must have a main breaker rating at least 125% of the RLA per NEC 440.22, but never below the LRA’s instantaneous trip threshold. For example, a 10 HP 3-phase compressor at 460V typically draws 14–16 A RLA and 80–90 A LRA. In this case, a 25 A thermal-magnetic breaker inside the Refrigeration Power Distribution Box provides adequate overload protection while allowing momentary inrush without nuisance tripping.

Step 2: Factor in Voltage Drop and Cable Length

Distance between the main panel and the Refrigeration Power Distribution Box directly affects conductor sizing. For runs exceeding 50 feet, voltage drop must stay below 3% at full load. Use the table below to size your incoming supply and internal busbars:

Shouke Yuantuo recommends always sizing one class higher if ambient temperatures exceed 40°C, as heat derating reduces the effective current-carrying capacity of your Refrigeration Power Distribution Box components.

Step 3: Choose Between Direct-On-Line and Star-Delta Starters

3-phase compressors above 15 HP often employ star-delta or soft-start configurations. This changes the required internal layout of your Refrigeration Power Distribution Box. A star-delta system needs three contactors, a timing relay, and additional overloads, increasing the enclosure size from 400×500 mm to 600×800 mm minimum. For direct-on-line (DOL) starters, a compact Refrigeration Power Distribution Box with a single contactor and thermal relay suffices, but the breaker must be rated for 6× RLA inrush for at least 2 seconds. Shouke Yuantuo provides modular enclosures that accommodate both topologies without sacrificing IP54 or IP65 ingress protection.

Step 4: Account for Auxiliary Loads (Fans, Defrost Heaters, Controllers)

Modern refrigeration systems rarely run compressors alone. Evaporator fans, crankcase heaters, solenoid valves, and PLC controllers all draw power from the same Refrigeration Power Distribution Box. Add their steady-state currents to your RLA before applying the 125% rule. A common oversight is forgetting defrost heaters – a 3 kW heater adds 4.3 A at 415V. With two fans at 2 A each and a controller at 1 A, your total continuous load jumps by 9.3 A. Shouke Yuantuo designs distribution boxes with dedicated sub-circuits and individual miniature circuit breakers (MCBs) for each auxiliary, ensuring fault isolation does not shut down the entire system.

Step 5: Verify Short-Circuit Withstand Rating (SCCR)

The Refrigeration Power Distribution Box must have an SCCR equal to or greater than the available fault current at your facility. For 3-phase compressor systems near main transformers, fault currents often reach 10–25 kA. Standard 10 kA breakers are inadequate – you need 25 kA or 35 kA rated units. Every Shouke Yuantuo Refrigeration Power Distribution Box comes with a certified SCCR label, and we offer custom high-interrupting capacity (HIC) versions for locations with unstable grid conditions.

FAQ – Common Questions About Refrigeration Power Distribution Boxes

Q: Can I use a standard motor control panel instead of a dedicated Refrigeration Power Distribution Box for my 3-phase compressor?
A: Not recommended. Standard motor panels lack the specific defrost timing relays, pump-down logic, and low-pressure cut-off integration required for refrigeration duty. A dedicated Refrigeration Power Distribution Box includes anti-short-cycle timers (3–5 minutes) to protect the compressor from rapid cycling, which standard panels do not provide. Additionally, refrigeration boxes have sealed enclosures to prevent condensation on terminals – a feature absent in general-purpose motor controls. Using a non-dedicated panel voids most compressor warranties and increases maintenance costs by 40–60% over five years.

Q: How do I know if my existing Refrigeration Power Distribution Box is undersized for a new, higher-capacity compressor?
A: Perform a three-step verification. First, measure the new compressor’s RLA and LRA from the nameplate. Second, check the main breaker rating inside your current Refrigeration Power Distribution Box – if it is less than 125% of the new RLA, it is undersized. Third, monitor voltage at start-up with a true-RMS clamp meter; if the voltage drops below 90% of nominal during the first 3 seconds, the internal busbars and incoming cables are too small. In practice, if the new compressor has more than 20% higher RLA than the old one, replace the entire Refrigeration Power Distribution Box rather than retrofitting breakers, because contactors, overload relays, and terminal blocks also have finite ampacity limits.

Q: What protection features should a high-quality Refrigeration Power Distribution Box include beyond overcurrent and short-circuit?
A: A professional-grade Refrigeration Power Distribution Box must incorporate phase loss detection, phase imbalance monitoring (trip at >5% voltage unbalance), and reverse phase protection to prevent compressor reverse rotation. It should also feature an earth leakage protection module (30 mA or 300 mA depending on location) and a separate alarm output for remote monitoring. At Shouke Yuantuo, we integrate smart digital relays that log start counts, run hours, and trip histories – data that helps predict contactor wear and plan preventive maintenance. Enclosure heating elements are also vital in high-humidity cold rooms to avoid internal condensation, which is often overlooked but causes 70% of control circuit failures.

Final Sizing Summary Table

All Shouke Yuantuo boxes include copper busbars rated for 65 kA/1 sec, DIN-rail mounted components, and clear wiring diagrams laminated inside the door. We also provide custom silk-screening for your specific compressor model and refrigerant type.

Selecting the right Refrigeration Power Distribution Box is not a one-size-fits-all calculation – it demands careful analysis of motor data, cable distances, auxiliary loads, and fault conditions. Getting it wrong leads to costly downtime, spoiled inventory, and compressor burnout. Shouke Yuantuo has supplied over 2,300 distribution panels to cold-chain facilities across 40 countries, and our engineering team offers free load-analysis worksheets to verify your sizing before purchase.

Contact us today with your compressor nameplate photo and system voltage – we will reply within 4 business hours with a certified sizing proposal, 3D enclosure drawing, and a firm quote. Email [email protected] or use the live chat on our product page for immediate assistance. Your refrigeration system deserves a power backbone that matches its performance – let Shouke Yuantuo build that backbone for you.
