What Makes a Ring Main Unit Essential for Modern Power Distribution Systems?
2025-11-06
In today's fast-developing power infrastructure, reliability, safety, and efficiency are key. The Ring Main Unit (RMU) plays an indispensable role in ensuring uninterrupted electrical distribution for both industrial and urban applications. At Shanghai Zikai Electric Co., Ltd., we specialize in manufacturing high-quality Ring Main Units designed to meet the stringent demands of modern electrical networks. Our RMUs are engineered to deliver stable performance, easy installation, and long service life — all while ensuring maximum operator safety.
What Is a Ring Main Unit and How Does It Work?

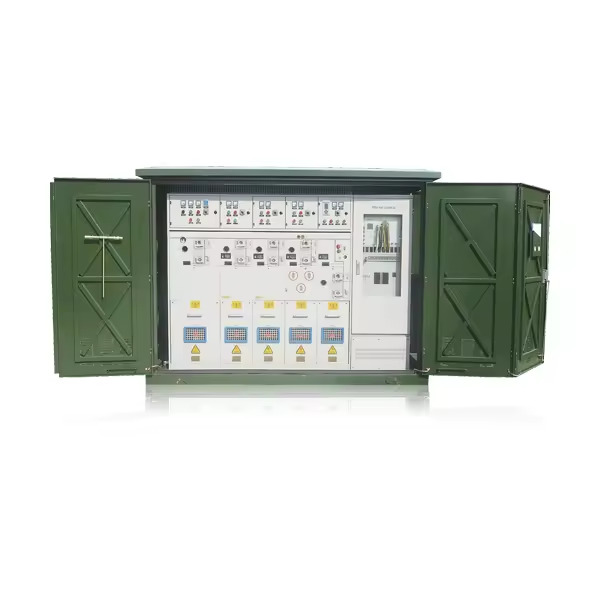

A Ring Main Unit (RMU) is a type of medium-voltage switchgear used in distribution networks, typically operating at 11kV to 33kV. It connects transformers, cables, and other electrical equipment in a ring configuration, ensuring that power can still flow even if one part of the network fails. This "ring" topology minimizes power interruptions and enhances the reliability of the electrical grid.
In simple terms, the RMU allows continuous operation and quick isolation of faults, ensuring that electricity supply remains stable even under maintenance or emergency conditions.
Main Features and Technical Parameters
The following table shows the typical technical parameters of our Ring Main Unit series from Shanghai Zikai Electric Co., Ltd.
| Parameter | Specification |
|---|---|
| Rated Voltage | 12kV / 24kV / 33kV |
| Rated Current | 630A / 1250A |
| Rated Short-time Withstand Current | 16kA / 20kA / 25kA (3s) |
| Rated Peak Withstand Current | 40kA |
| Insulation Medium | SF6 or Vacuum |
| Frequency | 50Hz / 60Hz |
| Protection Level | IP4X (enclosure), IP2X (compartment) |
| Operating Temperature Range | -25°C ~ +40°C |
These technical parameters reflect our focus on durability, precision, and compliance with international standards such as IEC 62271-200.
Function and Application of Ring Main Unit
The Ring Main Unit serves multiple essential purposes in electrical systems:
-
Power Distribution: Enables consistent electricity flow in medium-voltage networks.
-
Fault Isolation: Quickly disconnects faulty sections without affecting the rest of the grid.
-
Compact Design: Saves space, ideal for urban substations or commercial facilities.
-
Safety Protection: Equipped with arc-resistant features and interlocks to prevent misoperation.
-
Maintenance Efficiency: Allows section-wise maintenance without full power shutdown.
In my experience as a professional engineer, the RMU's reliability is its most impressive attribute — especially when supporting hospitals, airports, and data centers where power stability is non-negotiable.
Why Is the Ring Main Unit So Important in Power Systems?
Because it ensures continuity and reliability. Without an RMU, a single point of failure could disrupt an entire power network. With it, operators can reroute electricity almost instantly.
I often tell clients that installing a Ring Main Unit is like giving your power system a "safety loop." It protects the network from total outages and minimizes downtime — a must-have for smart grids and renewable integration.
Performance and Benefits
-
High Reliability: Continuous power supply through dual-feed design.
-
Enhanced Safety: Sealed switchgear minimizes gas leakage and operational risk.
-
Compact Structure: Suitable for limited installation spaces.
-
Low Maintenance: Long service intervals reduce operational costs.
-
Flexibility: Modular configuration allows easy expansion.
-
Eco-Friendly Options: Vacuum and SF6-free models available on request.
Practical Q&A on Ring Main Unit
Q1: Why should I choose a Ring Main Unit for my distribution network?
A1: Because it ensures continuous power even if one section fails. It provides an efficient, compact, and reliable solution ideal for both industrial and commercial applications.
Q2: How long does a Ring Main Unit last?
A2: With proper installation and minimal maintenance, an RMU from Shanghai Zikai Electric Co., Ltd. can operate efficiently for over 25 years.
Q3: Is the Ring Main Unit suitable for renewable energy systems?
A3: Absolutely. The RMU seamlessly integrates with solar and wind systems, offering safe switching, fault protection, and isolation for distributed generation networks.
Why Choose Shanghai Zikai Electric Co., Ltd.?
At Shanghai Zikai Electric Co., Ltd., we combine innovation, advanced manufacturing, and strict quality control to deliver world-class RMUs. Our products comply with ISO, IEC, and GB standards, ensuring global compatibility and safety.
We believe that every customer deserves a reliable energy solution tailored to their needs — and that's exactly what our Ring Main Unit delivers. Whether you are building a new substation or upgrading your existing network, our RMU provides the efficiency and security your system requires.
Conclusion
The Ring Main Unit is not just an electrical component — it's the backbone of a safe, efficient, and sustainable power distribution system. Investing in a high-quality RMU means investing in reliability, operational safety, and long-term value.
If you're ready to enhance your power infrastructure with our advanced Ring Main Unit solutions, contact us at Shanghai Zikai Electric Co., Ltd. today — our team of experts will be happy to assist you with customized configurations and technical support for your project.
