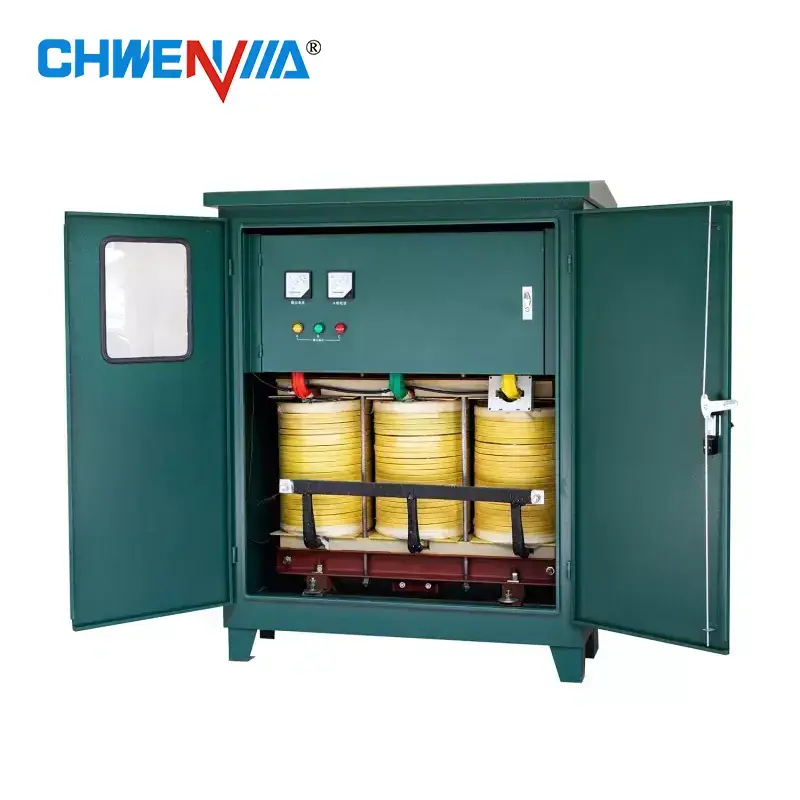

What Is the Proper Installation Process for a Mining Tunnel Step Up Transformer
2026-02-10
The reliable and safe distribution of electrical power is the lifeblood of any modern underground mining operation. At the heart of this critical system lies the Mining Tunnel Step Up Transformer, a device that boosts voltage to efficiently transmit power over long distances with minimal losses. A flawless installation is paramount, as any oversight can lead to operational downtime, safety hazards, and costly repairs. This guide, drawing on Wenma's extensive engineering expertise, outlines the professional installation process to ensure optimal performance and longevity for your transformer.
Professional Installation Process: A Step-by-Step Guide
A proper installation extends far beyond simply placing the unit. It is a systematic procedure that prioritizes safety and precision.
-
Pre-Installation Site Assessment & Planning
-
Conduct a thorough survey of the designated substation location within the mining tunnel.
-
Verify clearances for ventilation, maintenance, and safety as per MSHA and IEC standards.
-
Ensure the foundation baseplate is perfectly level, structurally sound, and properly grounded.
-
-
Rigging, Handling, and Positioning
-
Use certified lifting equipment and slings rated for the transformer's weight.
-
Carefully lower the unit onto the prepared baseplate, avoiding any sudden impacts or shocks.
-
Align the transformer according to planned cable entry and exit points.
-
-
Electrical Connections and Bonding
-
De-energize all primary circuits and follow lock-out/tag-out (LOTO) protocols.
-
Securely connect high-voltage and low-voltage cables using proper lugs and torque specifications.
-
Establish a robust equipotential ground bond between the transformer tank and the site's grounding grid.
-
-
Final Commissioning Checks
-
Perform insulation resistance (megger) tests on all windings.
-
Verify the accuracy of protective devices like relays and fuses.
-
Conduct a final visual inspection for any loose hardware or debris before initial energization.
-
Key Pre-Installation Considerations (Table)
| Factor | Wenma Recommendation | Rationale |
|---|---|---|
| Environment | Confirm IP65 (or higher) rating for dust & moisture resistance. | Prevents internal contamination and insulation failure in harsh mining tunnel conditions. |
| Ventilation | Ensure adequate airflow per transformer's heat dissipation rating. | Prevents overheating, preserves insulation life, and maintains rated capacity. |
| Access | Plan for clear maintenance access to bushings, tap changers, and gauges. | Enables safe routine checks and any necessary future servicing. |
Mining Tunnel Step Up Transformer FAQ
Q: Why is proper grounding so critical for these transformers?
A: Effective grounding is the cornerstone of safety. It provides a low-resistance path for fault currents to trip protective devices instantly, prevents dangerous voltage potential on the tank, and is essential for the correct operation of surge arresters, shielding equipment from transient voltages common in mining power networks.
Q: How often should a newly installed transformer be inspected?
A: After initial energization, a Wenma transformer should undergo a thorough thermal inspection (using infrared cameras) at the first 24-hour and 1-week marks to check for abnormal heating at connections. Subsequently, a routine monthly visual and quarterly comprehensive inspection schedule should be established to monitor oil levels, silica gel breathers, and electrical integrity.
Q: Can a standard step-up transformer be used in a mining environment?
A: No. A dedicated Mining Tunnel Step Up Transformer from a specialist like Wenma incorporates critical design features such as reinforced construction, corrosion-resistant materials, sealed bushings, and higher ingress protection (IP) ratings to withstand vibration, humidity, conductive dust, and corrosive atmospheres that would rapidly degrade a standard unit.
A correctly installed Mining Tunnel Step Up Transformer is a long-term investment in your operation's productivity and safety. By adhering to these professional protocols and choosing engineered solutions from reputable brands like Wenma, you ensure a robust power infrastructure. Wenma's transformers are built for the most demanding subterranean conditions, delivering unmatched reliability.
Contact us today to discuss your specific project requirements. Let our engineering team provide you with a detailed specification and installation plan for your Mining Tunnel Step Up Transformer needs.
