What Are the Main Applications of a GGD Low Voltage Power Distribution Cabinet in Industrial Settings
2026-08-21

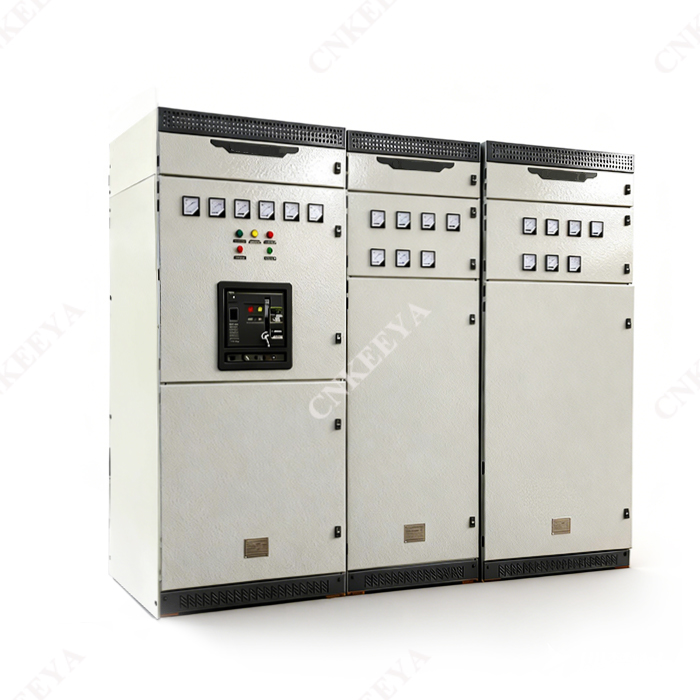

The GGD Low Voltage Power Distribution Cabinet is a fixed-panel switchgear widely deployed across manufacturing plants, energy facilities, and infrastructure projects. As a robust solution for 380V–690V AC systems, this cabinet type offers high breaking capacity, thermal stability, and ease of maintenance. At CNKEEYA, we engineer GGD Low Voltage Power Distribution Cabinets with modular busbar systems and IP30–IP40 protection, ensuring reliable power distribution even in demanding industrial environments. Understanding where and how this equipment adds value helps engineers, procurement managers, and facility operators make informed investment decisions.
Core Industrial Applications
The GGD Low Voltage Power Distribution Cabinet serves as the backbone of secondary power distribution. Below is a breakdown of its primary use cases across major industrial sectors:
| Industry Sector | Typical Applications | Key Benefits of GGD Cabinet |
|---|---|---|
| Heavy Manufacturing | Steel mills, cement plants, paper mills | High short-circuit withstand (up to 50kA), dust-resistant enclosures |
| Automotive Assembly | Paint shops, conveyor systems, robotic welding lines | Modular layout for quick circuit expansion, side-outlet wiring |
| Chemical & Petrochemical | Pump controls, compressor stations, heating systems | Corrosion-resistant coatings, IP40 protection against chemical vapors |
| Data Centers | UPS distribution, cooling tower feeders, backup generator panels | Low impedance busbar, high thermal dissipation for 24/7 loads |
| Water/Wastewater Treatment | Aeration blowers, sludge pumps, filtration banks | Humidity-tolerant design, easy access for periodic terminal tightening |
| Mining & Quarries | Crusher feeders, conveyor belts, ventilation fans | Heavy-gauge steel construction, vibration-resistant busbar supports |
| Renewable Energy | Solar inverter AC combiner boxes, wind turbine auxiliary supplies | Flexible incoming/outgoing arrangements, compatibility with smart metering |
Beyond these verticals, the GGD Low Voltage Power Distribution Cabinet is also specified for commercial high-rises, shopping complexes, and hospital backup systems—wherever centralized control and fault isolation are non-negotiable.
Technical Features That Enable Versatility
What makes the GGD Low Voltage Power Distribution Cabinet so widely adopted? Its fixed, compartment-free design allows for full-frontal maintenance, reducing mean time to repair (MTTR). The cabinet accommodates universal circuit breakers, contactors, and thermal relays from major brands, while the busbar system (copper or aluminum) is rated for 630A to 3150A. CNKEEYA enhances this platform with double-sided cable entries, transparent inspection windows, and optional anti-condensation heaters for high-humidity zones.
Compared to draw-out types like GCK or GCS, the GGD Low Voltage Power Distribution Cabinet offers a lower upfront cost and simpler mechanical interlocking, making it the preferred choice for projects where frequent switching operations are not required.
GGD Low Voltage Power Distribution Cabinet – FAQ
Q1: Can the GGD Low Voltage Power Distribution Cabinet be used as a main incoming panel for a 2000kVA transformer?
A: Yes. The GGD Low Voltage Power Distribution Cabinet supports main incoming currents up to 3150A, which comfortably covers a 2000kVA transformer at 400V (approx. 2887A). However, you must verify the short-circuit withstand capacity of the chosen model—CNKEEYA offers variants from 35kA to 65kA. Also ensure the incoming breaker’s breaking capacity matches the transformer’s impedance and upstream protection coordination study. For transformers above 2500kVA, we recommend a parallel cabinet configuration.
Q2: How does the GGD Low Voltage Power Distribution Cabinet handle harmonic distortion from variable frequency drives (VFDs)?
A: While the GGD Low Voltage Power Distribution Cabinet itself does not actively filter harmonics, its generously sized copper busbars and low-inductance layout minimize voltage distortion caused by high-frequency currents. For severe harmonic loads (e.g., >30% THD), CNKEEYA recommends installing passive or active harmonic filters inside adjacent feeder sections. Additionally, we can supply the cabinet with oversize neutral busbars (200% rated) and dedicated filter mounting brackets—a standard option in our harmonic-ready GGD series.
Q3: What routine maintenance does a GGD Low Voltage Power Distribution Cabinet require in a cement factory environment?
A: In dust-laden sites, the GGD Low Voltage Power Distribution Cabinet demands a quarterly maintenance schedule: (1) vacuum-clean busbar compartments and breaker terminals to prevent tracking; (2) torque-check all bolted connections to manufacturer specifications (typically 70–80 N·m for M12 bolts); (3) inspect thermal-magnetic trip units for calibration drift; (4) test door interlocks and grounding continuity. CNKEEYA provides a laminated maintenance checklist with every cabinet, and we offer remote diagnostic kits that log internal temperature/humidity for predictive upkeep.
Why Choose CNKEEYA for Your GGD Cabinet Needs
With over 15 years in low-voltage switchgear manufacturing, CNKEEYA integrates ISO 9001 production processes with full type-test reports from recognized labs. Every GGD Low Voltage Power Distribution Cabinet leaving our workshop undergoes 72-hour burn-in testing, dielectric withstand tests (2.5kV/1min), and primary current injection validation. Our engineering team customizes outgoing circuit counts, cable entry positions, and even painting colors (RAL 7032 or 9005) to match your site requirements.
Furthermore, CNKEEYA provides full 2D/3D layout drawings, single-line diagrams, and on-site commissioning support via our global partner network. We stock common spare parts (handles, indicators, fuse bases) for 10+ years, ensuring your GGD Low Voltage Power Distribution Cabinet remains serviceable over its entire lifecycle.
Get a Tailored Proposal Today
Selecting the right GGD Low Voltage Power Distribution Cabinet directly impacts plant uptime, safety compliance, and energy efficiency. Whether you are upgrading an old MCC room or designing a new substation, CNKEEYA offers free preliminary coordination studies within 48 hours. Contact our sales engineering team via the form below or email us at [email protected] – include your load schedule and single-line diagram, and we will return a dimensioned layout, bill of materials, and commercial quotation tailored to your industrial application. Your reliable power distribution starts with a conversation. Reach out to CNKEEYA today.
