What Are the Key Advantages of Using a Transparent and Visible Panel Multi-Circuit Switch Control Box Over Traditional Enclosures
2026-06-15

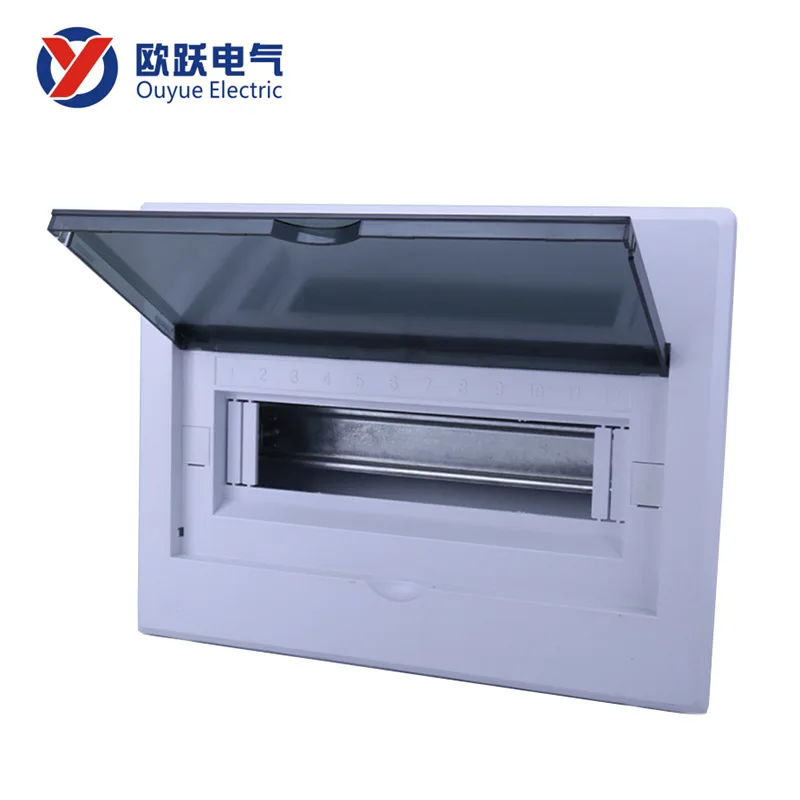

When managing multiple electrical circuits in industrial or commercial settings, the choice of enclosure directly impacts safety, efficiency, and maintenance costs. A Transparent and Visible Panel Multi-Circuit Switch Control Box from Ouyue offers distinct benefits compared to traditional opaque metal or plastic boxes. Below is a professional breakdown of why transparent visibility is becoming an industry standard.
Key Advantages at a Glance
| Feature | Transparent and Visible Panel Multi-Circuit Switch Control Box | Traditional Enclosures |
|---|---|---|
| Visual Inspection | Instant, no tools required | Requires opening the panel |
| Fault Detection | See burnt contacts or loose wires immediately | Delayed until scheduled inspection |
| Safety During Operation | Arc flash risk reduced (no need to open) | Higher risk when opening live panels |
| Maintenance Time | 50-70% faster diagnostics | Slow, step-by-step disassembly needed |
| Material Durability | Impact-resistant polycarbonate (IK08) | Metal (prone to rust) or ABS (brittle) |
Why Transparency Matters for Multi-Circuit Management
Traditional enclosures hide wiring and components behind solid doors. Technicians must open them for any check, exposing themselves to live parts. The Ouyue Transparent and Visible Panel Multi-Circuit Switch Control Box changes this completely. The clear lid allows operators to monitor LED indicators, switch positions, and wire conditions without breaking the safety seal.
For facilities running 24/7 operations, this means:
-
Zero downtime for routine visual checks
-
Early warning of overheating (discolored wires or terminals)
-
Reduced human error – seeing is verifying
Technical Comparison Table
| Parameter | Traditional Box | Ouyue Transparent & Visible Box |
|---|---|---|
| Material thickness | 0.8-1.2mm steel | 4mm clear polycarbonate |
| IP rating | IP40 to IP65 | IP65 to IP67 (same or better) |
| Multi-circuit labeling | External sticker only | Internal visible layout + external label |
| Inspection frequency | Monthly (requires opening) | Daily or weekly (visual only) |
| Average MTTR* | 45 minutes | 15 minutes |
*Mean Time To Repair
FAQ – Transparent and Visible Panel Multi-Circuit Switch Control Box – Common Questions
Q1: Is the Transparent and Visible Panel Multi-Circuit Switch Control Box durable enough for heavy industrial environments like metal shops or chemical plants?
A1: Yes, provided the model is correctly specified. Ouyue manufactures these boxes using UV-stabilized, impact-resistant polycarbonate (IK08 rating – withstands 1.7kg steel ball dropped from 300mm). For chemical resistance, polycarbonate performs well against most oils and mild acids but not strong alkalis or aromatic solvents. In extremely abrasive or solvent-heavy environments, an additional outer protective cover or a metal frame with a transparent window (customized by Ouyue) is recommended. Always check the specific IP and IK ratings on the data sheet.
Q2: Can I install a Transparent and Visible Panel Multi-Circuit Switch Control Box outdoors in direct sunlight without the clear cover yellowing or cracking?
A2: Yes, but only if the box uses UV-stabilized polycarbonate. Ouyue applies a UV-resistant coating and uses raw material with UV inhibitors, guaranteeing no functional yellowing for at least 8-10 years under normal outdoor exposure (per ASTM G155 testing). Traditional enclosures made of non-stabilized clear plastics will become brittle and yellow within 12-24 months. For extreme high-altitude or desert installations, Ouyue offers a special double-walled UV-grade version with an additional thermal barrier.
Q3: How do I clean the transparent panel without scratching it or reducing visibility?
A3: Use a soft microfiber cloth with mild soapy water or a dedicated polycarbonate-safe cleaner (pH 6-8). Never use dry paper towels, glass cleaners containing ammonia, alcohol above 15%, or abrasive pads. Ouyue provides a cleaning guide with every Transparent and Visible Panel Multi-Circuit Switch Control Box. For heavy grease or oil deposits, isopropyl alcohol diluted to 10% with distilled water is acceptable but rinse immediately. Scratches that do occur can be polished out using a fine plastic polishing compound (e.g., Novus #2), restoring optical clarity.
Conclusion – See the Difference with Ouyue
Moving from traditional blind enclosures to a Transparent and Visible Panel Multi-Circuit Switch Control Box is not just a cosmetic upgrade. It is a practical investment in faster diagnostics, lower arc flash risk, and continuous condition monitoring. Ouyue designs these boxes to meet global standards (CE, RoHS, IK/IP tested), offering transparency without compromising on protection.
Ready to upgrade your panel visibility? Contact us today – the Ouyue technical team provides free layout consulting, custom cutouts, and sample testing for your specific environment. Email [email protected] or visit our contact page for a quote within 24 hours.
